Sale price€174.90
No reviews
No reviews
SKU: IW-CS-515BLK-1AL120

Extended ATX

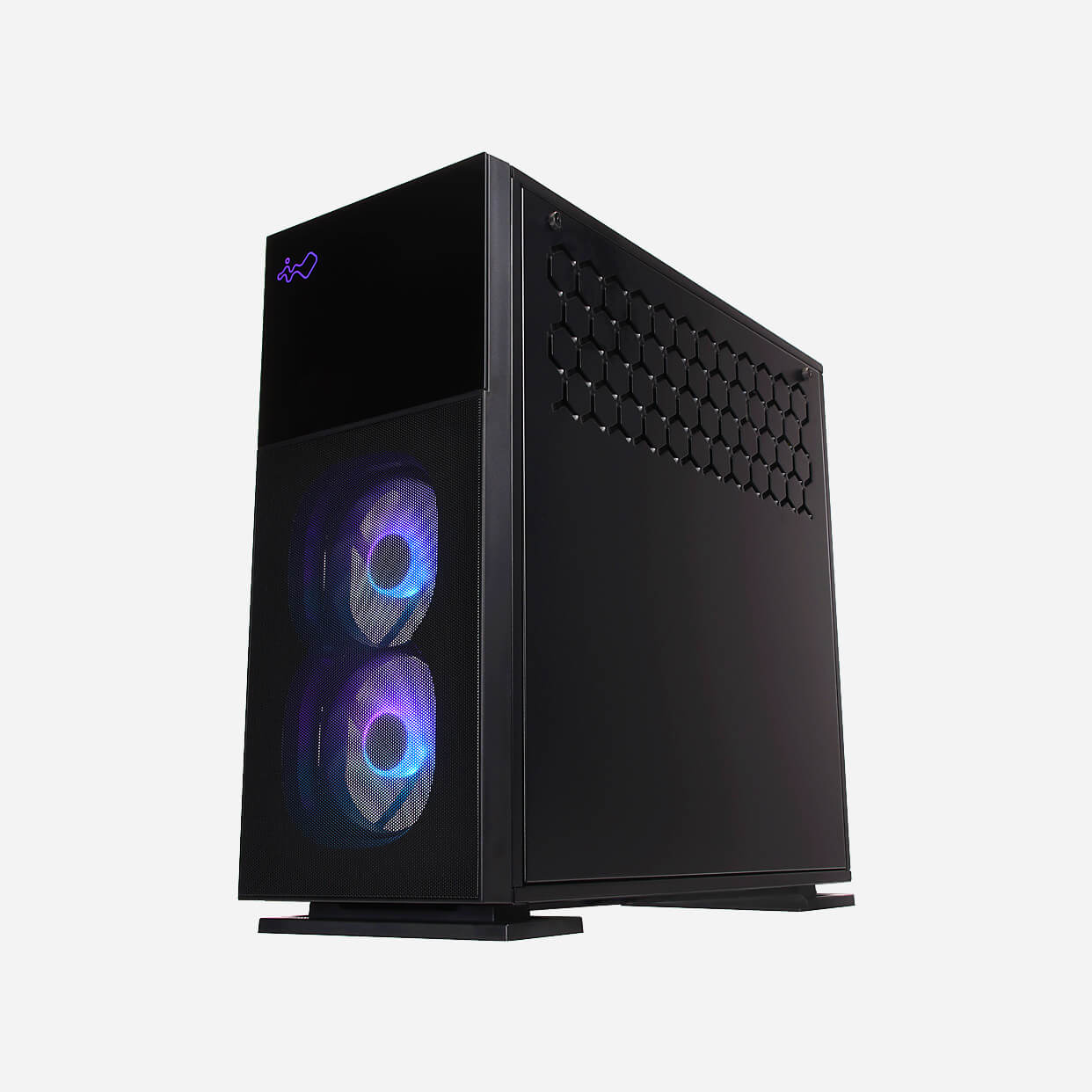

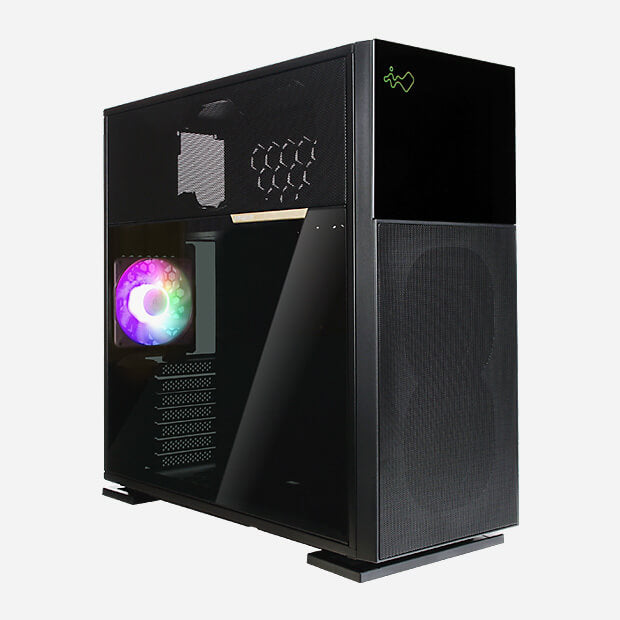

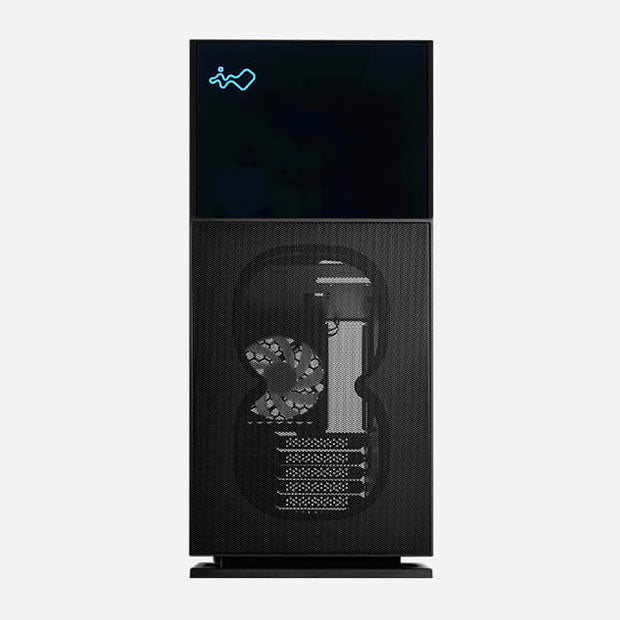

515 is a stunning computer chassis crafted from galvanized steel and 1.2 mm tempered glass. The distinctively clean panels are complemented with mesh to increase ventilation and showcase the bright LUNA case fan.

Color:Black
Quantity:
  1. Functional Mesh Design to Optimize Airflow
  2. A Sleek Look with Practicality in Mind
  3. Pre-installed High Performance Bright LUNA Case Fan
  4. Spacious Mid-Tower that Supports Full E-ATX

Specs

Model 515
Model Number

IW-CS-515BLK-1AL120

Colors Black
Case Type Mid Tower
Materials SECC, ABS, Tempered Glass
M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 7 x PCI-E
Maximum Compatibility VGA Card Length: 385 mm
CPU Heatsink Height: 160 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio
Internal Drive Bays 2 x 3.5" / 2.5"
2 x 2.5"
Thermal Solution Compatibility

Air Cooling Fans:
Top: 3 x 120 mm
Rear: 1 x 120 mm
Bottom: 3 x 120 mm
Front: 2 x 120 mm
(1 InWin Luna AL120 Fan Included)

Water Cooling Radiator:
Top: 1 x 360 mm (Max. Length 405 mm & Thickness 80 mm)
Rear: 1 x 120 mm
Bottom: 1 x 360 mm (Slim) (Remove Graphics Card Holder)
Front: 1 x 240 mm

Power Supply Compatibility PSII: ATX12V
- Length up to 200 mm
Product Dimensions
(L x W x H)

515 x 225 x 502 mm
20.3 x 8.9 x 19.8"

Package Dimensions
(L x W x H)

610 x 335 x 572 mm
24.0 x 13.2 x 22.5"

Net Weight 11.38 kg / 25.1 lbs
Gross Weight 13.46 kg / 29.7 lbs
* InWin products comply with RoHS regulations.
* Specifications may vary based on different regions.
* Number of fans pre-installed may vary based on different regions
Model Luna AL120
Quantity Included Single Pack
Triple Pack
Model Number IW-FN-AL120-1PK
IW-FN-AL120-3PK
Colors Black
Fan Size 120 x 120 x 25 mm
Materials PC, PBT
Rated Voltage DC 12V
Rated Power 3.96W
Rated Current 0.33A
ADD RGB Rated Voltage DC 5V
ADD RGB Rated Power 1.5W
ADD RGB Rated Current 0.3A
Speed Mode PWM 600-1800 +/-10% RPM
Air Flow 82.96 CFM
Air Pressure 2.31 mm / H2O
LED Addressable RGB
Connector (Fan to Fan) Non-Modular Cables
Connector to M/B 4-Pin (PWM, 12V), 3-Pin (ARGB, 5V)
Noise Level 25 dB(A) (Normal)
Bearing Type Long Lifespan Sleeve Bearing
Net Weight 133 g / 0.3 lbs
Gross Weight 169 g / 0.4 lbs
Package Dimension (L x W x H) 185 x 125 x 30 mm
7.3 x 4.9 x 1.2"
Warranty 2 years
* Specifications may vary based on different regions.
* Our products comply with RoHS regulations.

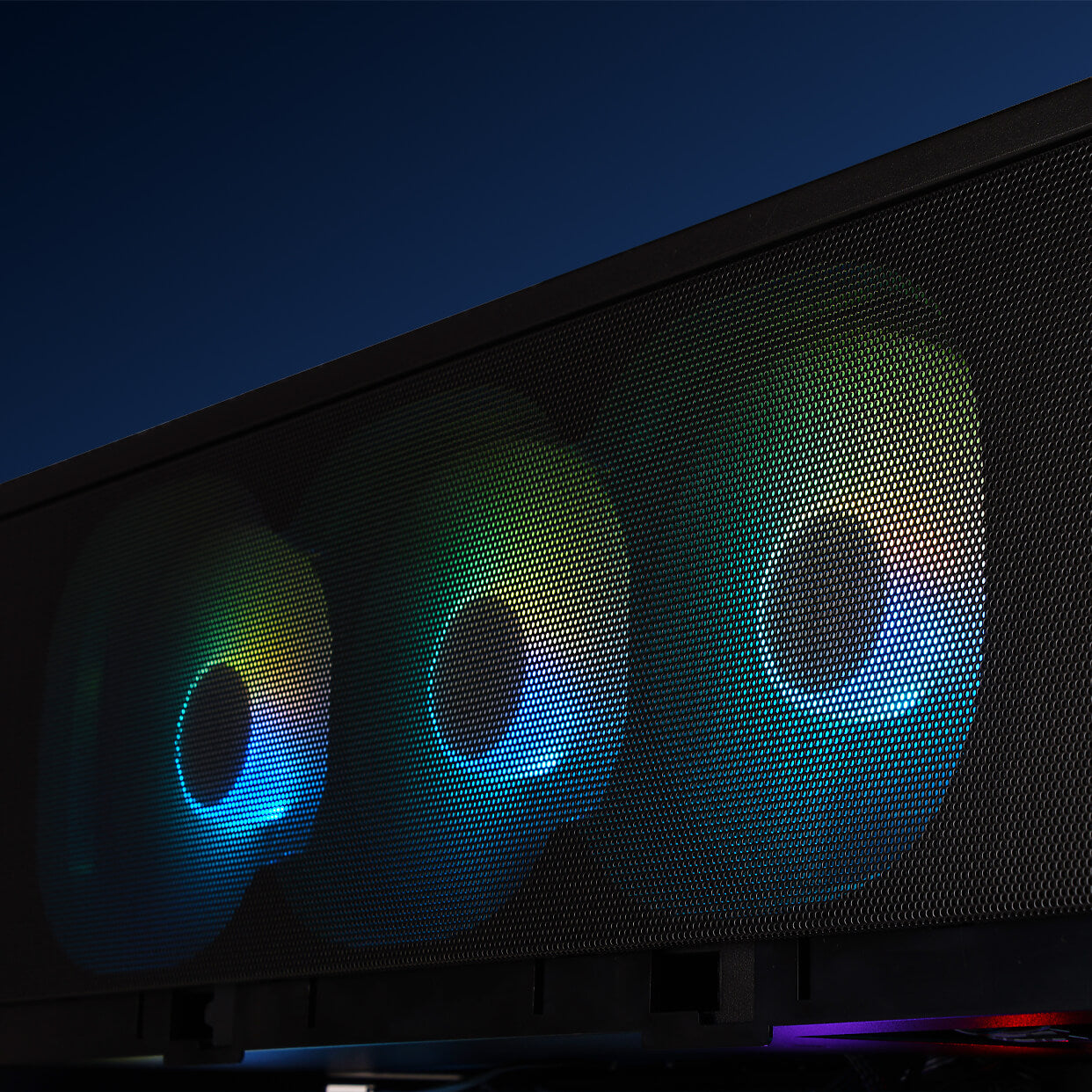

Mesh Design to Optimize Airflow

The 515 features a crisscrossed combination of 1.2 mm steel and tempered glass, with a functional mesh design.

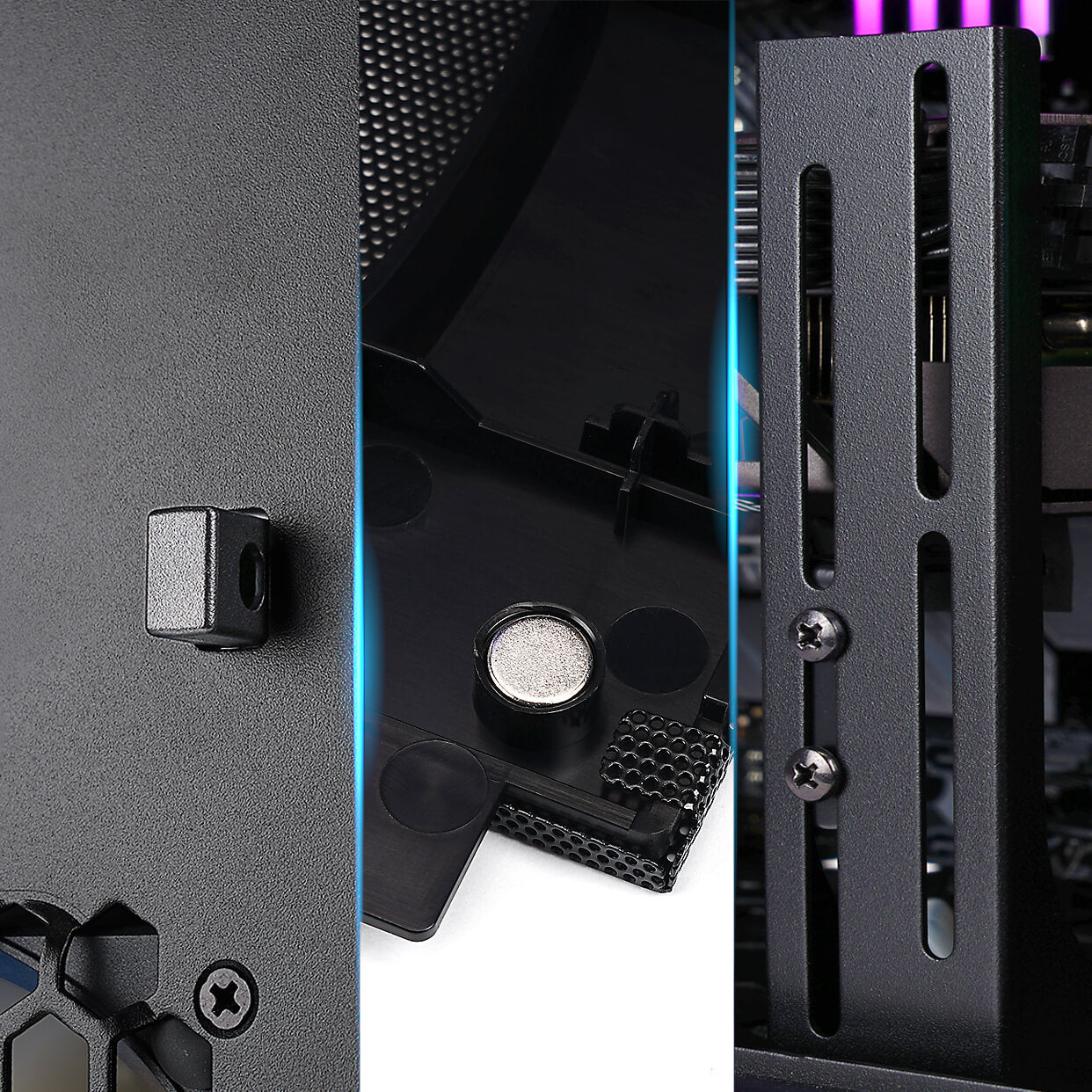

Practicality in Mind

- Quick-Release Side Panel Removal Button
- Magnetic Side Panel for Faster Placement

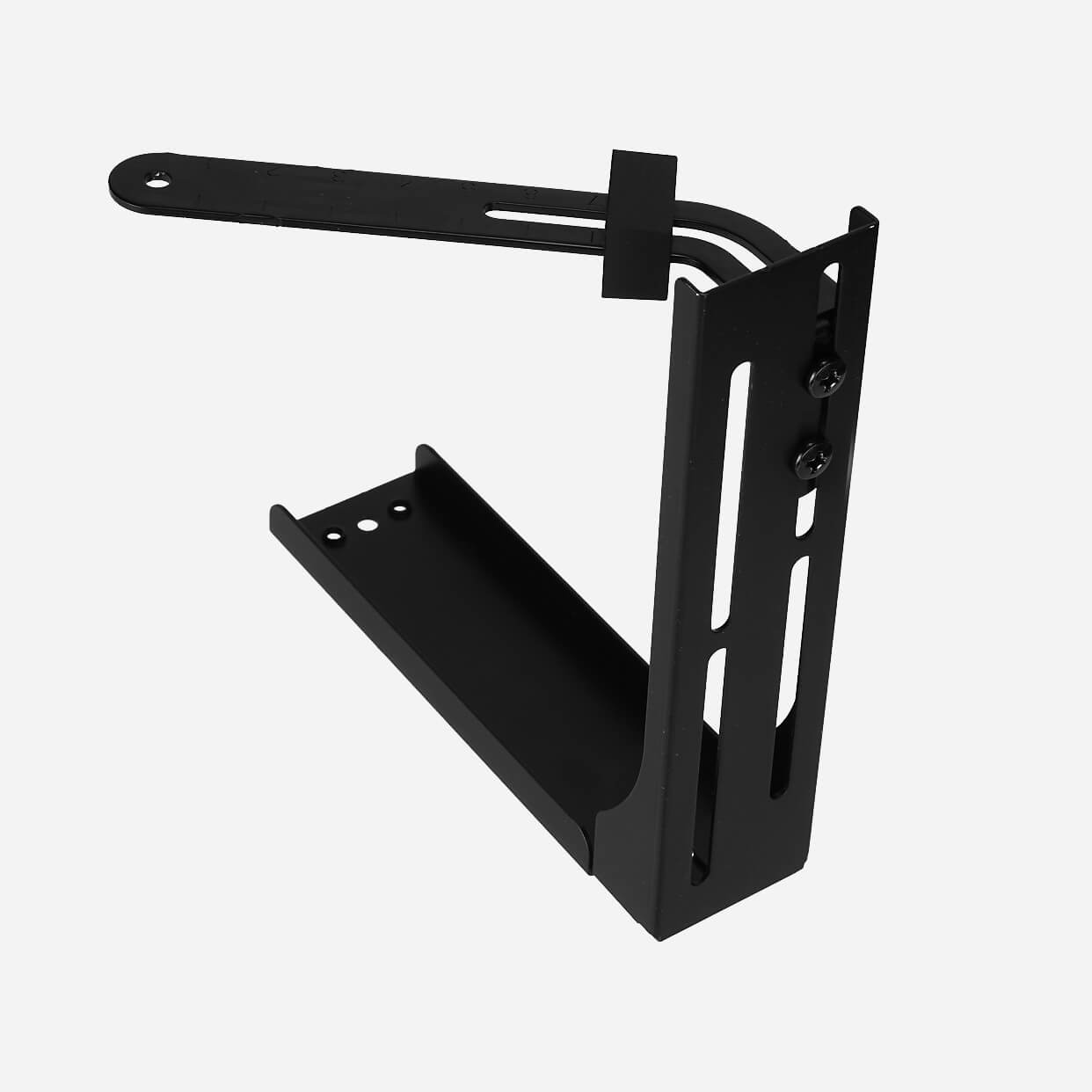

- Versatile GPU Anti-Sag Support

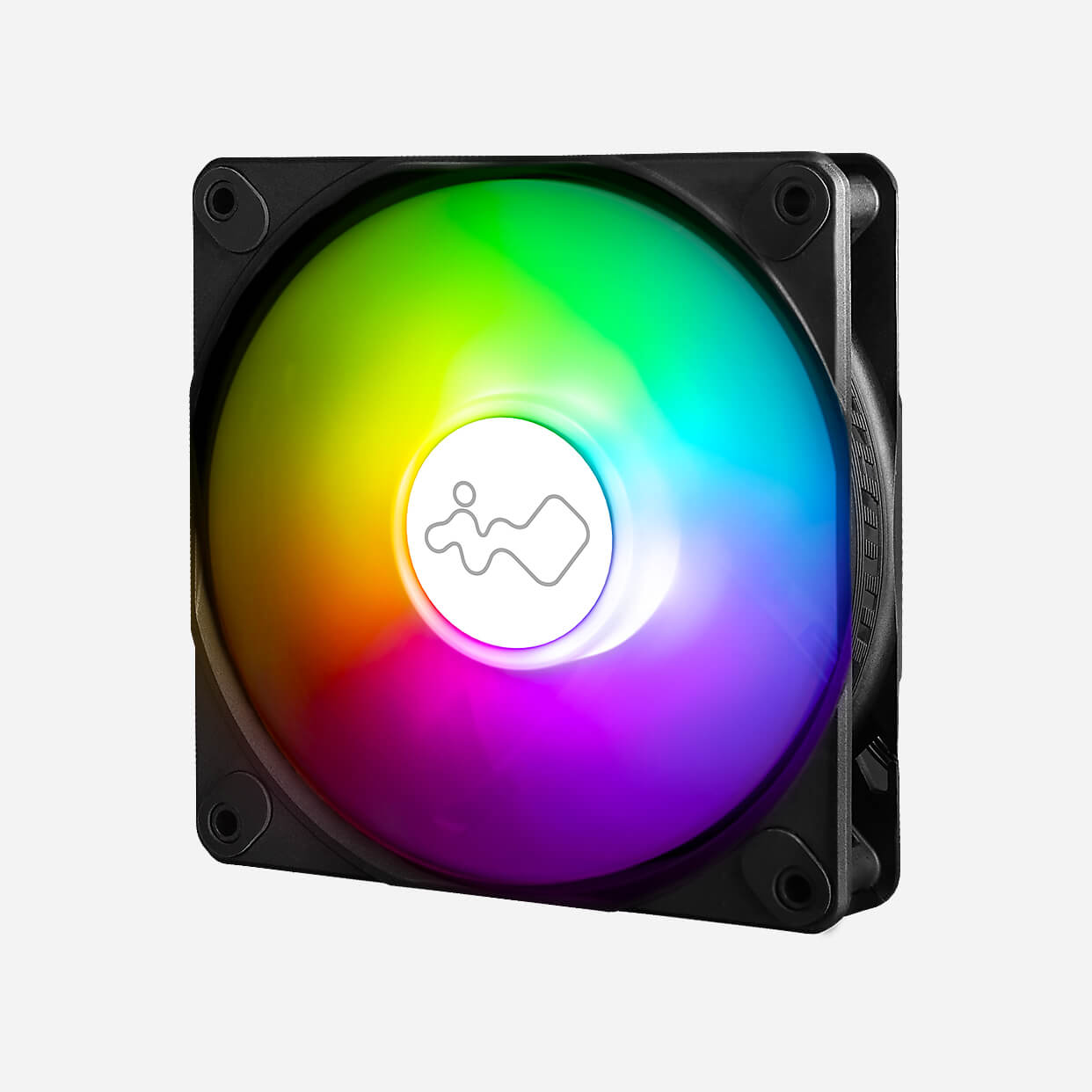

ARGB PWM fan Luna AL120

Equipped with stunning and bright Luna AL120, presenting your build in the most beautiful light possible.

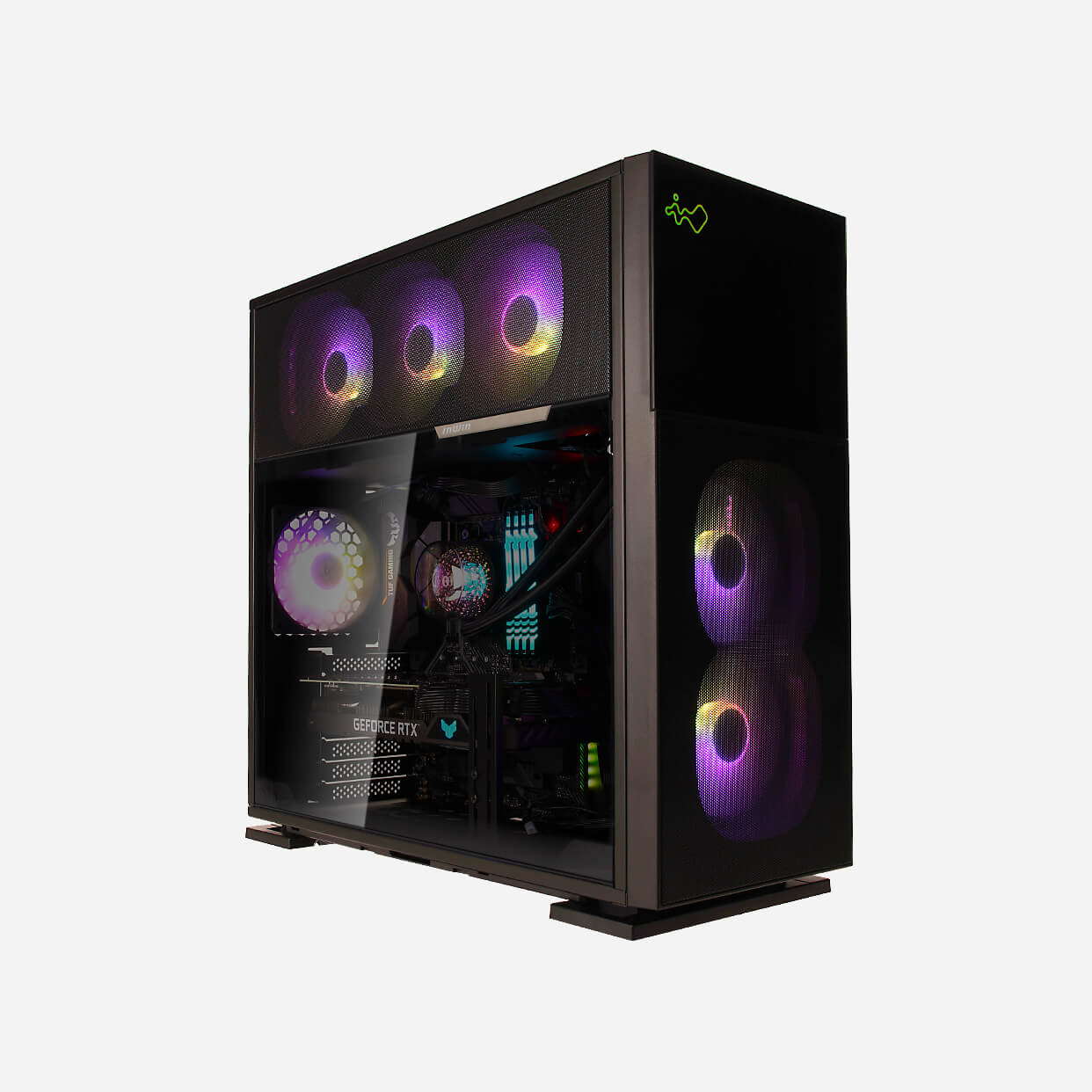

Highly Expandable

The 515 supports full E-ATX and a space for a VGA card length up to 385mm, all designed to bring the best out of your build.

Components

515 Chassis x 1
LUNA AL120 Fan (Pre-installed) x 1
QR Code Card x 1
Accessories Bag x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
