Chopin MAX
Chopin MAX
Chopin MAX
Chopin MAX
Chopin MAX
Chopin MAX

Chopin MAX

€149.90
No reviews
No reviews
SKU: IW-CS-CHOPINMAXGRE-PS200W

Mini ITX

Power Supply

The Chopin MAX is an ultra slim form factor case designed with the intention of being a multifaceted PC case with a small footprint.
* Currently, we only include German PSU power cord with the eStore EU orders. If this is not compatible in your current country, please use a suitable plug adapter.

Color:Titanium Grey
Quantity:
  1. Mini-ITX Aluminium Chassis
  2. Heightened CPU Heatsink Orientation Up To 54 mm
  3. InWIn 200W 80 PLUS Gold PSU Preinstalled
  4. Super Transfer Speed USB 3.2 Gen 2 X 2 Type-C

Specs

Model Chopin MAX
Model Number IW-CS-CHOPINMAXGRE-PS200W
Color Titanium Grey
Case Type Mini-ITX Tower
Materials SECC, Aluminium
M/B Compatibility Mini-ITX
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio
CPU Heatsink Height Up To 54 mm
Internal Drive Bays 2 x 2.5" (H 9.5 mm Max.)
Power Supply Compatibility InWin 200W 80 PLUS Gold PSU Included
Product Dimensions
(L x W x H)		 217 x 84 x 244 mm
8.5 x 3.3 x 9.6"
Package Dimensions
(L x W x H)		 270 x 120 x 276 mm
10.6 x 4.7 x 10.9"
Net Weight 2.2 Kg / 4.85 lbs
Gross Weight 2.5 Kg / 5.5 lbs
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.
Model IP-AD200C7-2
Total Power 200W
Materials SECC
Type ITX
PFC Active PFC
Efficiency 80 PLUS® Gold (Up to 90%)
MTBF (Hours) >100,000
AC Input 100 - 240Vac., 50-60Hz
Operating Temperature Range (°C) 0 - 40 °C
Full Protection OVP / UVP / SCP / OPP
Safety Certifications TUV / cTUVus / BSMI / CB / CE / FCC / EAC / RCM / CCC
Dimensions (L x W x H) 52 x 40 x 170 mm
2.05 x 1 x 6.7"
Warranty 3 Years
Connectors 20+4 Pin Motherboard 1
8 (4+4) Pin CPU 1
8 (6+2) Pin PCI-E 0
4 Pin Peripheral 0
SATA (90 Degree) 1
Floppy 0
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.

Legendary Bantamweight Chassis

The Chopin MAX is an ultra slim form factor case designed with the intention of being a multifaceted PC case, while only being approximately 3.3 liters.

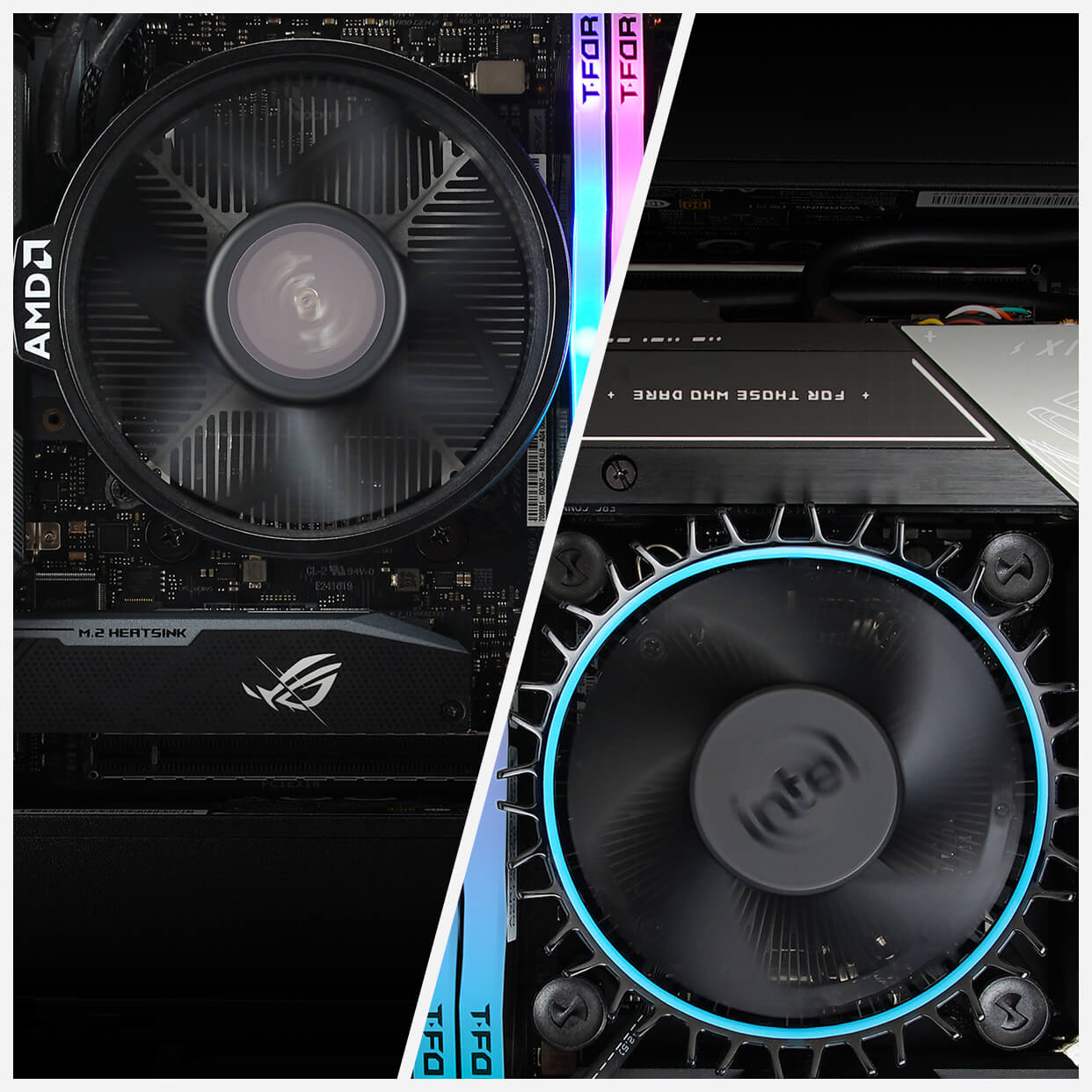

Compatible with AMD & Intel

Optimal CPU Heatsink height up to 54mm. Supports both AMD and Intel CPU coolers.

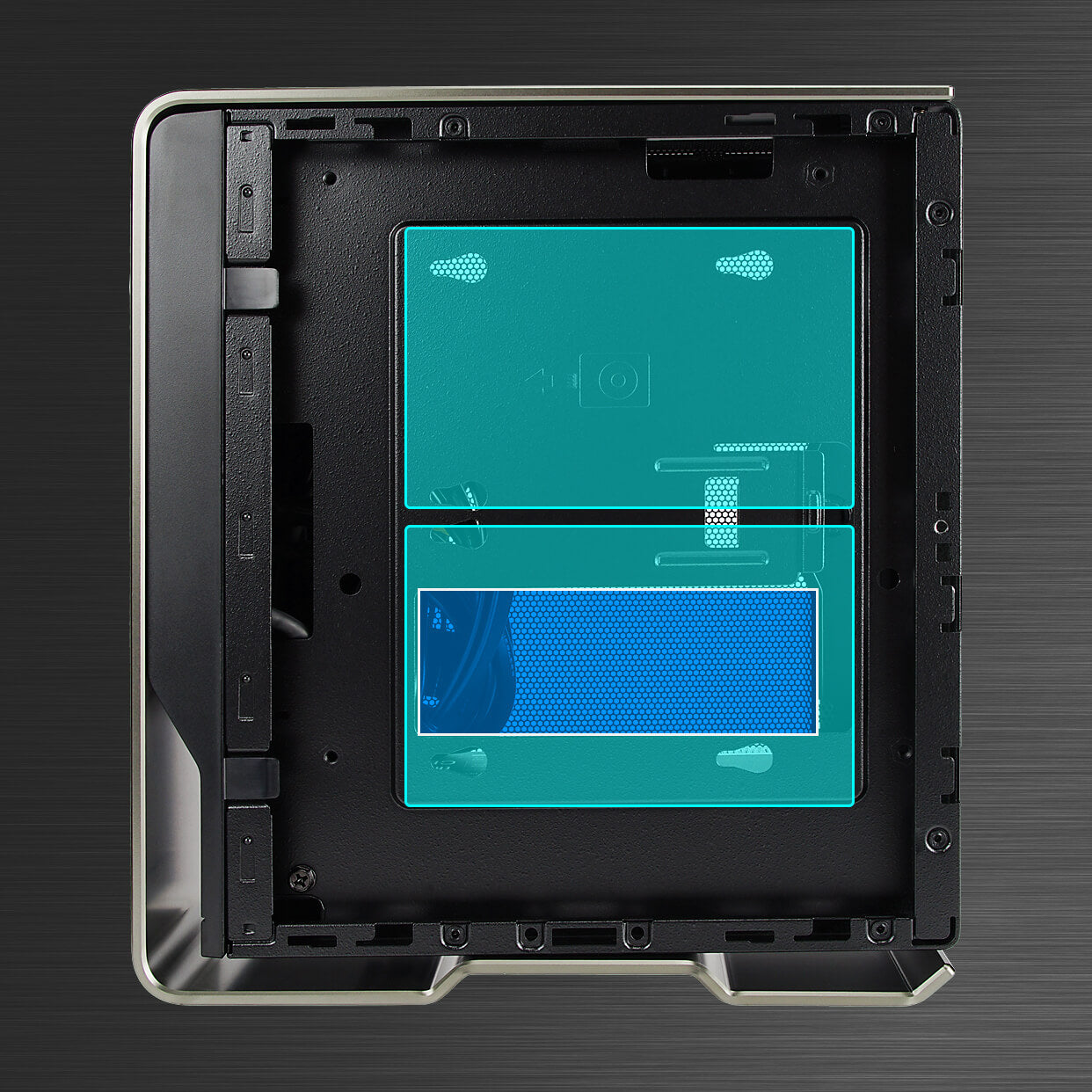

Compact Interior

The Chopin MAX is capable of housing 2 x 2.5” SSDs in a compact enclosure. Installing M.2 SSDs is a simple process too.

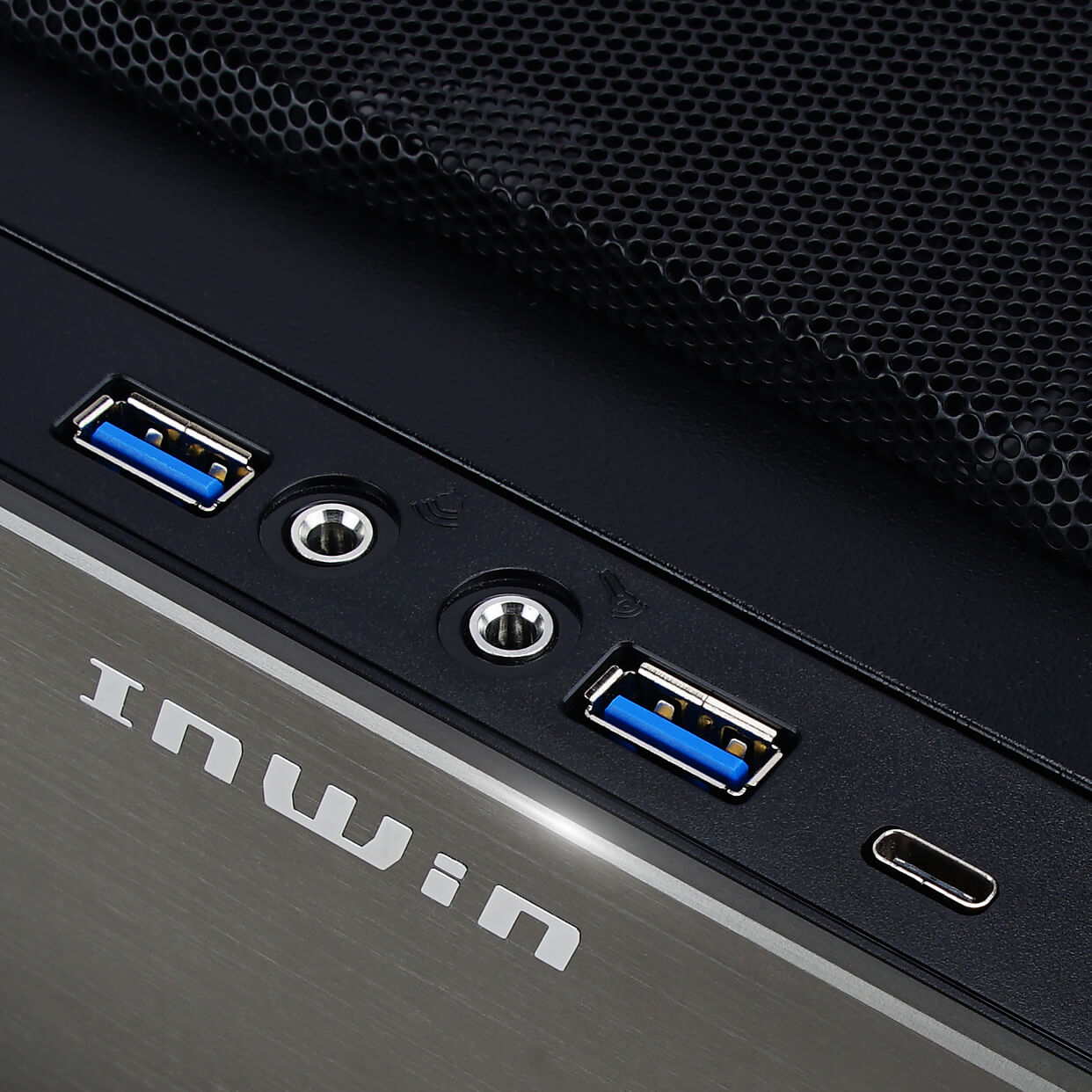

Super Speed Upgrade

The Chopin MAX is built with one USB 3.2 Gen 2X2 Type-C USB port and two USB 3.2 Gen 1 Type-A ports for faster data transfer speeds.

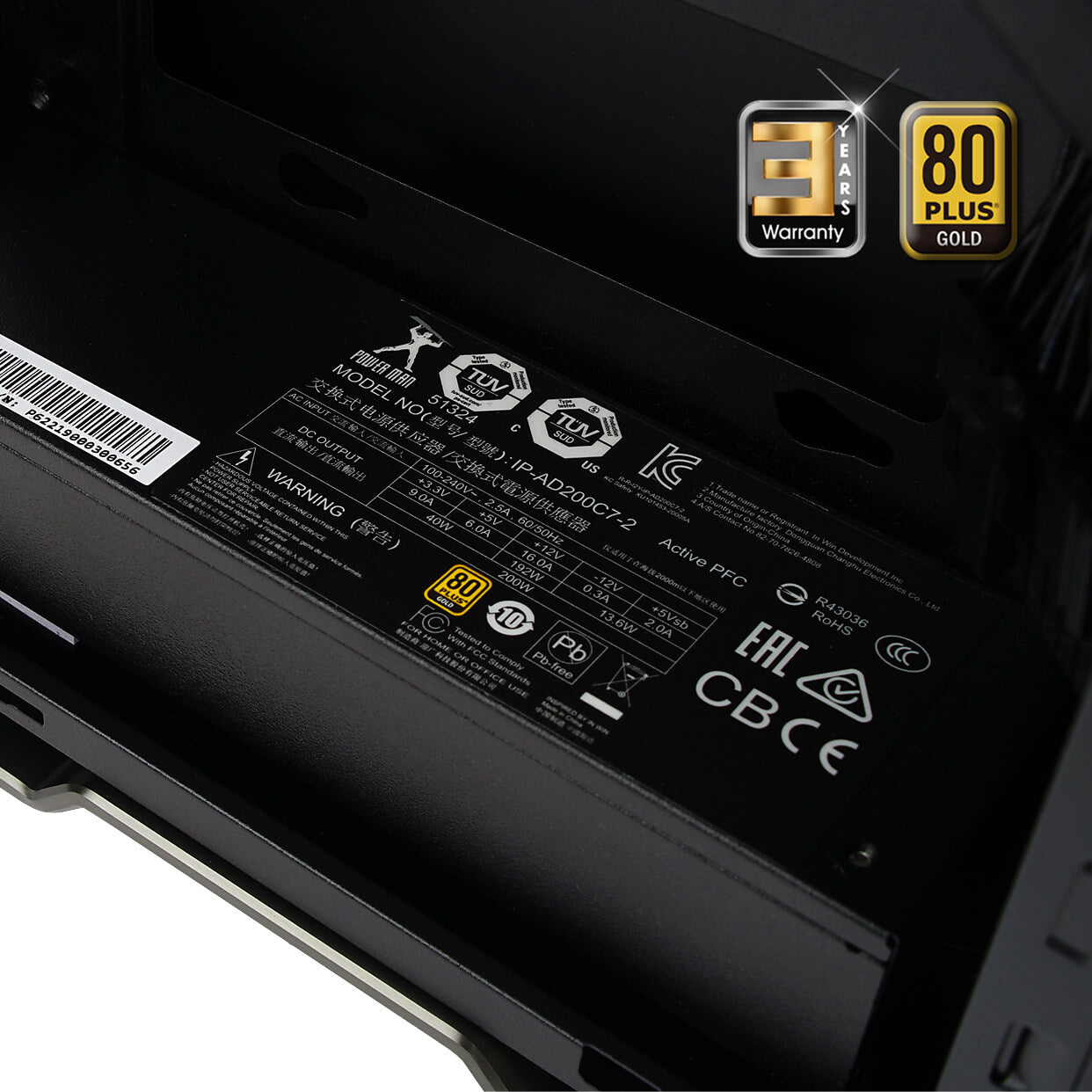

Powerful 200W 80 PLUS Gold PSU Preinstalled

The Chopin MAX includes a 200W PSU and is 80 PLUS Gold certified. The PSU comes preinstalled with cables already managed.

Customizable I/O Panel

Four color I/O stripes allow you to customize your own case with your unique style.

Components

Chopin MAX Chassis x 1
InWin 200W PSU x 1
QR Code Card x 1
Accessories Bag x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

Non-Modular Cable
4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)

Sirius Loop

Jupiter Series

Sirius Pure

Luna AL120

Mercury AM120S

Sirius Extreme

Sirius Extreme Pure

Neptune AN Series

Neptune DN Series

Neptune DN PRO Series

Modular ARGB Type 1
6-Pin Modular (PWM + ARGB)

Aurora

EGO

Modular ARGB Type 2
6-Pin Modular (PWM + ARGB)

Crown Series

Saturn Series

Type-C Modular Cable
(PWM + ARGB)

Lynx Series

Modular RGB
8-Pin Modular (PWM + RGB)

Polaris RGB Series

Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
