COVALENT

€144.99

Sold out

No reviews

SKU: IW-CS-COVALENT-SP-4CV140

Extended ATX

Built for advanced AI and HPC workloads, COVALENT supports EEB motherboards, multi-GPU configurations, and dual 420 mm radiators for exceptional cooling headroom. Power your next HPC build with a chassis engineered for creators, researchers, and professionals.

* Arriving mid-May. Sign up for stock alerts.

Panel:Steel Panel

Variant

Structural Capacity
Internal Flexibility
Thermal Architecture
Modular Space

Specs

Model	COVALENT
Model Number	IW-CS-COVALENT-TG-4CV140	IW-CS-COVALENT-SP-4CV140
Color	Black
Case Type	Full Tower
Materials	SPCC, Tempered Glass, Aluminium, ABS	SPCC, SECC, Aluminium, ABS
M/B Compatibility	EEB, 12" x 13" (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots	8 x PCIe
Maximum Compatibility	GPU Length: 480 mm CPU Heatsink Height: 190 mm
I/O Ports	1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 2 x USB 2.0 HD Audio (CTIA - SPK/MIC) Power Button LED Lighting Control Switch
Internal Drive Bays	1 x 3.5" / 2 x 2.5" 4 x 3.5" / 2.5" 3 x 3.5" / 2.5" (Optional)
Thermal Solution Compatibility	Air Cooling Fans: Front: 3 x 120 / 140 mm (CV140 fan included) Top: 3 x 120 / 140 mm Rear: 1 x 120 / 140 mm (CV140 fan included) Bottom: 3 x 120 / 140 mm Side: 3 x 120 / 140 mm Water Cooling Radiator: Top: 1 x 360 / 420 mm Rear: 1 x 120 / 140 mm Side: 1 x 360 / 420 mm
Power Supply Compatibility	PSII : ATX12V - Length up to 250 mm
Product Dimensions (L x W x H)	606 x 250 x 536 mm 23.9 x 9.8 x 21.1"
Package Dimensions (L x W x H)	692 x 353 x 626 mm 27.2 x 13.9 x 24.6"
Net Weight	14.3 kg / 31.5 lb	13.9 kg / 30.6 lb
Gross Weight	16.5 kg / 36.4 lb	16.1 kg / 35.5 lb
* InWin's products comply with RoHS regulation. * Specifications may vary based on different regions.

Model	CV140
Colors	Black
Fan Size	140 x 140 x 26 mm
Materials	PBT, PC
Rated Voltage	DC 12V
Rated Power	3W
Rated Current	0.25A
ARGB Rated Voltage	DC 5V
ARGB Rated Power	1.65W
ARGB Rated Current	0.33A
Speed Mode	PWM 600 - 1200 RPM
Air Flow	62.95 CFM
Air Pressure	1.2 mm / H2O
LED	Addressable RGB
Connector to M/B	4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Noise Level	24.4 dB(A)
Bearing Type	Hydraulic Bearing
* InWin's products comply with RoHS regulations. * Specifications may vary based on different regions.

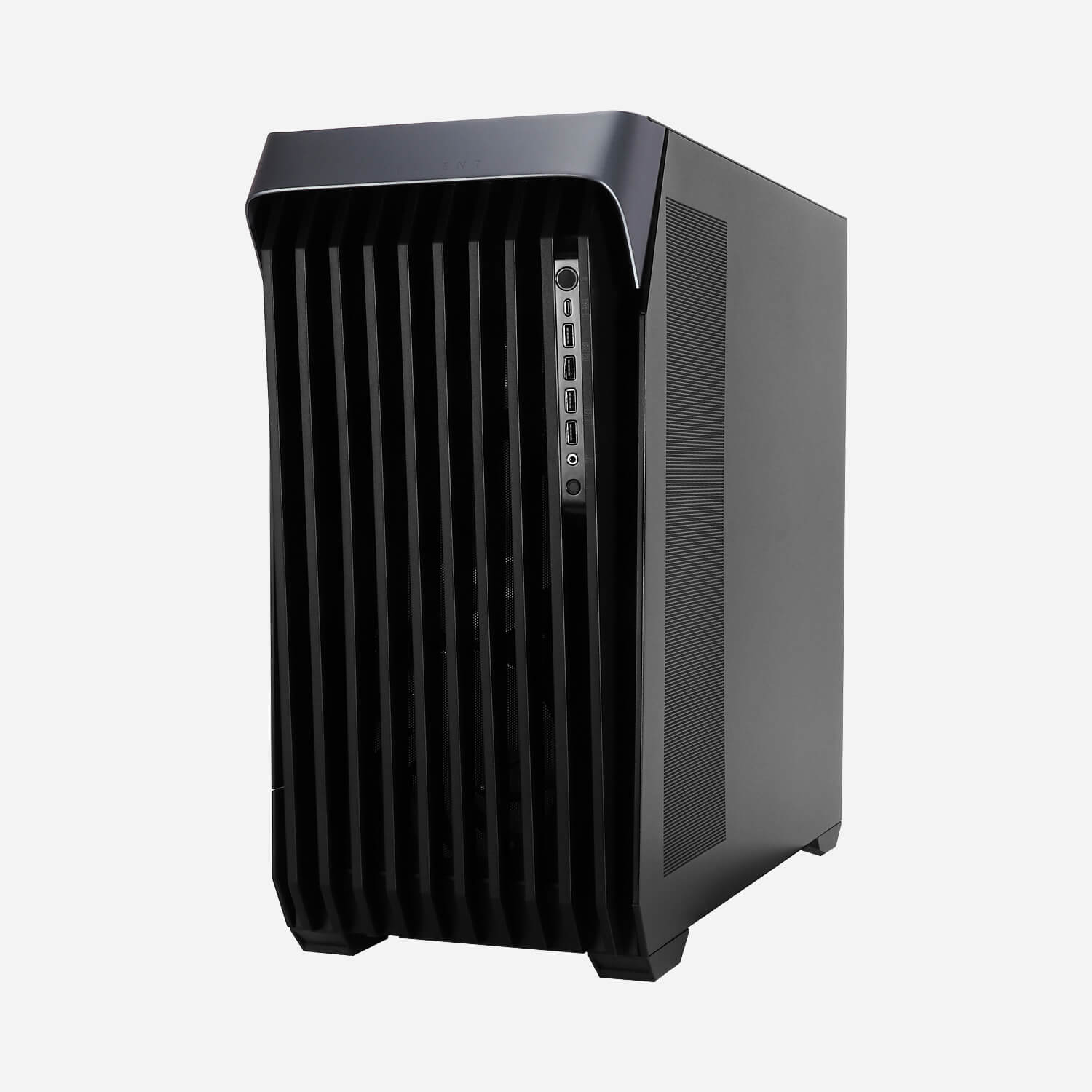

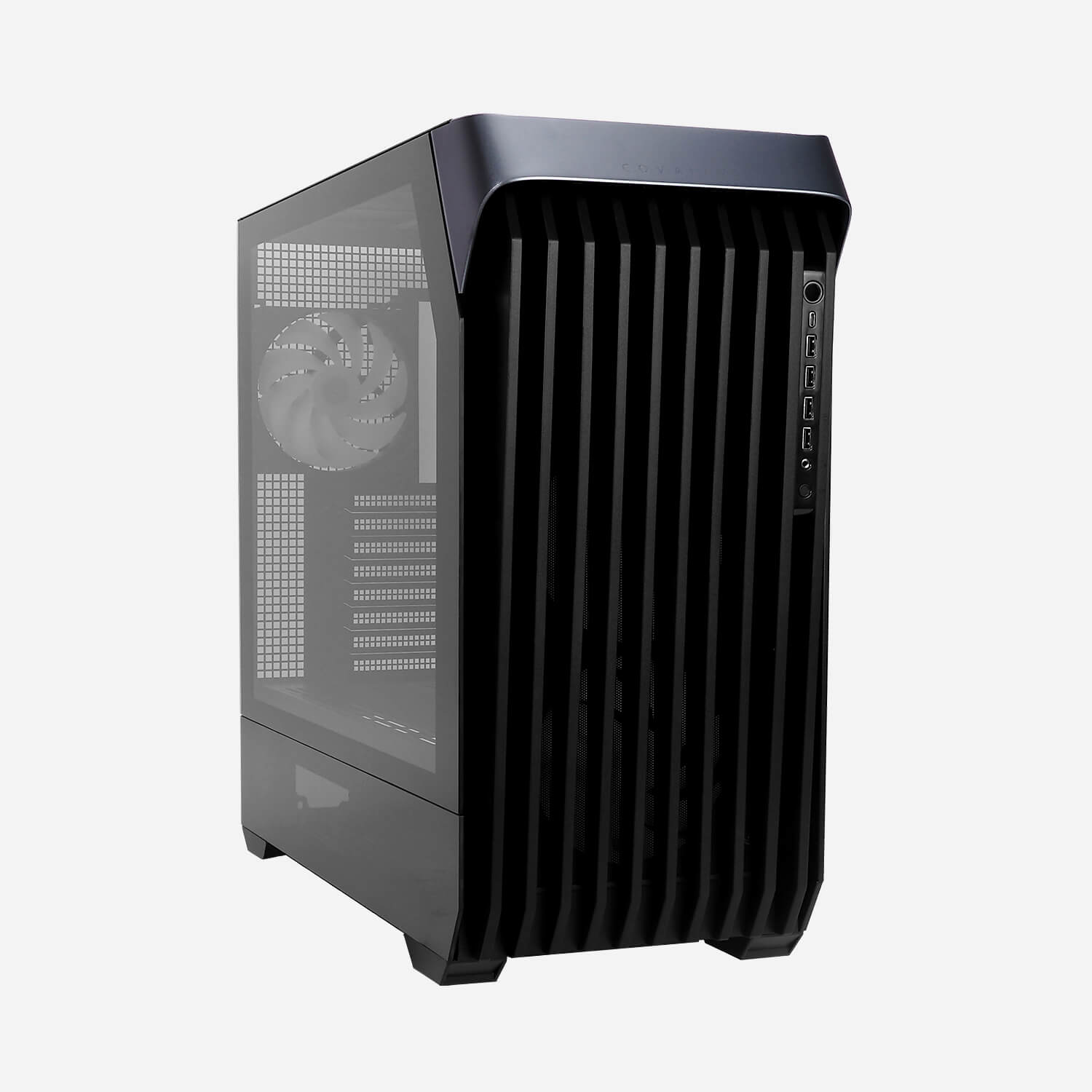

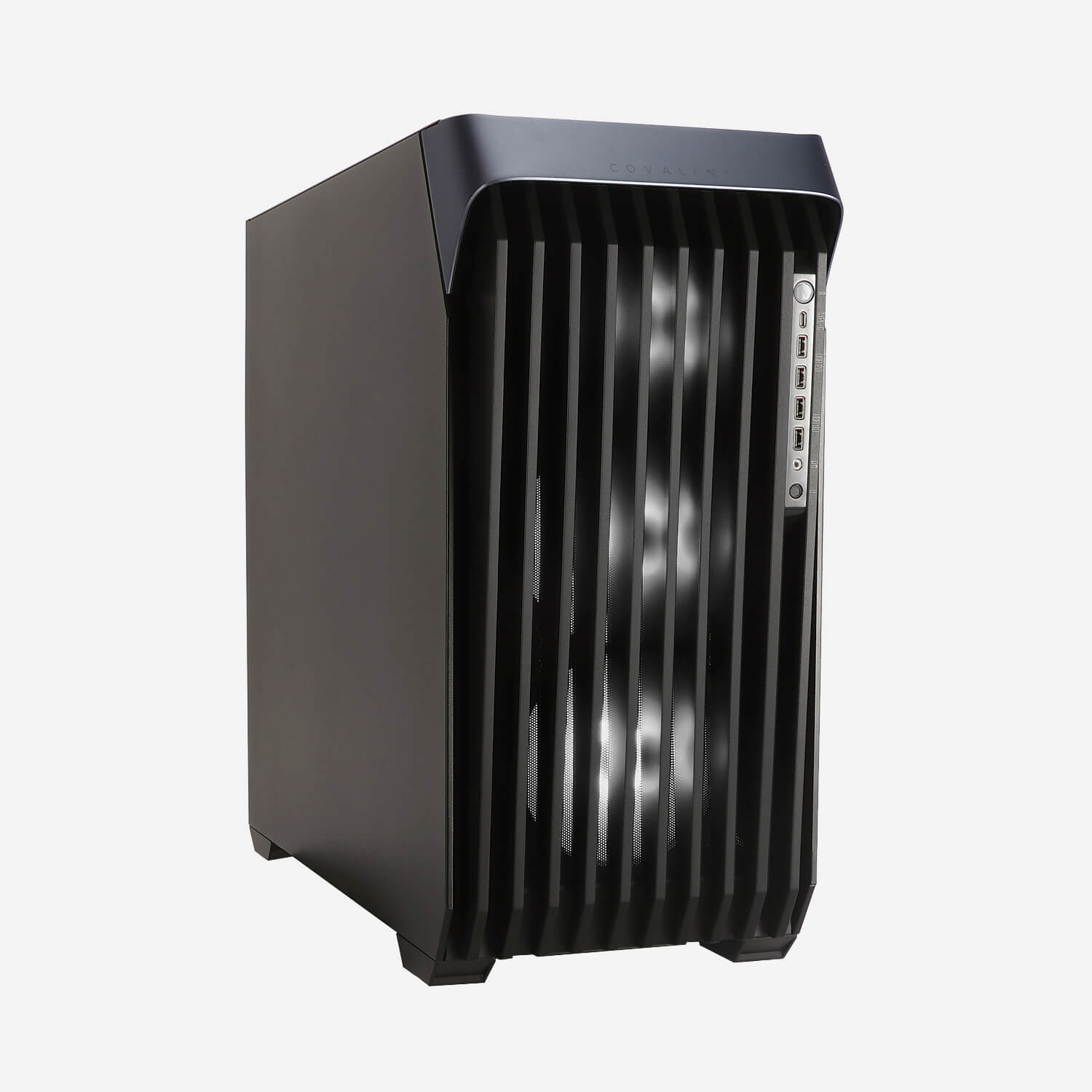

Precision Industrial Design

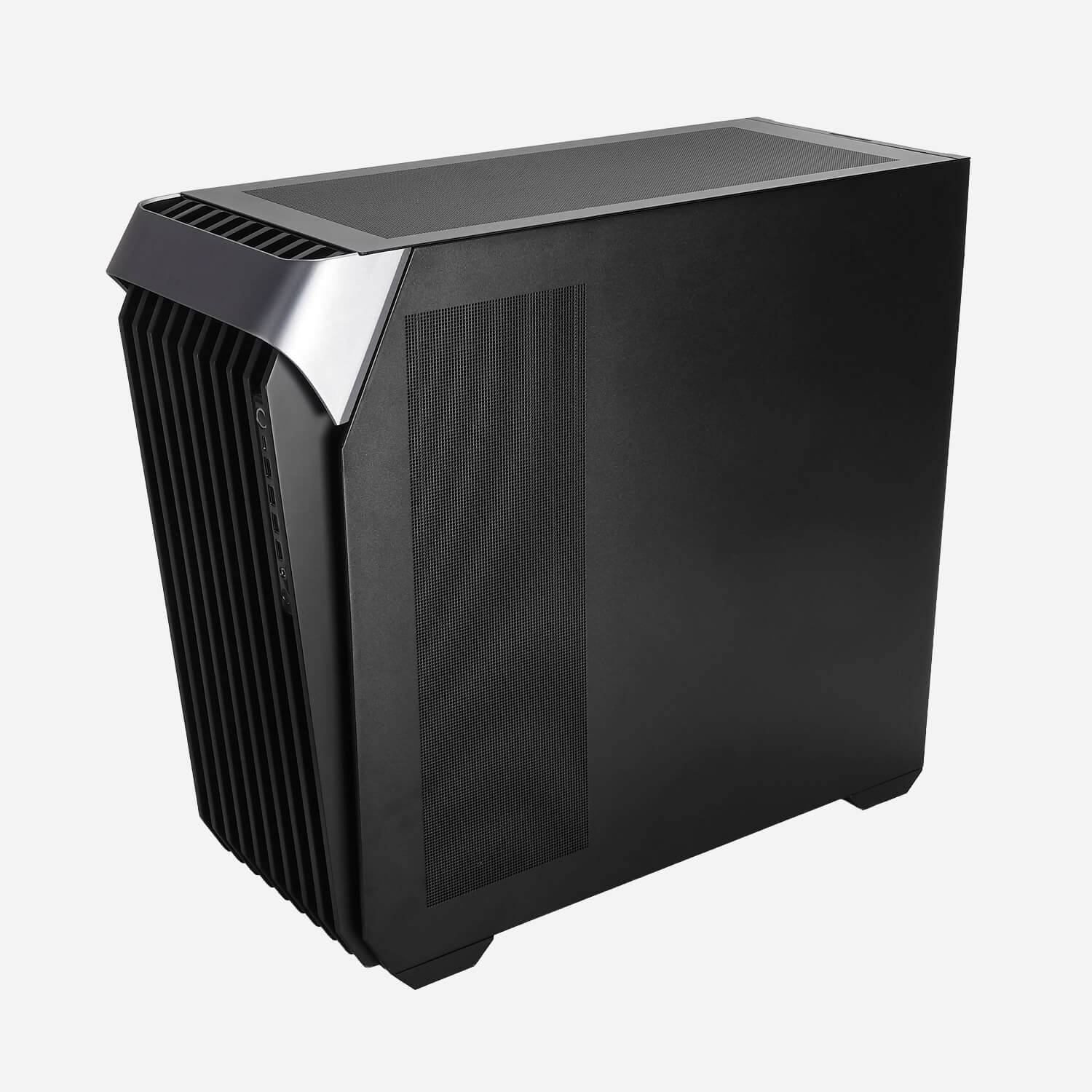

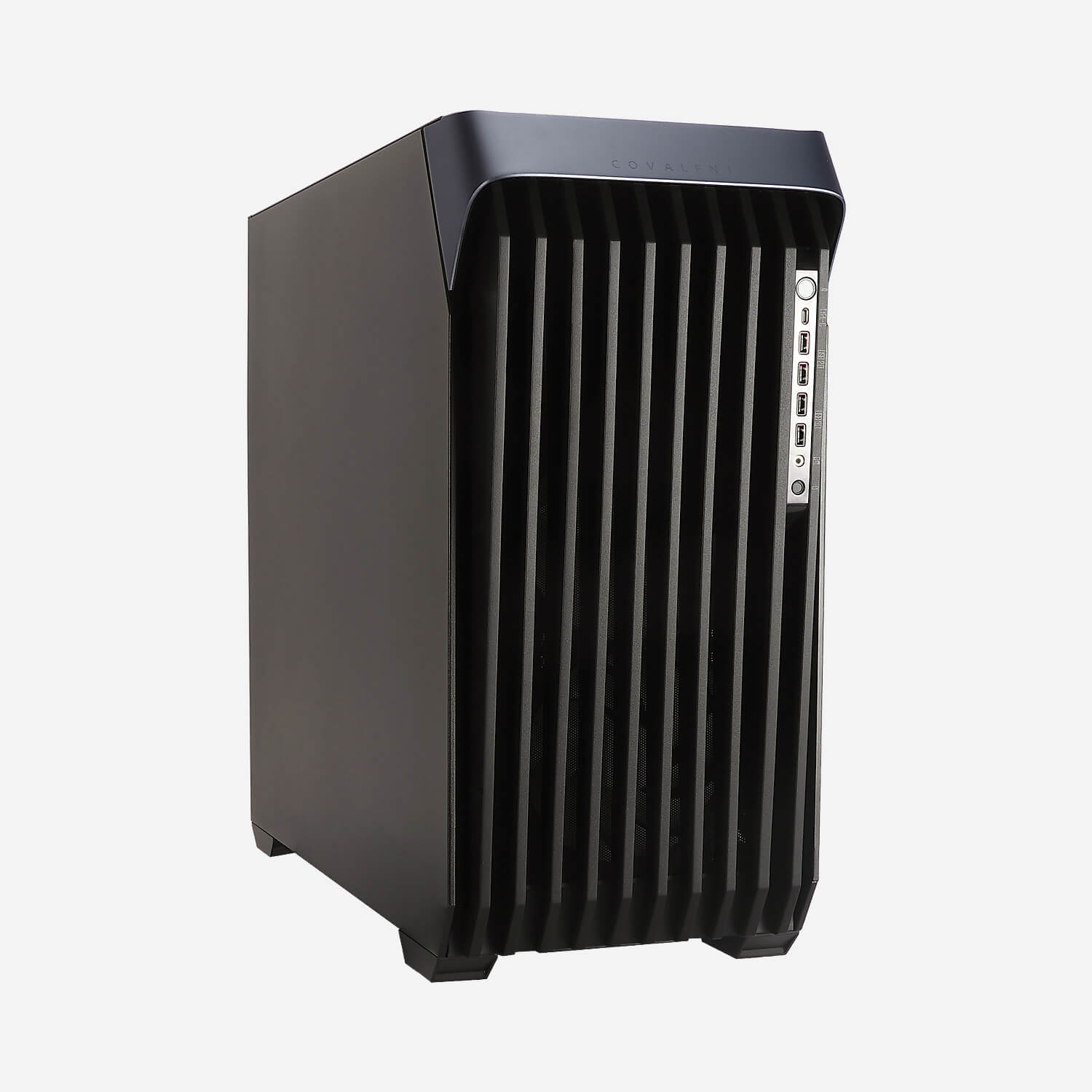

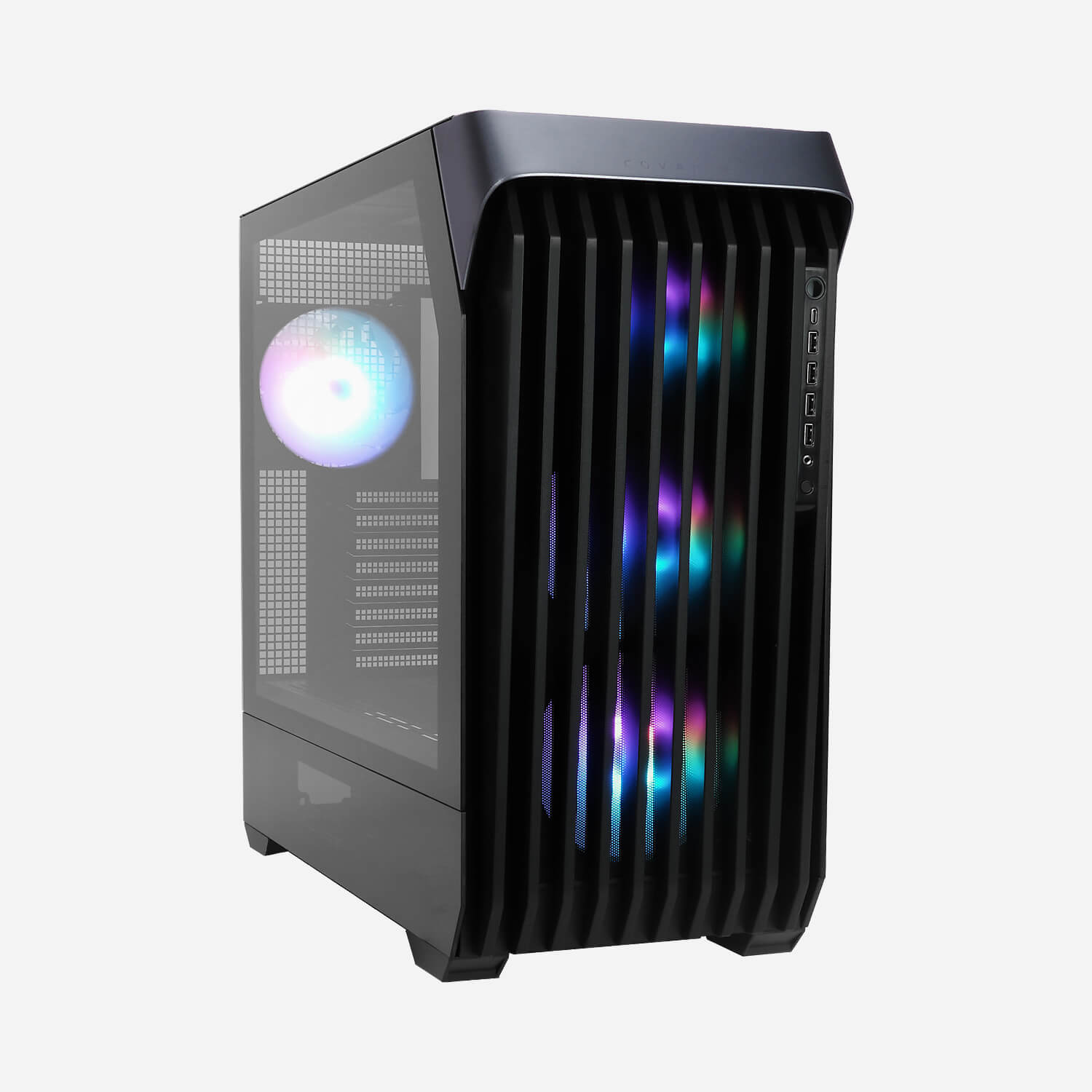

COVALENT delivers a refined industrial aesthetic built for creators who take pride in their workstation as part of their workspace. With options for tempered glass and steel side panels or dual steel panels for a clean, minimalist look.

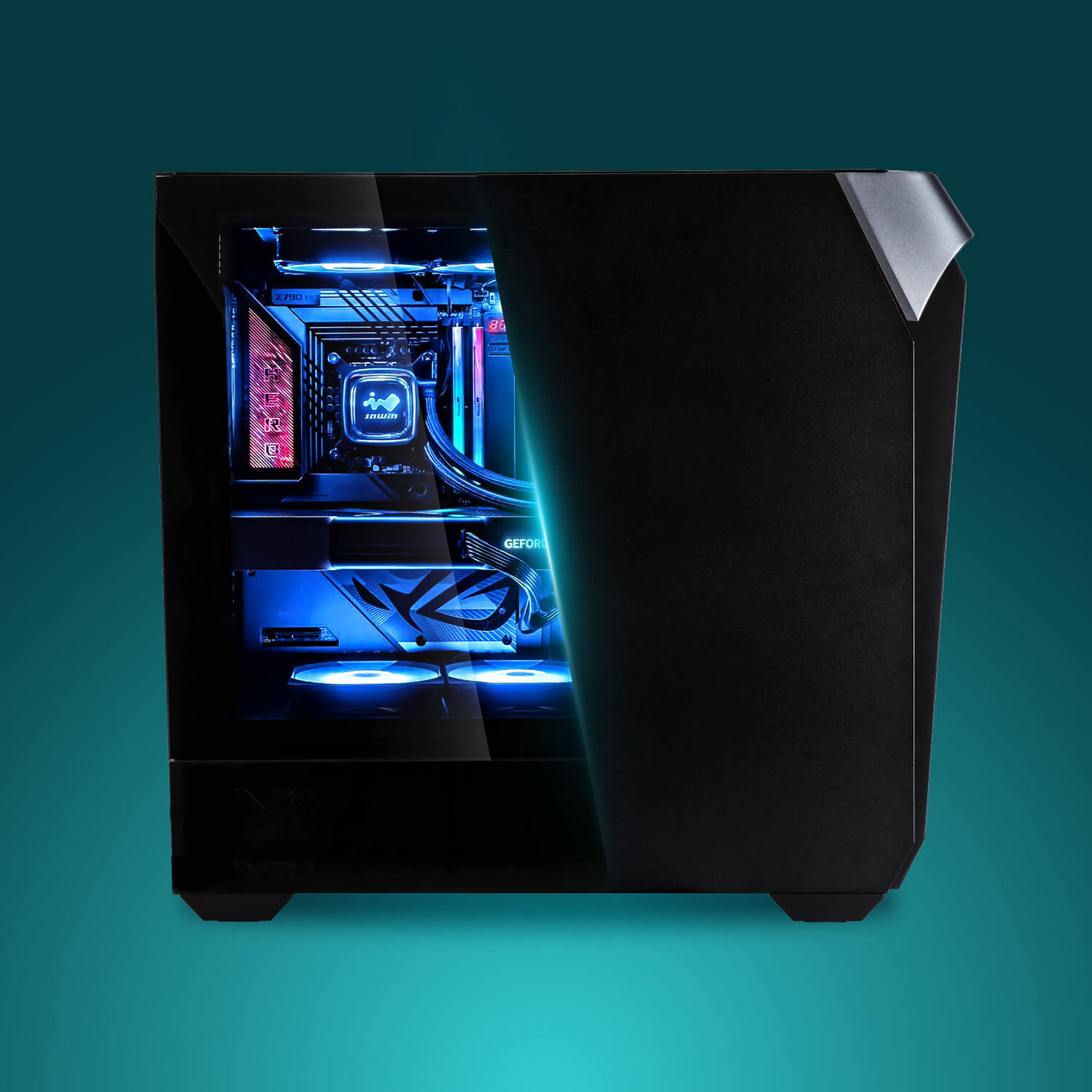

Professional-Grade Layout

The full-tower interior provides the structural space needed for serious workstation builds, supporting EEB, E-ATX, and ATX back-connector motherboards. The spacious layout accommodates high-core CPUs, large memory capacity, oversized GPUs, and advanced cooling solutions without constraints.

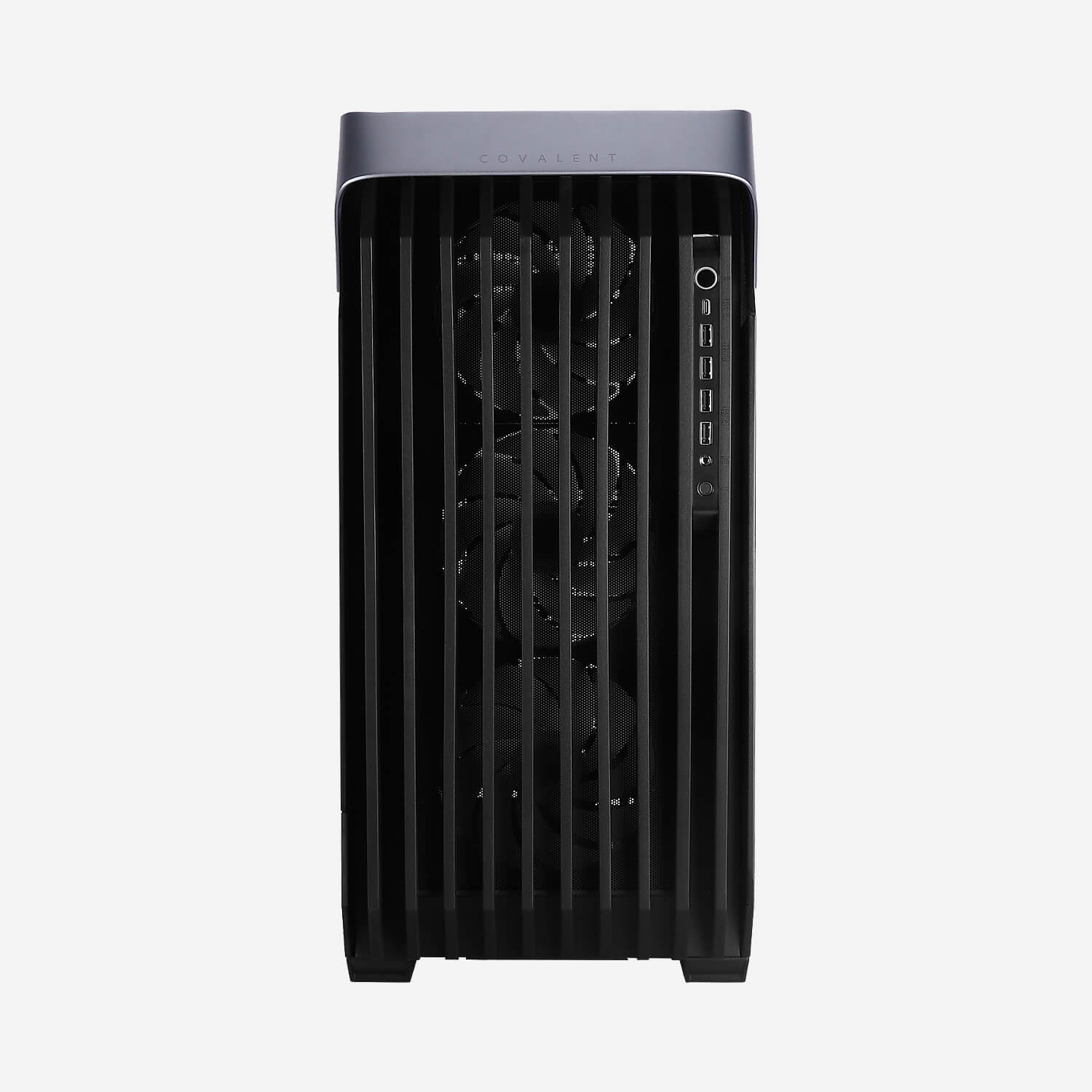

Advanced Cooling Architecture

COVALENT supports dual 420 mm radiators, for an array of liquid cooling configurations. Its optimized airflow path maintains steady temperatures during extended workloads.* Pre-installed CV140 fans: 3 front, 1 rear.

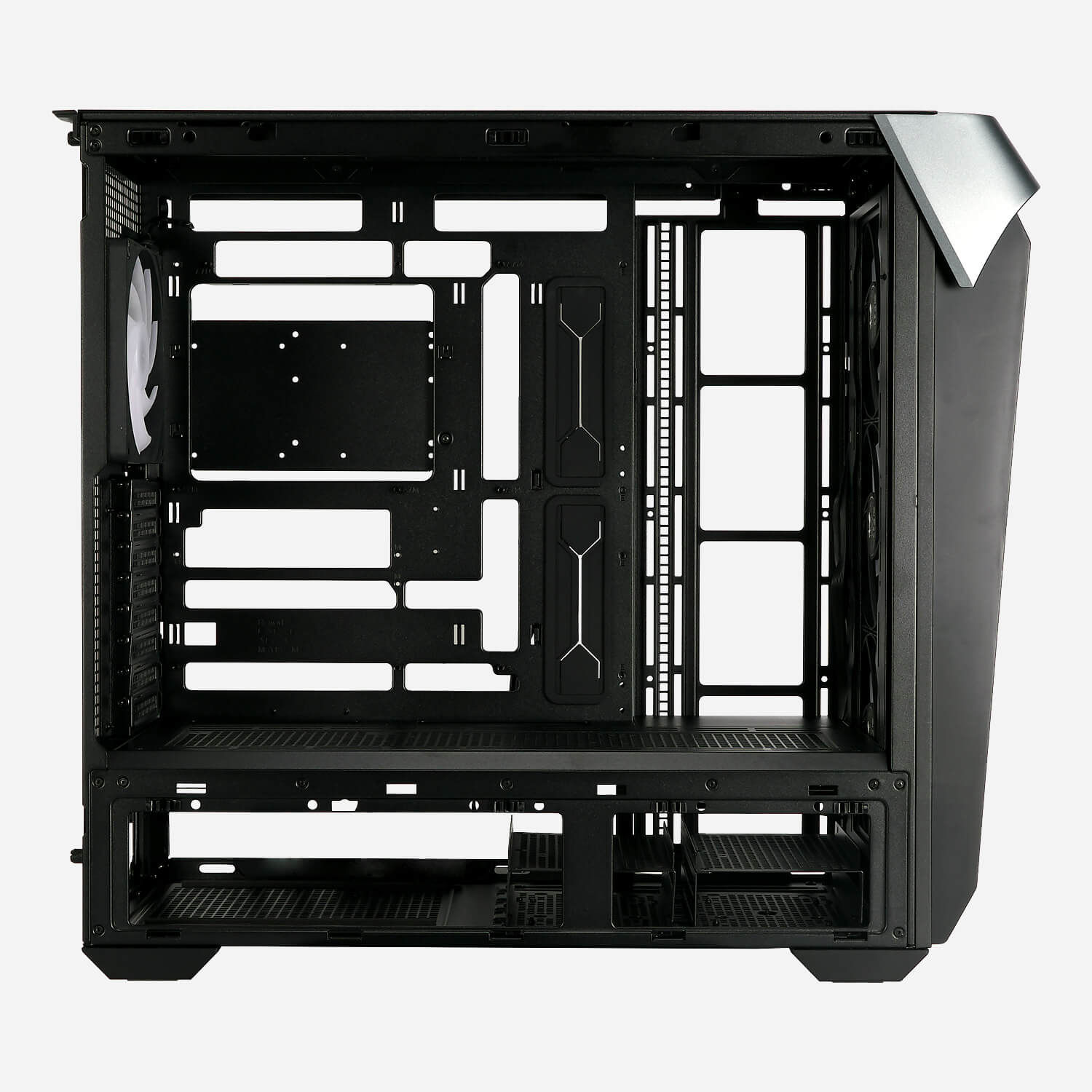

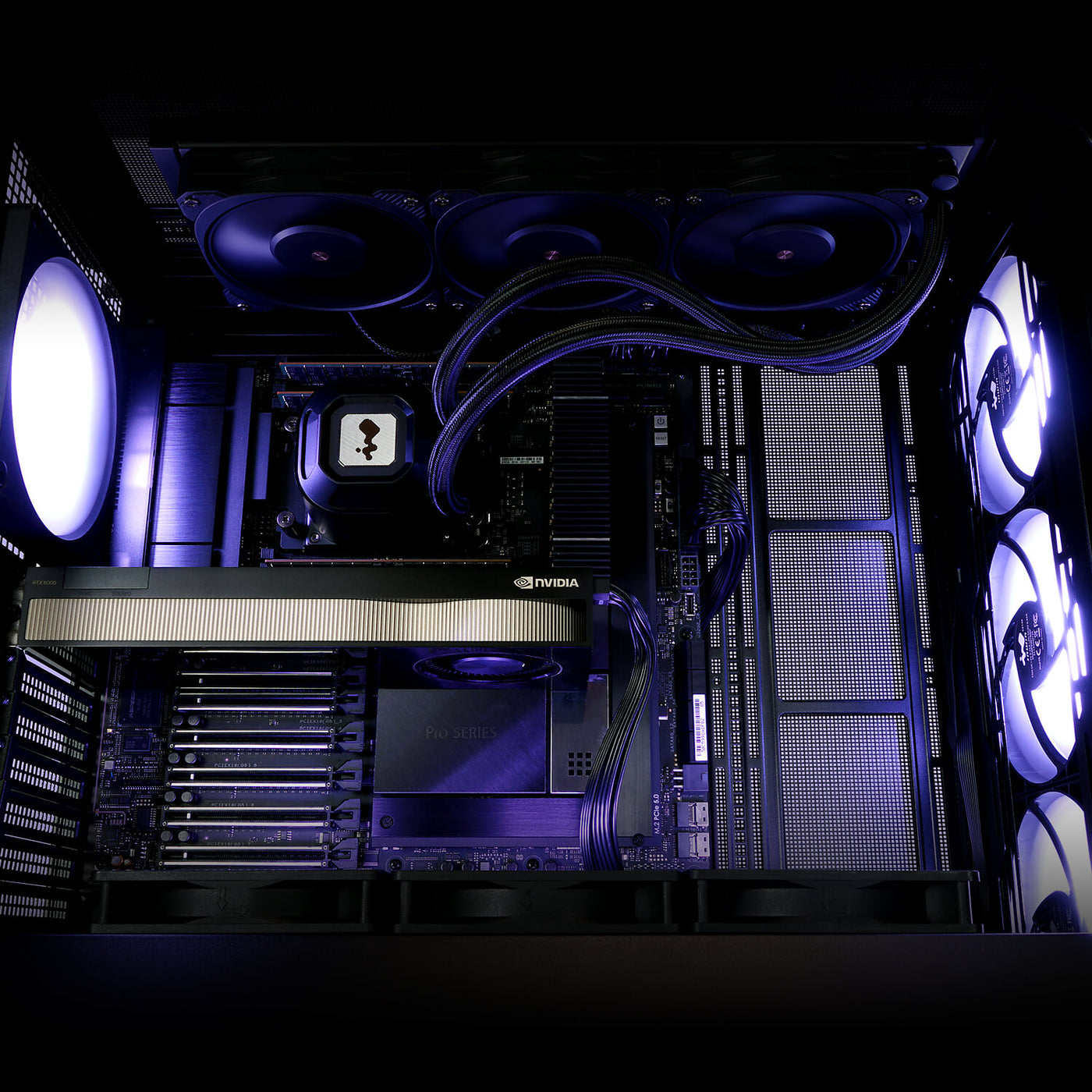

High-Capacity Interior

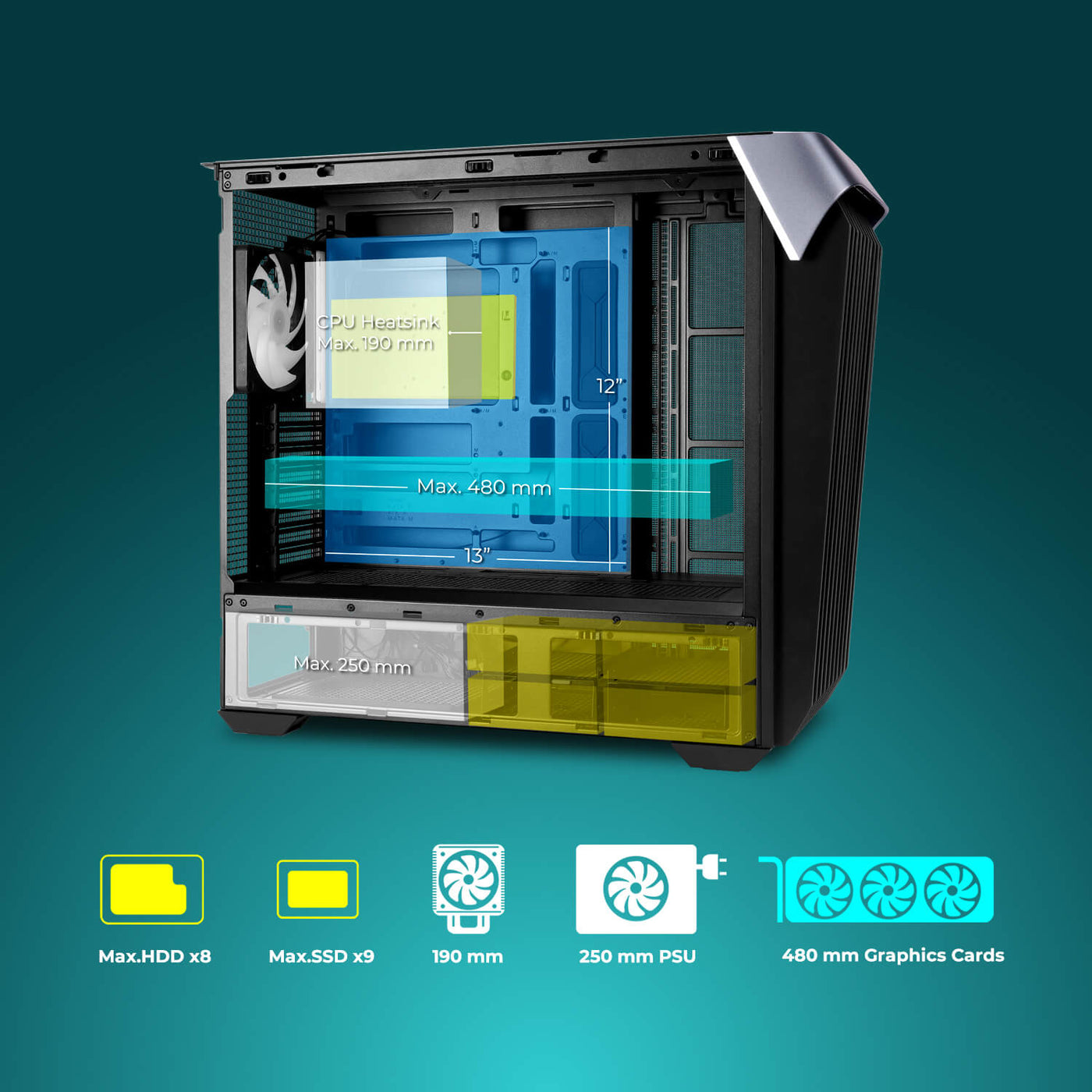

The COVALENT full-tower chassis offers expansive internal space designed for workstation builds. It supports EEB motherboards and provides 8 PCIe expansion slots for multi-GPU setups. With room for GPUs up to 480 mm and supports up to 13 cooling fans or dual 420 mm radiators for powerful configurations.

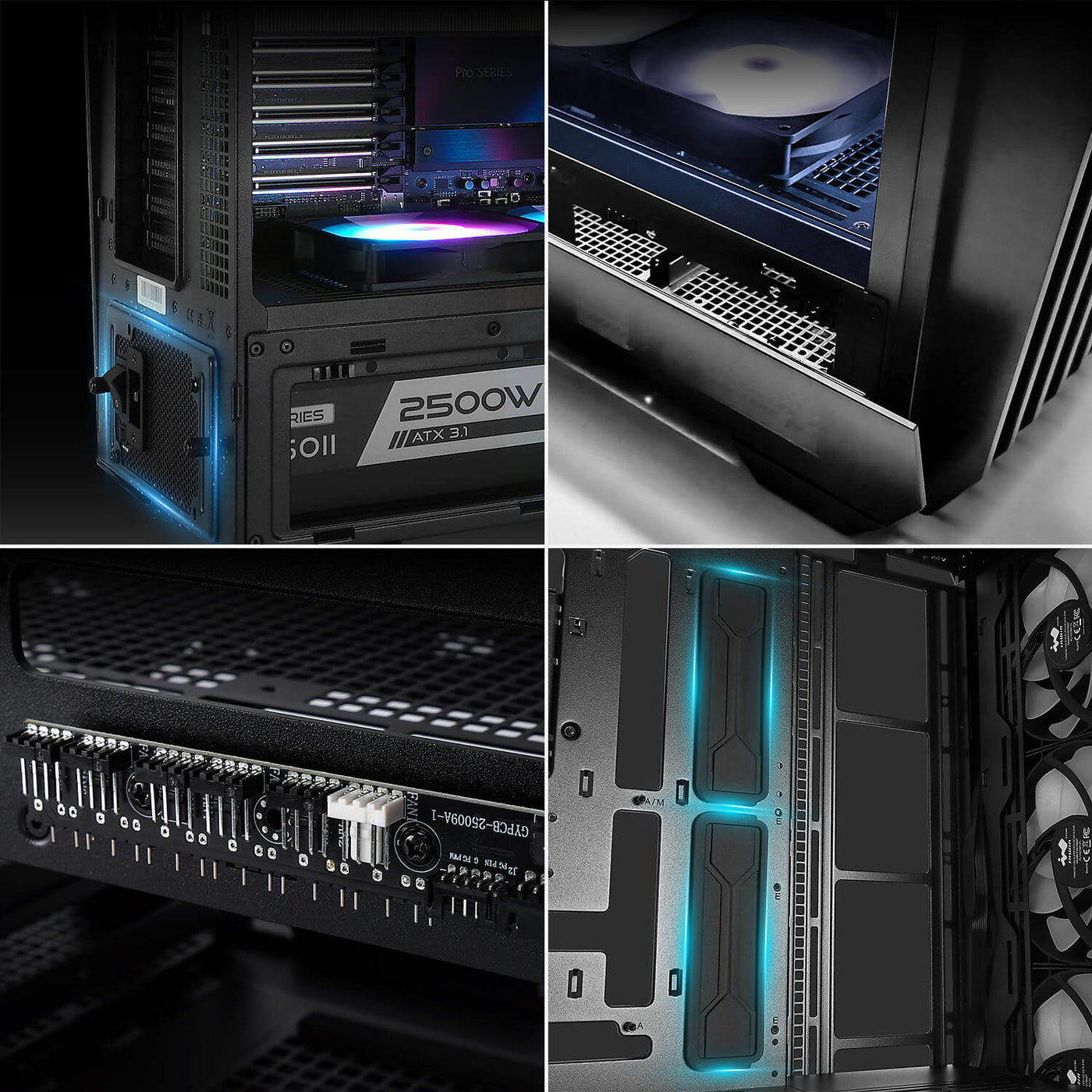

Refined Details

COVALENT incorporates thoughtful, builder friendly features that streamline installation and cable routing. Tool free side panels, a thumbscrew PSU bracket, and an integrated fan hub simplify setup, while rubber grommets and Velcro ties provide clean, efficient cable management for a polished, professional grade build.

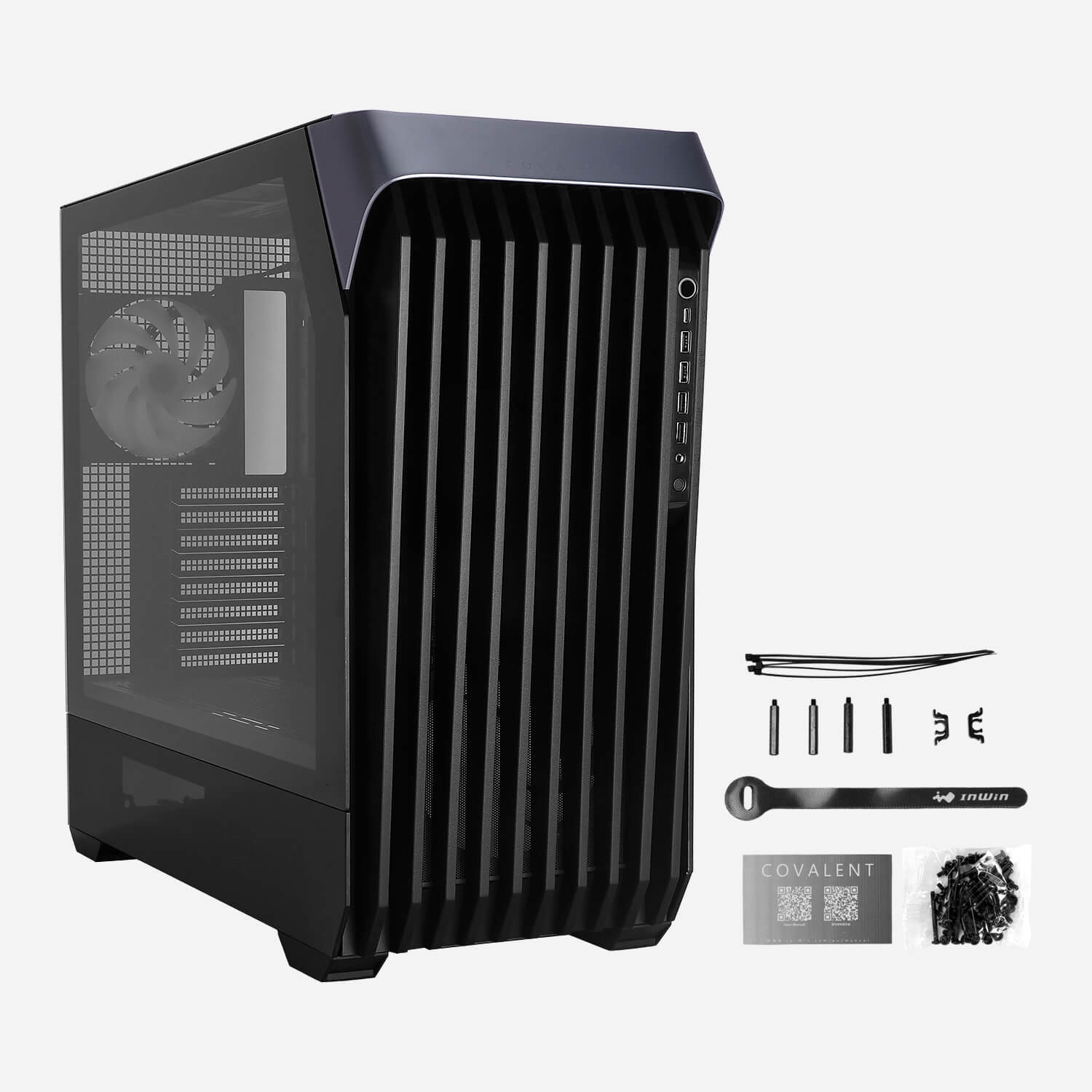

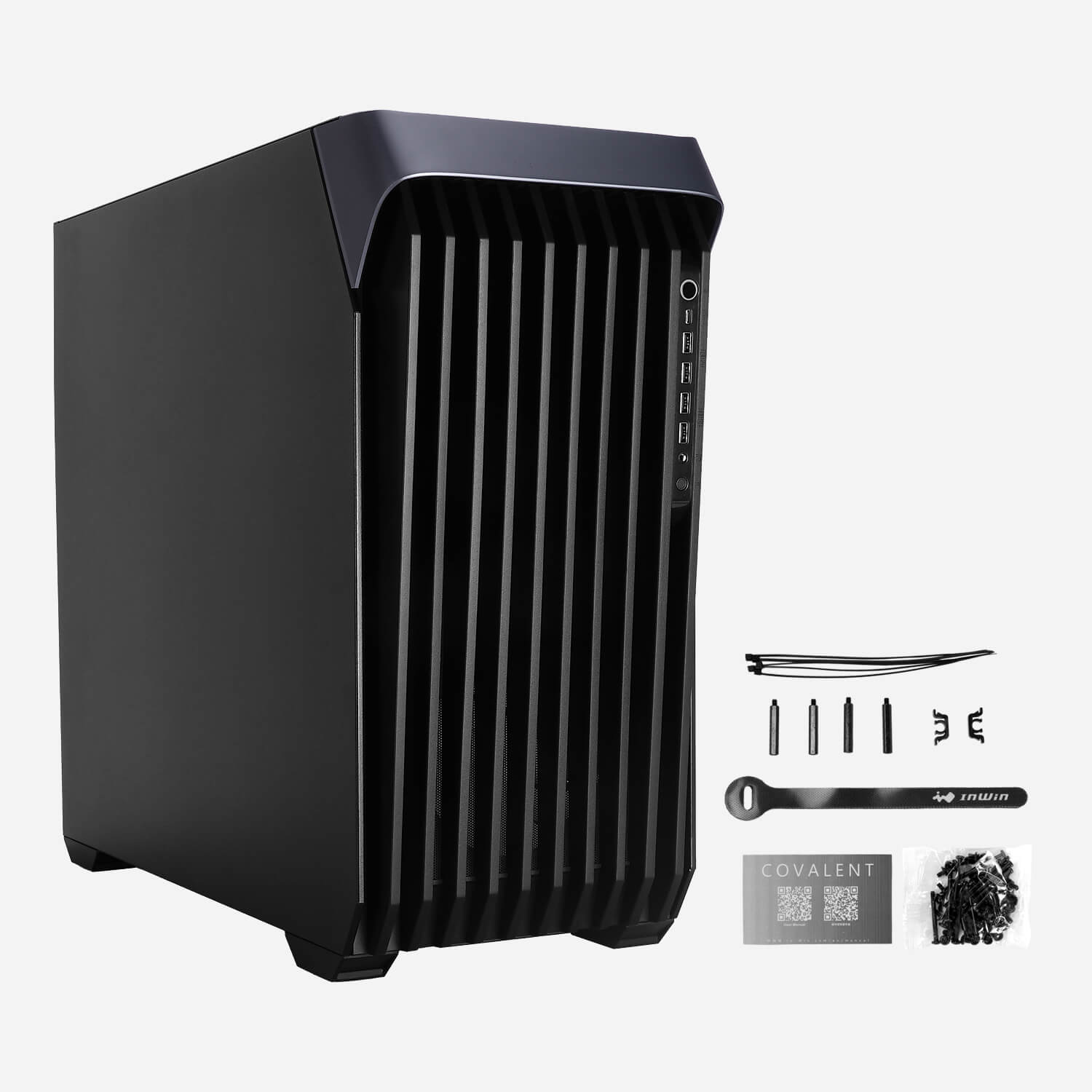

Components

COVALENT Chassis x 1
CV140 Fans x 4 (Pre-installed)
QR Code Card x 1
Accessories Bag x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

Non-Modular Cable 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)	Sirius Loop	Jupiter Series	Sirius Pure	Luna AL120	Mercury AM120S
Non-Modular Cable 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)	Sirius Extreme	Sirius Extreme Pure	Neptune AN Series	Neptune DN Series	Neptune DN PRO Series
Modular ARGB Type 1 6-Pin Modular (PWM + ARGB)	Aurora	EGO
Modular ARGB Type 2 6-Pin Modular (PWM + ARGB)	Crown Series	Saturn Series
Type-C Modular Cable (PWM + ARGB)	Lynx Series
Modular RGB 8-Pin Modular (PWM + RGB)	Polaris RGB Series	Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
