MR36
-
Rotatable ARGB Aluminium Ring
-
Supports AM5 and LGA1700
-
Paired with InWin’s ARGB, Silent Static Pressure Fans, Neptune AN120
-
Easy Installation
Specs
Model | MR36 | |
---|---|---|
Model Number | IW-LC-MR36 | |
CPU Socket Support | Intel® LGA LGA 1700/ 1200/ 20xx/ 1151/ 115x AMD® AM5/ AM4/ AMx/ FMx |
|
Radiator | Dimensions (L x W x H) |
397 x 120 x 27 mm |
Material | Aluminium | |
Tube Length | 450 mm | |
Tube Material | Rubber with Nylon Braided Sleeve | |
Water Block | Dimensions (L x W x H) |
81 x 68 x 39 mm |
Materials | Aluminium, Copper, Plastic | |
Pump | Power | DC 12V, 0.34A (0.45A MAX) |
Pump Speed | 5200 RPM +/- 10% | |
Fan | Model | Neptune AN120 |
Quantity Included | 3 PCS | |
Dimensions (L x W x H) |
120 x 120 x 25 mm |
|
Speed Mode | PWM 900 - 2200 +/- 10% RPM | |
Noise Level | 20.5 dB(A) (Normal) | |
Airflow | 23.87 - 60.1 CFM | |
Air Pressure | 0.36 - 2.27 mm / H2O | |
Connectors | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | |
Bearing Type | Long Lifespan Sleeve Bearing | |
Package Contents | 1 x InWin MR36 Liquid CPU Cooler 3 x InWin Neptune AN120 Fans Accessories Bag |
|
Package Dimension (L x W x H) |
448 x 137 x 205 mm |
|
Net Weight | 1.4 Kg | |
Gross Weight | 1.9 Kg | |
Warranty | 3 Years | |
* InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |

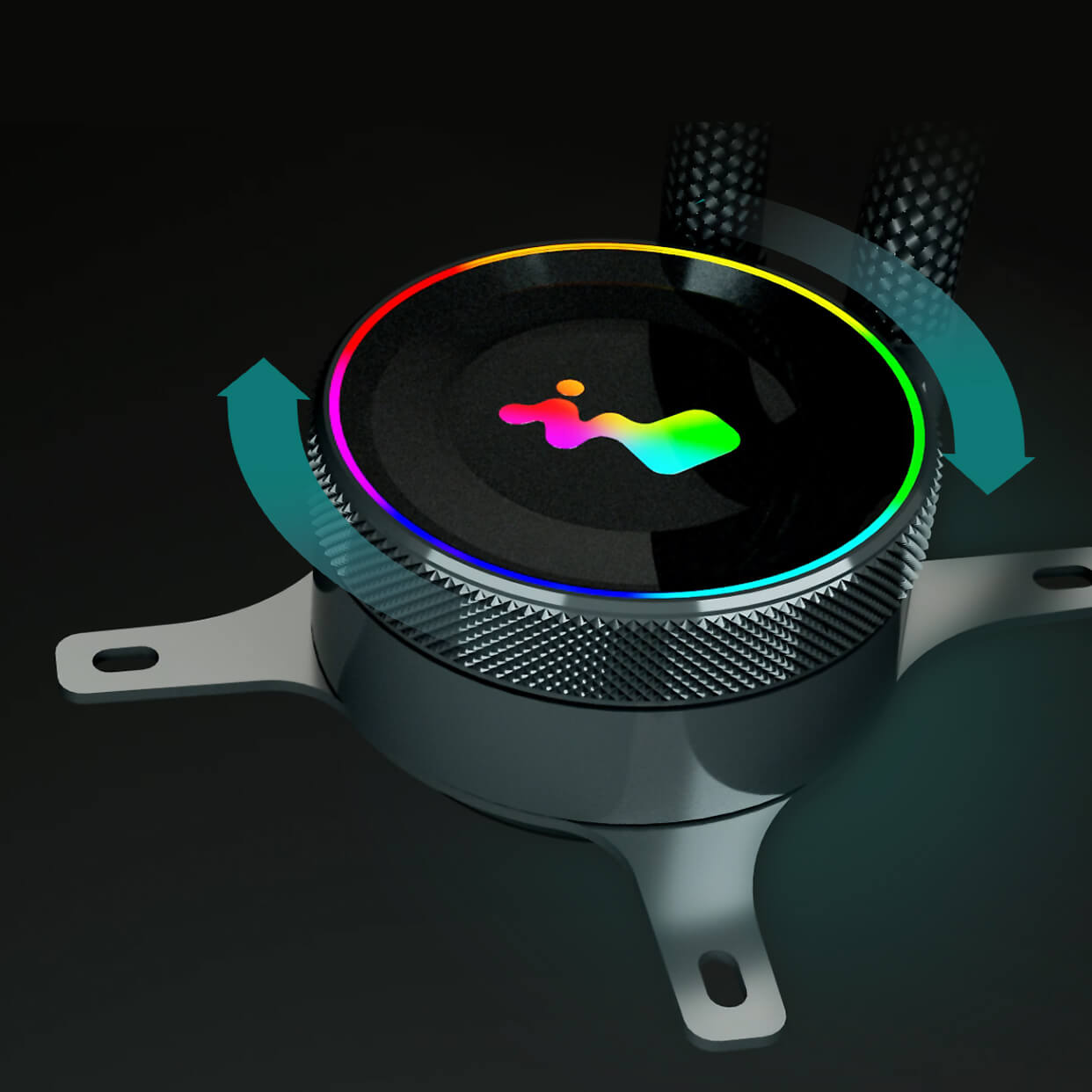

Rotatable Aluminium ARGB Ring

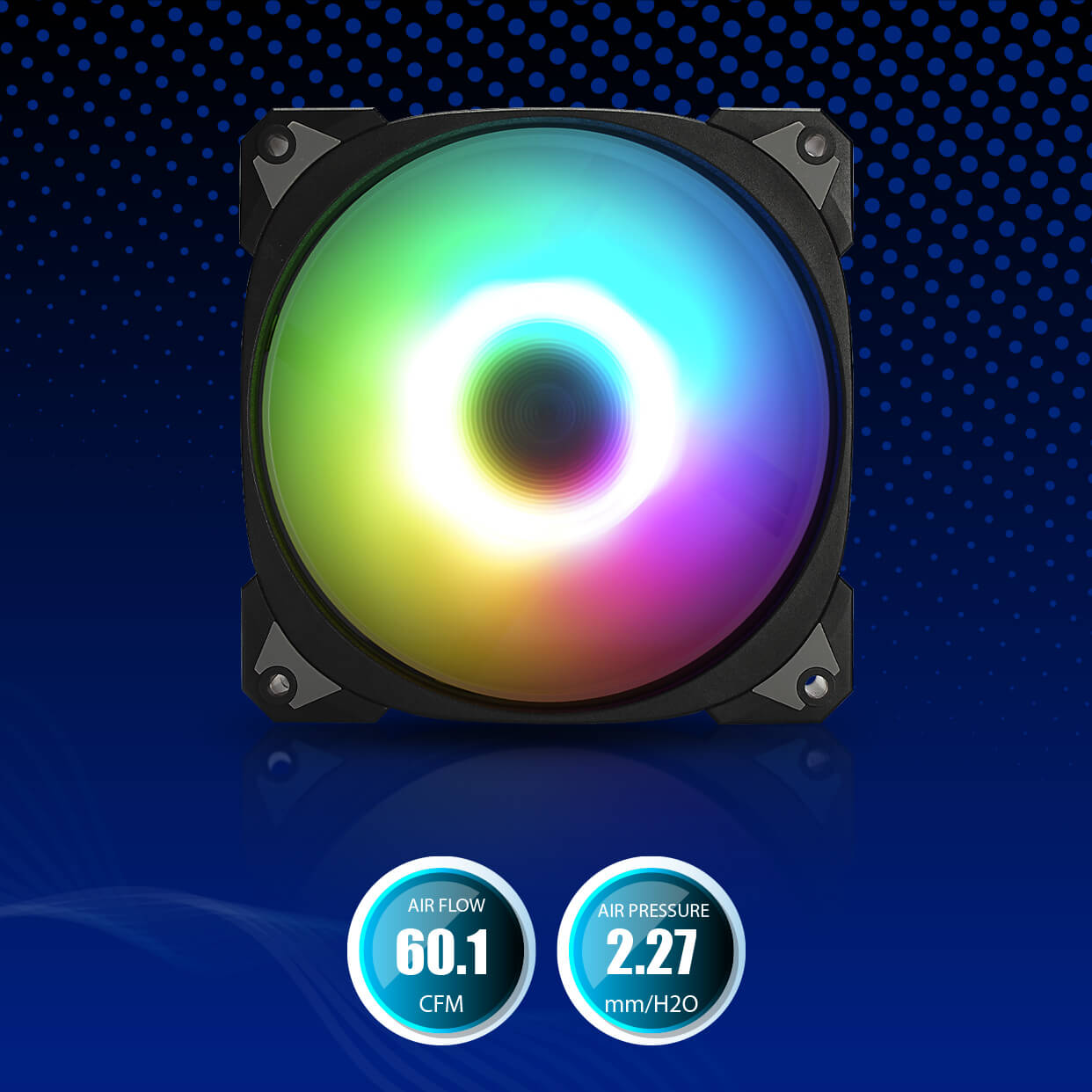

Neptune AN120: Silent Static Pressure Fans

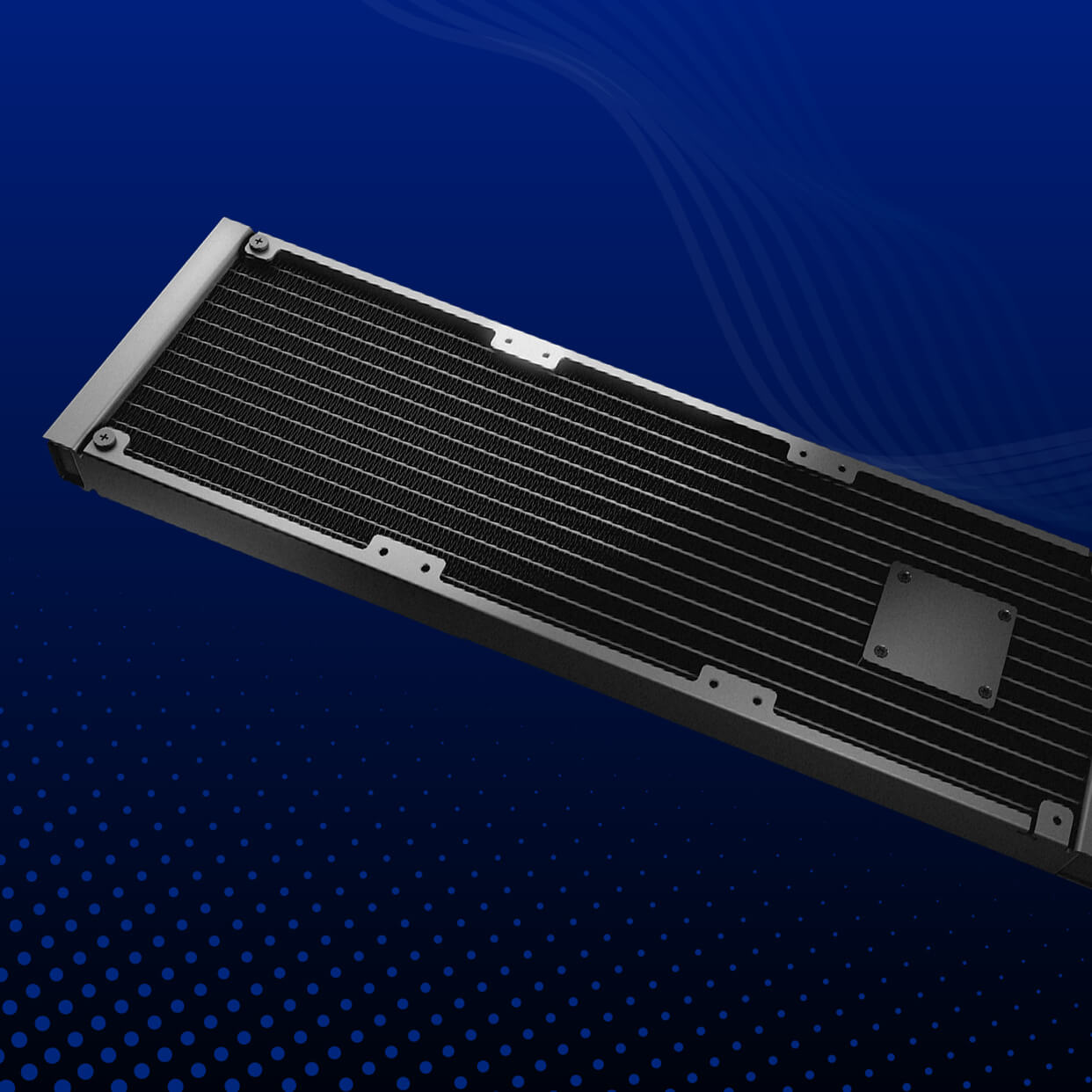

Superior Cooling Performance

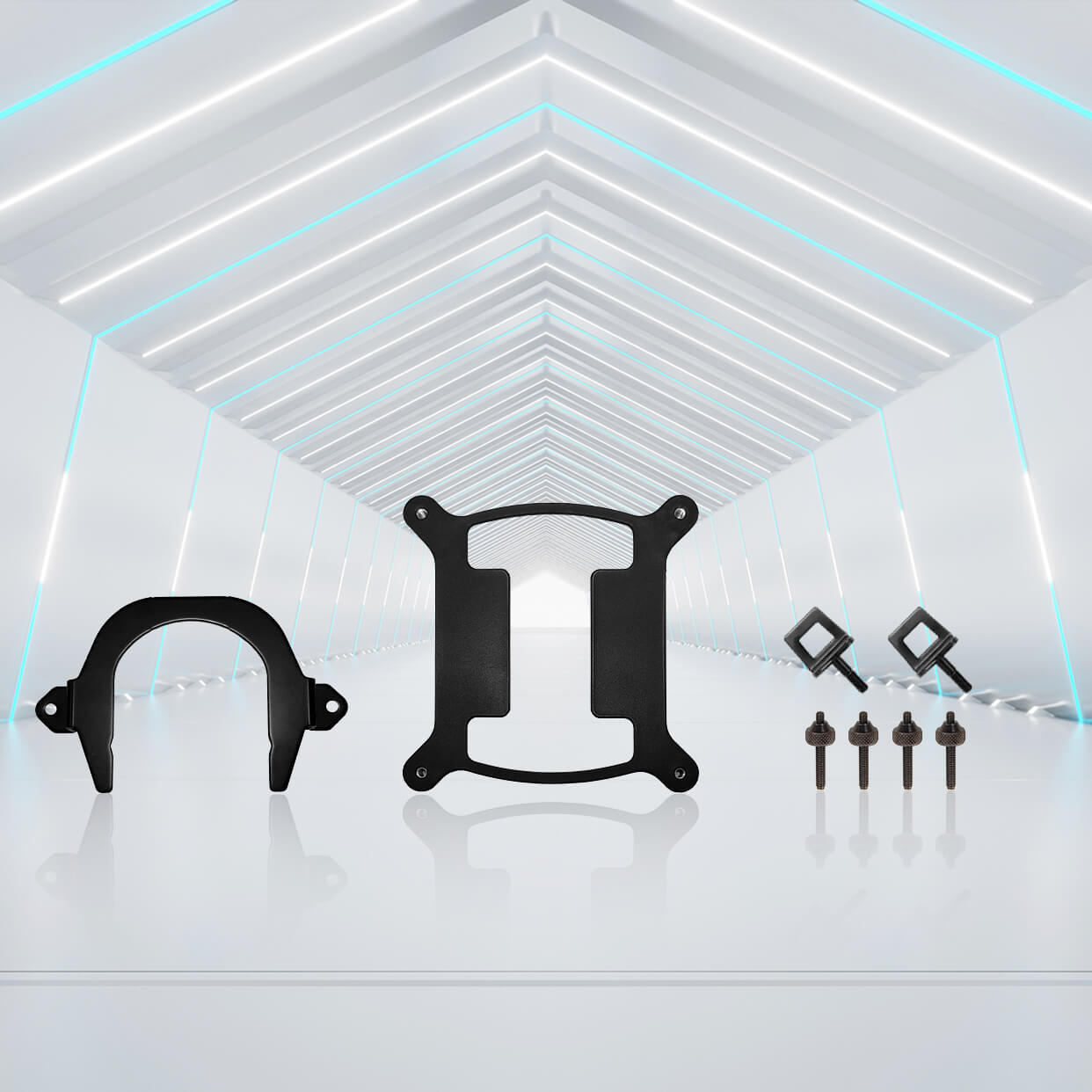

Easy Installation
AMD AM5 & Intel LGA1700 Compatibility

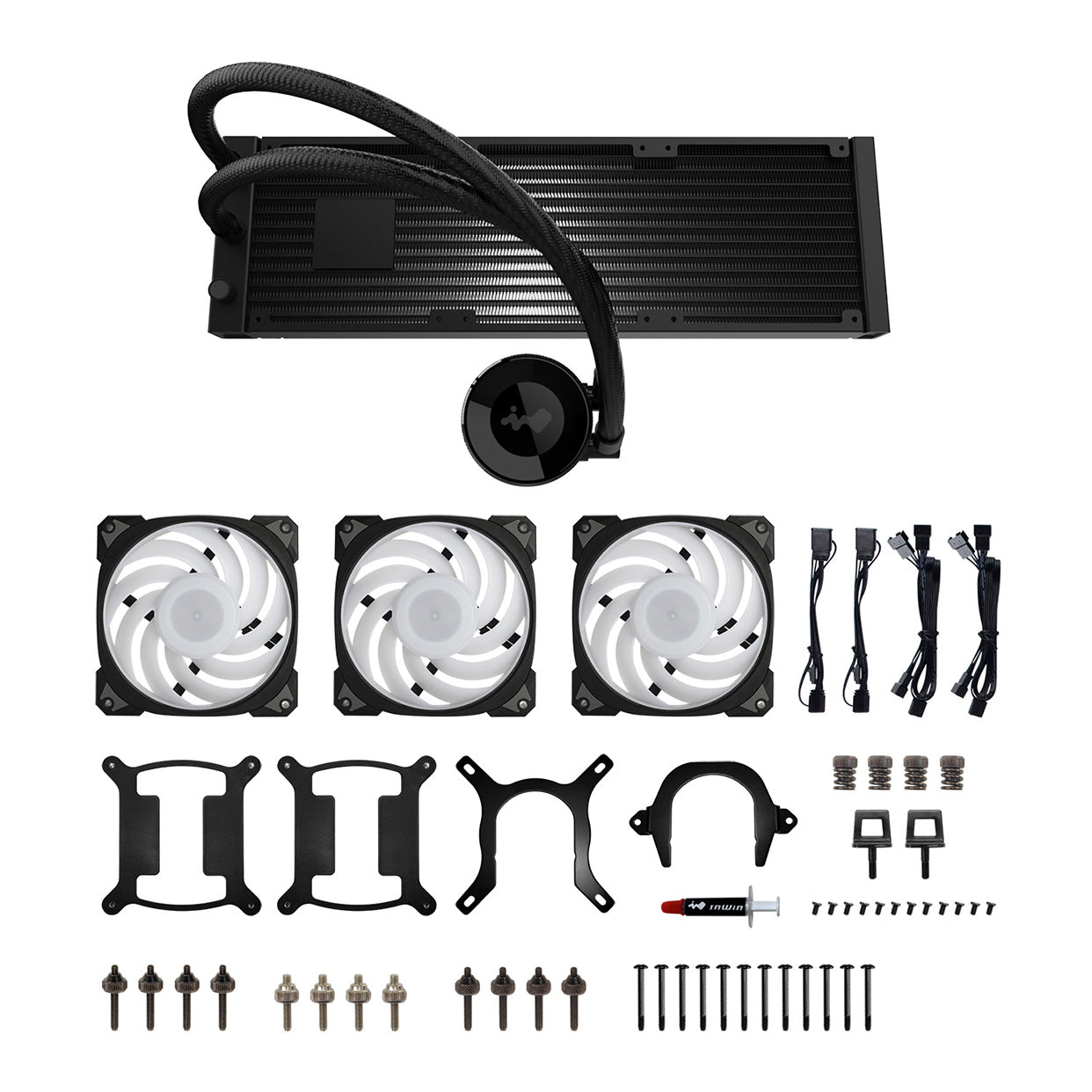

Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
Non-Modular Cable |
Neptune Pure |
Sirius Pure |
Luna AL120 |
Mercury AM120S |
Sirius Loop |
Jupiter Series |
---|---|---|---|---|---|---|
Neptune AN Series |
Neptune DN Series |
Neptune DN PRO Series |
Sirius Extreme Pure |
Sirius Extreme |
||
Modular ARGB Type 1 |
Aurora |
EGO |
||||
Modular ARGB Type 2 |
Crown Series |
Saturn Series |
||||
Modular RGB |
Polaris RGB Series |
Polaris AluminumRGB Series |
InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
