Sale price€229.00
No reviews
No reviews

Extended ATX

Somewhere in the universe and beyond the numbered nebulas, there is a mysterious planet nicknamed, Case Monsters World. The planet emitted a continuous echoing sound. Bippp… Bippp… Bippp… If you follow the sounds, you can reach the source, which is a high-tech building called CML (Case Monsters Lab). The CML is responsible for the creation of four A.I. robots - ROBERT, PLANNIE, FRANK, and AIDO. They were created to develop skills to assist all living creatures. They one day hope to visit the human world to help and become friends with humans.

  1. Characteristic Headphone Hanger
  2. Emoji Stickers
  3. Collectible Characters Card
  4. Characteristic Headphone Hanger


Model Case Monsters - A: Lab Series
Colors 004-AIDO
Case Type Mid Tower
Materials Tempered Glass, SECC, ABS
M/B Compatibility 12” x 13” (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 8 x PCI-E
Maximum Compatibility GPU Length: 390mm
CPU Heatsink Height: 170mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio
Internal Drive Bays 4 x 2.5"
2 x 3.5"
Thermal Solution Compatibility

Air Cooling Fans:
Front: 3 x 120mm
Top: 3 x 120mm
Rear: 1 x 120mm
(4 InWin ASL120 Fans Included)

Water Cooling Radiator:
Front: 1 x 360mm
Top: 1 x 360mm

Power Supply Compatibility PSII: ATX12V
- Length up to 180mm
Product Dimensions (L x W x H)

537 x 270 x 528mm

Package Dimensions (L x W x H)

590 x 550 x 240mm

Net Weight 6.9 kg
Gross Weight 13.73 kg
* Number of fans pre-installed may vary based on different regions.
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.
Model Sirius Loop ASL120
Quantity Included Single Pack
Triple Pack
Part Number ASL120FAN-1PK

Fan Size 120 x 120 x 25mm
Materials PBT
Rated Voltage DC 12V
Rated Power 1.2W
Rated Current 0.1A
ADD RGB Rated Voltage DC 5V
ADD RGB Rated Power 1.25W
ADD RGB Rated Current 0.25A
Speed Mode PWM 500 - 1800 +/- 10% RPM
Air Flow 50 CFM
Air Pressure 1.67mm/ H2O
LED Addressable RGB
Connector (Fan to Fan) 4-Pin Modular
Noise Level 27 dB(A) (Max.)
Bearing Type Long Lifespan Sleeve Bearing
Net Weight
200 g
600 g
Package Dimensions (L x W x H)
125 x 30 x 185 mm
125 x 80 x 185 mm
Warranty 2 years
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.

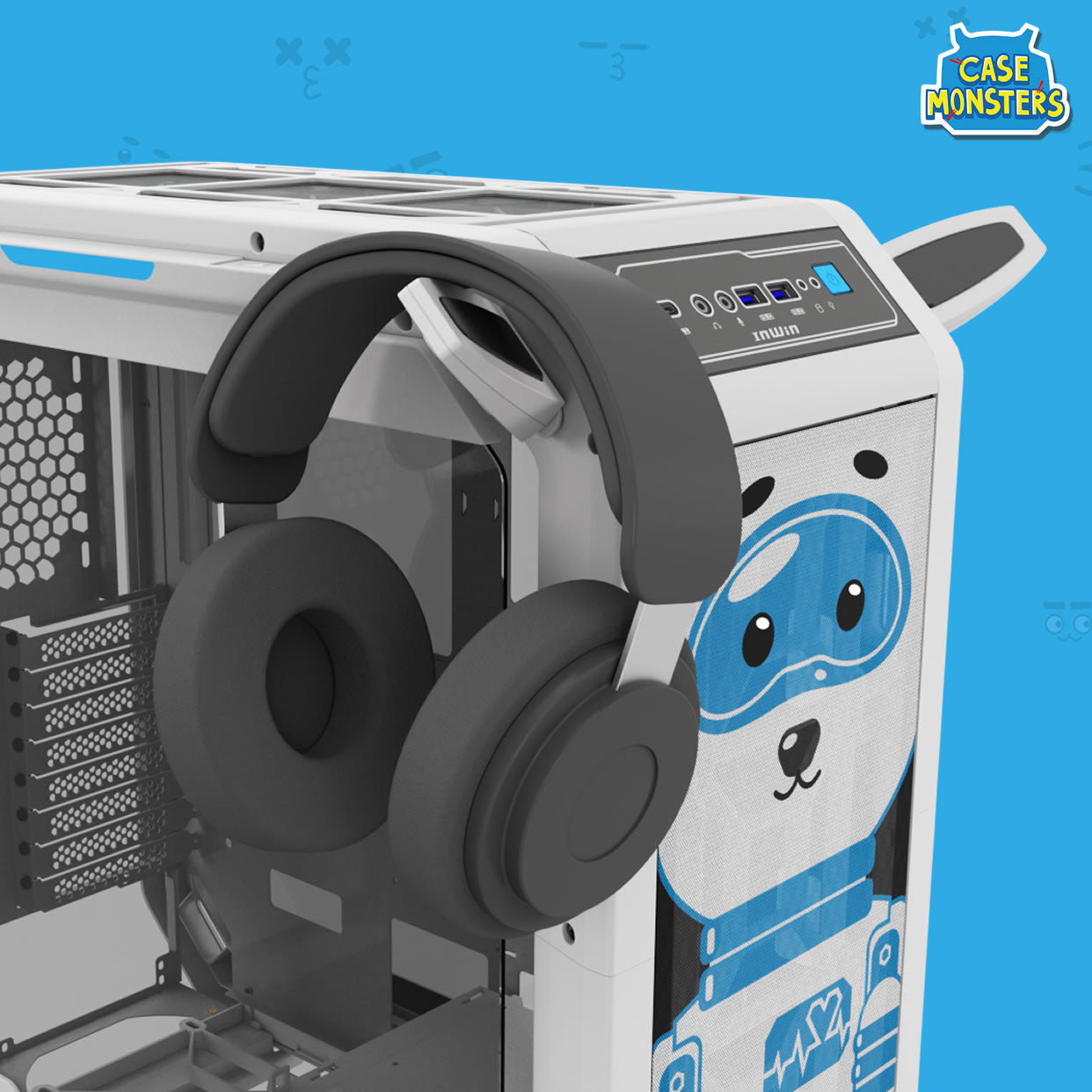

Characteristic Headphone Hanger

The 4 Lab Series characters: ROBERT, PLANNIE, FRANK and AIDO have different characteristics. The headphone hangers are themed to match each character. Don’t hesitate to hang your headphones, each character will safely protect/display them.

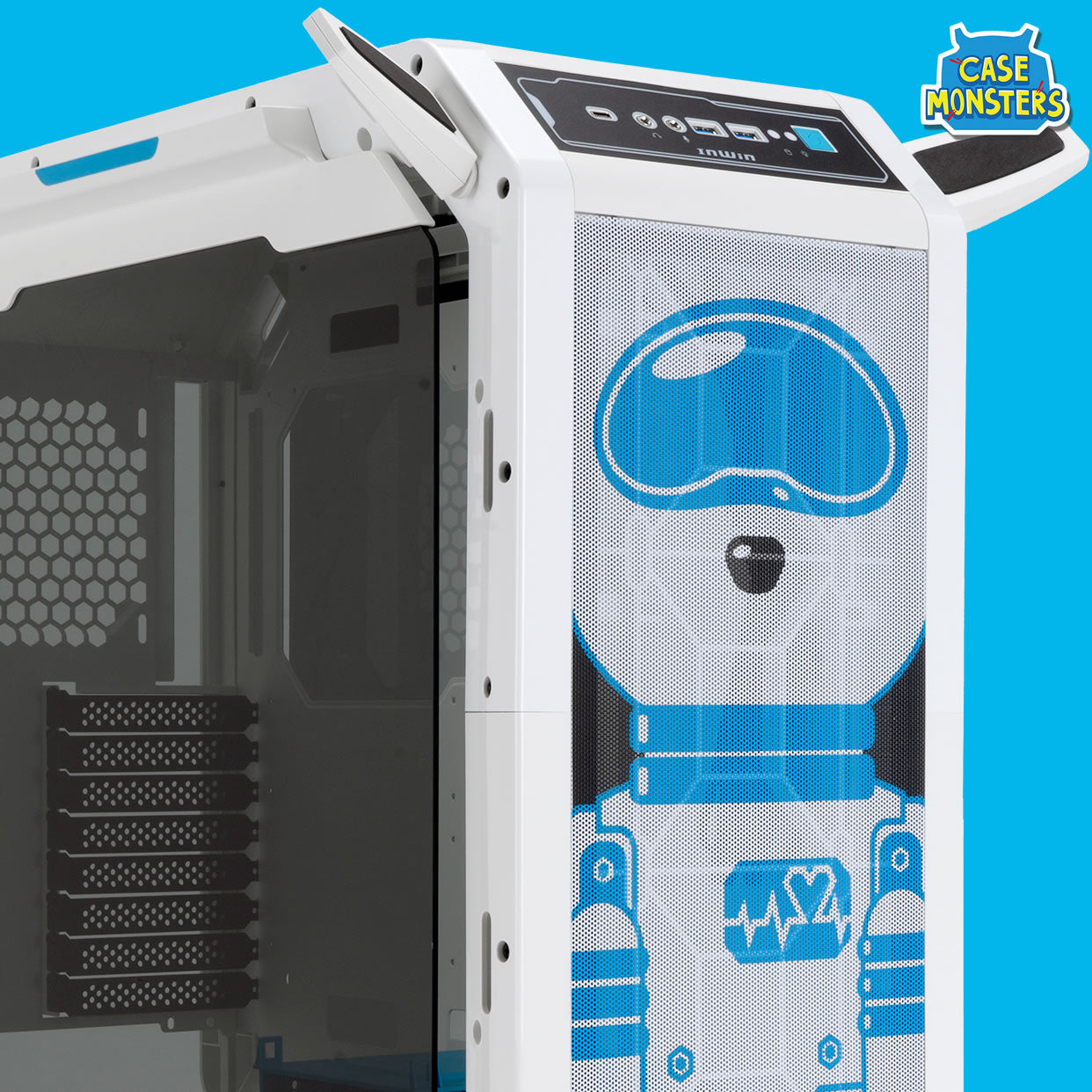

Not Just a Dust Filter

The Lab Series features a magnetic front dust filter that also serves as the character’s body printed on it.

Emoji Stickers

Happy, angry, cheerful, serious… There are plenty of provided emoji-themed stickers to create a special face for each characters.

Build with Case Monsters

Have fun building your Case Monsters-A: Lab Series on your own or with your friends or family! The 19-piece is ready for assembly! Let's have some fun!

Hassle-Free Design

Build the chassis and assemble the system with ease. The hassle-free modular design of Case Monsters-A: Lab Series structure is a breeze to build up and build in. (Tool-less features include: Drive cage, quick-release side panel, quick-release filters.)

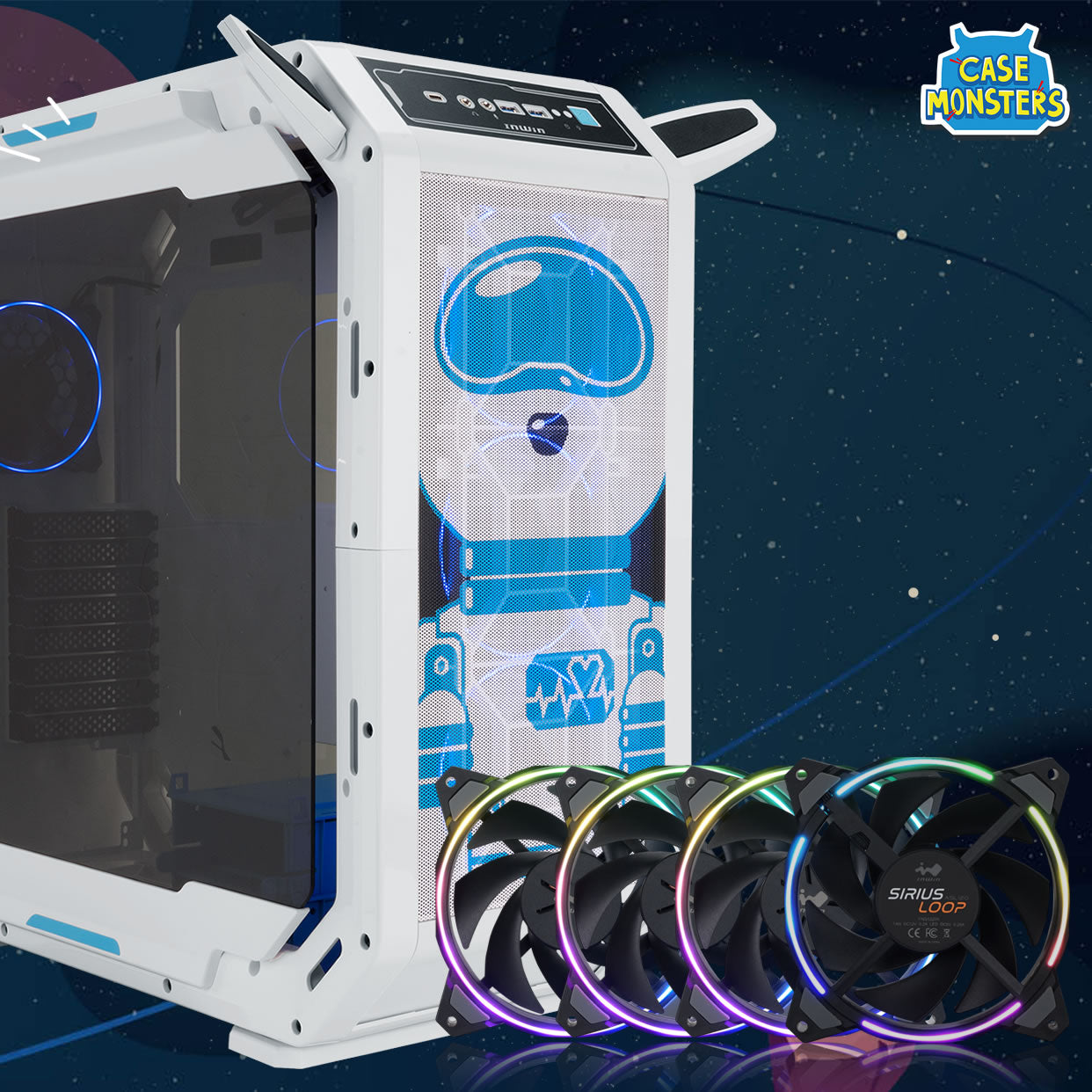

Included Sirius Loop Fans

InWin's Sirius Loop ASL120 fans provide excellent heat dissipation for the chassis. 4 x Sirius Loop ASL120 fans are included!

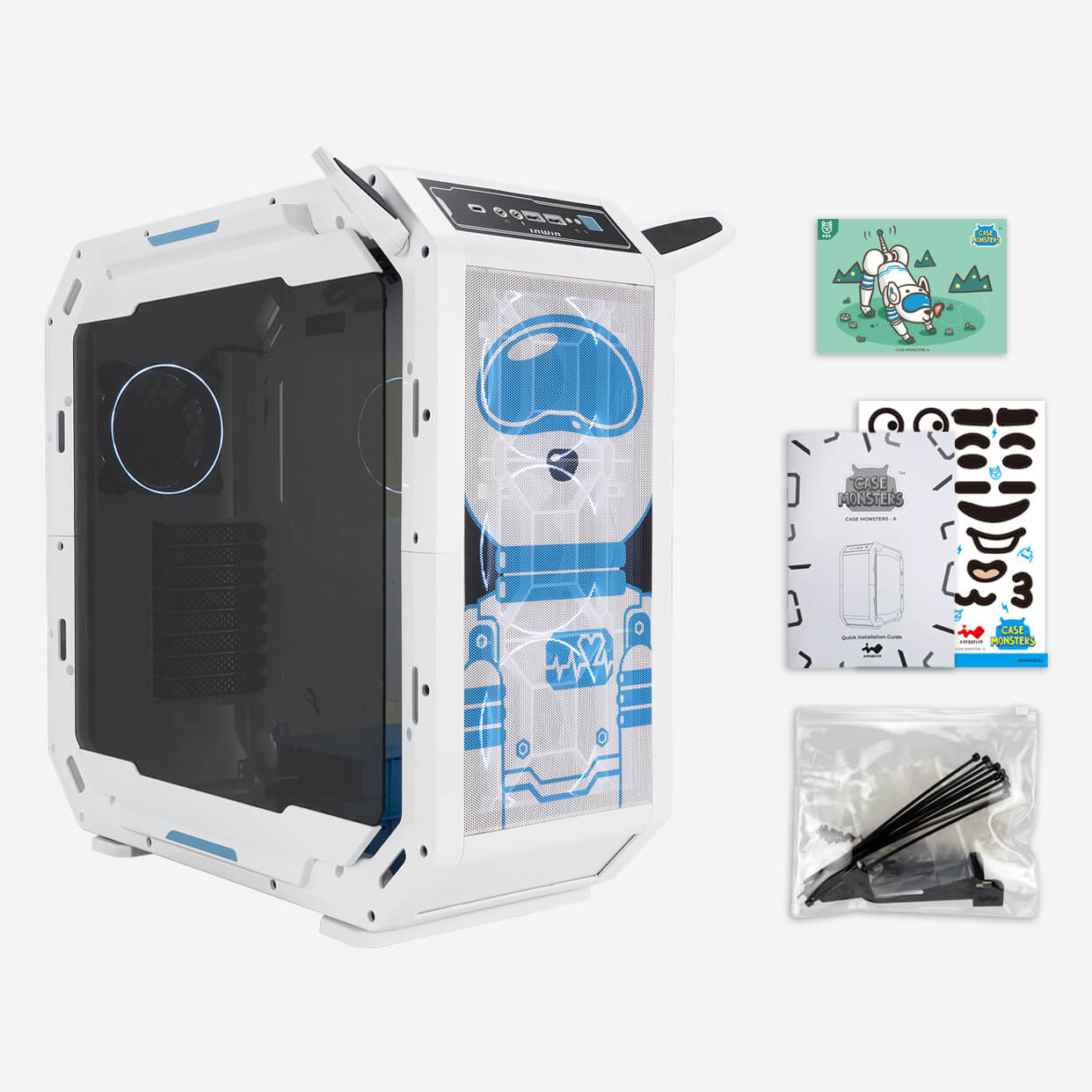

Case Monsters-A: Lab Series Chassis (19-Pieces Module Set) x 1
Assemble Guide x 1
Characters Card x 1
Emoji Sticker x 1
Characteristic Headphone Hanger x 2
Accessories Bag x 1
Sirius Loop ASL120 1-Pack x 1
Sirius Loop ASL120 3-Pack x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
