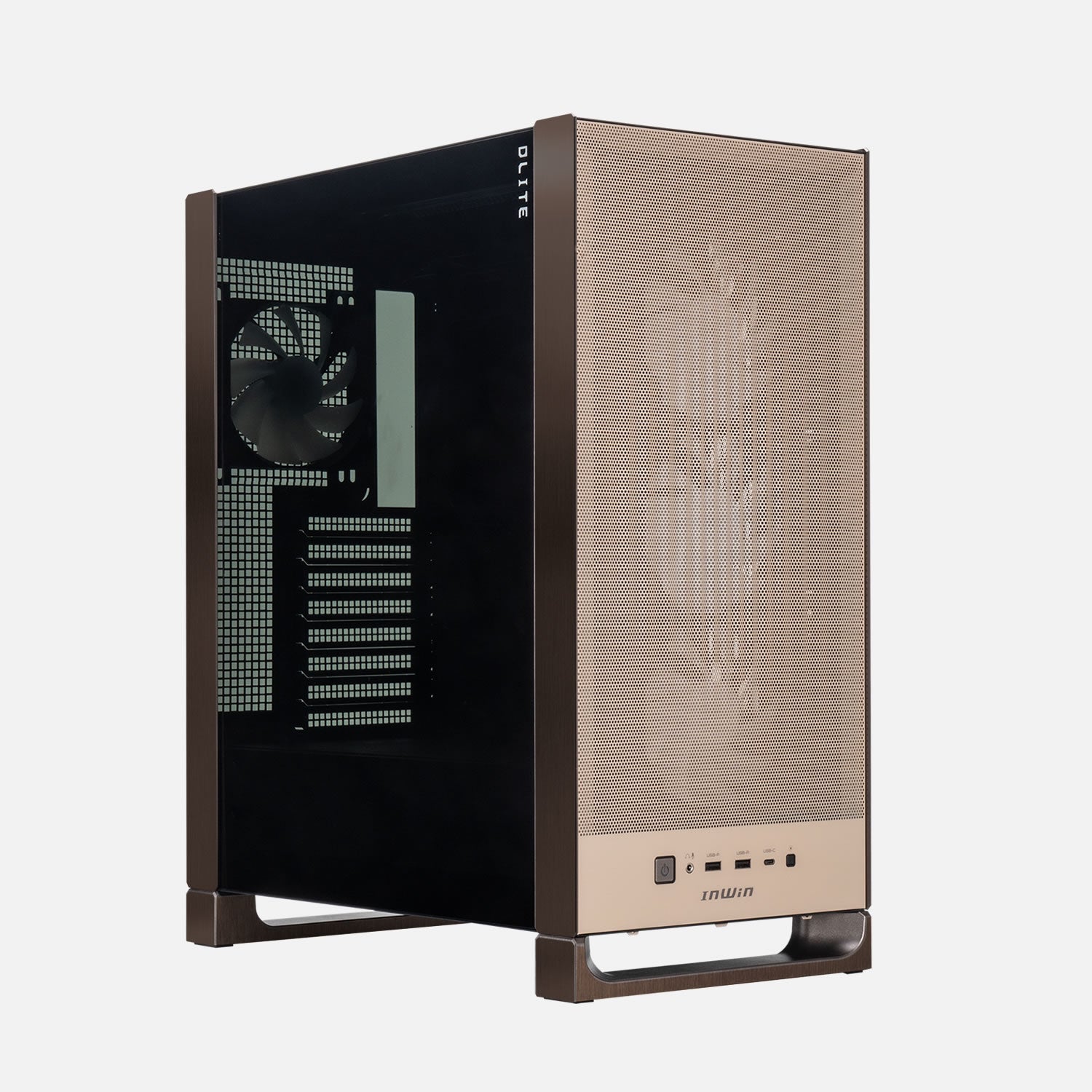

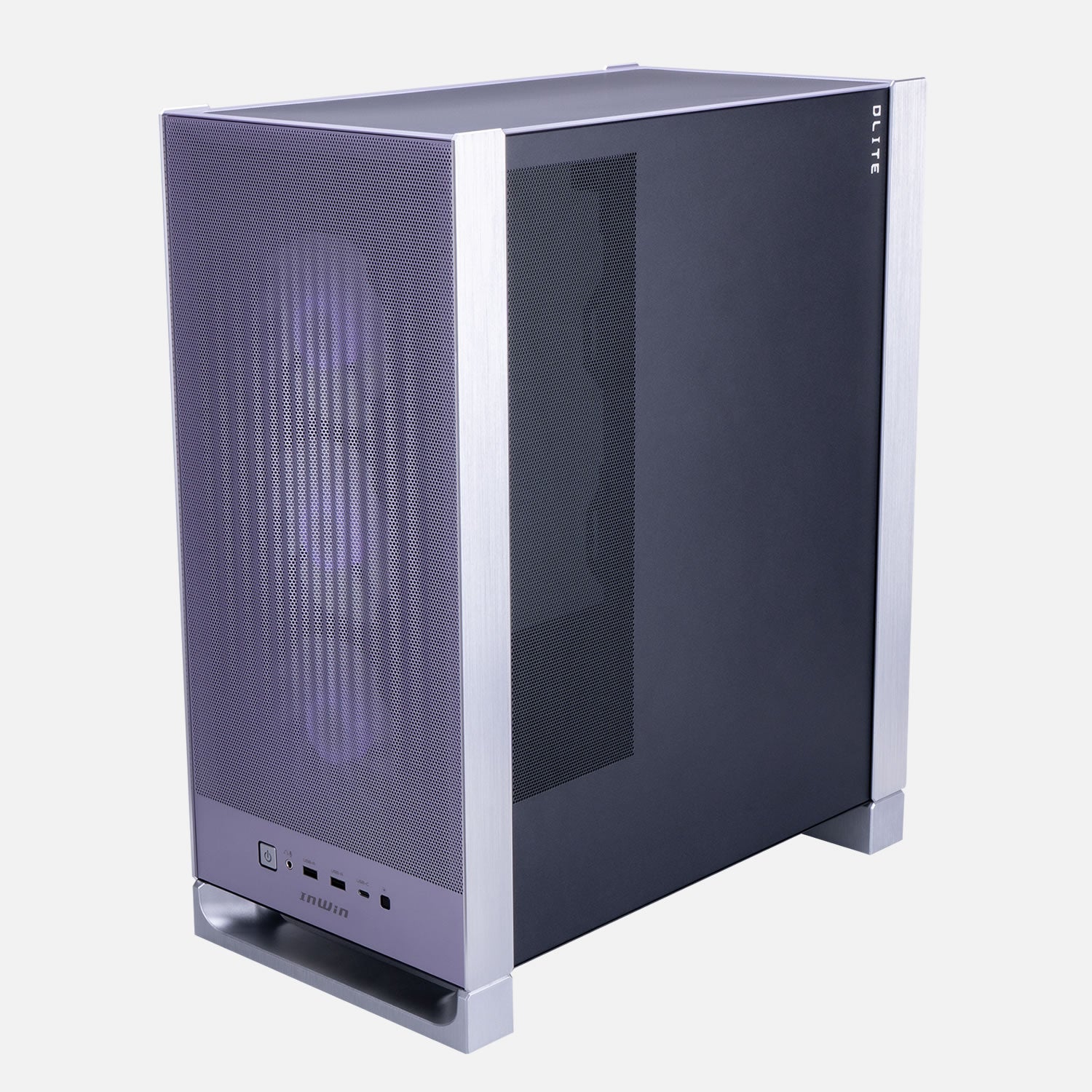

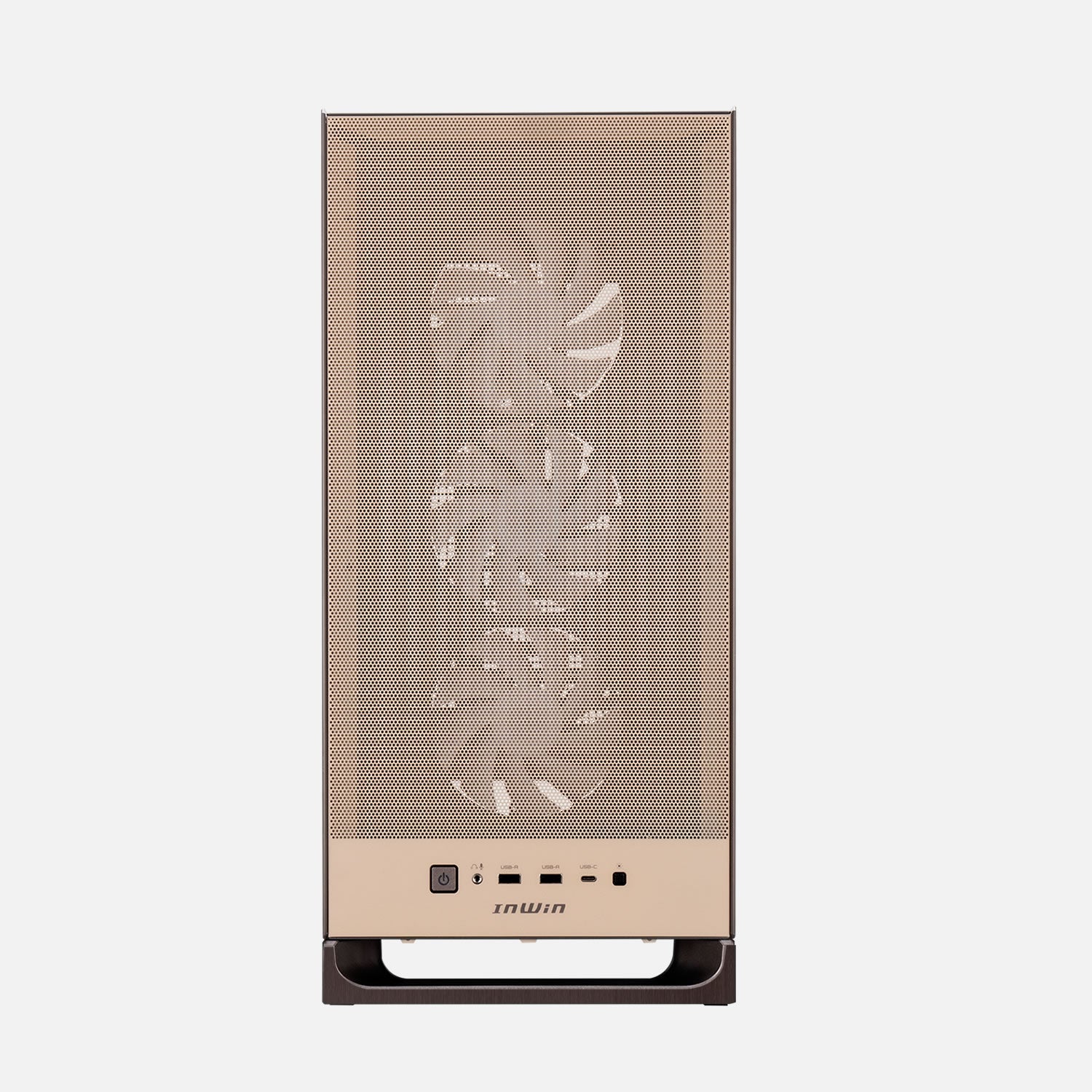

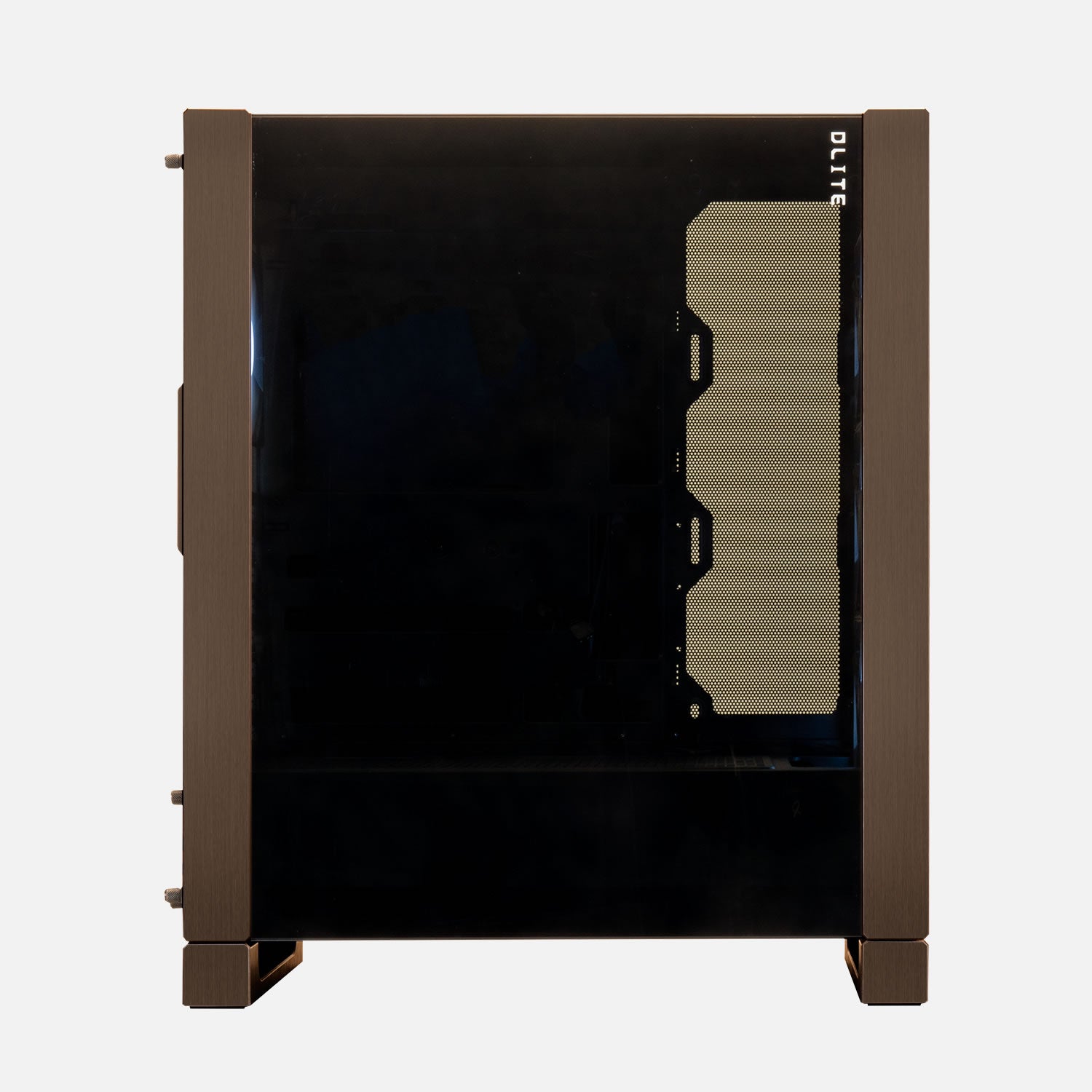

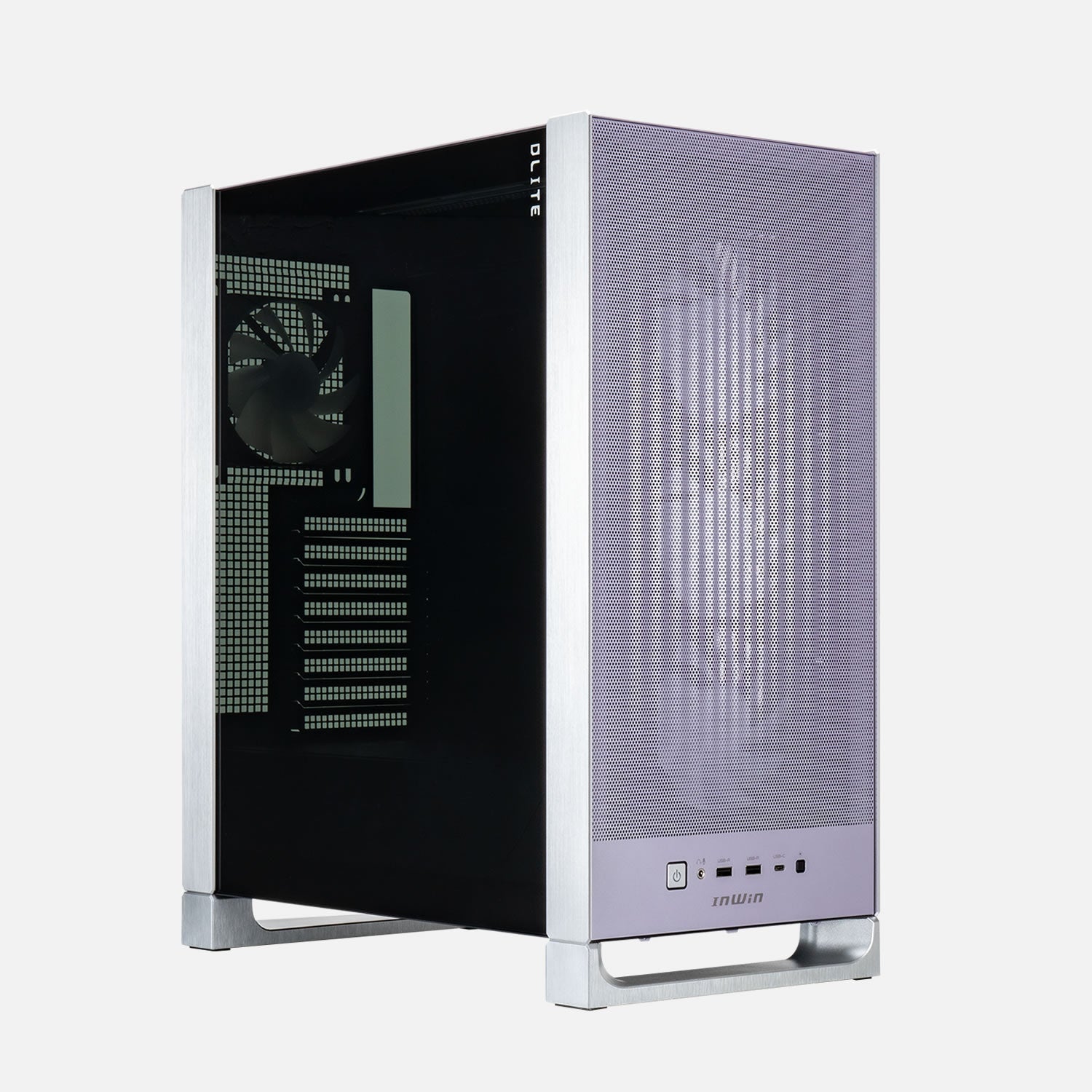

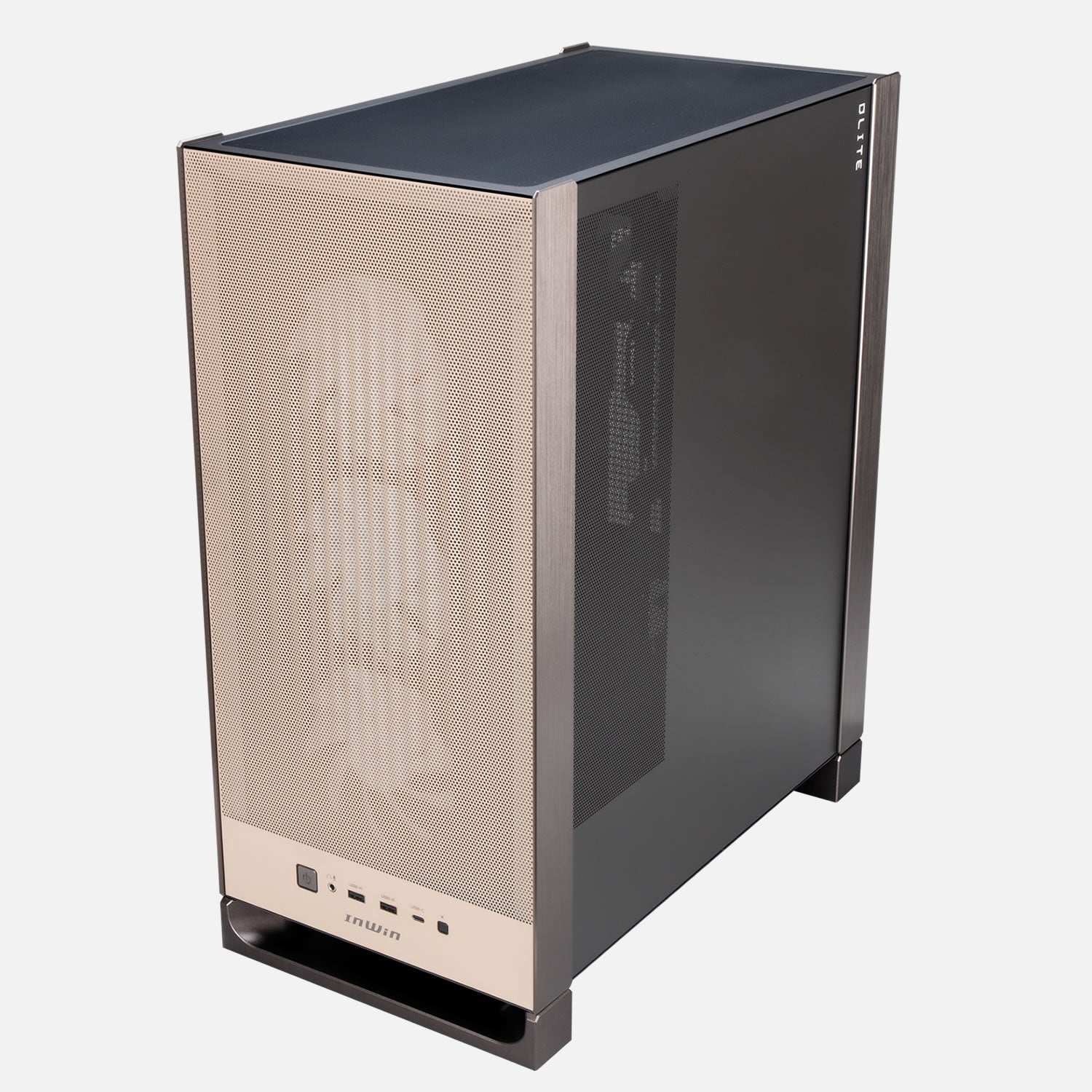

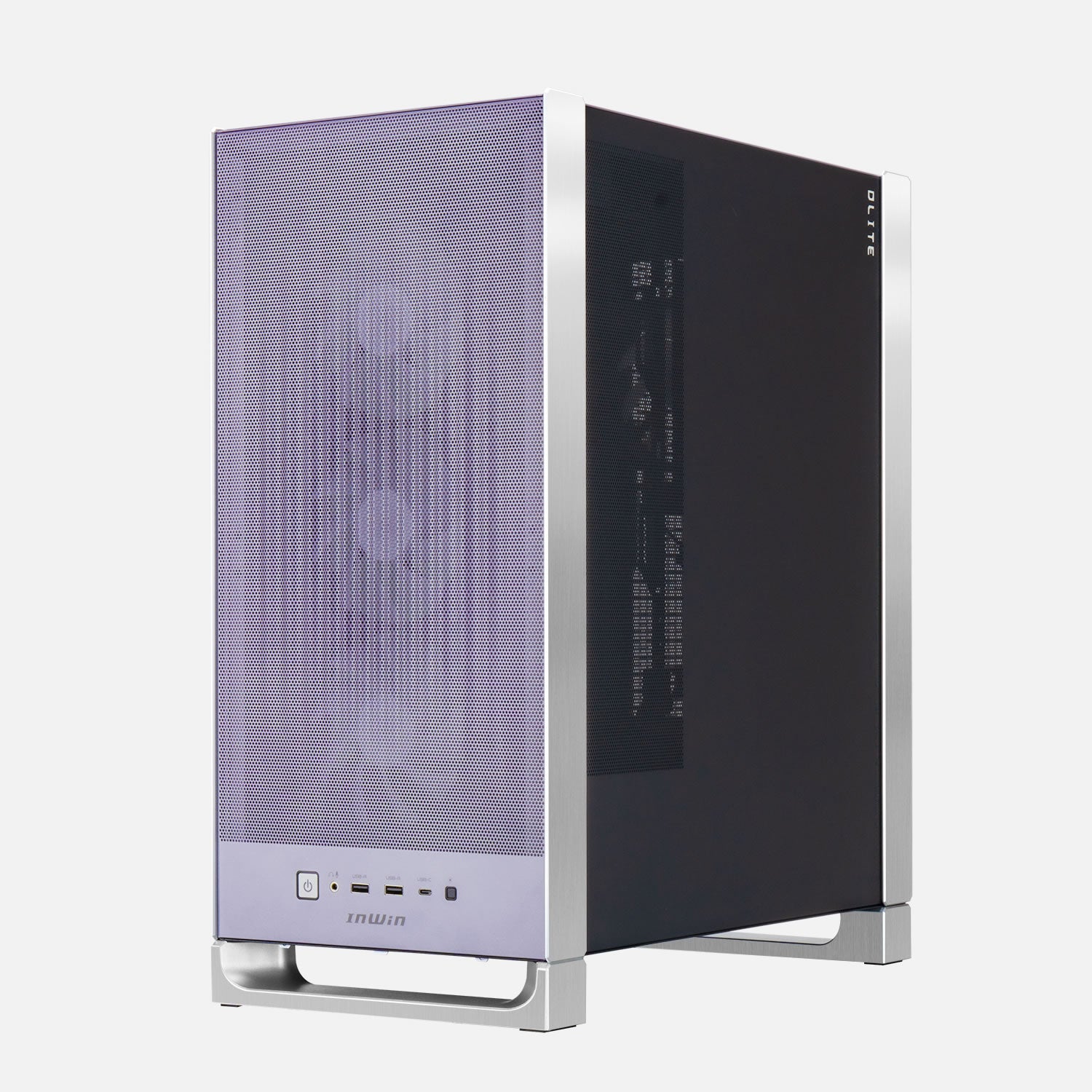

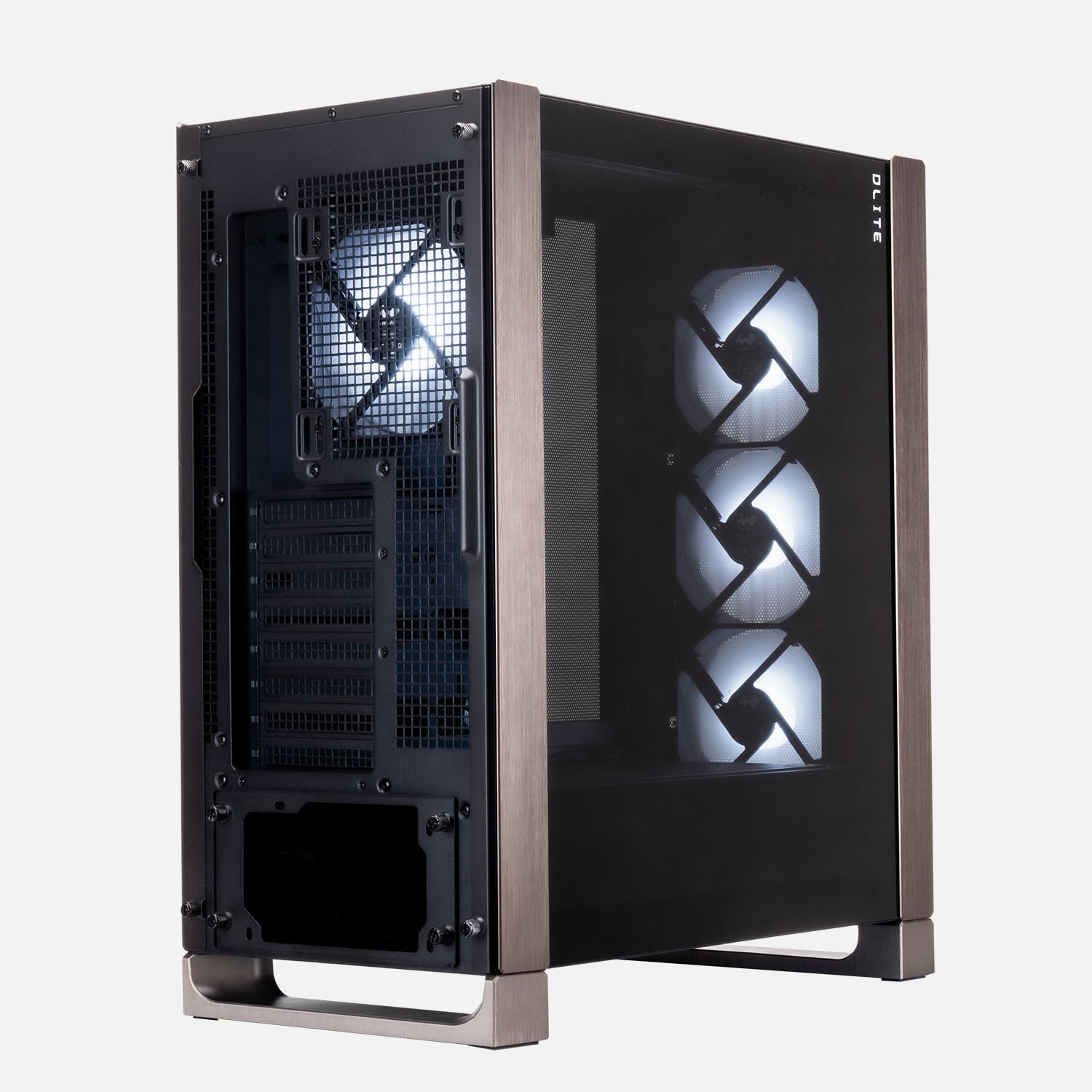

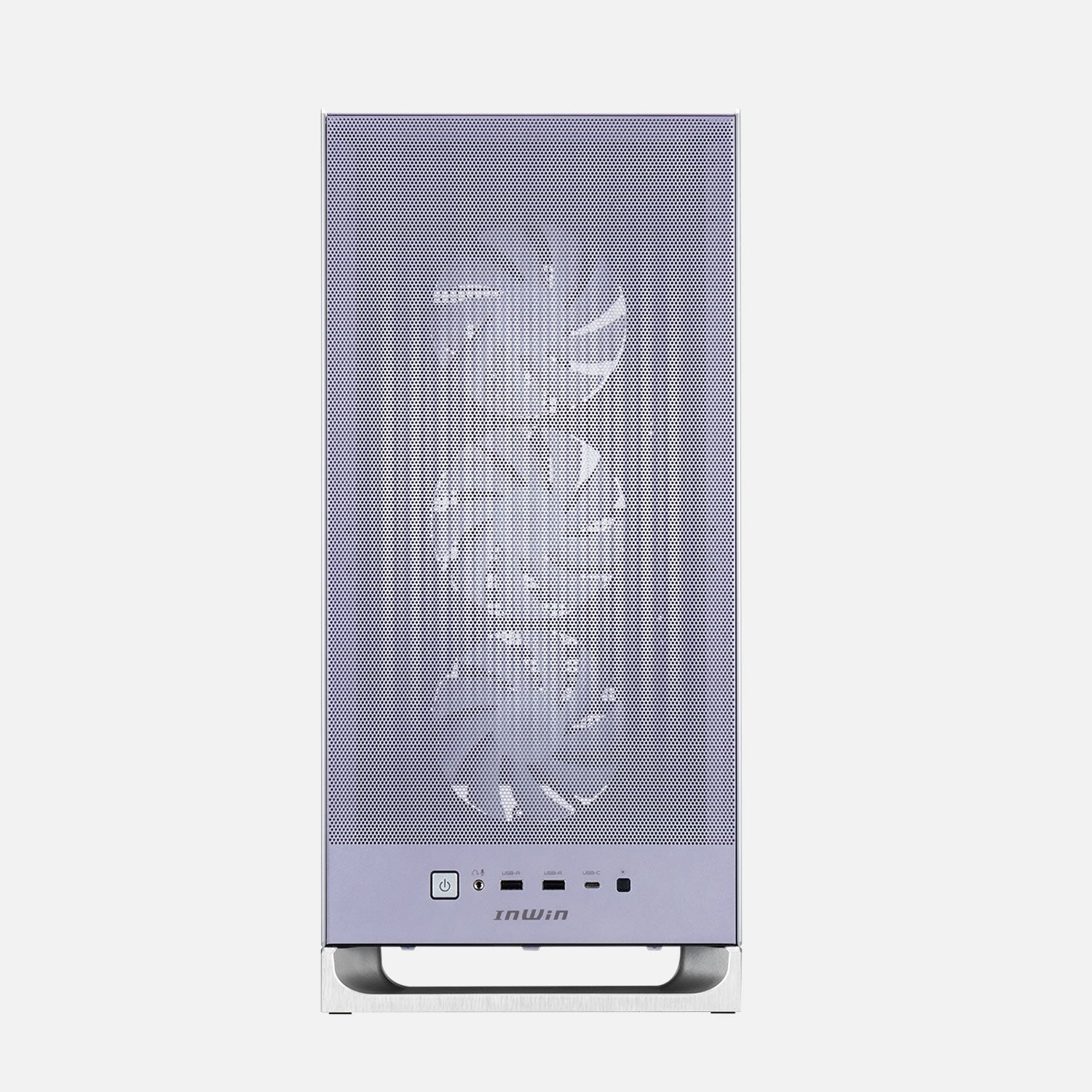

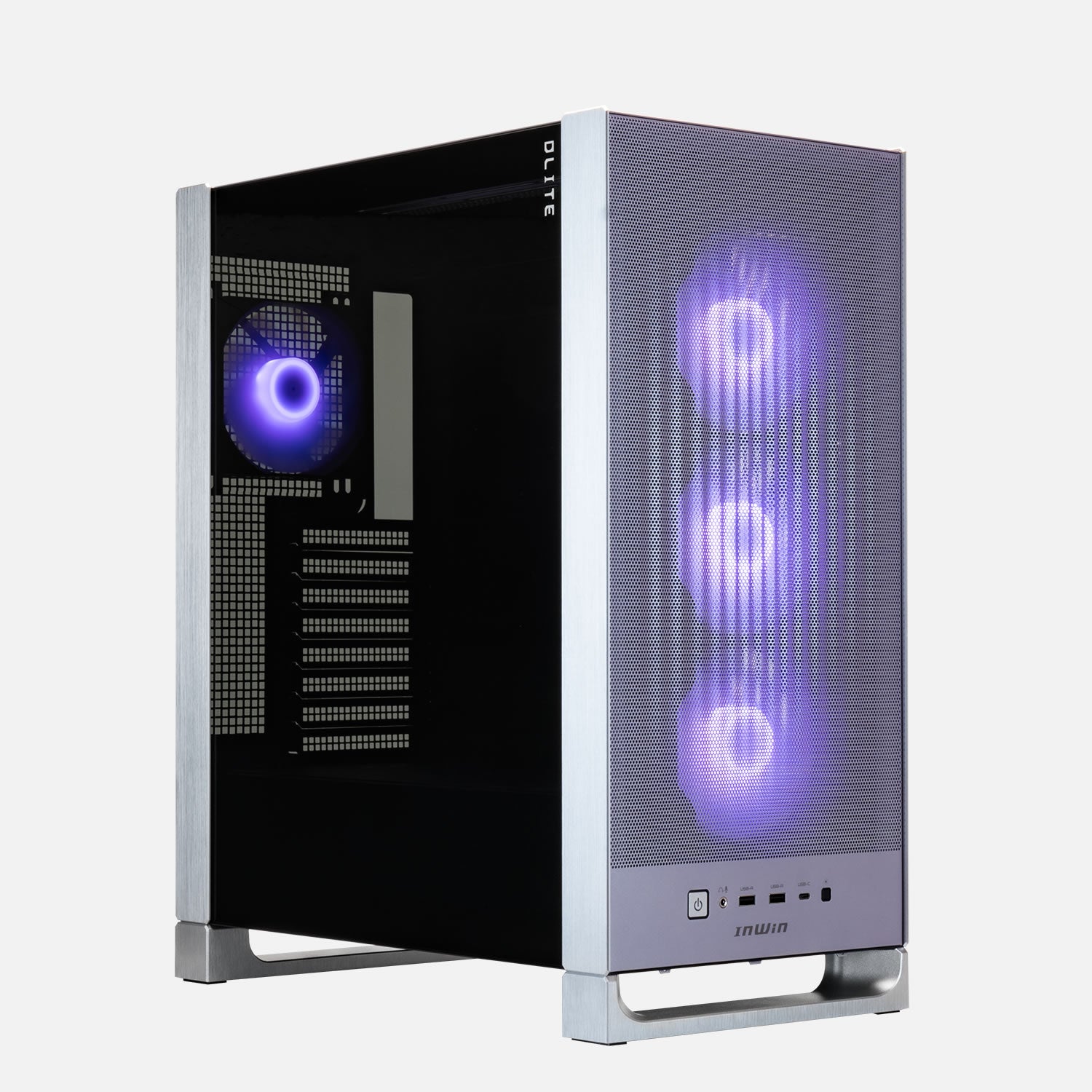

DLITE
ATX
-
Sleek Exterior, Sensible Interior
-
Next-Gen Ready
-
Optimized Airflow
-

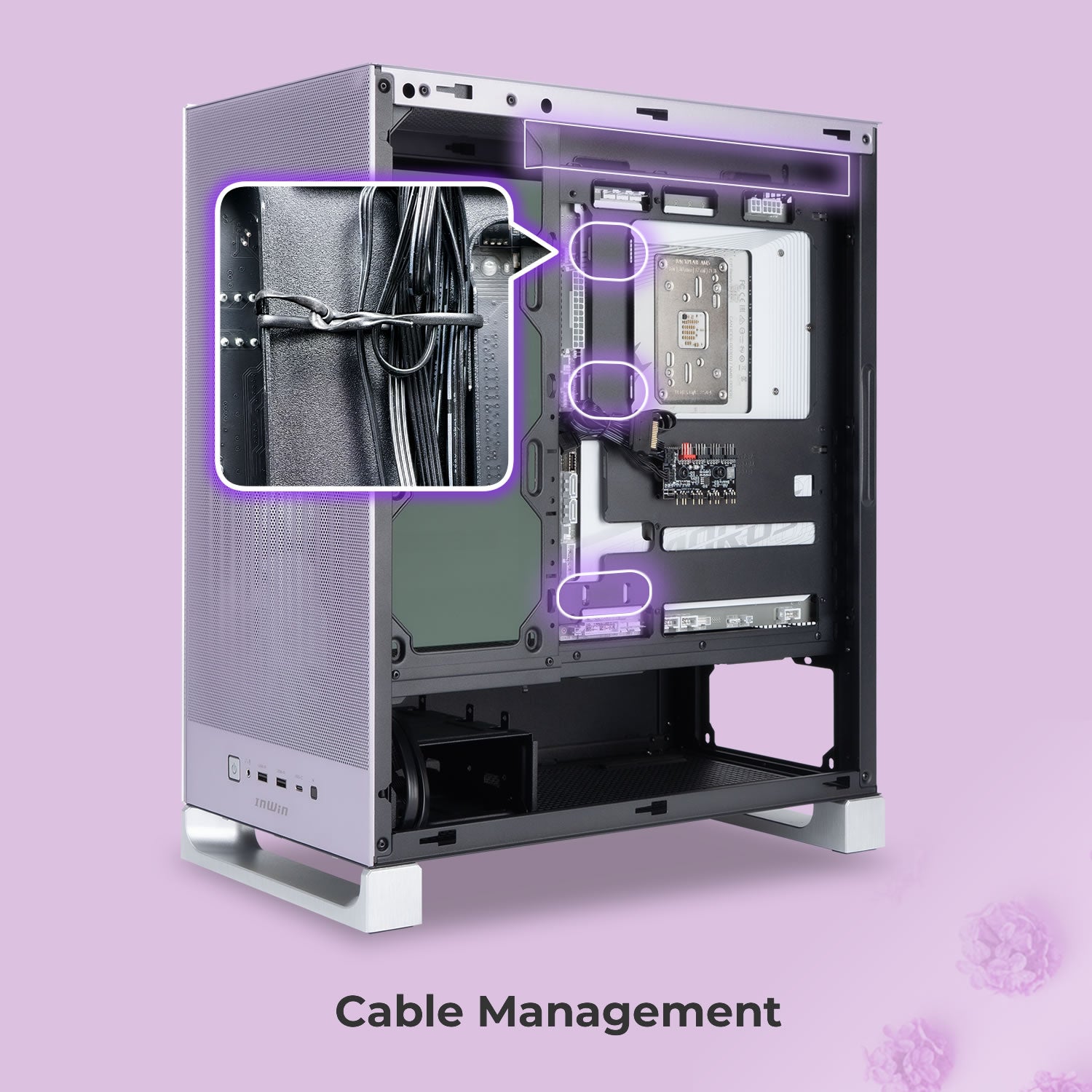

Builder-Friendly; Build with Ease
Specs
| Model | DLITE |
|---|---|
| Model Number | IW-CS-DLITEBRO-4XM120, IW-CS-DLITEPUR-4XM120 |

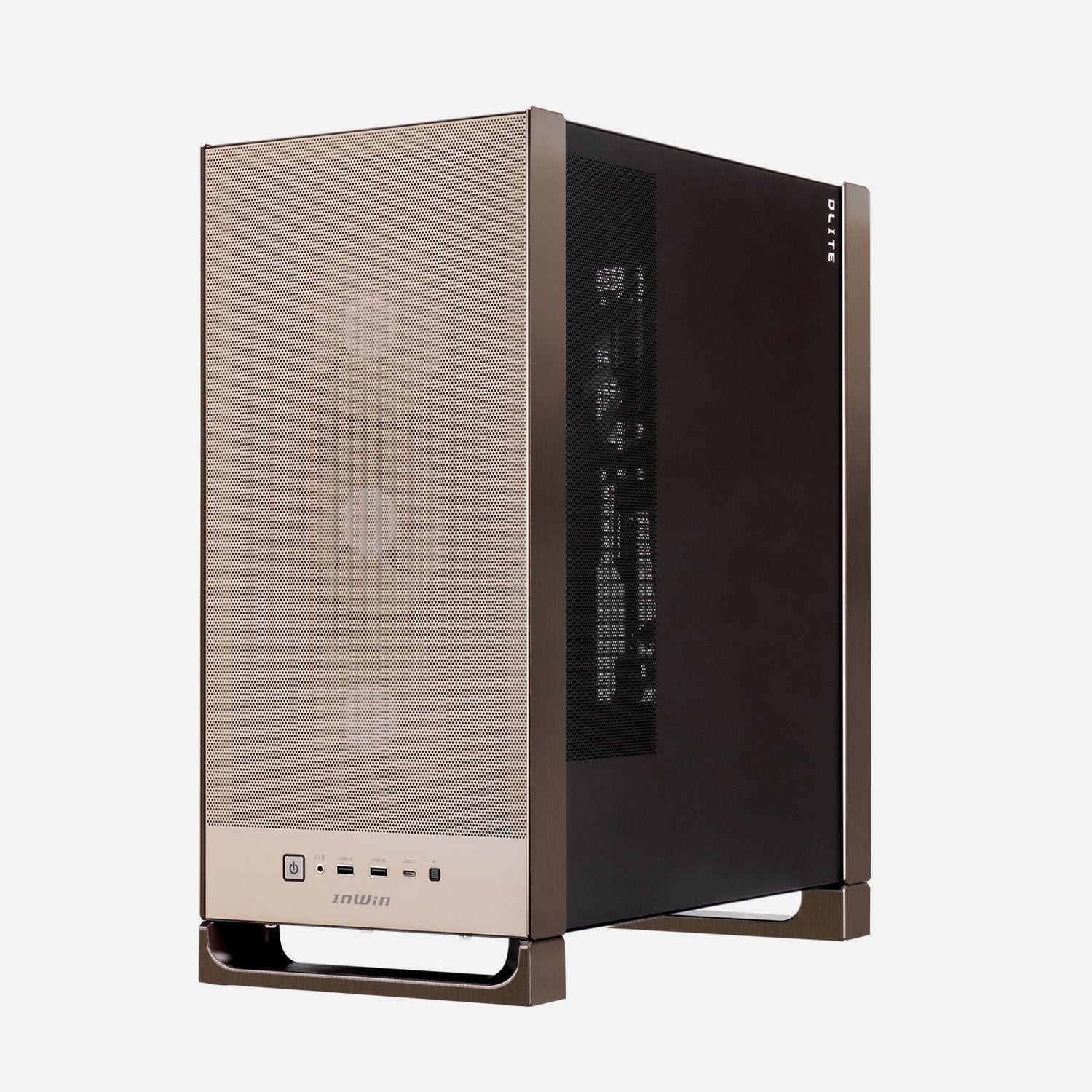

| Color | Mocha Bronze, Lilac Silver |
| Case Type | Mid Tower |
| Materials | SPCC, Tempered Glass, Aluminium, ABS |
| M/B Compatibility | ATX, Micro-ATX, Mini-ITX |

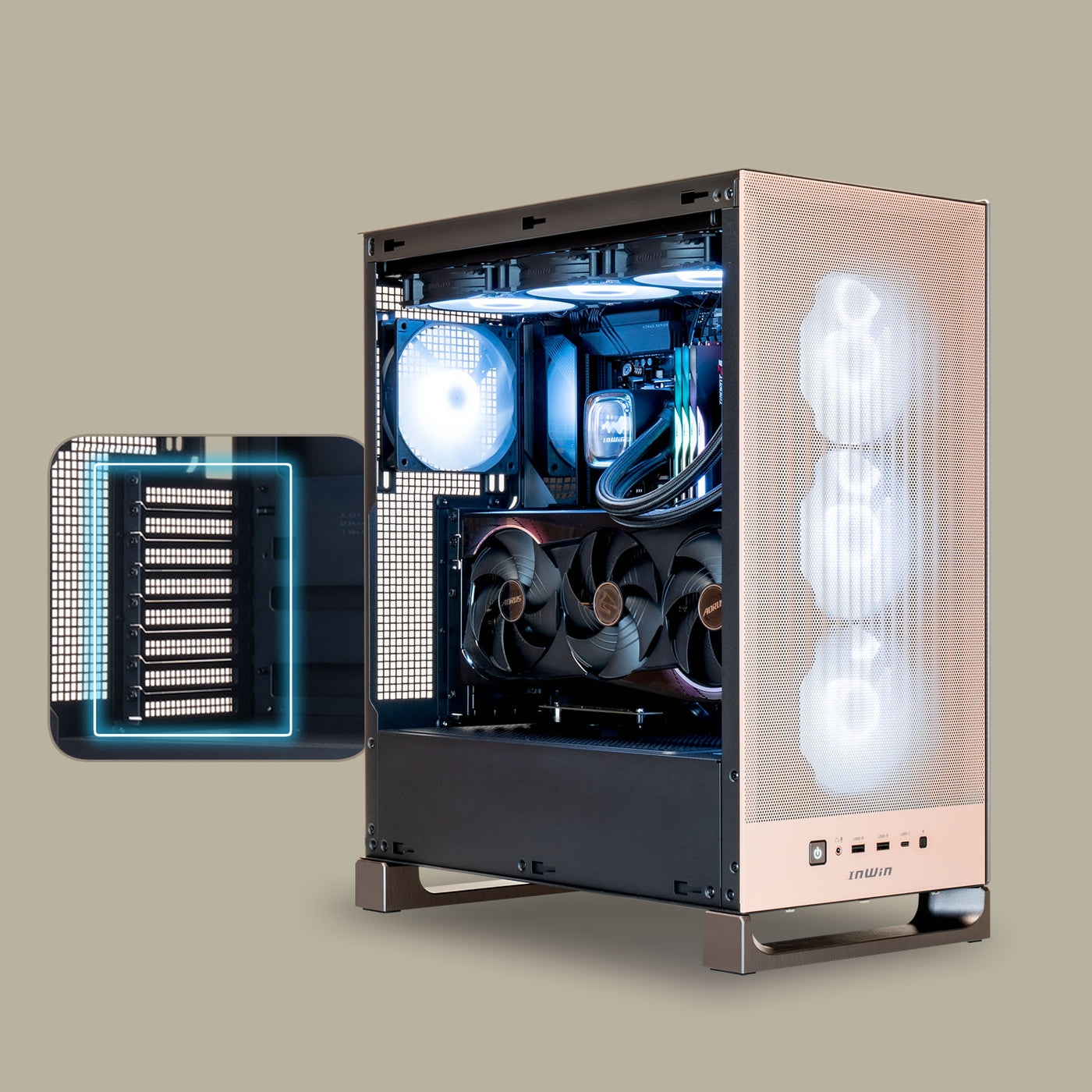

| Expansion Slots | 8 x PCIe |

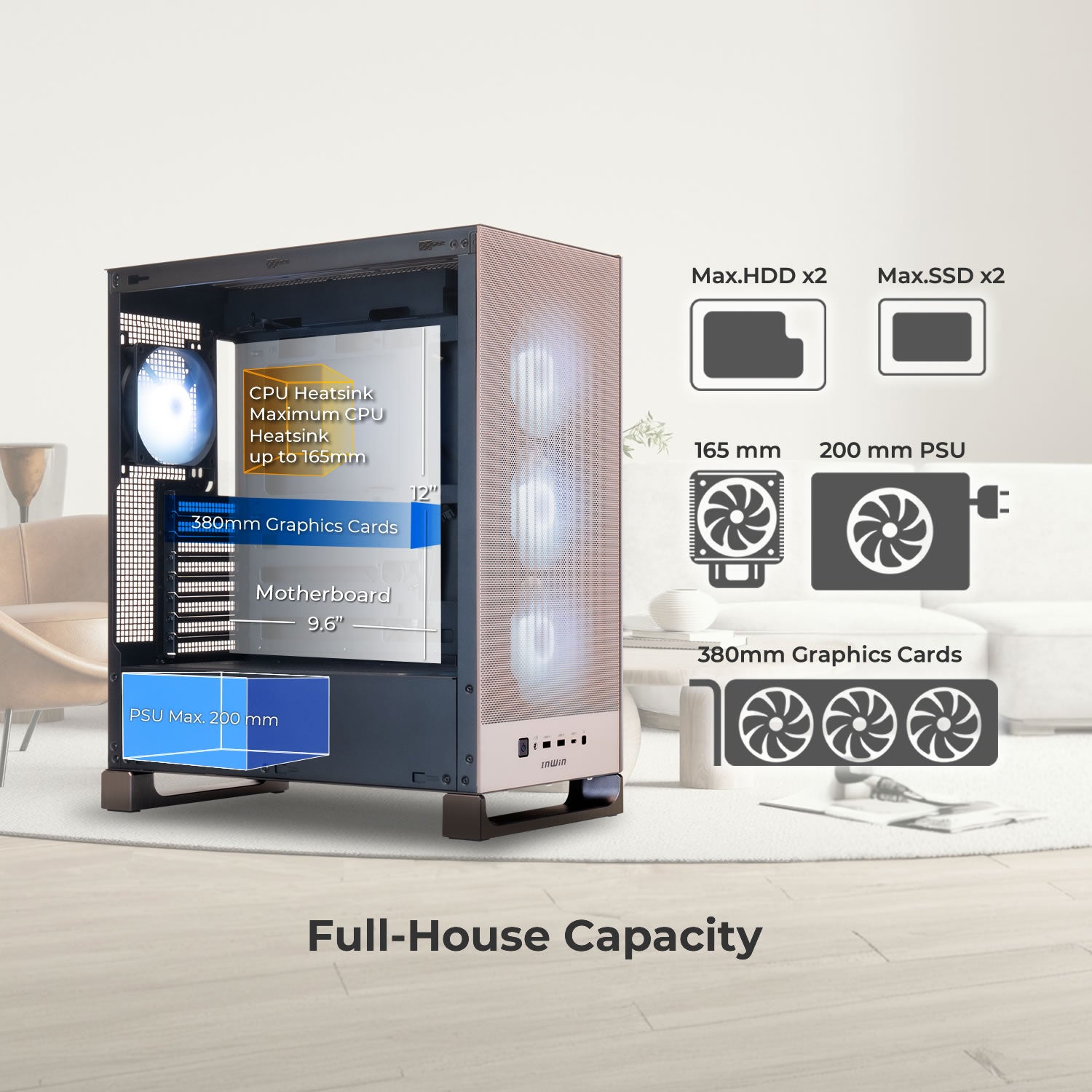

| Maximum Compatibility | GPU Length: 380 mm CPU Heatsink Height: 165 mm |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio (CTIA - SPK/MIC) LED Lighting Control Switch Power Button |
| Internal Drive Bays | 2 x 3.5" / 2 x 2.5" |

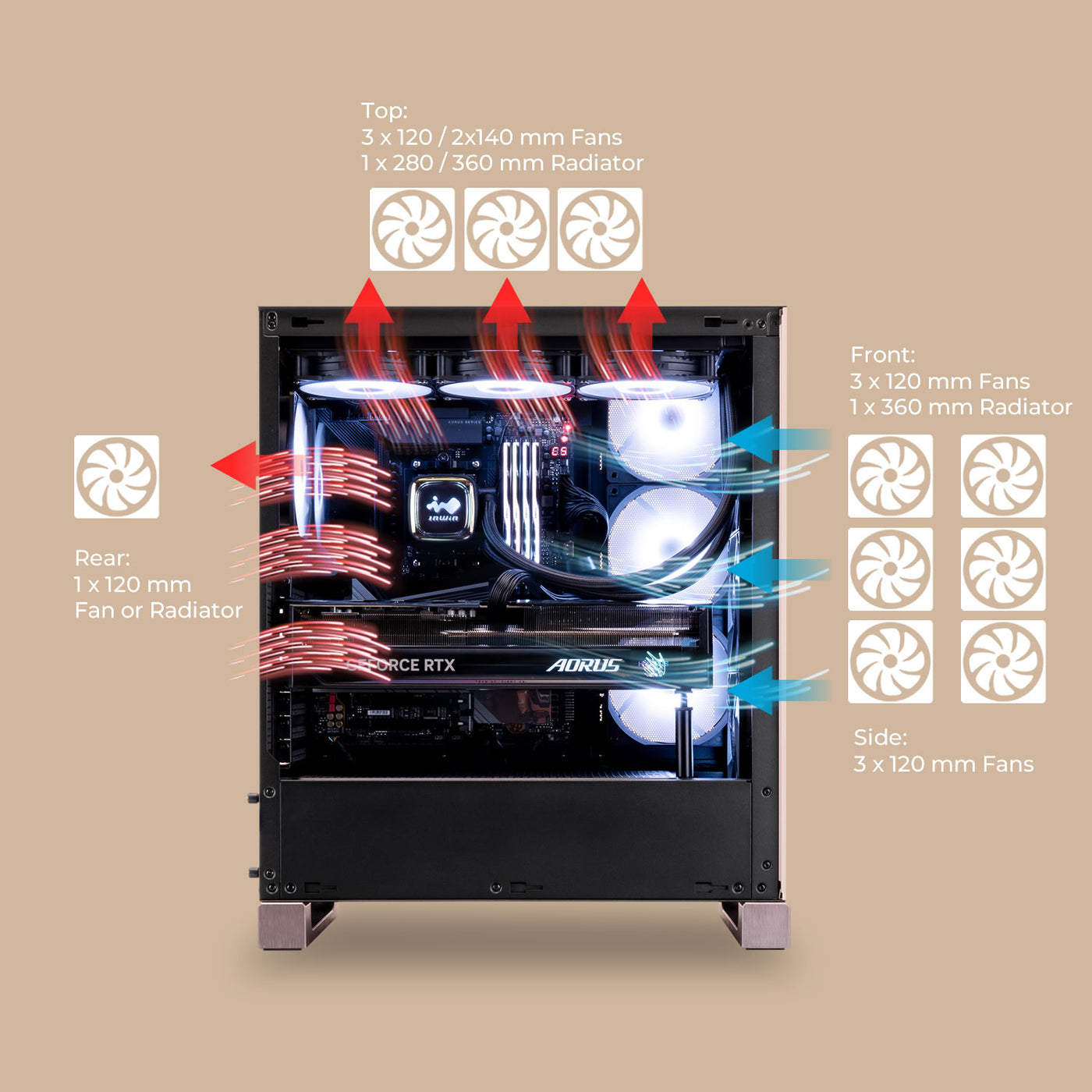

| Thermal Solution Compatibility | Air Cooling Fans: Front: 3 x 120 mm (XM120 Pre-installed) Top: 3 x 120 / 2 x 140 mm Rear: 1 x 120 / 140 mm (XM120 Pre-installed) Bottom: 2 x 120 mm (Optional) Side: 3 x 120 mm Water Cooling Radiator: Front: 1 x 360 mm Top: 1 x 280 / 360 mm Rear: 120 mm |
| Power Supply Compatibility | PSII : ATX12V - Length up to 200 mm |
| Product Dimensions (L x W x H) |
441 x 245 x 528 mm 17.4 x 9.6 x 20.8" |
| Package Dimensions (L x W x H) |
595 x 323 x 550 mm 23.4 x 12.7 x 21.7" |
| Net Weight | 9.25 kg / 20.4 lb |
| Gross Weight | 10.7 kg / 20.6 lb |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
| Model | XM120 |
|---|---|
| Color | Black |
| Fan Size | 120 x 120 x 25 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 3W |
| Rated Current | 0.25A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 0.6W |
| ARGB Rated Current | 0.12A |
| Speed Mode | PWM 850 - 1500 RPM |
| Air Flow | 63.83 CFM |
| Air Pressure | 1.29 mm / H2O |
| LED | Addressable RGB |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 30.7 dB(A) |
| Bearing Type | Hydro Bearing |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
Delight Your Life
Showcase Your GPU

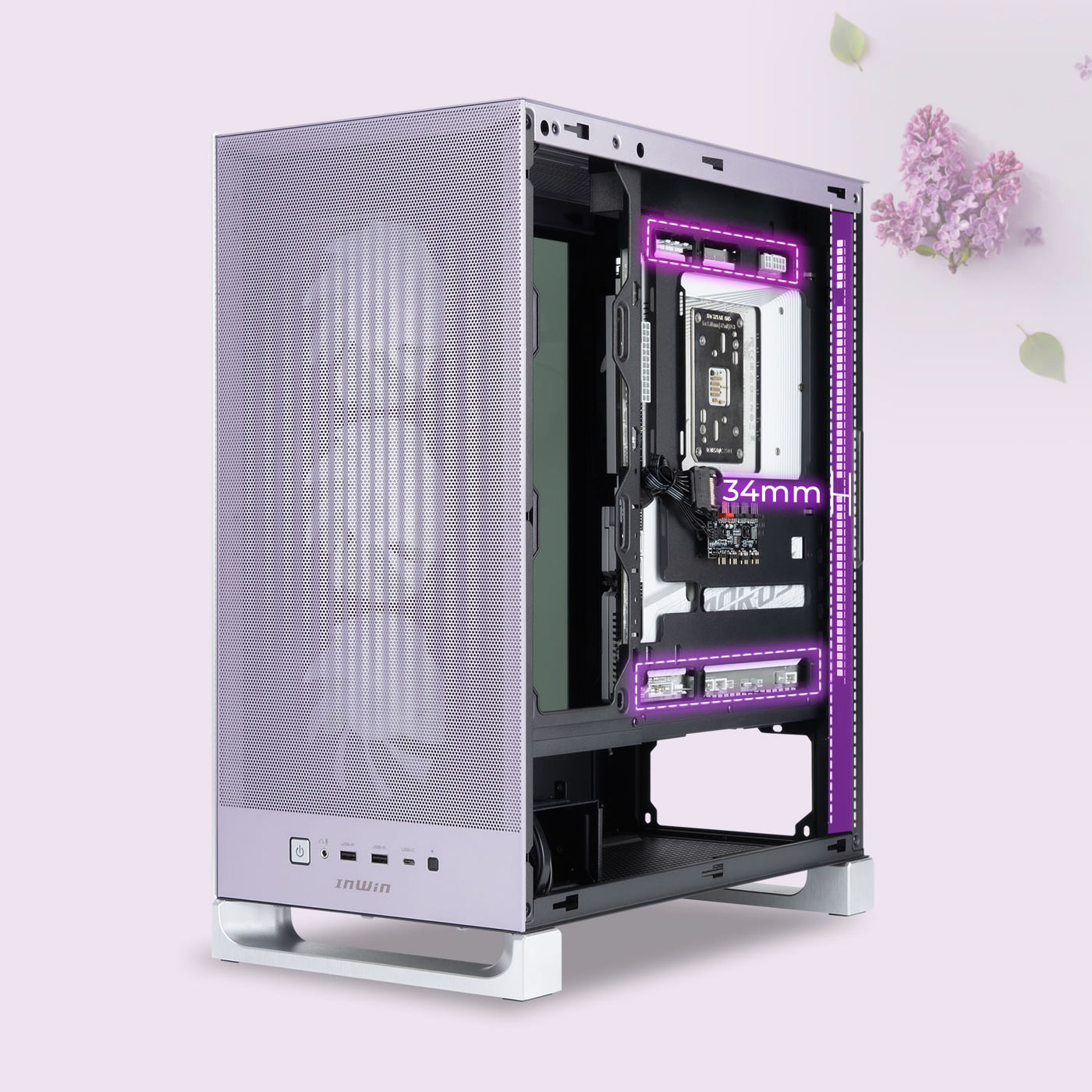

Back-Connector Era

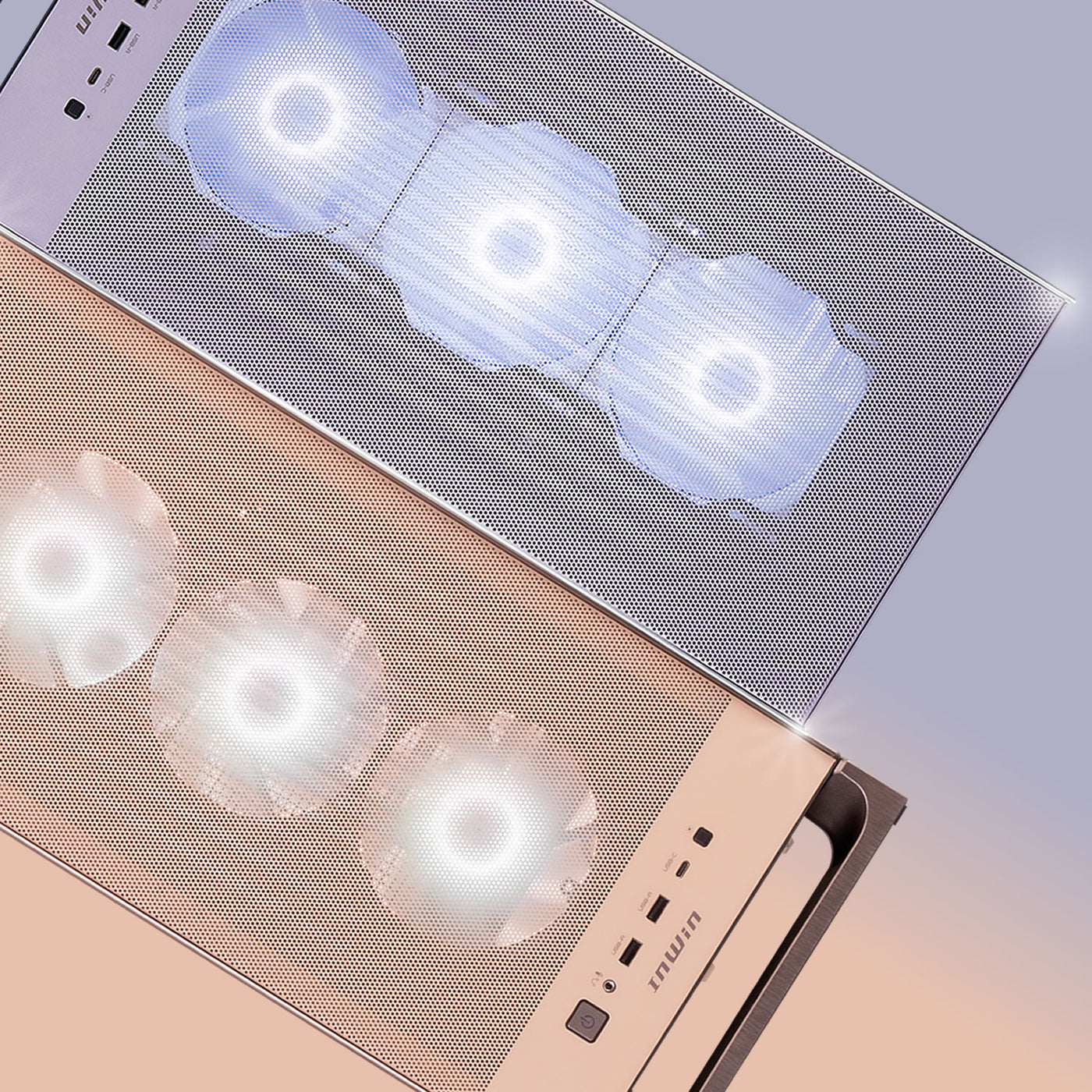

Efficient Cooling

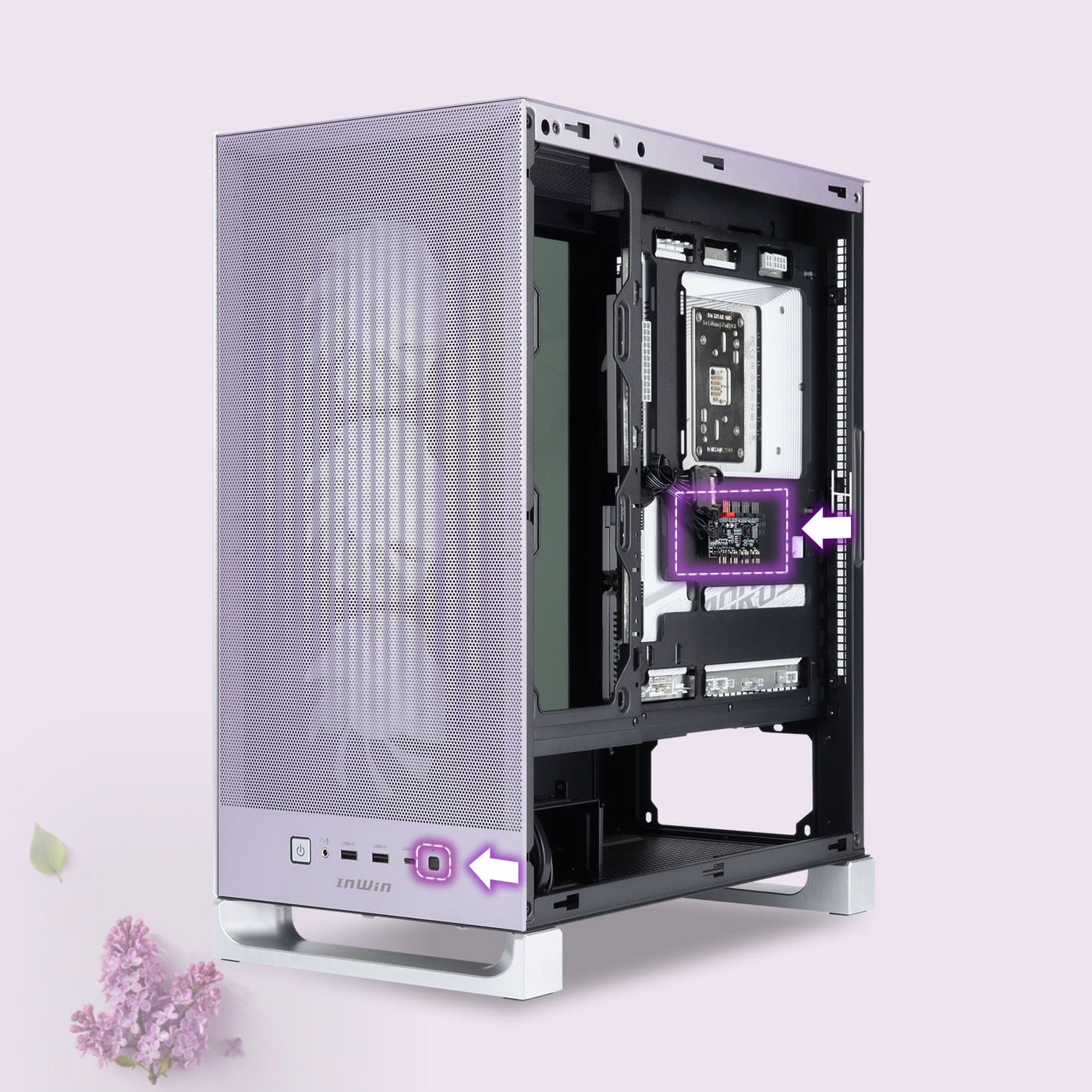

Builder-Friendly

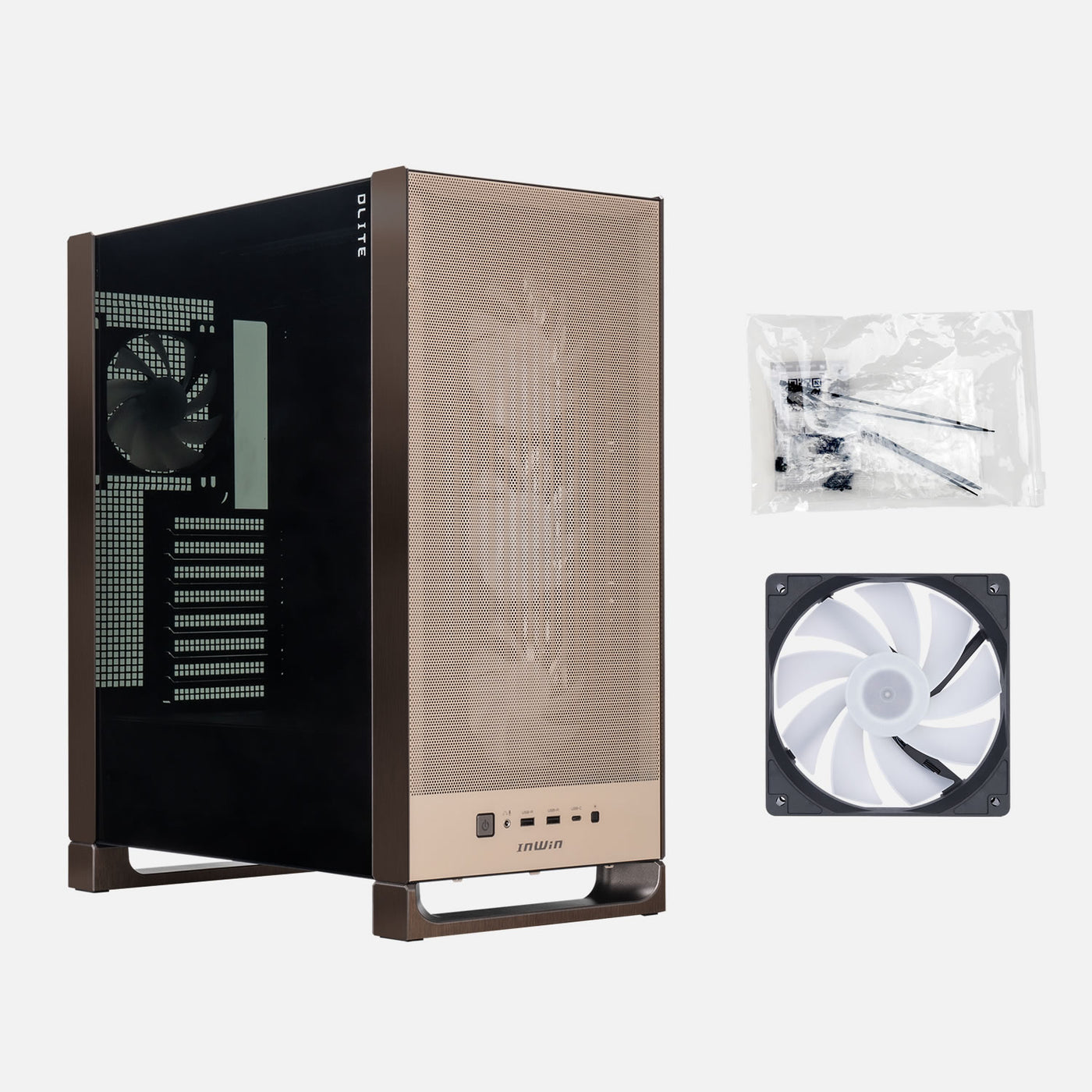

Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
|
Non-Modular Cable
|
Sirius Loop
|
Jupiter Series
|
Sirius Pure
|
Luna AL120
|
Mercury AM120S
|
|---|---|---|---|---|---|
|
Sirius Extreme
|
Sirius Extreme Pure
|
Neptune AN Series
|
Neptune DN Series
|
Neptune DN PRO Series
|
|
|
Modular ARGB Type 1
|
Aurora
|
EGO
|
|||
|
Modular ARGB Type 2
|
Crown Series
|
Saturn Series
|
|||
|
Type-C Modular Cable
|
Lynx Series
|
||||
|
Modular RGB
|
Polaris RGB Series
|
Polaris AluminumRGB Series
|
InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
