InWin PCI-E Riser Cable 4.0 & Bracket
InWin PCI-E Riser Cable 4.0 & Bracket
InWin PCI-E Riser Cable 4.0 & Bracket
InWin PCI-E Riser Cable 4.0 & Bracket
InWin PCI-E Riser Cable 4.0 & Bracket

InWin PCI-E Riser Cable 4.0 & Bracket

Sale price€49,90
No reviews
No reviews
SKU: IW-PCIE4-25-BRACKET

Showcase your graphics card in all its glory. Use InWin PCI-E Riser Cable & Bracket to mount GPUs vertically. PCI-E 4.0 provides double the bandwidth of PCI-E 3.0!

Quantity:
NOTIFY ME WHEN IN STOCK

Specs

Model PCI-E Riser Cable 4.0 & Bracket
Model Number IW-PCIE4-25-BRACKET
Interface 16 x PCI-E 4.0
90 Degree Right Angle Riser Adapter Card
Cable Length 250 mm
Materials PCB, FR4, Polyethylene(PE), Copper Alloy
Temperature Range (°C) -20 ~ 80 °C
Net Weight 440 g / 0.97 lbs
Gross Weight 480 g / 1.05 lbs
* InWin products comply with RoHS regulation.
* Specifications may vary based on different regions.

Showcase your graphics card with this vertical mount kit!

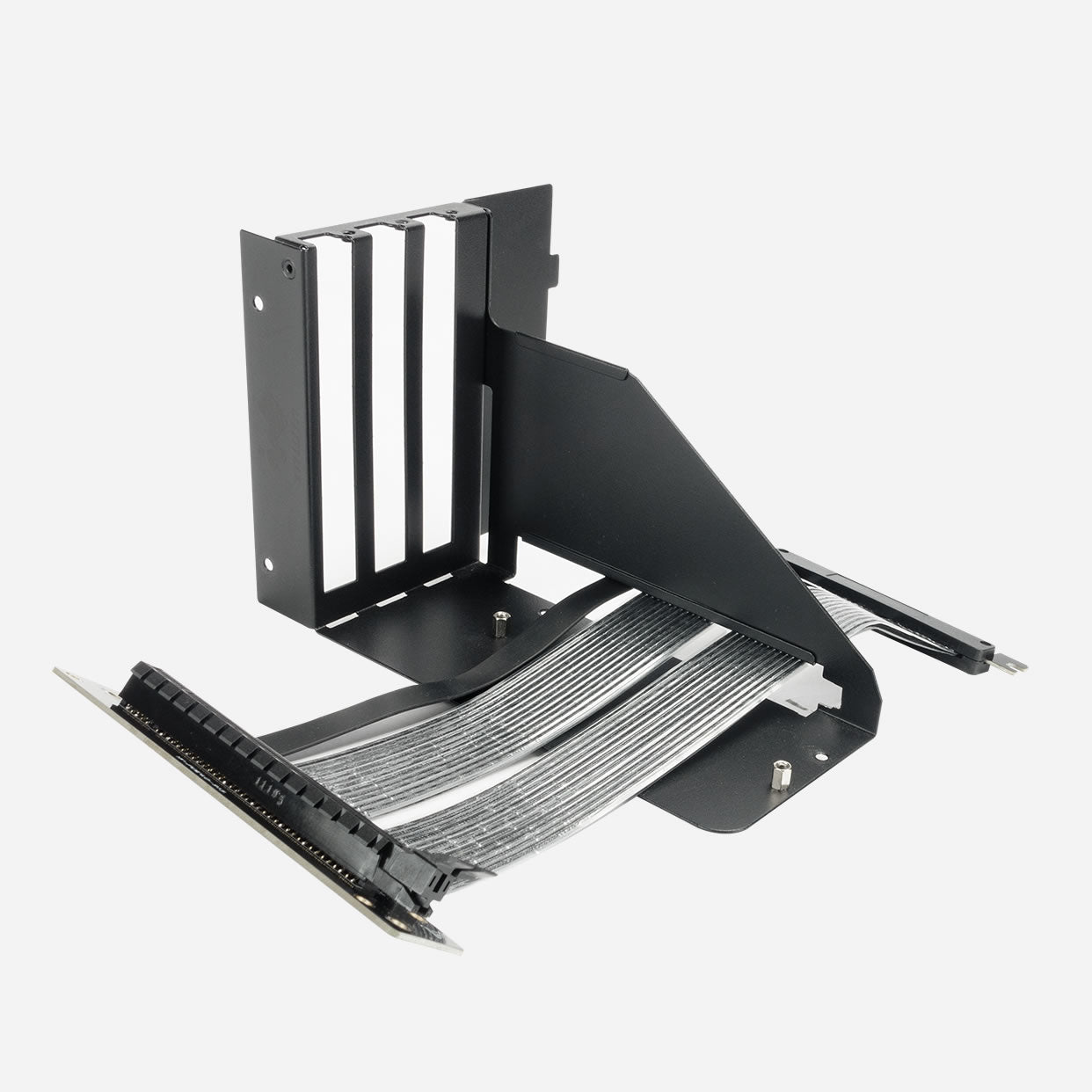

The bracket allows users to install graphics cards vertically to a case that doesn’t have a preset vertical mount.

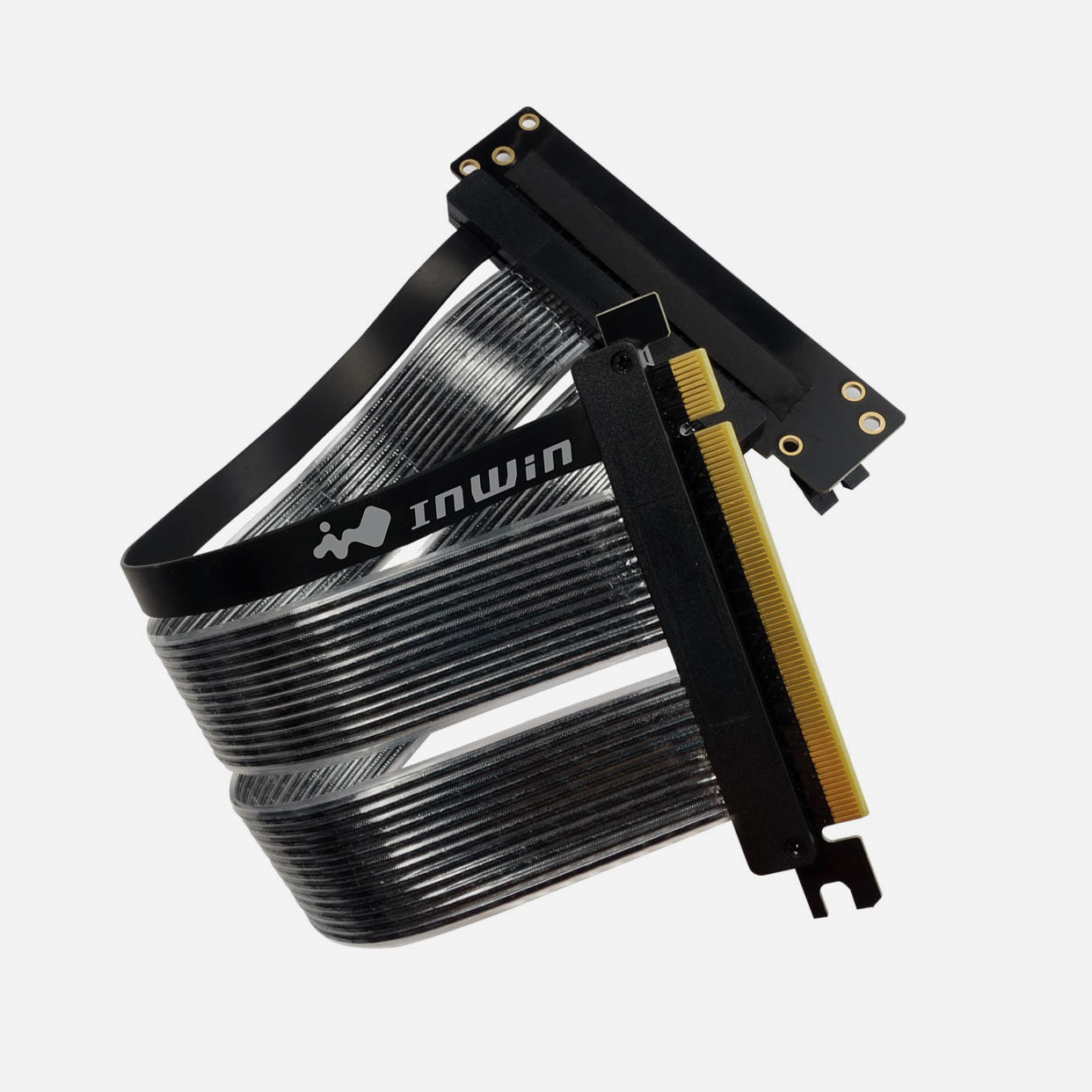

InWin 4.0 Riser Cable is fully compatible with Intel and AMD motherboards. It supports transfer rates of 16 GT/s and has a bandwidth of 32 GB/s.

Chassis must have at least 6 PCIe slots. Install the bracket as shown in the pictures.

The Riser Cable cannot be properly installed if a solid, metallic strip is above the PCIe slots.

Please ensure no shorts have occurred due to poor PCI card placement. To prevent from damaging the cable, please do not fold the PCI-E cable during installation.

Components

PCI-E Riser Cable 4.0 x 1
Vertical VGA Bracket x 1
Screws x 5
Standoffs x 3
Standoff Setter x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
