€119.99
No reviews
No reviews
SKU: IW-CS-F3BLK-1AN120

ATX

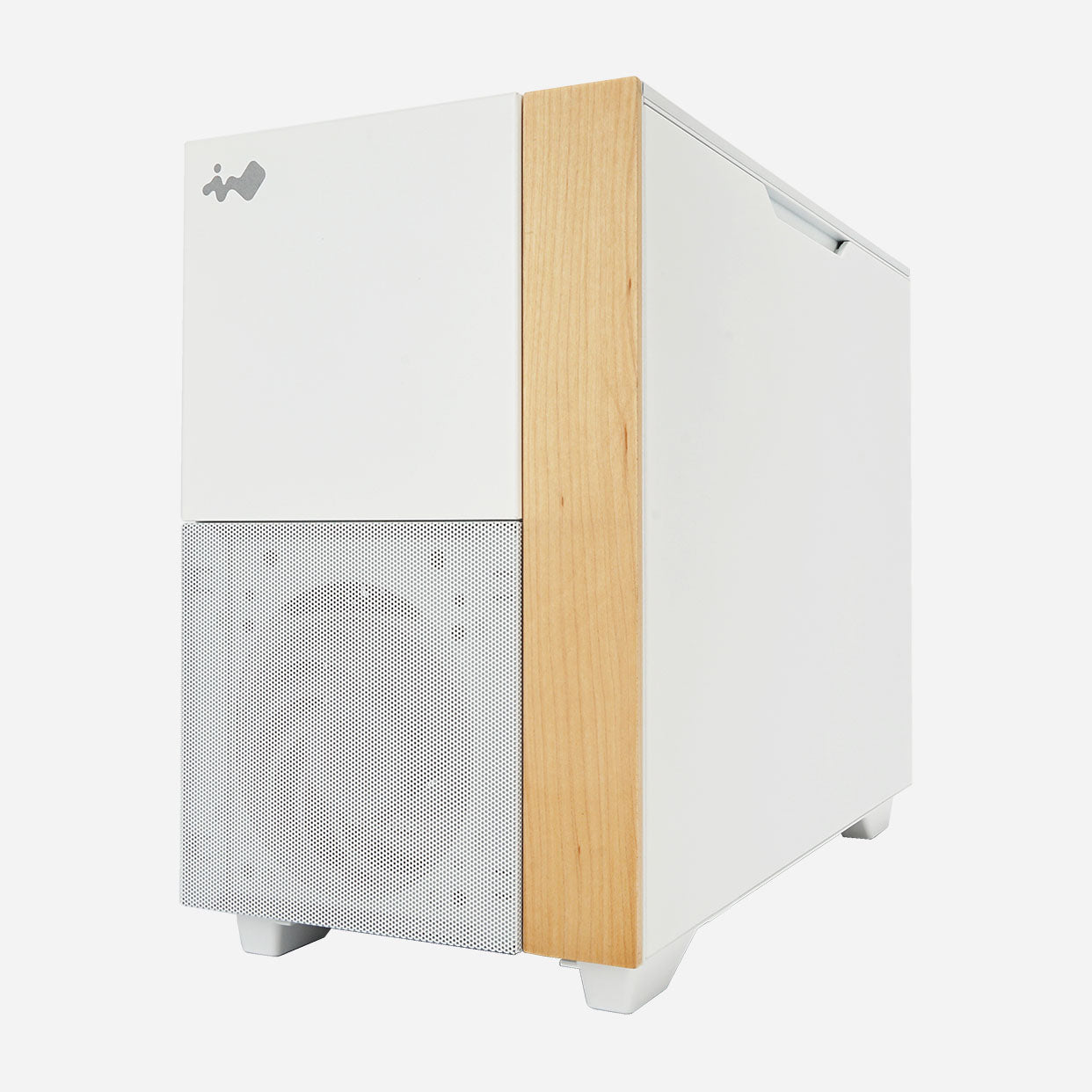

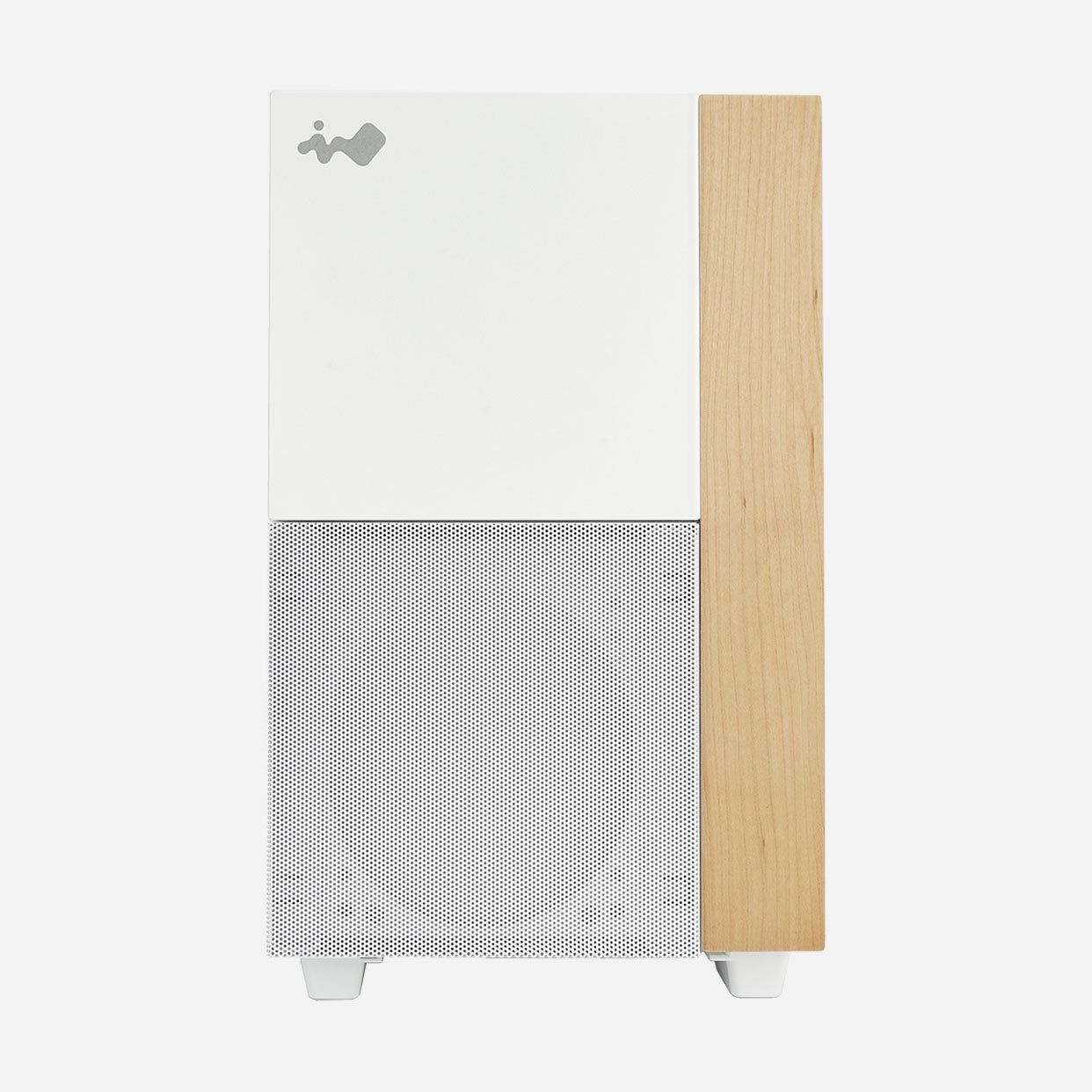

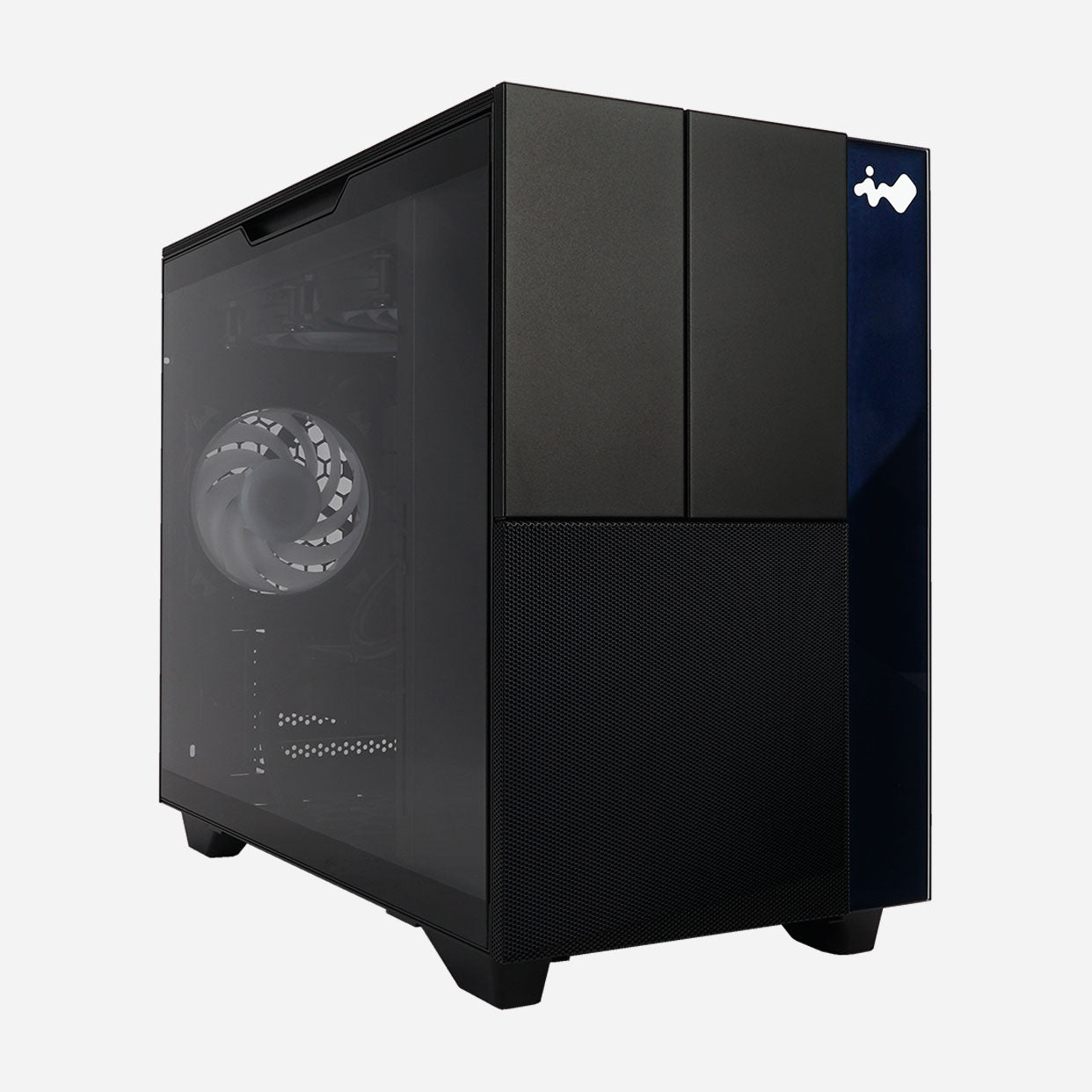

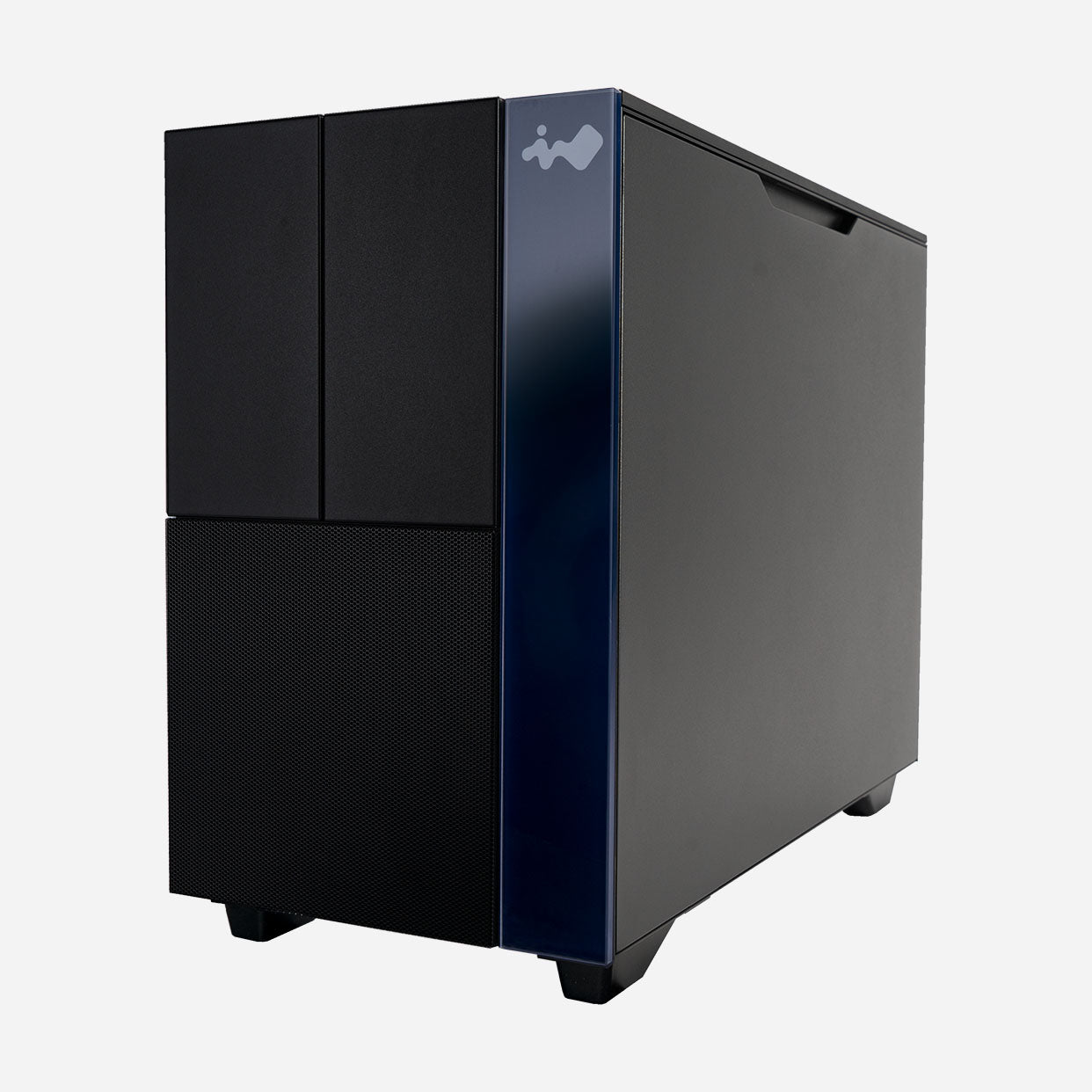

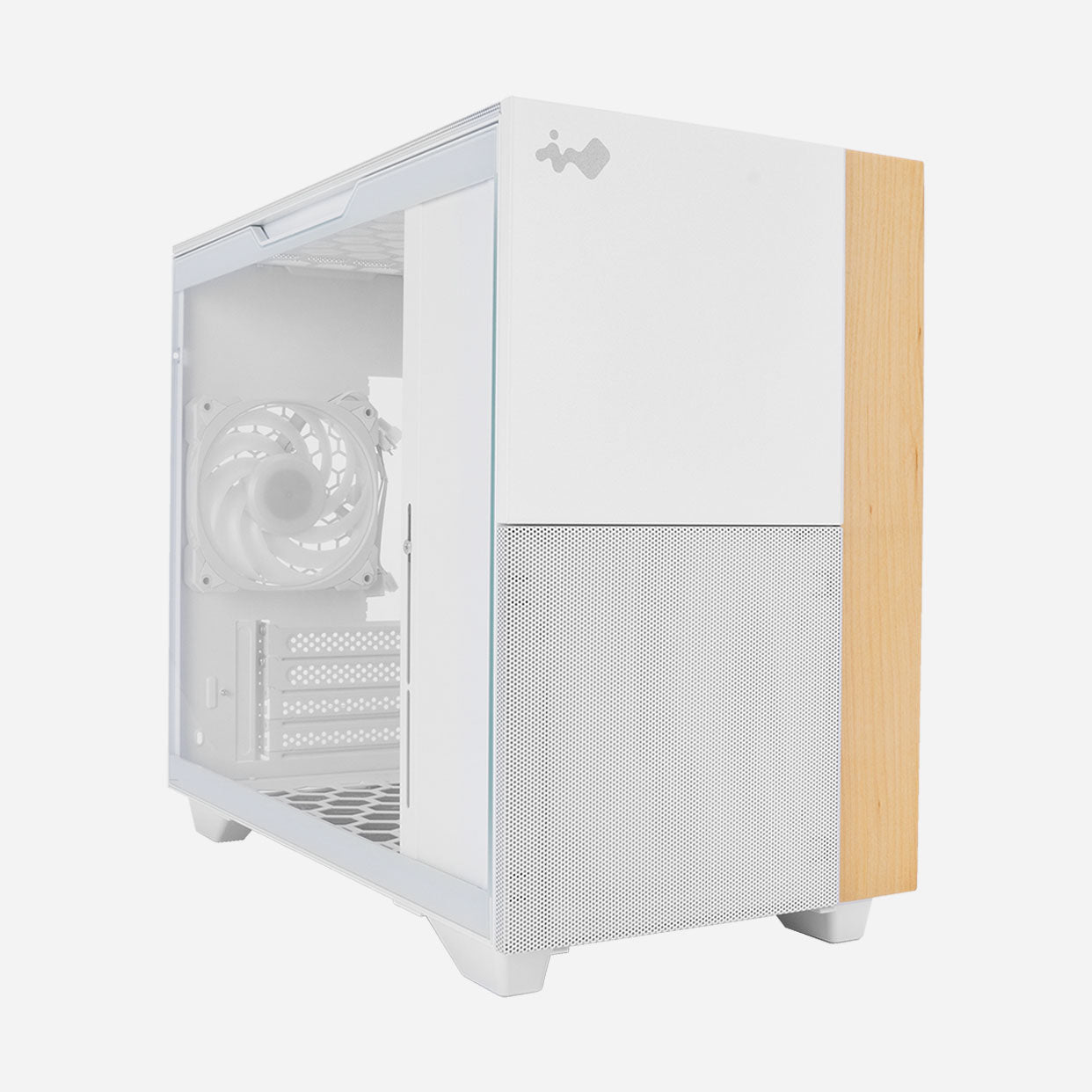

The F3 offers several design options, such as elegant maple wood or modern tempered glass. This mini tower supports up to micro-ATX motherboards, including back-connector motherboards, simplifying cable management. Install a GPU up to 340 mm to create a compact workstation or gaming PC.

Exclusive offer! Limited stock available!
Place your order now and get a FREE Neptune AN120/AN120P fan with your purchase.
Estimated shipping starts October 14th, 2024.

Color:Black
Quantity:

  1. Minimalist Design, Stylish Aesthetic
  2. Supports Back-Connector mATX Motherboards
  3. Neptune AN120/AN120P Fans Pre-installed
  4. Accommodates High-End GPUs

Specs

Model F3
Model Number IW-CS-F3BLK-1AN120, IW-CS-F3WHI-1AN120P
Colors Black, White
Case Type Mini Tower
Materials SECC, Tempered Glass
SECC, Tempered Glass, Wood
M/B Compatibility Micro-ATX, Mini-ITX
Expansion Slots 4 x PCI-E
Maximum Compatibility GPU Length: 340 mm
CPU Heatsink Height: 160 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 1 x 3.5" / 2.5"
1 x 3.5" / 2 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Front: 1 x 120 mm
Top: 2 x 120 / 140 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm
(1 InWin AN120 / AN120P Fan Included)

Water Cooling Radiator:
Top: 1 x 240 / 280 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 160 mm (cable management Included)
Product Dimensions
(L x W x H)		 460 x 215 x 359 mm
18.1 x 8.5 x 14.1"
Package Dimensions
(L x W x H)		 516 x 277 x 420 mm
20.3 x 10.9 x 16.5"
Net Weight 7.25 kg / 16 lbs
Gross Weight 8.38 kg / 18 lbs
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.
Model Neptune AN120
Neptune Pure AN120P
Model Number IW-FN-AN120-3PK
IW-FN-AN120P-3PK
Colors Black
White
Fan Size 120 x 120 x 25 mm
Materials PBT, PC
Rated Voltage DC 12V
Rated Power 1.92W
Rated Current 0.17A
ARGB Rated Voltage DC 5V
ARGB Rated Power 1.4W
ARGB Rated Current 0.28A
Speed Mode PWM 900 - 2200 +/- 10% RPM
Air Flow 23.87 - 60.1 CFM
Air Pressure 0.36 - 2.27 mm / H2O
LED Addressable RGB
Connector (Fan to Fan) Non-Modular Cables
Connector to M/B 4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Noise Level 20.5 dB(A) (Normal)
Bearing Type
 Long Lifespan Sleeve Bearing
MTBF >36,000 hrs.
Net Weight 541 g / 1.19 lbs
Gross Weight 803 g / 1.77 lbs
Package Dimensions (L x W x H) 131 x 91 x 170 mm
5.15 x 3.58 x 6.7"
Warranty 3 Years
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.

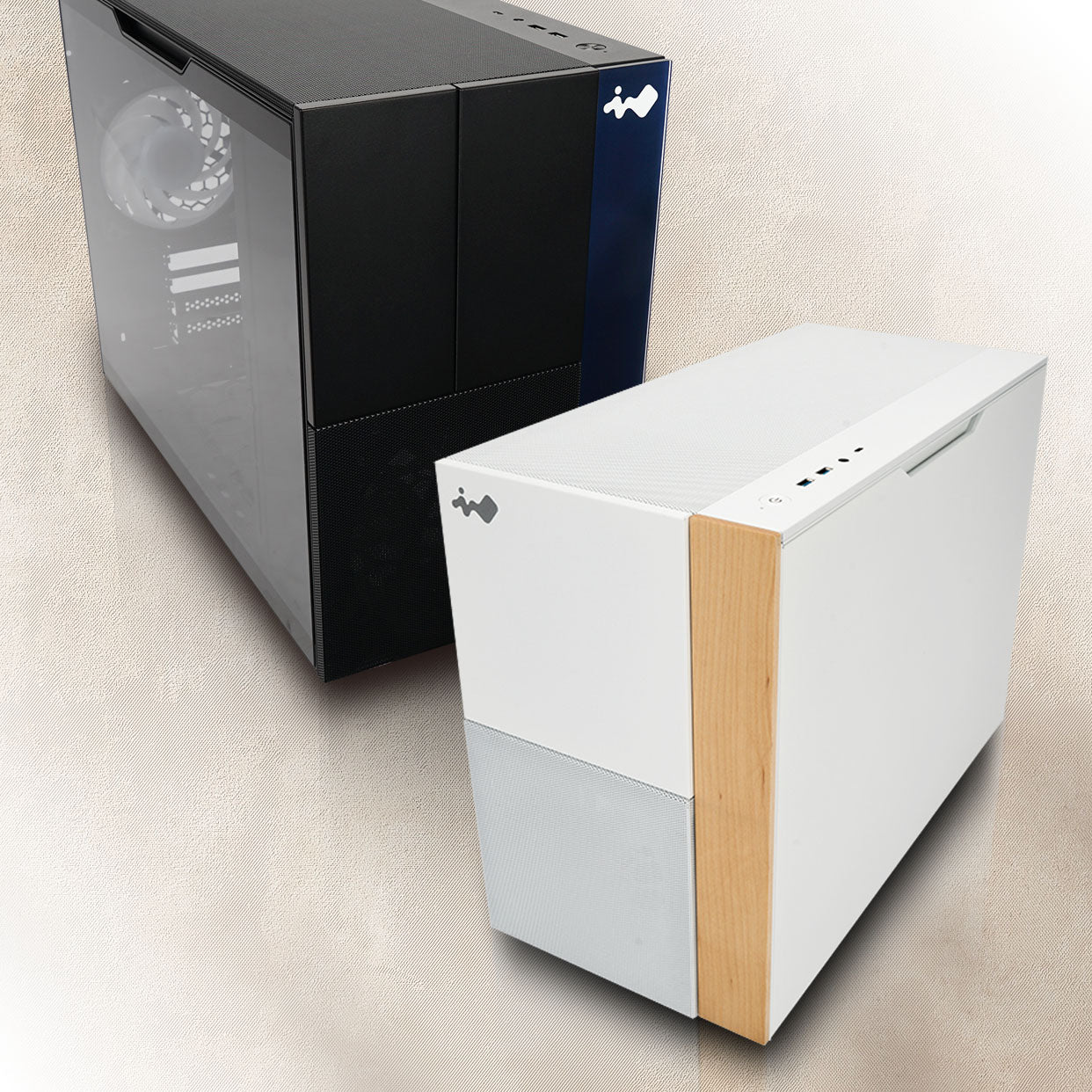

Trendy PC Aesthetics

The new F3 case inherits the classy F-Series design, offering maple wood or tempered glass options to match your lifestyle aesthetic.

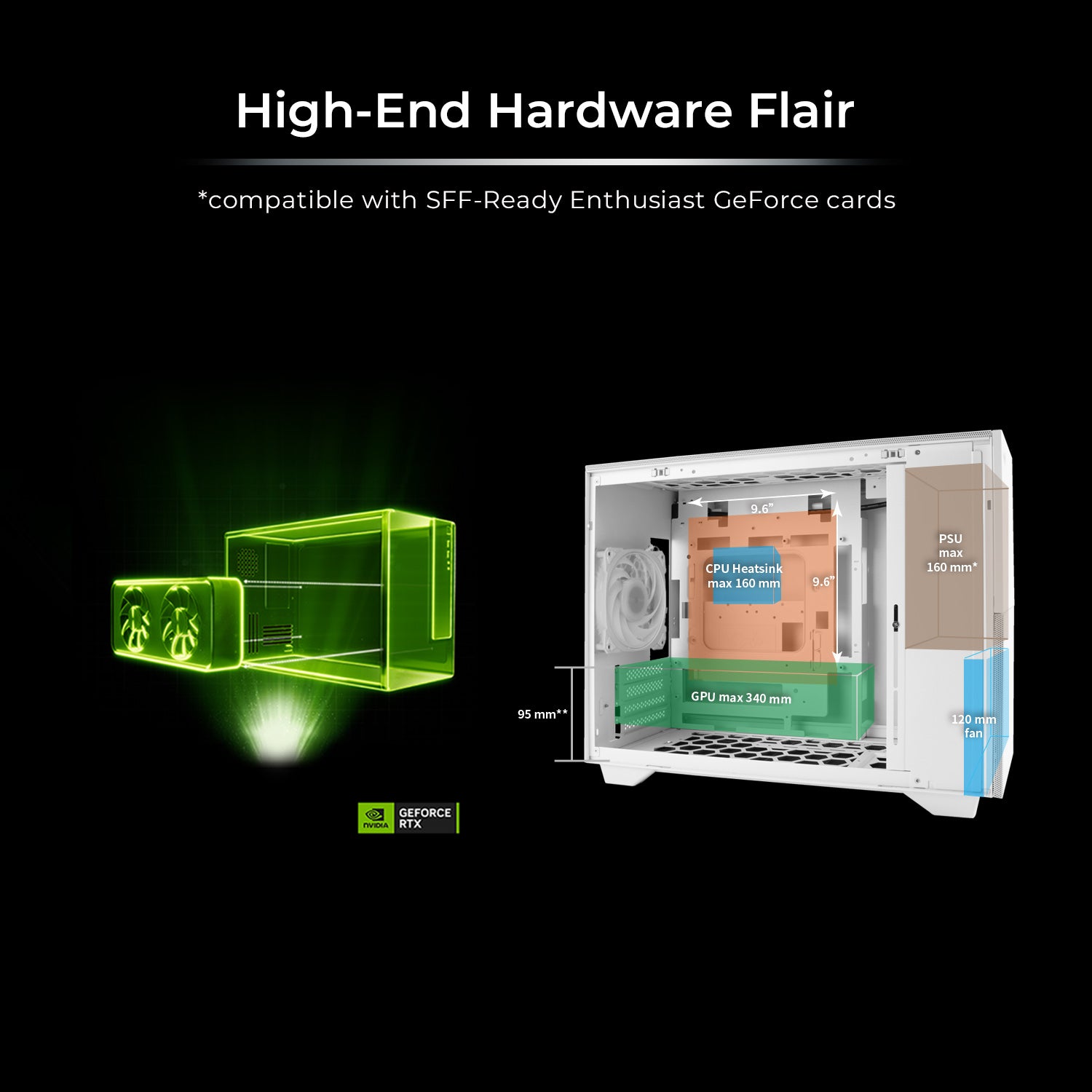

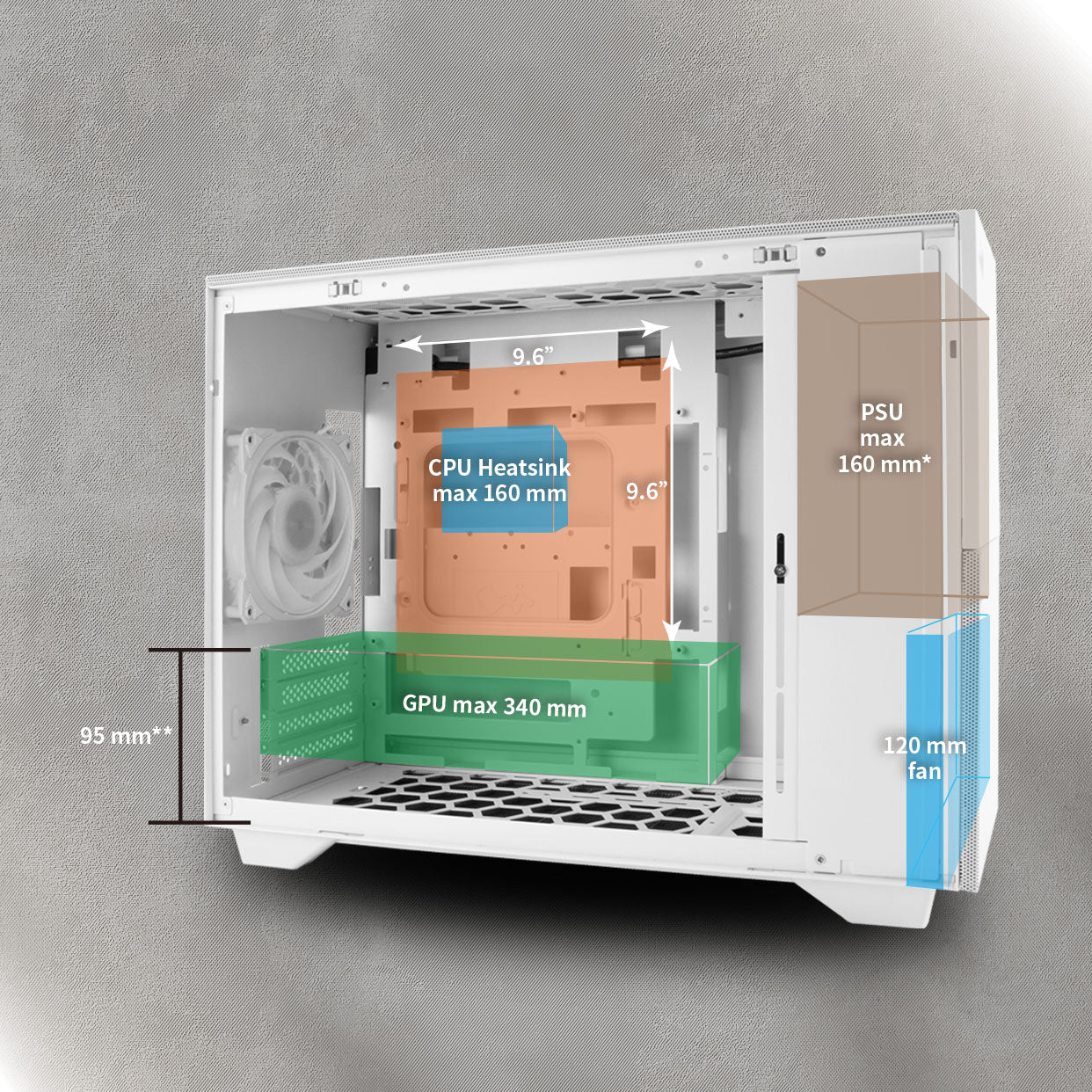

Hardware Flair

The F3 supports micro-ATX motherboards and up to 340 mm GPUs, making it perfect for compact workstations or gaming PCs.
* Max PSU mounting area (Including cable management) is 160 mm with 120 mm fan installed beneath.

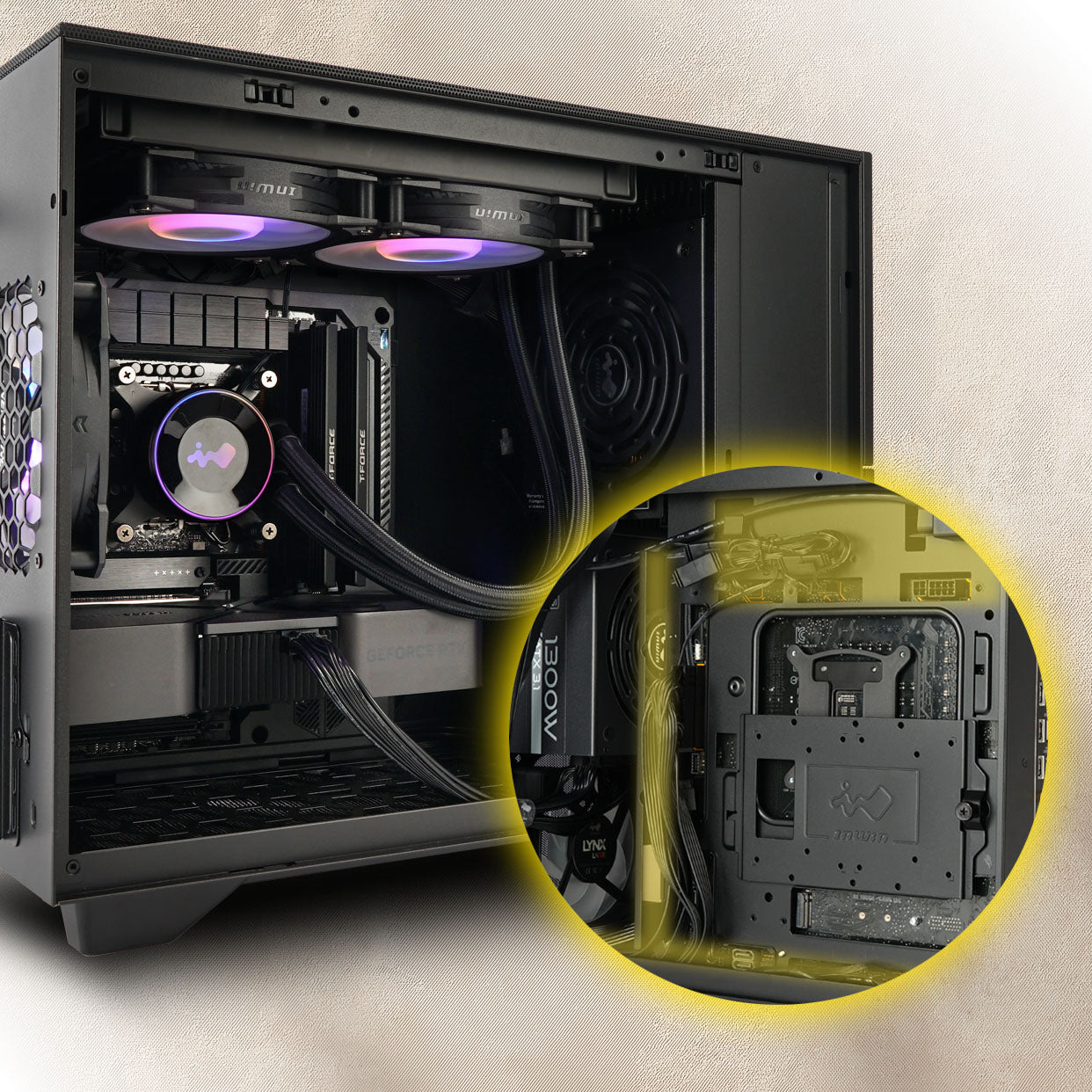

Back-Connector M/B Design

The F3 supports back-connecting motherboards provide tidier cable management and allows for easy installation of two 3.5" drives or three 2.5" drives.
* Supports ASUS BTF and MSI Project Zero Series back-connector mATX motherboards.

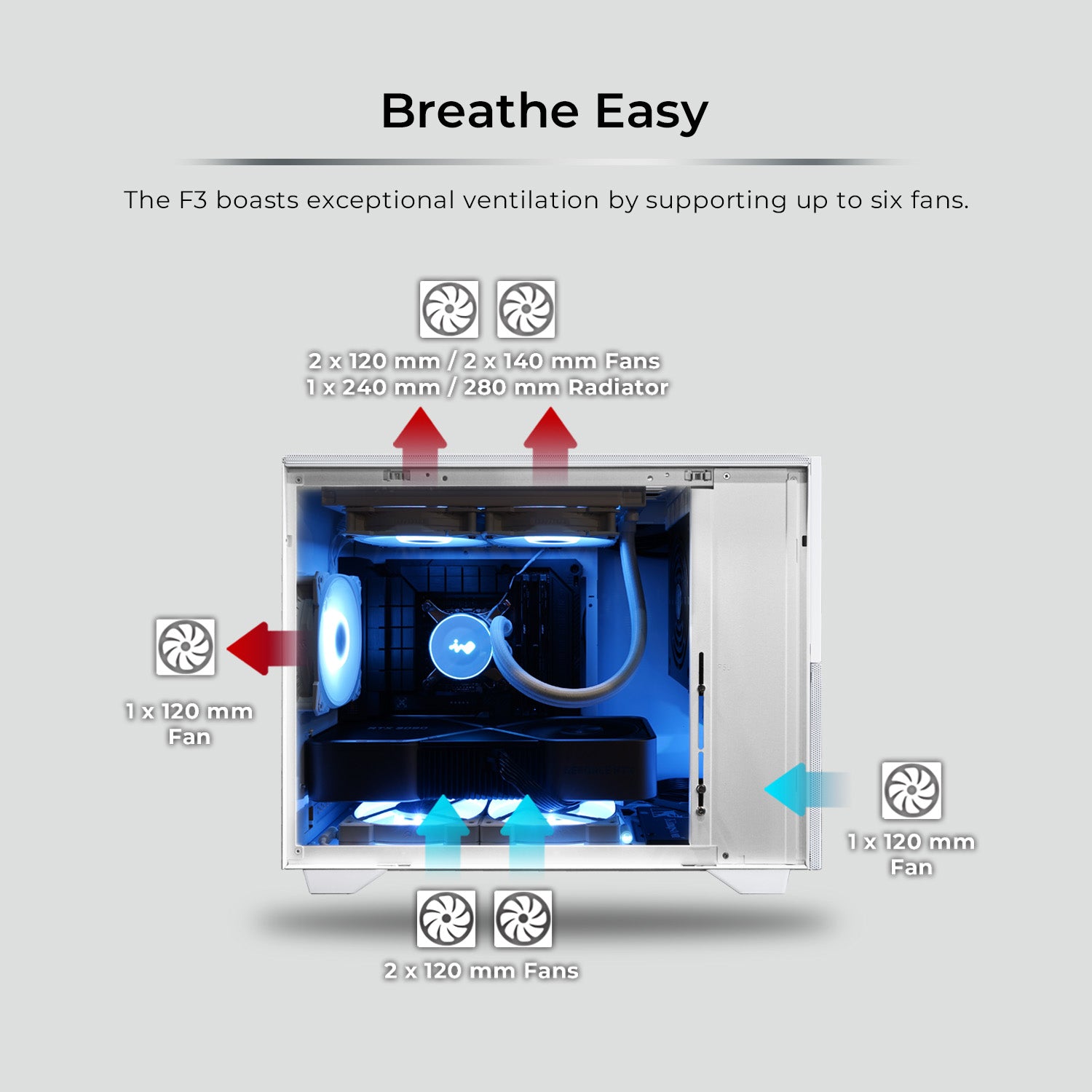

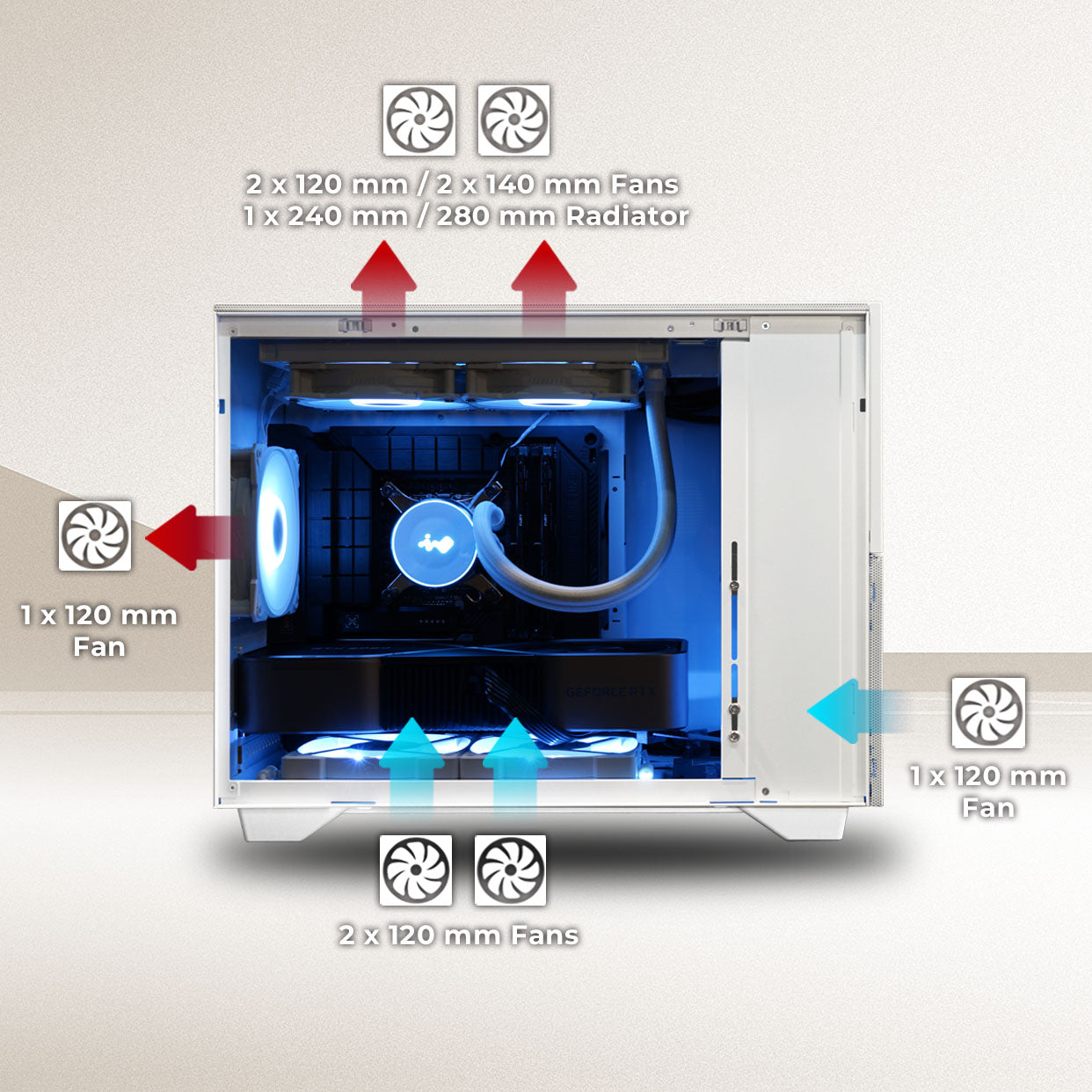

Breeze Blast

The F3 offers exceptional ventilation with support for up to six fans and features dual intake and exhaust for enhanced airflow.
* AN120 x 1 for Black version
* AN120P x 1 for White version

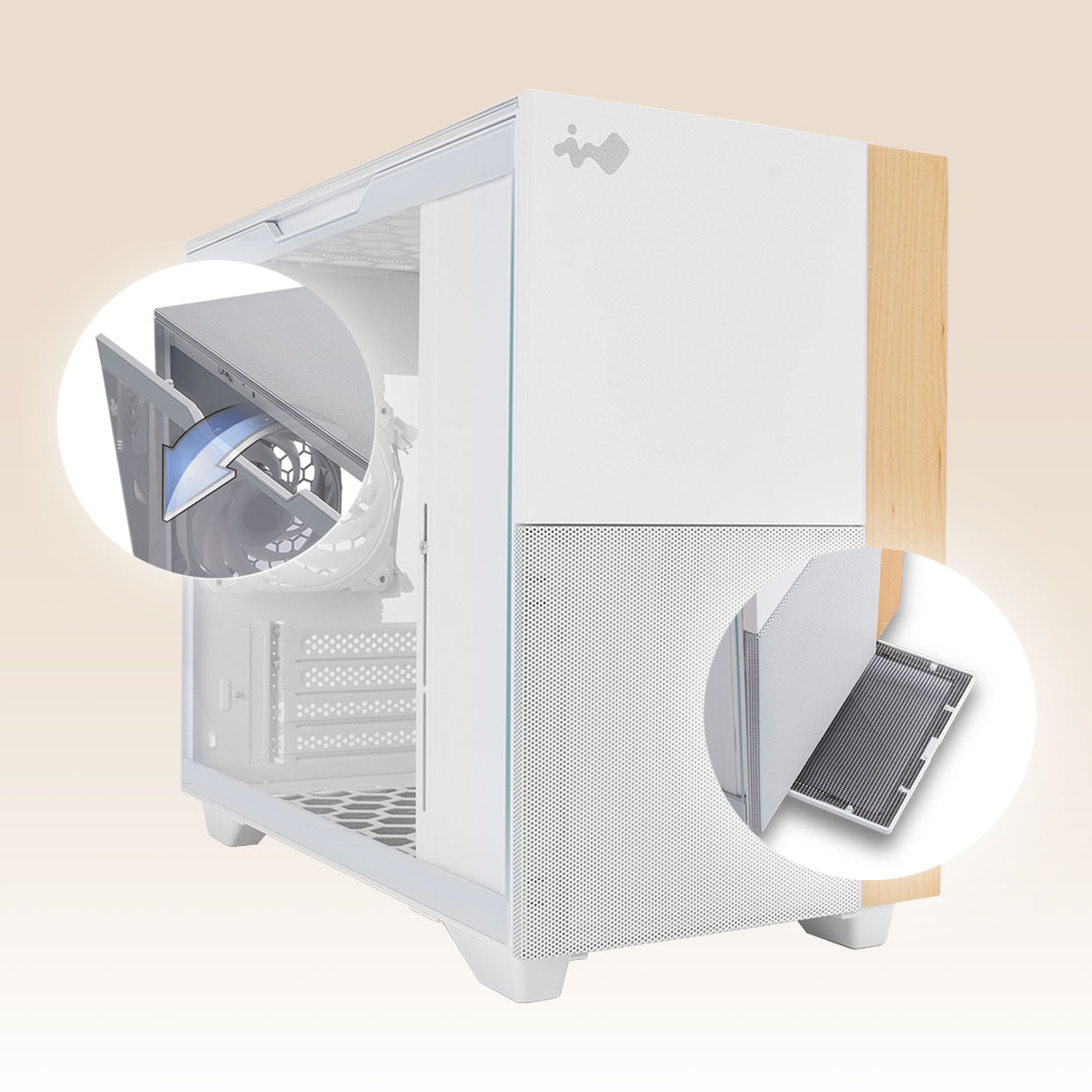

Details Matter

The F3’s hassle-free design simplifies PC building with effective dust prevention and flexible cable management.

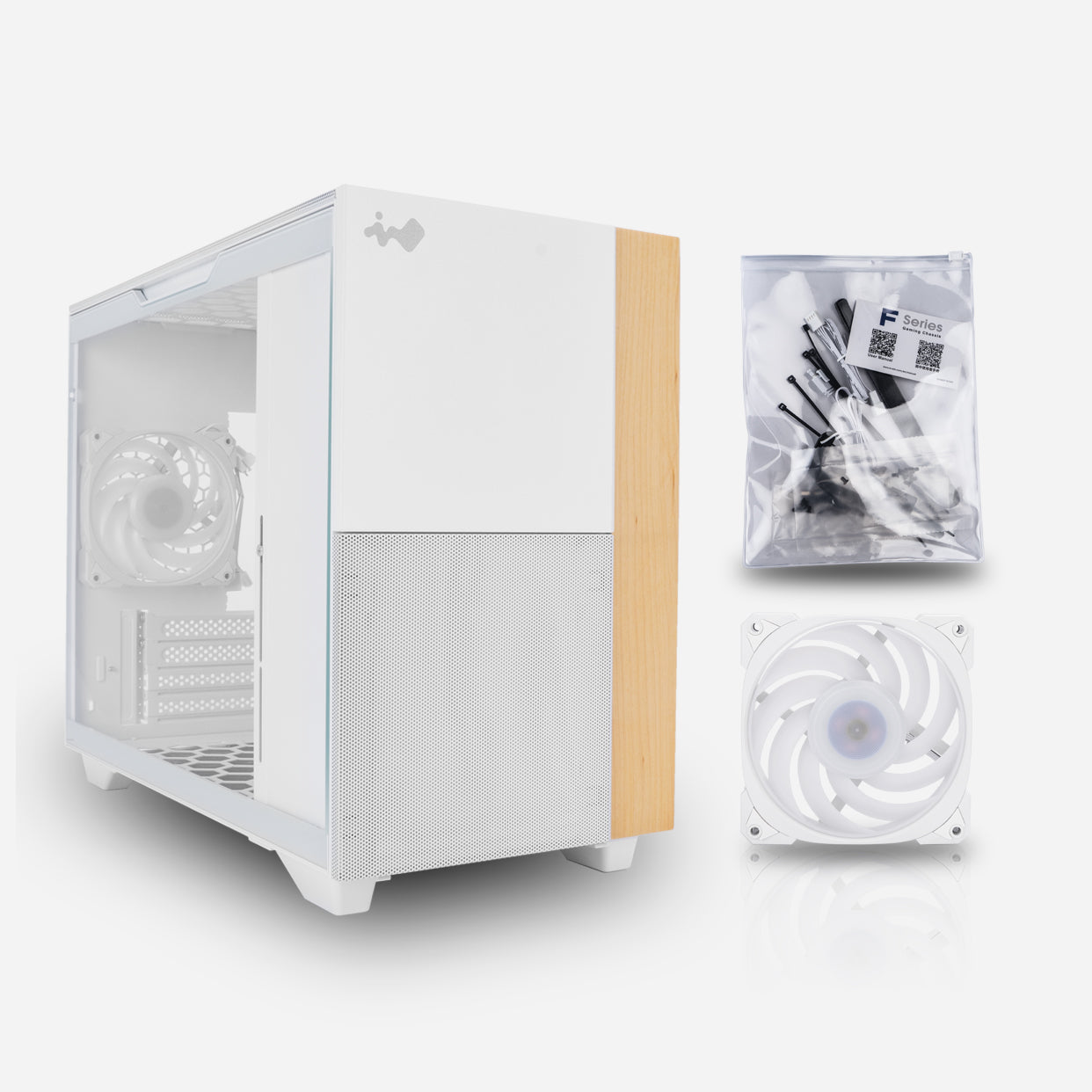

Components

F3 Chassis x 1
Neptune AN120 / AN120P x 1 (Pre-installed)
Accessories Bag x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

Non-Modular Cable
4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)

Sirius Loop

Jupiter Series

Sirius Pure

Luna AL120

Mercury AM120S

Sirius Extreme

Sirius Extreme Pure

Neptune AN Series

Neptune DN Series

Neptune DN PRO Series

Modular ARGB Type 1
6-Pin Modular (PWM + ARGB)

Aurora

EGO

Modular ARGB Type 2
6-Pin Modular (PWM + ARGB)

Crown Series

Saturn Series

Modular RGB
8-Pin Modular (PWM + RGB)

Polaris RGB Series

Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
