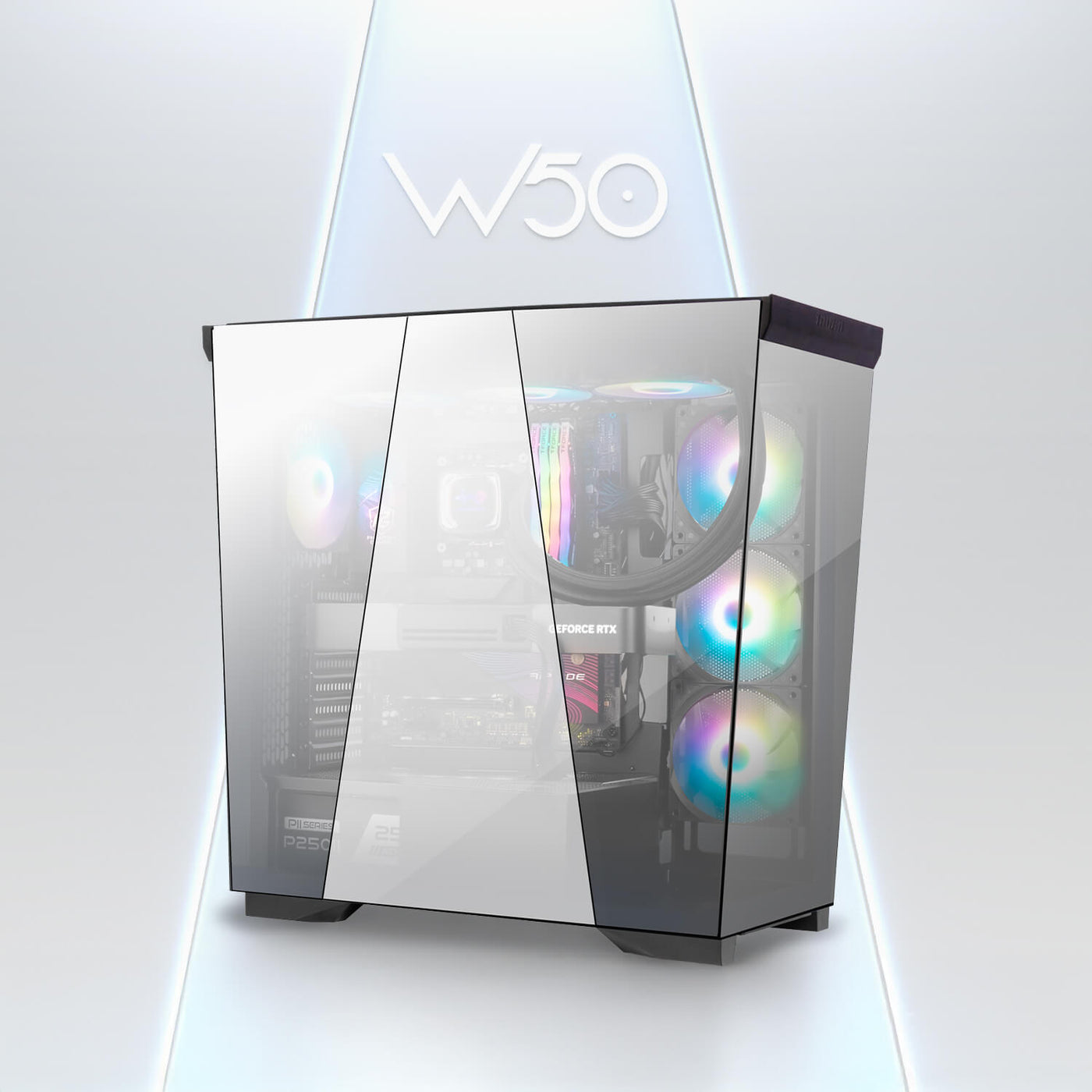

W50
Extended ATX
-
Panoramic W-Shaped Glass
-

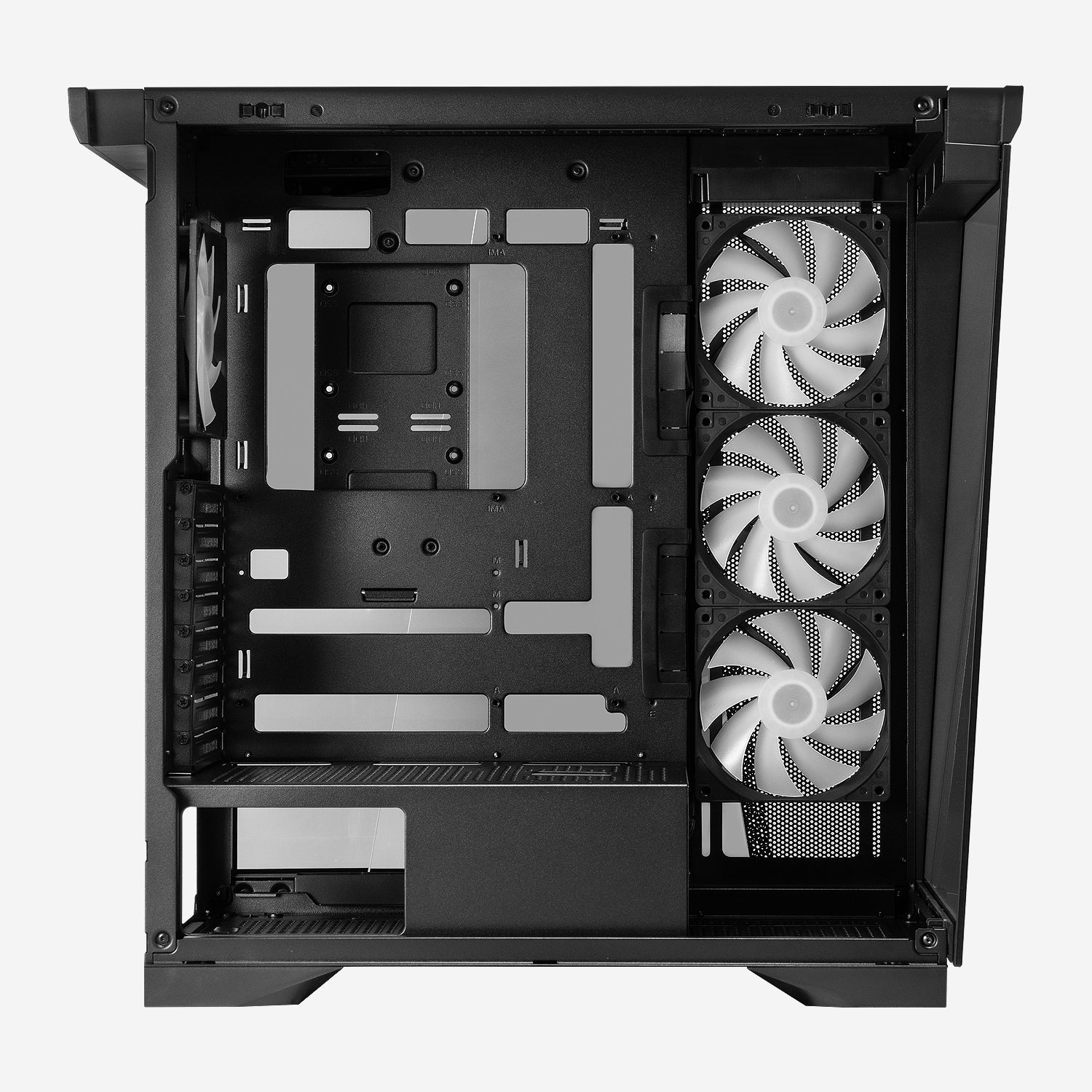

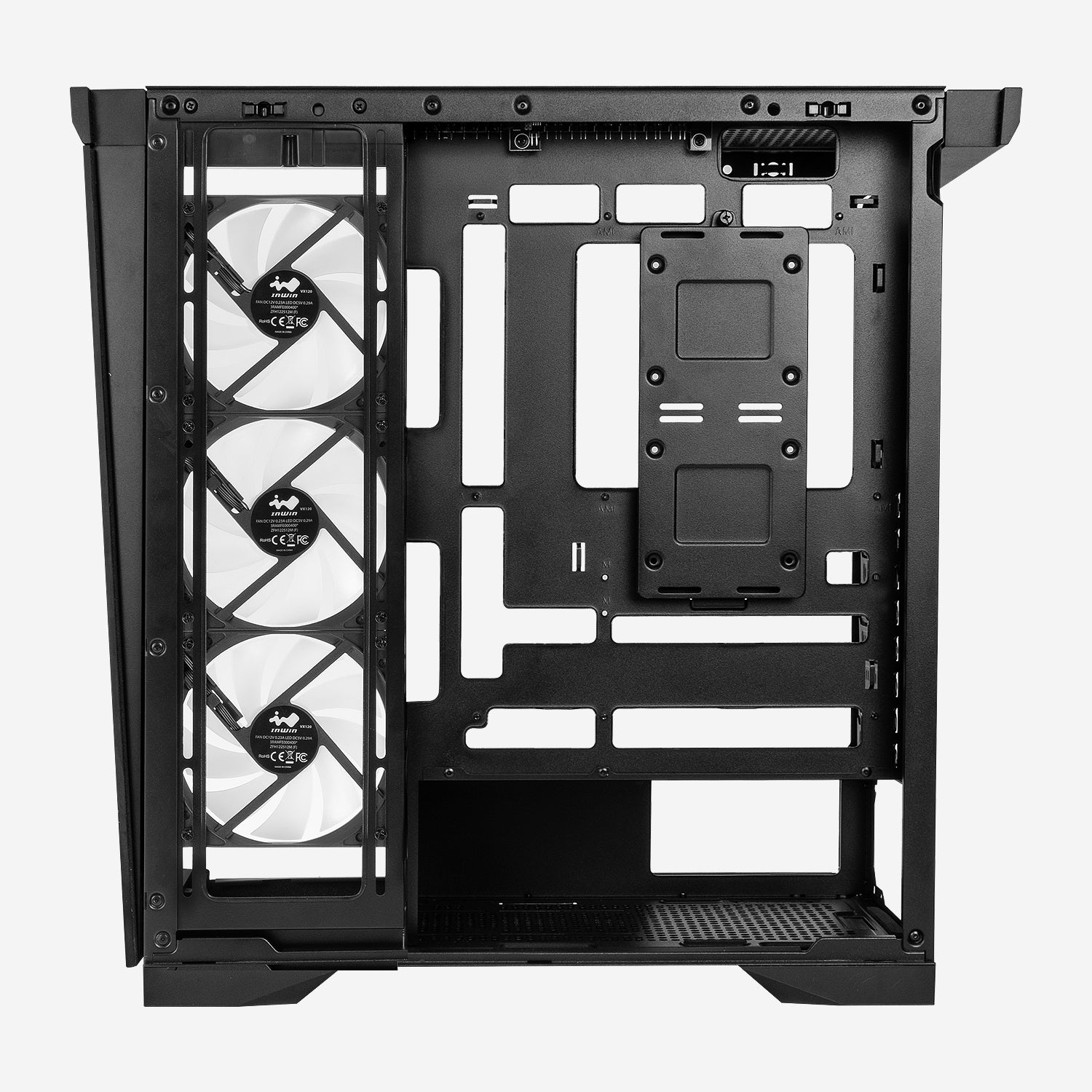

Spacious Interior
-
Four VORTEX VX120 Fans Pre-Installed
-

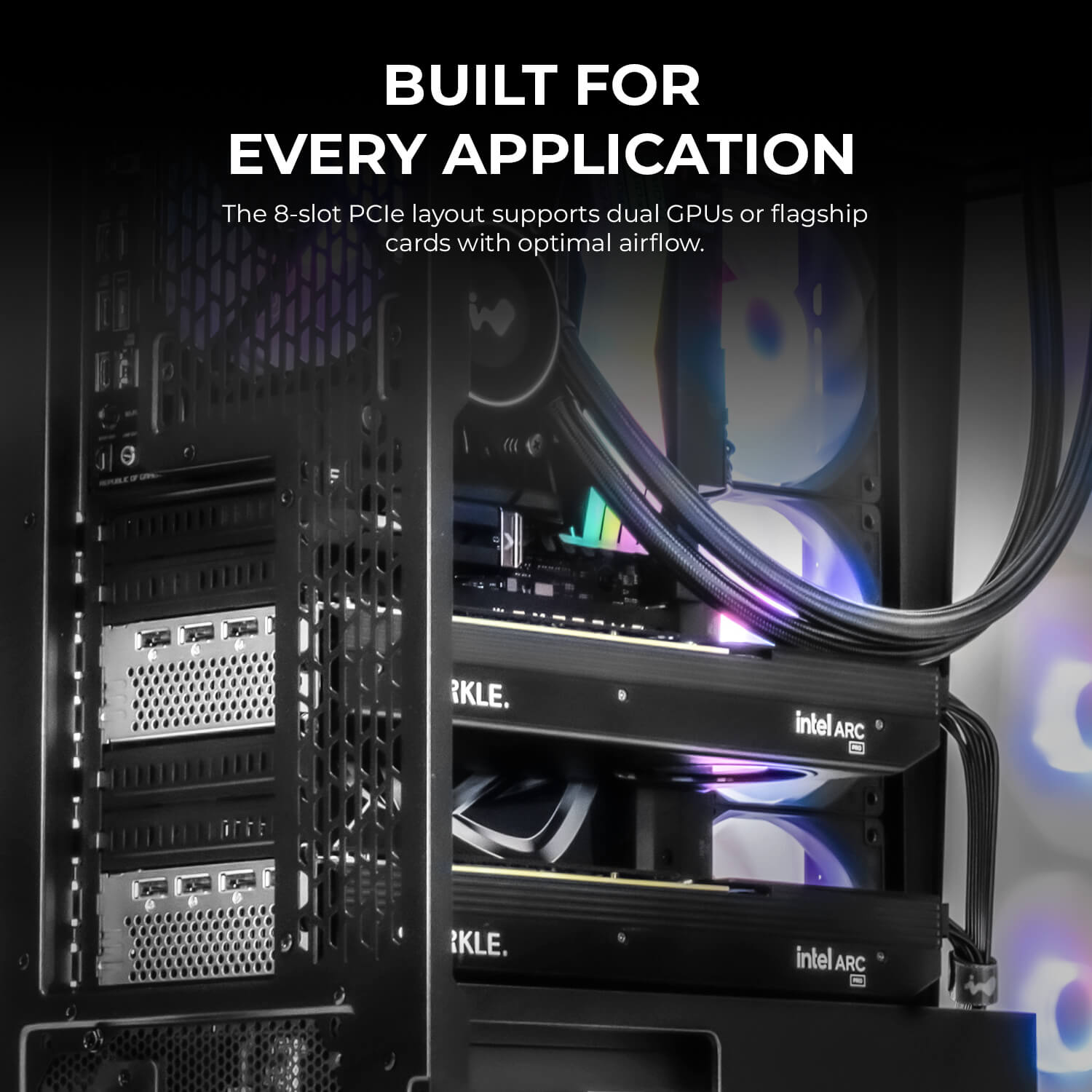

8-Slot Expansion Support
Specs
| Model | W50 |
|---|---|
| Model Number | IW-CS-W50BLK-4VX120 |
| Color | Black |
| Case Type | Mid Tower |
| Materials | SPCC, Tempered Glass |
| M/B Compatibility | 12" x 10.9" E-ATX ( 305 x 277 mm ), ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 8 x PCIe |

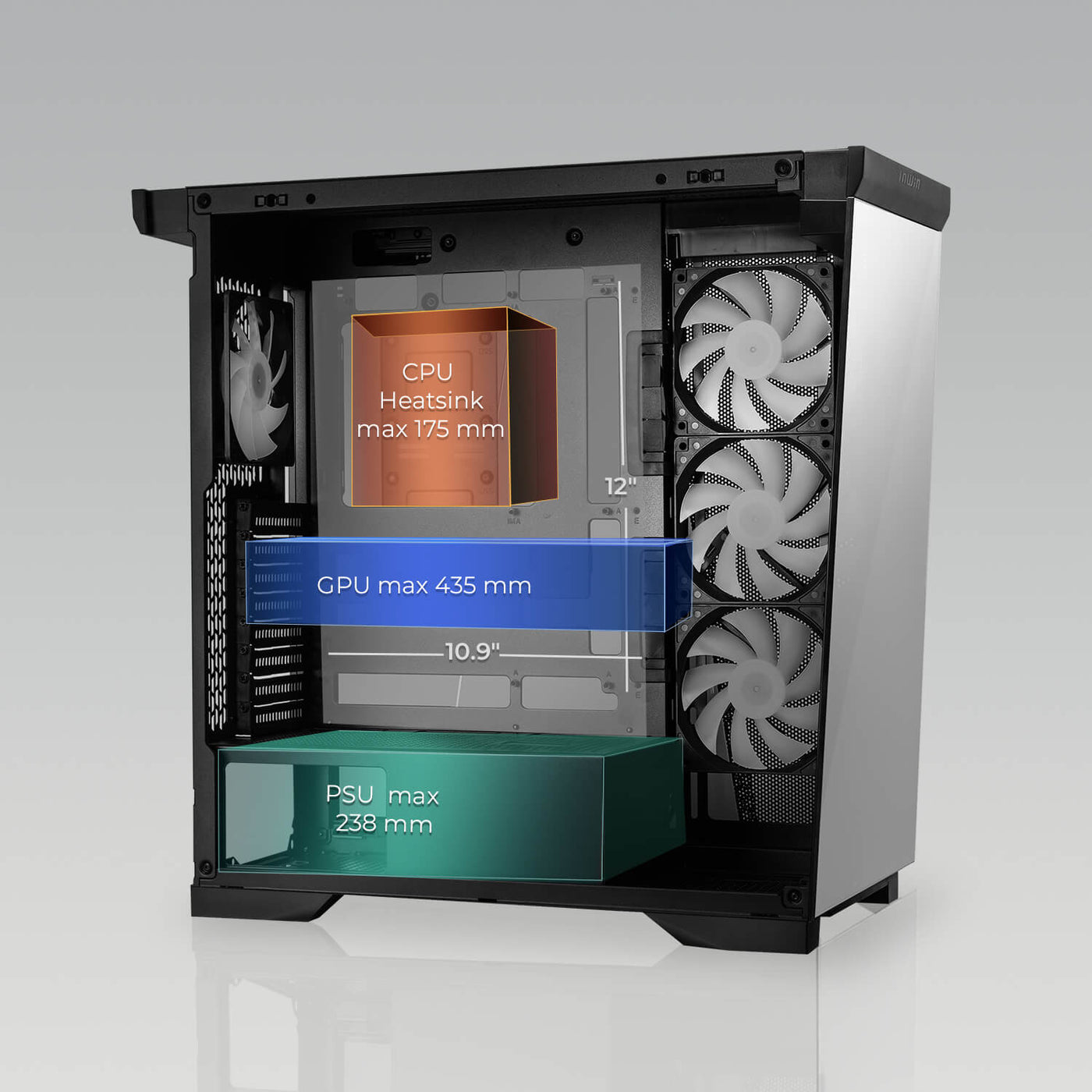

| Maximum Compatibility | GPU Length: 435 mm CPU Heatsink Height: 175 mm |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps) 2 x USB 3.2 Gen 1 HD Audio (CTIA - SPK/MIC) LED Lighting Control Switch Power Button |
| Internal Drive Bays | 2 x 3.5" & 2 x 2.5" |

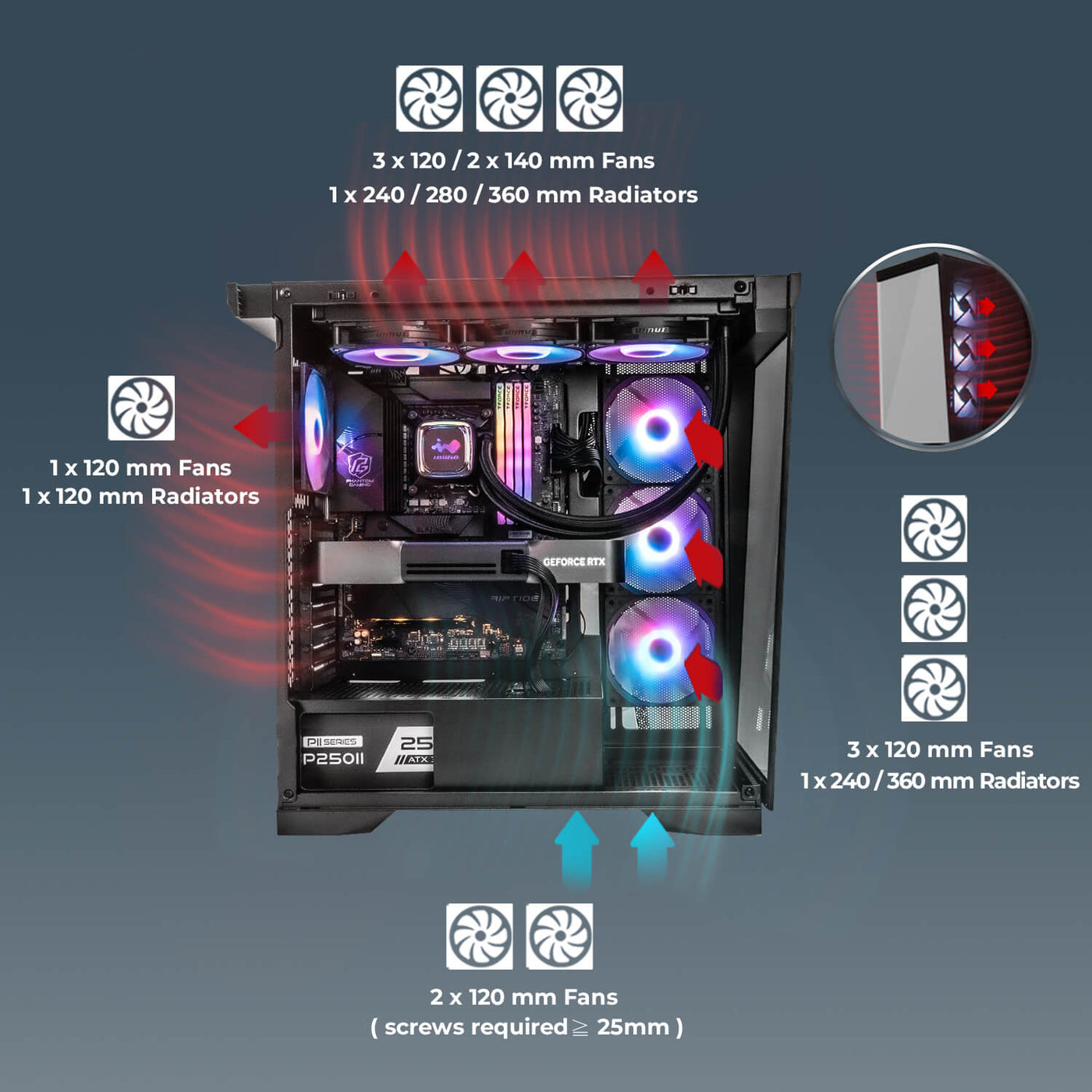

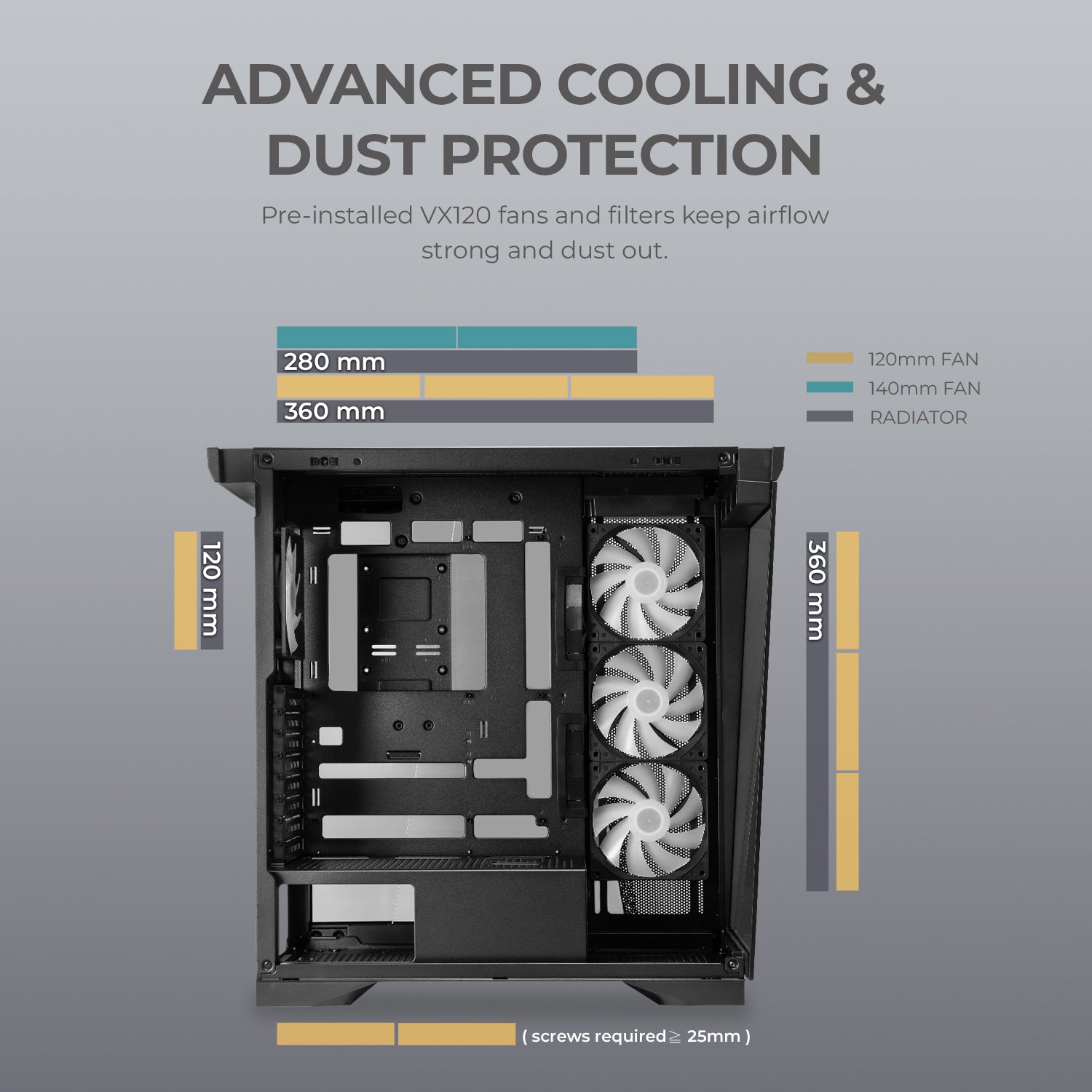

| Thermal Solution Compatibility | Air Cooling Fans: Top: 3 x 120 / 2 x 140 mm Rear: 1 x 120 mm (VX120 pre-installed) Bottom: 2 x 120 mm (screws required ≧ 25 mm) Side: 3 x 120 mm (VX120 pre-installed) Water Cooling Radiators: Top: 1 x 240/ 280 / 360 mm Rear: 1 x 120 mm Side: 1 x 240 / 360 mm |
| Power Supply Compatibility | PSII: ATX12V - Length up to 238 mm |
| Product Dimensions (L x W x H) |
522 x 278 x 502 mm 20.5 x 10.9 x 19.7" |
| Package Dimensions (L x W x H) |
563 x 365 x 631 mm 22.1 x 14.3 x 24.8" |
| Net Weight | 11.15 kg /24.58 lbs |
| Gross Weight | 13.3 Kg /29.32 lbs |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
| Regular Blade (Pre-installed) | |
|---|---|
| Model | VORTEX |
| Style | Regular Blade |
| Model Number | IW-FN-VX120-1PK |
| Color | Black |
| Fan Size | 120 x 120 x 25 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 2.76W |
| Rated Current | 0.23A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 1.45W |
| ARGB Rated Current | 0.29A |
| Speed Mode | PWM 600 - 1600 RPM |
| Air Flow | 66.37 CFM |
| Air Pressure | 1.4 mm / H2O |
| LED | Addressable RGB |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 31.7 dB(A) |
| Bearing Type | Hydro Bearing |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|

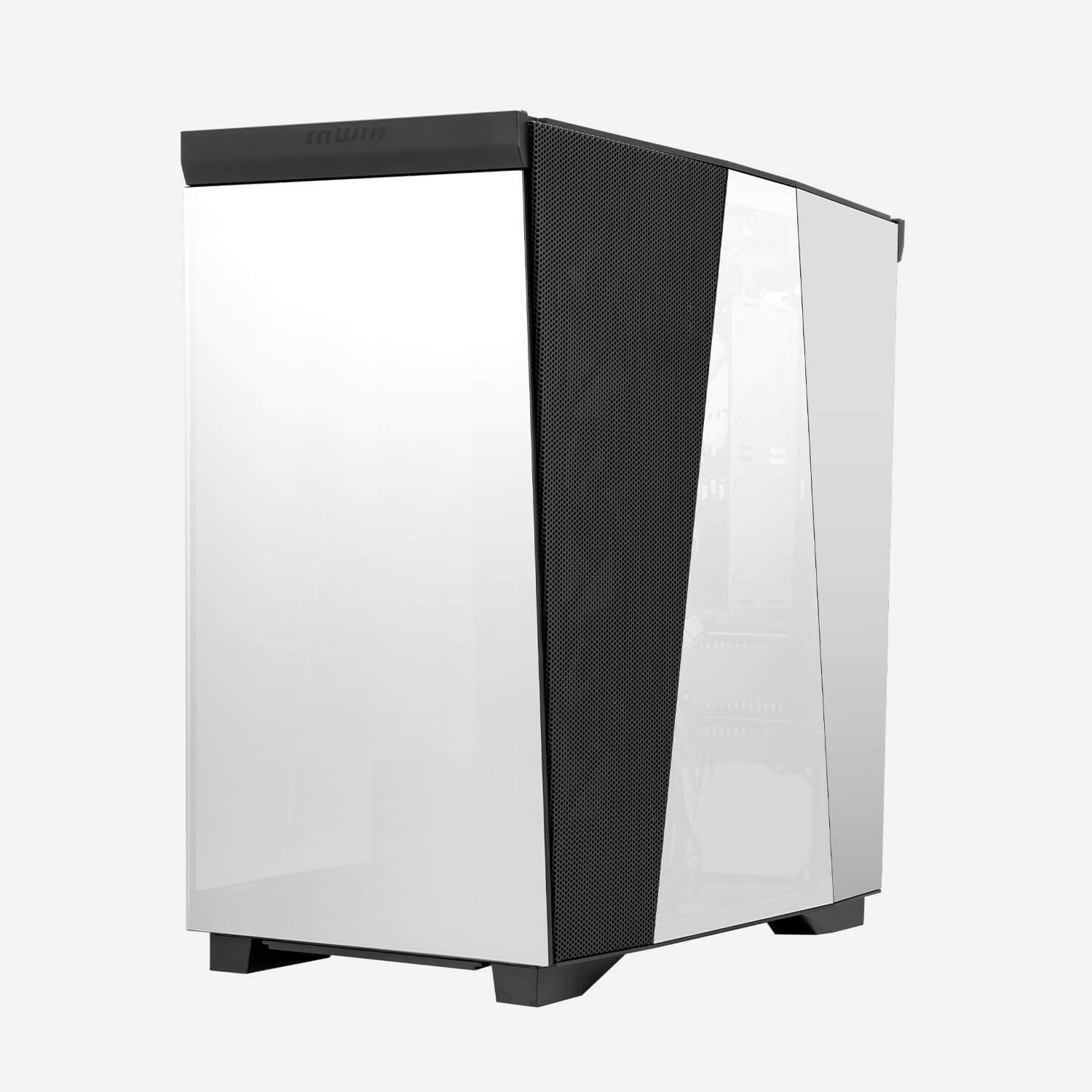

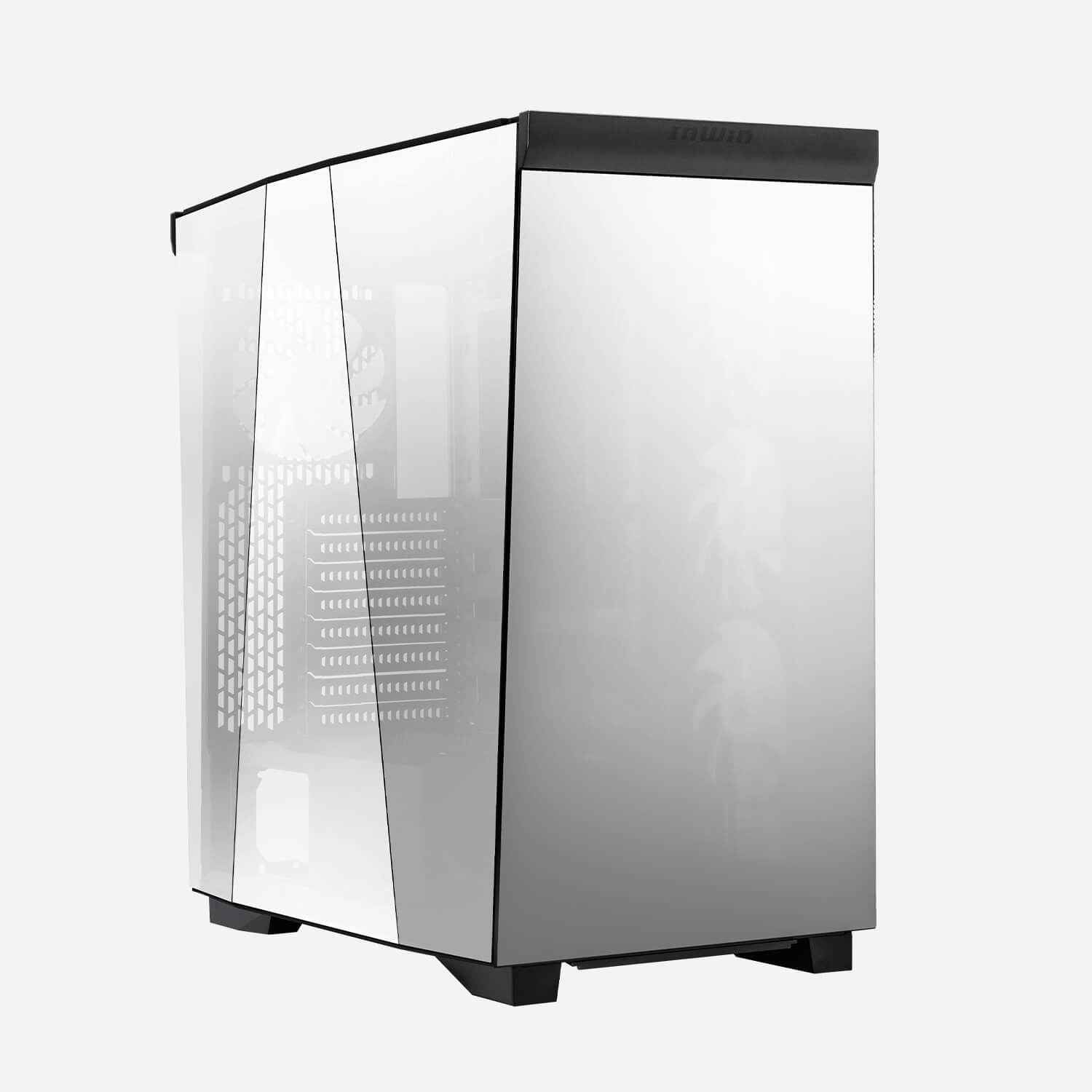

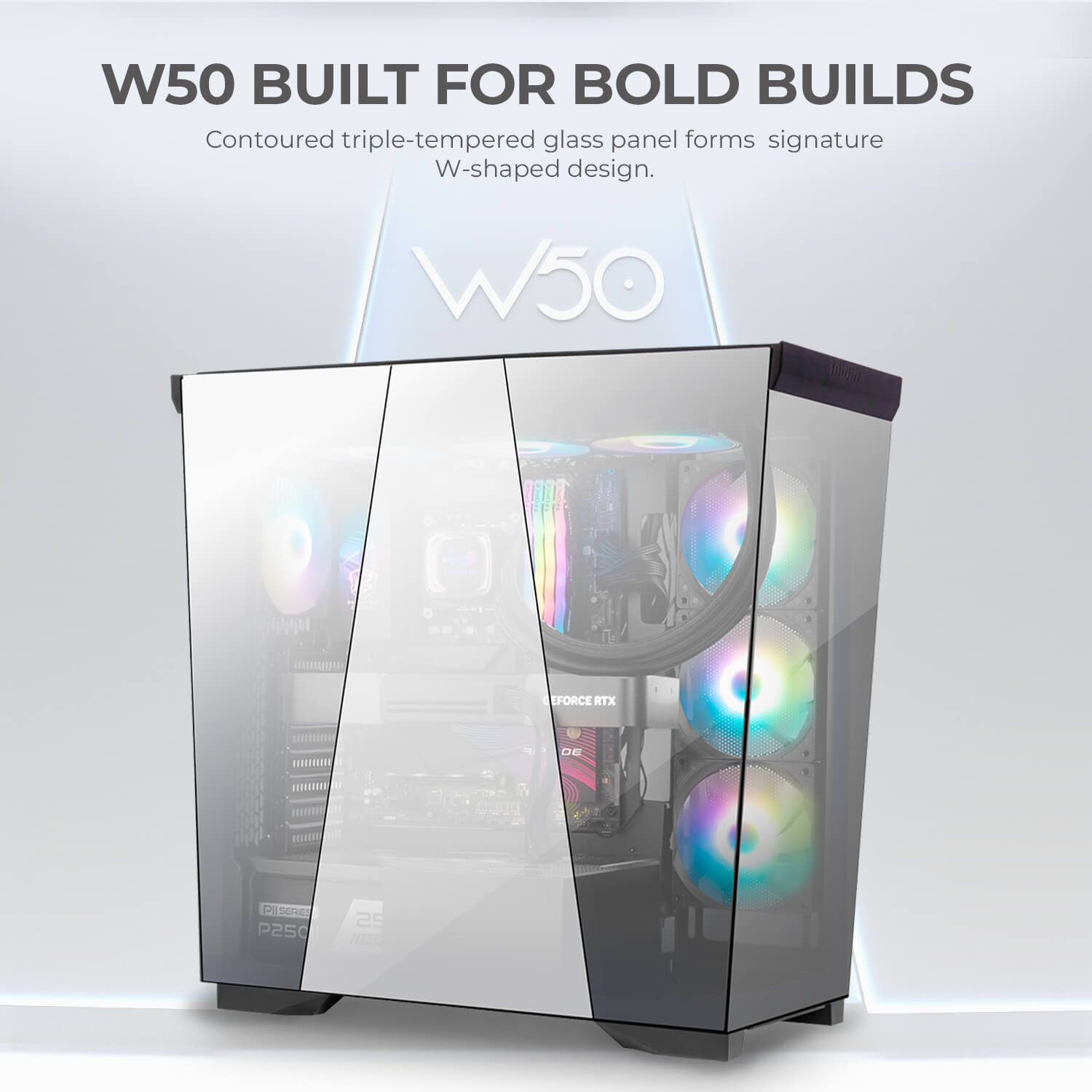

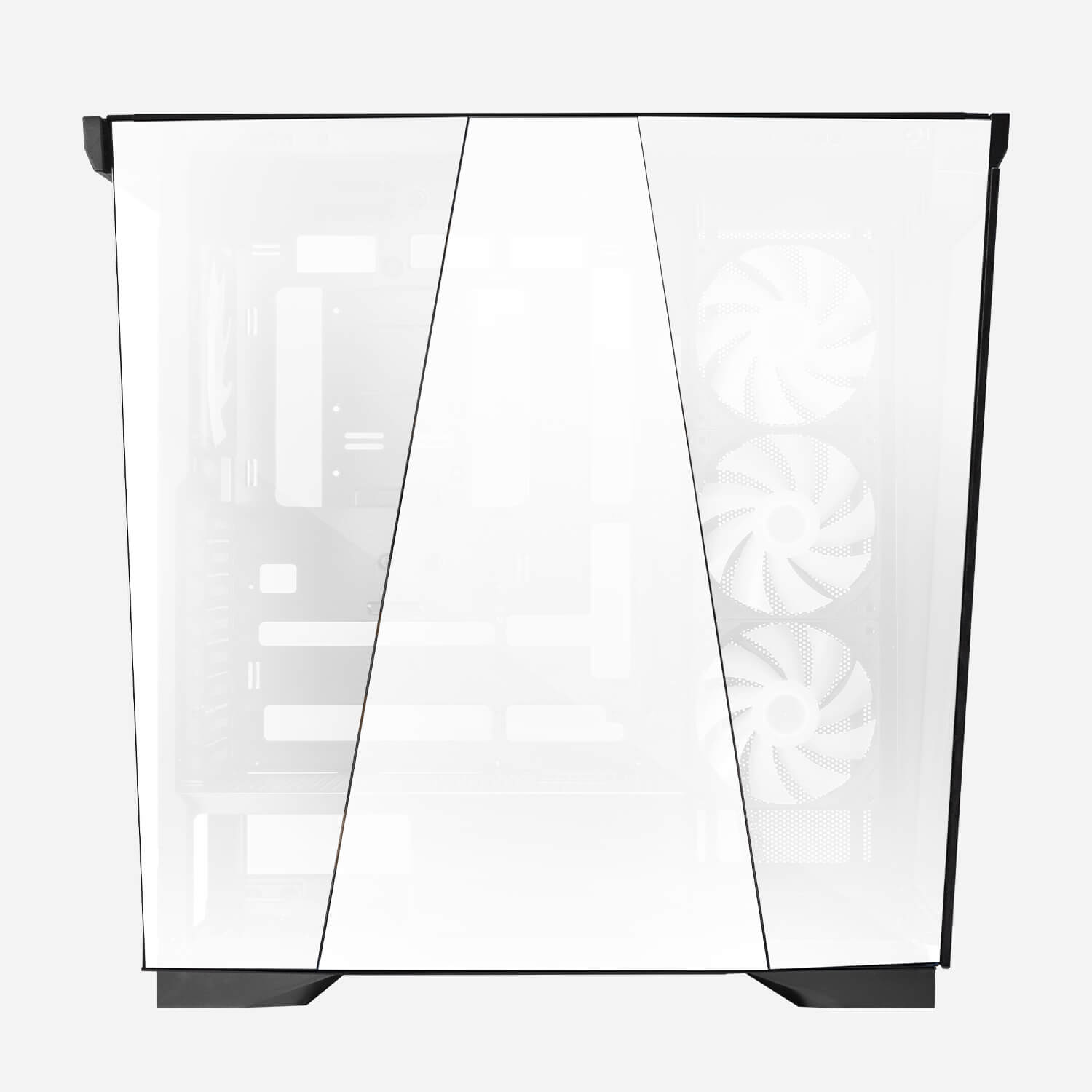

Panoramic W-Shaped Glass

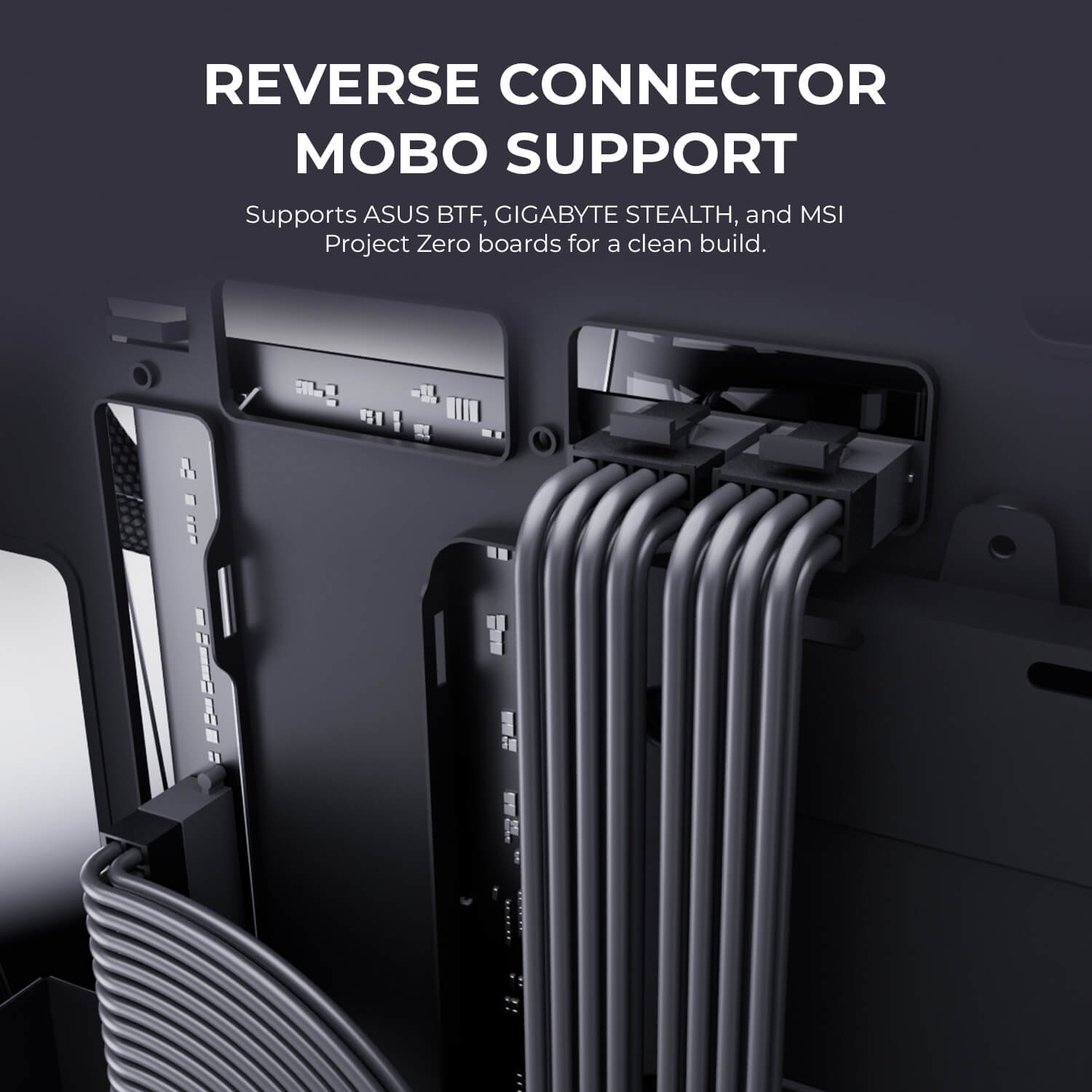

Optimized for High-End Builds
Solutions for Thermals

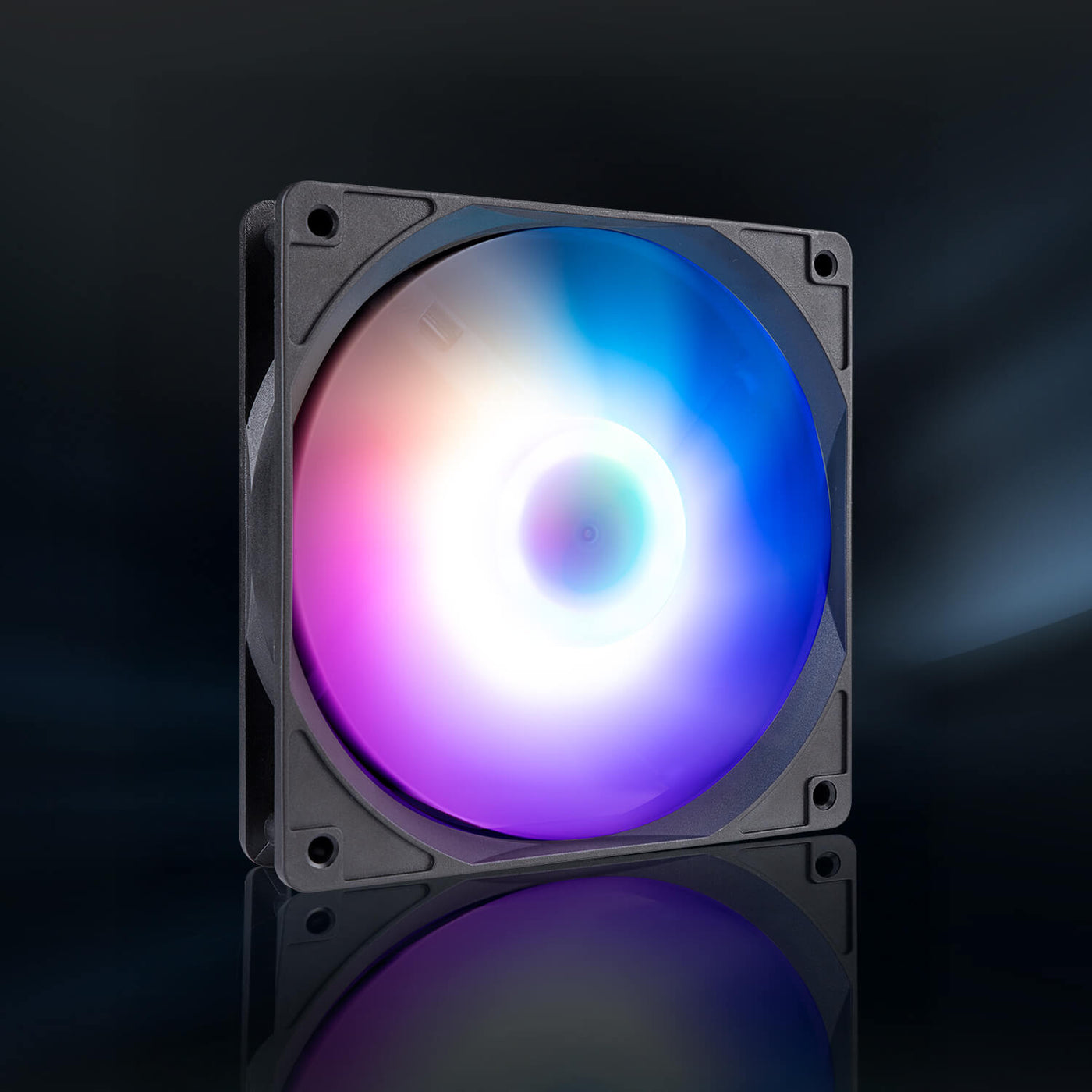

VORTEX VX120 ARGB Fans

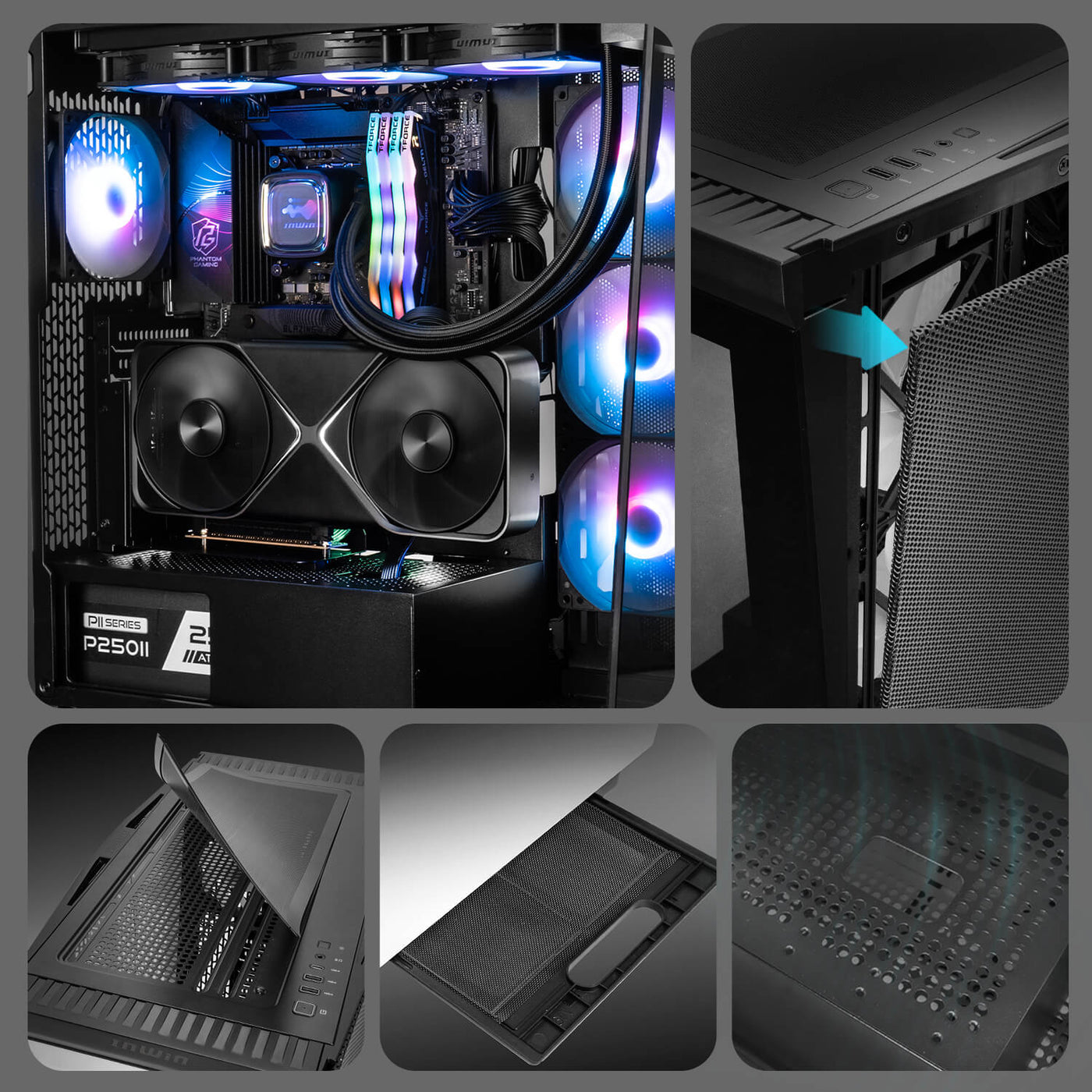

Attention to Details

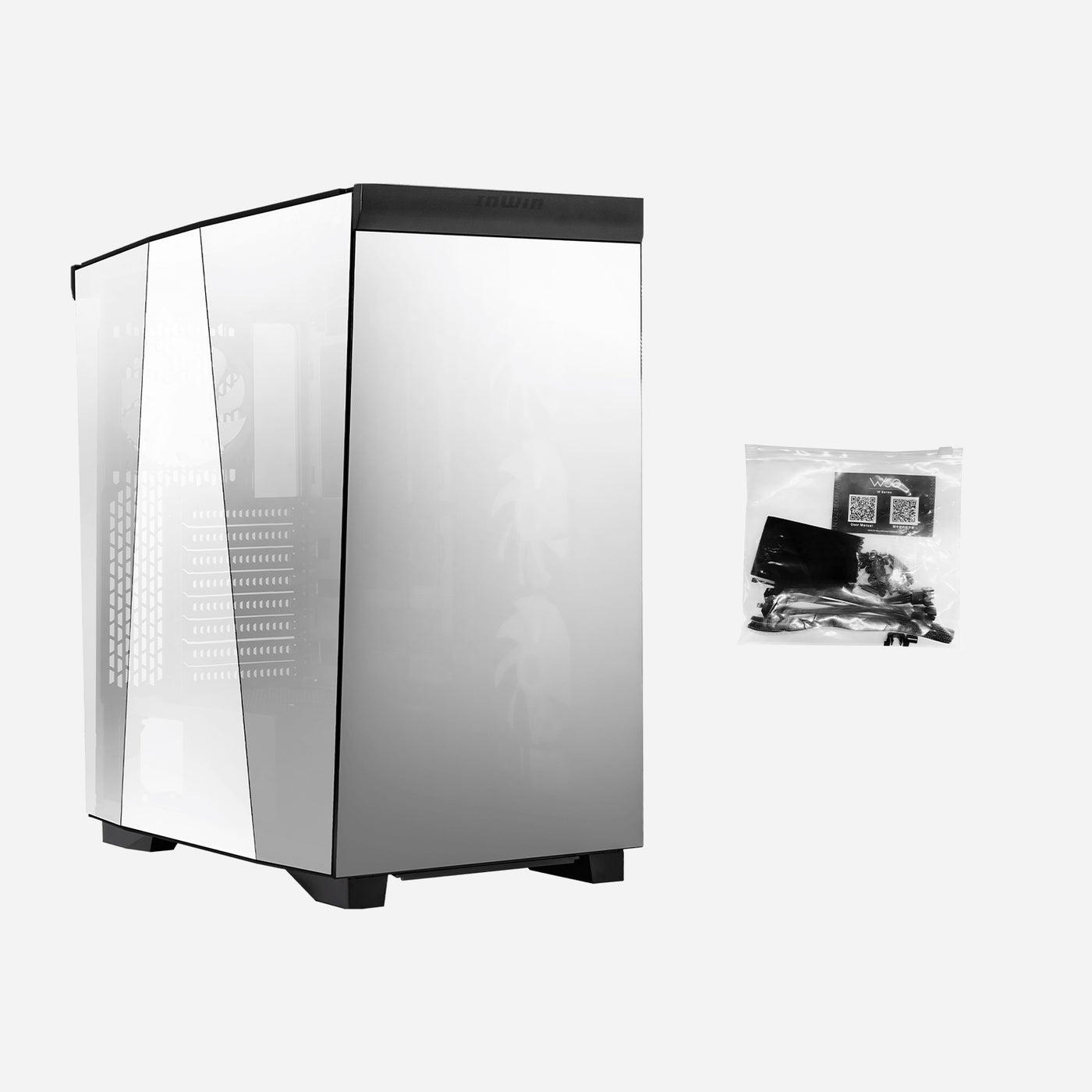

Components
