315
Extended ATX
Specs
Model | 315 | |
---|---|---|
Model Number | IW-CS-315BLK-1AL120 | |
Colors | Black | |
Case Type | Mid Tower | |
Materials | Aluminium, SECC, Tempered Glass | |
M/B Compatibility | 12” x 13” E-ATX, ATX, Micro-ATX, Mini-ITX | |
Expansion Slots | 7 x PCI-E | |
Maximum Compatibility | VGA Card Length: 350 mm CPU Heatsink Height: 160 mm |
|
I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.0 HD Audio |
|
Internal Drive Bays | 2 x 3.5" / 2.5" 2 x 2.5" |
|
Thermal Solution Compatibility |
Air Cooling Fans: |
|
Power Supply Compatibility | PSII: ATX12V - Length up to 200 mm |
|
Product Dimensions (L x W x H) |
494 x 225 x 505 mm 19.5 x 8.8 x 18.9" |
|
Package Dimensions (L x W x H) |
572 x 610 x 335 mm 22.5 x 24 x 13.1" |
|
Net Weight | 12.3 kg / 27.1 lbs | |
Gross Weight | 14.6 kg / 32.2 lbs | |
* InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
Model | Luna AL120 | |
---|---|---|
Quantity Included | Single Pack Triple Pack |
|
Model Number | IW-FN-AL120-1PK IW-FN-AL120-3PK |
|
Colors | Black | |
Fan Size | 120 x 120 x 25 mm | |
Materials | PC, PBT | |
Rated Voltage | DC 12V | |
Rated Power | 3.96W | |
Rated Current | 0.33A | |
ADD RGB Rated Voltage | DC 5V | |
ADD RGB Rated Power | 1.5W | |
ADD RGB Rated Current | 0.3A | |
Speed Mode | PWM 600-1800 +/-10% RPM | |
Air Flow | 82.96 CFM | |
Air Pressure | 2.31 mm / H2O | |
LED | Addressable RGB | |
Connector (Fan to Fan) | Non-Modular Cables | |
Connector to M/B | 4-Pin (PWM, 12V), 3-Pin (ARGB, 5V) | |
Noise Level | 25 dB(A) (Normal) | |
Bearing Type | Long Lifespan Sleeve Bearing | |
Net Weight | 133 g 399 g |
|
Gross Weight | 169 g 484 g |
|
Package Dimensions (L x W x H) |
185 x 125 x 30 mm 185 x 125 x 82 mm |
|
Warranty | 2 years | |
* Specifications may vary based on different regions. * Our products comply with RoHS regulations. |

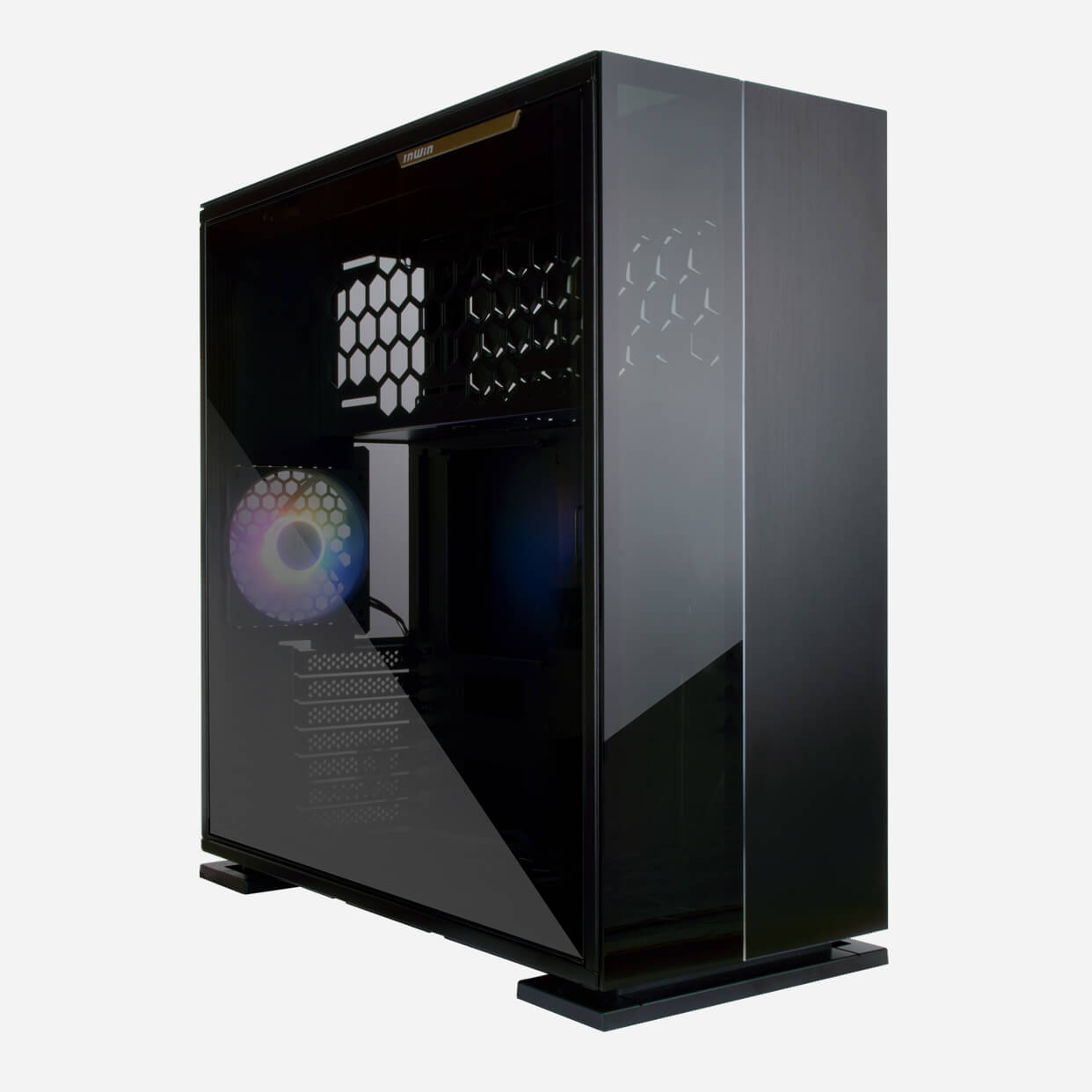

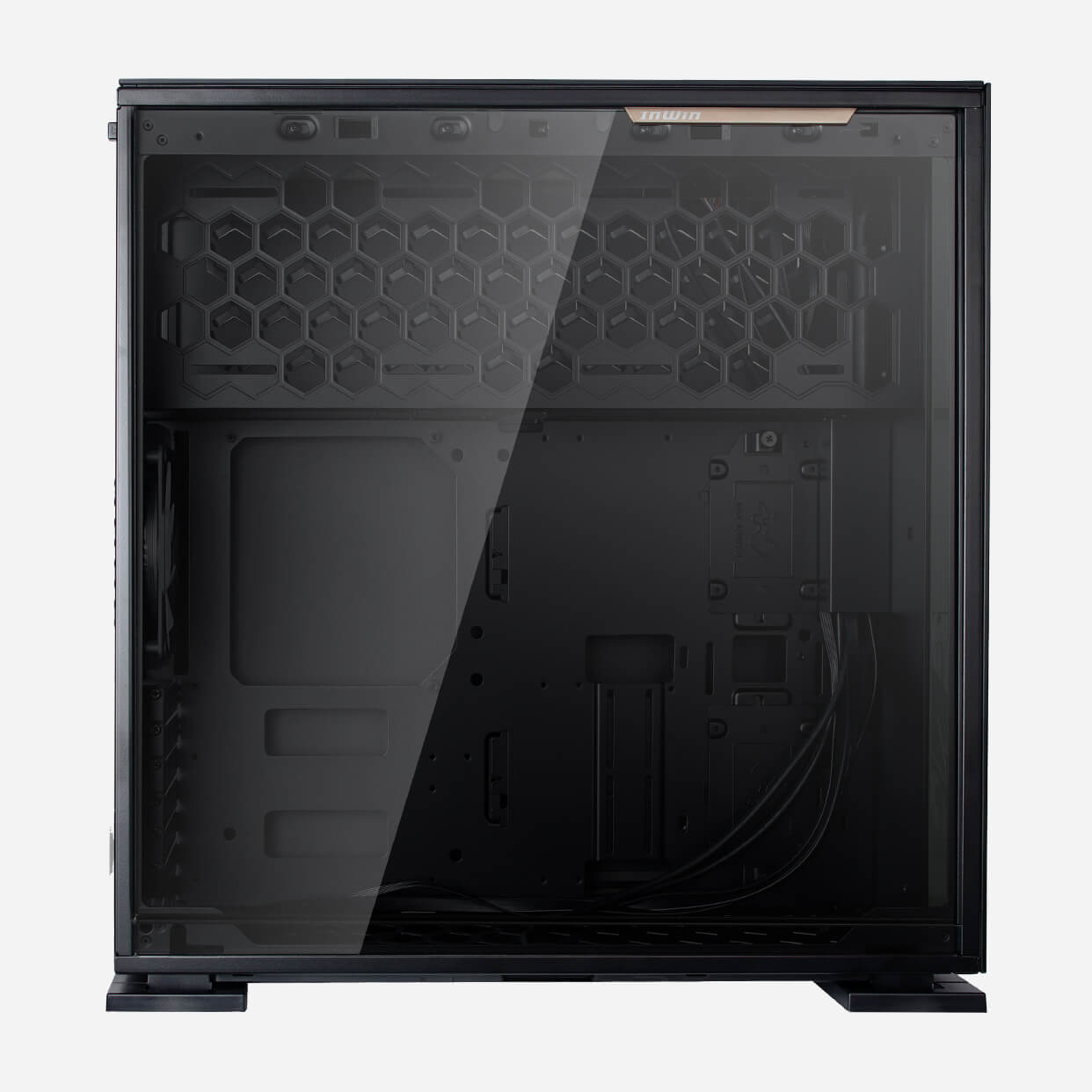

Three Tinted Glass Panels

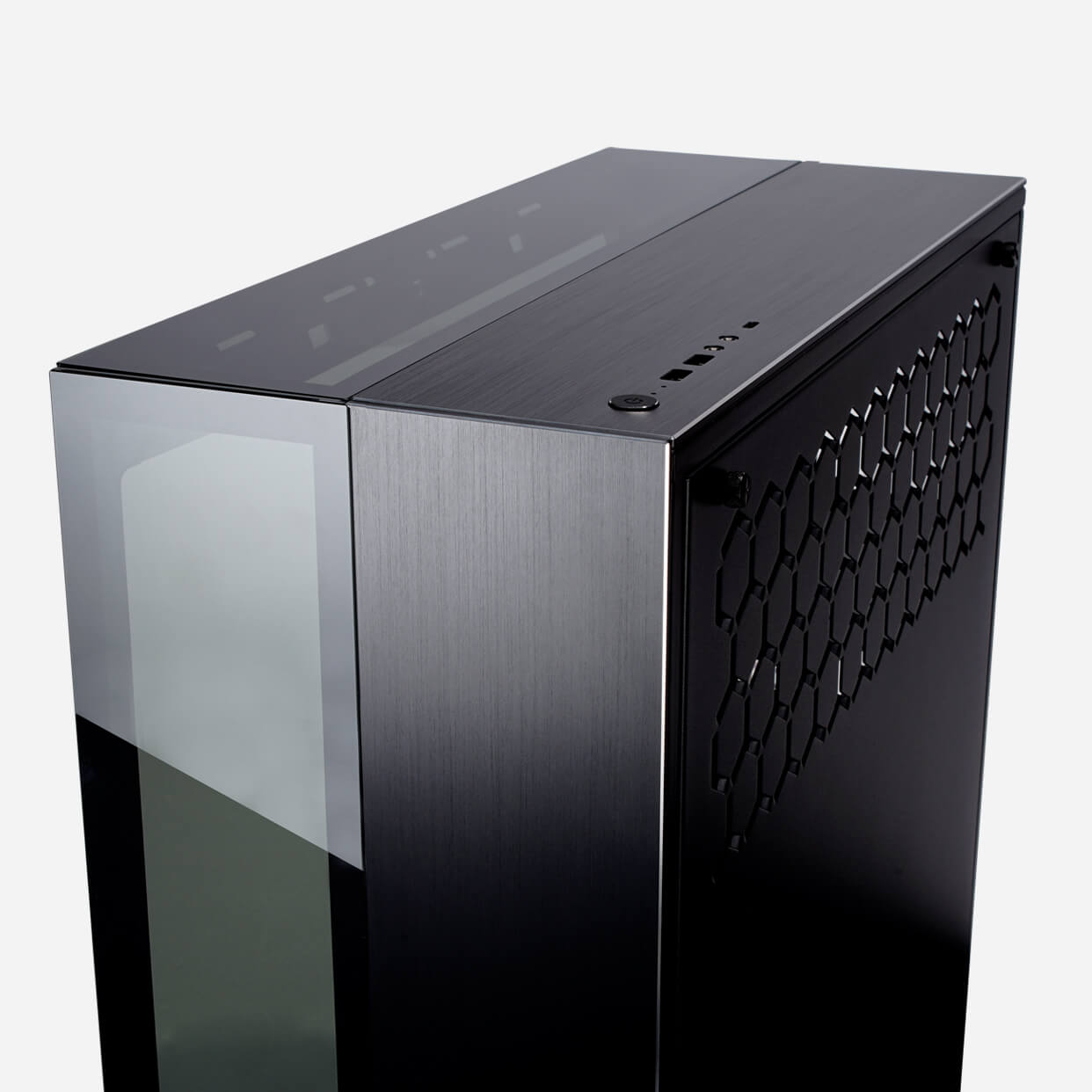

Sleek Aluminium Structure
Highly Expandable for Superb Performance

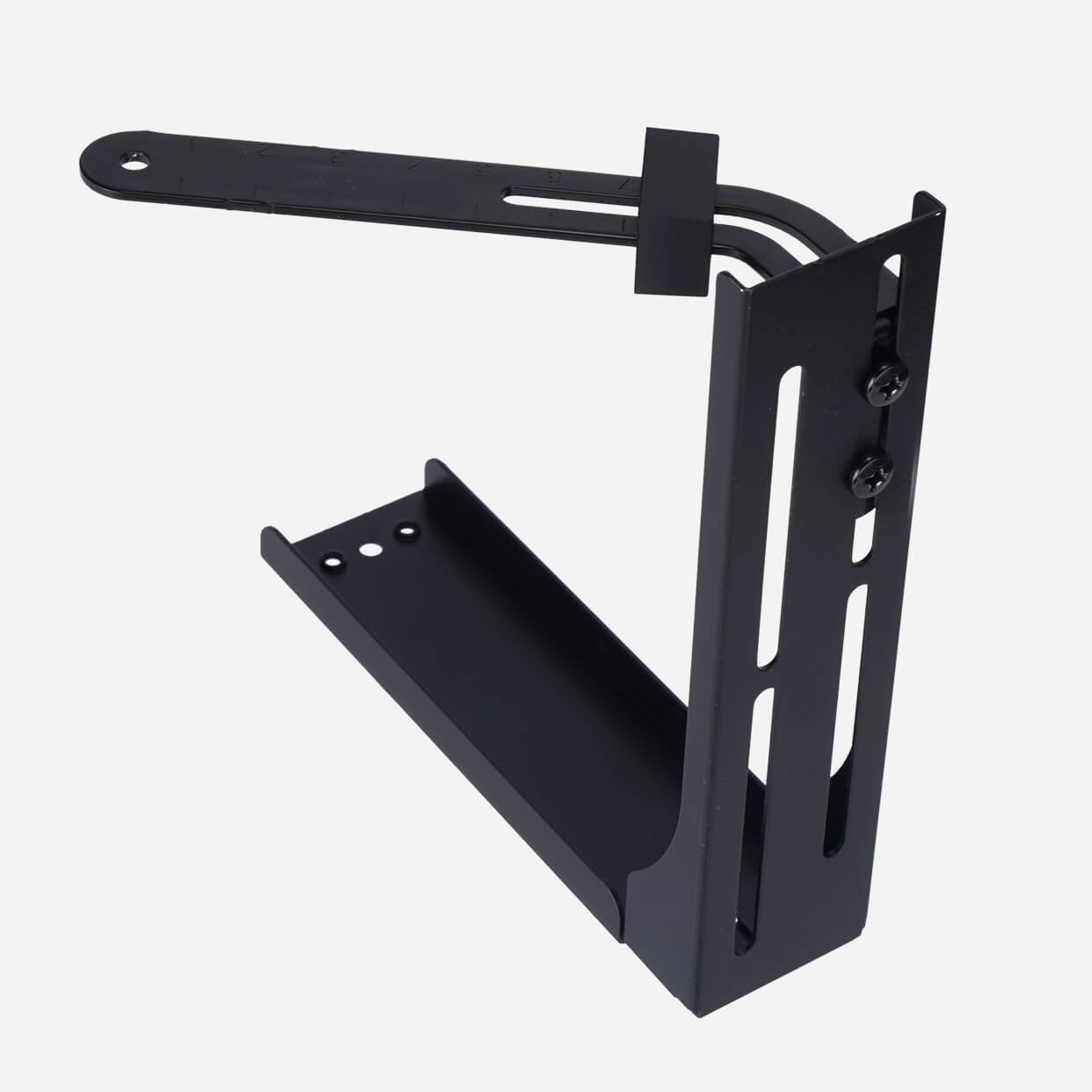

Versatile GPU Anti-Sag Support

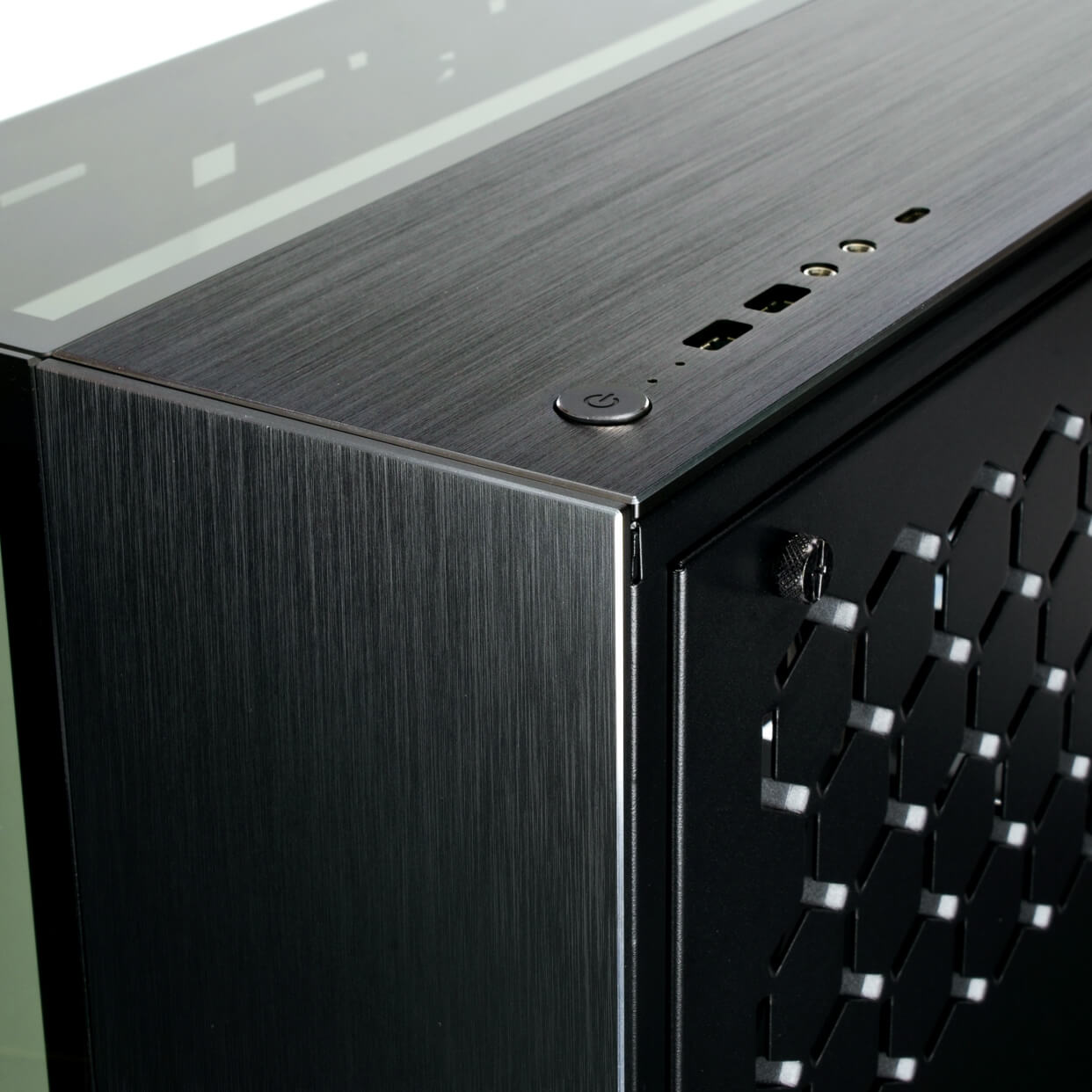

Rich I/O Panel Design
ARGB PWM Fan Preinstalled

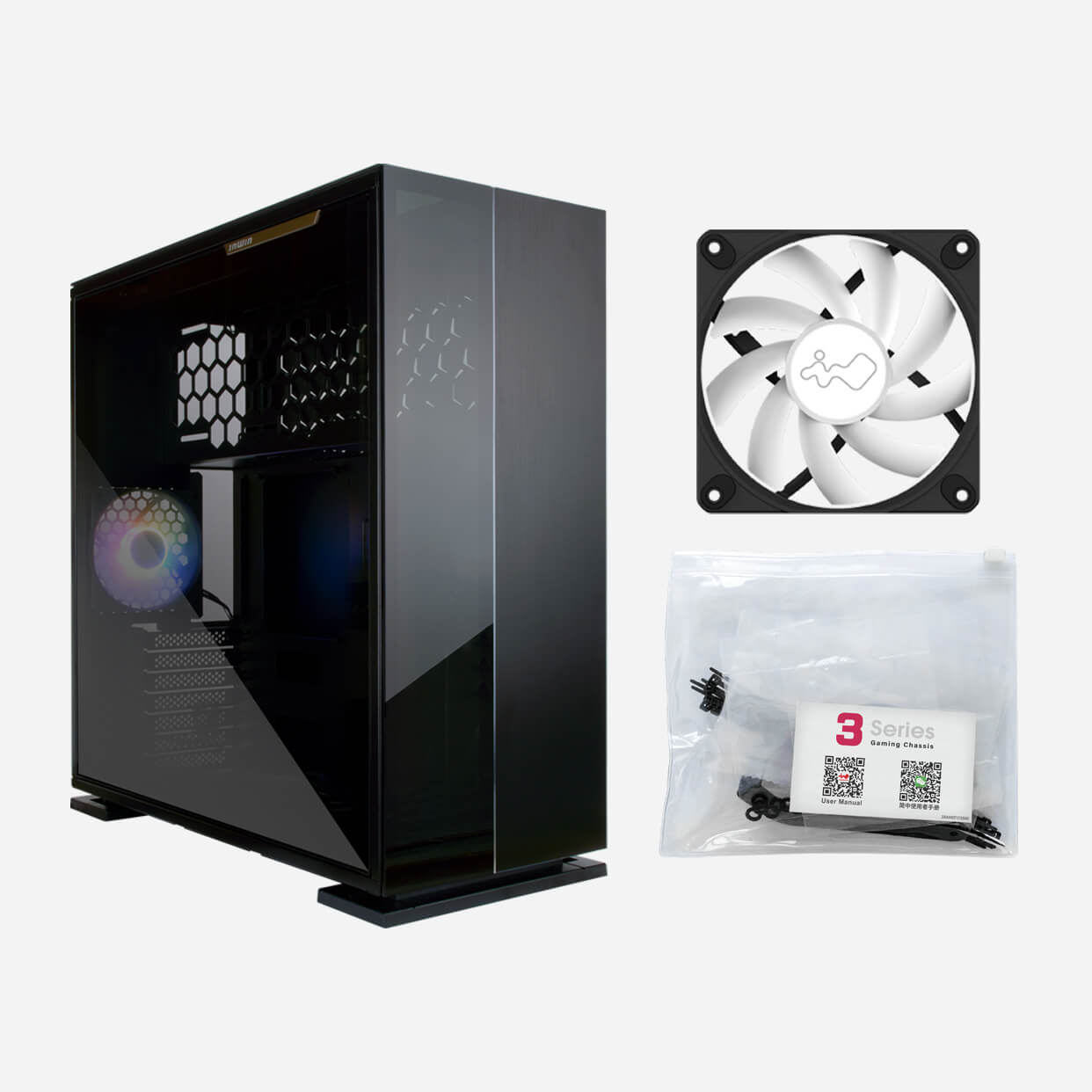

Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
Non-Modular Cable |
Neptune Pure |
Sirius Pure |
Luna AL120 |
Mercury AM120S |
Sirius Loop |
Jupiter Series |
---|---|---|---|---|---|---|
Neptune AN Series |
Neptune DN Series |
Neptune DN PRO Series |
Sirius Extreme Pure |
Sirius Extreme |
||
Modular ARGB Type 1 |
Aurora |
EGO |
||||
Modular ARGB Type 2 |
Crown Series |
Saturn Series |
||||
Modular RGB |
Polaris RGB Series |
Polaris AluminumRGB Series |
InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
