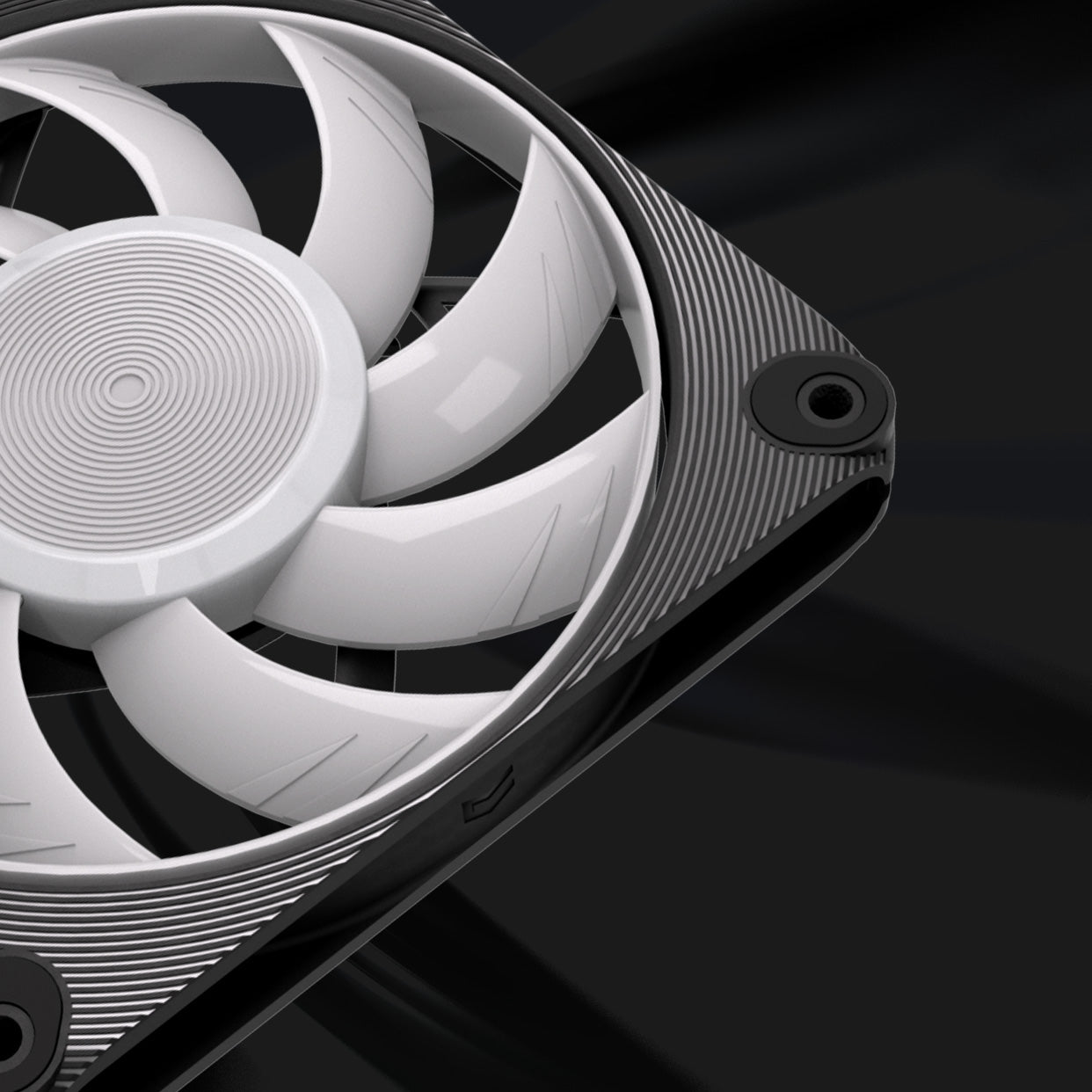

Mercury- InWin’s newest case fan is slim, but powerful. Only at 20 mm-thickness, but boasts a powerful 60.71 CFM airflow; nevertheless, it’s as quiet as a whisper (17 - 29 dB(A)). Don’t miss the InWin’s most compact fan, Mercury.

Quantity Included:3 Pack
  1. Super-quiet 17 dB(A)
  2. Space Conservation
  3. Small, Yet Powerful
  4. Anti-slide ARGB cable connector


Model Mercury AM120S
Quantity Included Triple Pack
Model Number IW-FN-AM120S-3PK
Colors Black
Fan Size 120 x 120 x 20 mm
Materials PC, PBT
Rated Voltage DC 12V
Rated Power 1.8W
Rated Current 0.15A
ARGB Rated Voltage DC 5V
ARGB Rated Power 1.4W
ARGB Rated Current 0.28A
Speed Mode PWM 400 - 2000 +/- 10% RPM
Air Flow 60.71 CFM
Air Pressure 2.72 mm / H2O
LED Addressable RGB
Connector (Fan to Fan) Non-Modular Cables
Connector to M/B 4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Noise Level 17 - 29 dB(A)
Bearing Type Long Lifespan Sleeve Bearing
MTBF >60,000 hrs.
Net Weight 418 g / 0.92 lbs
Gross Weight 519 g / 1.14 lbs
Package Dimensions
(L x W x H)
165 x 125 x 65 mm
6.49 x 4.92 x 2.55"
Warranty 3 Years
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

Bask in the Tranquility

Operate in peace! Extremely quiet, at only 17 - 29 dB(A), while Mercury cools.

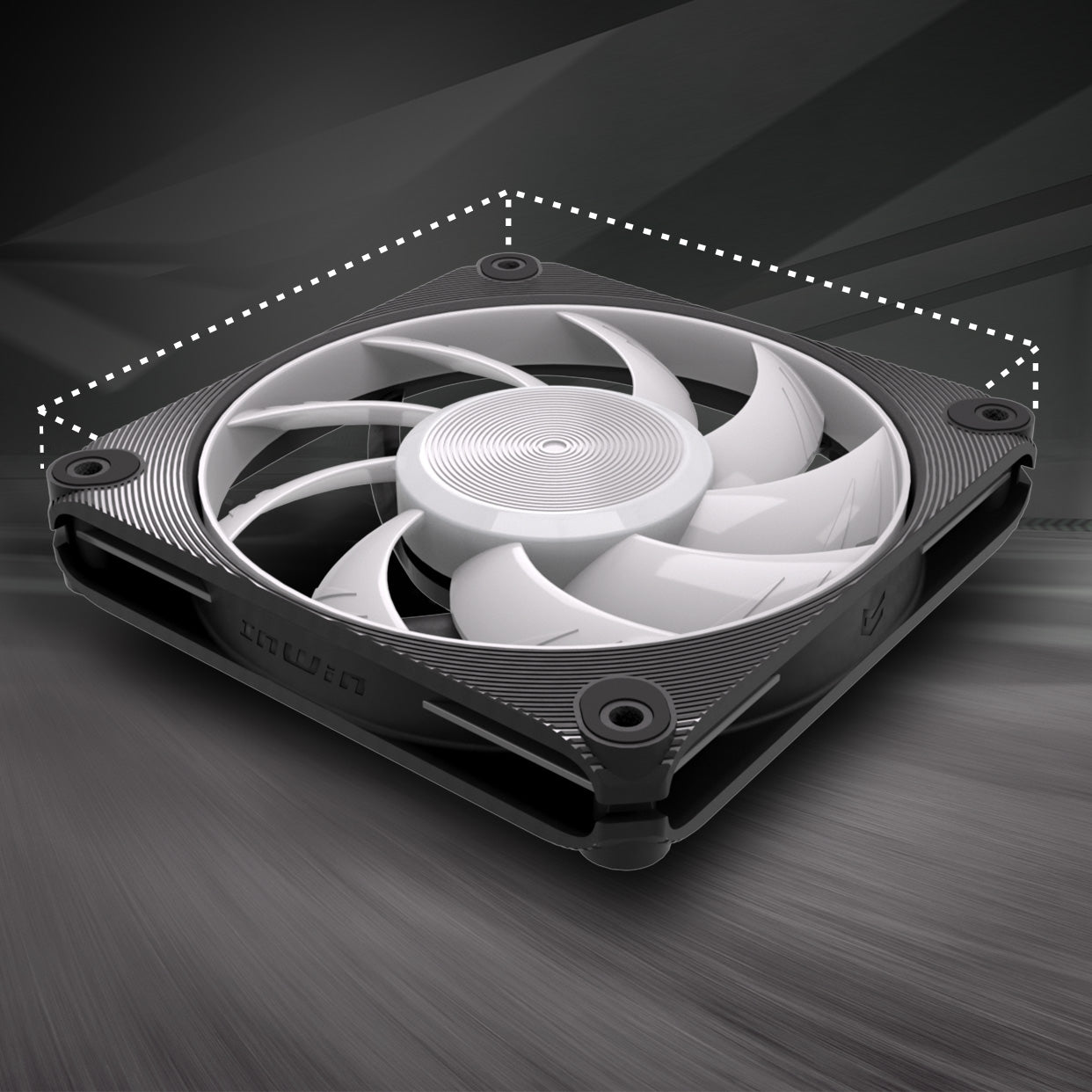

Space Saver

Being only 20 mm-thick, a good choice for narrow spaces or compact builds.

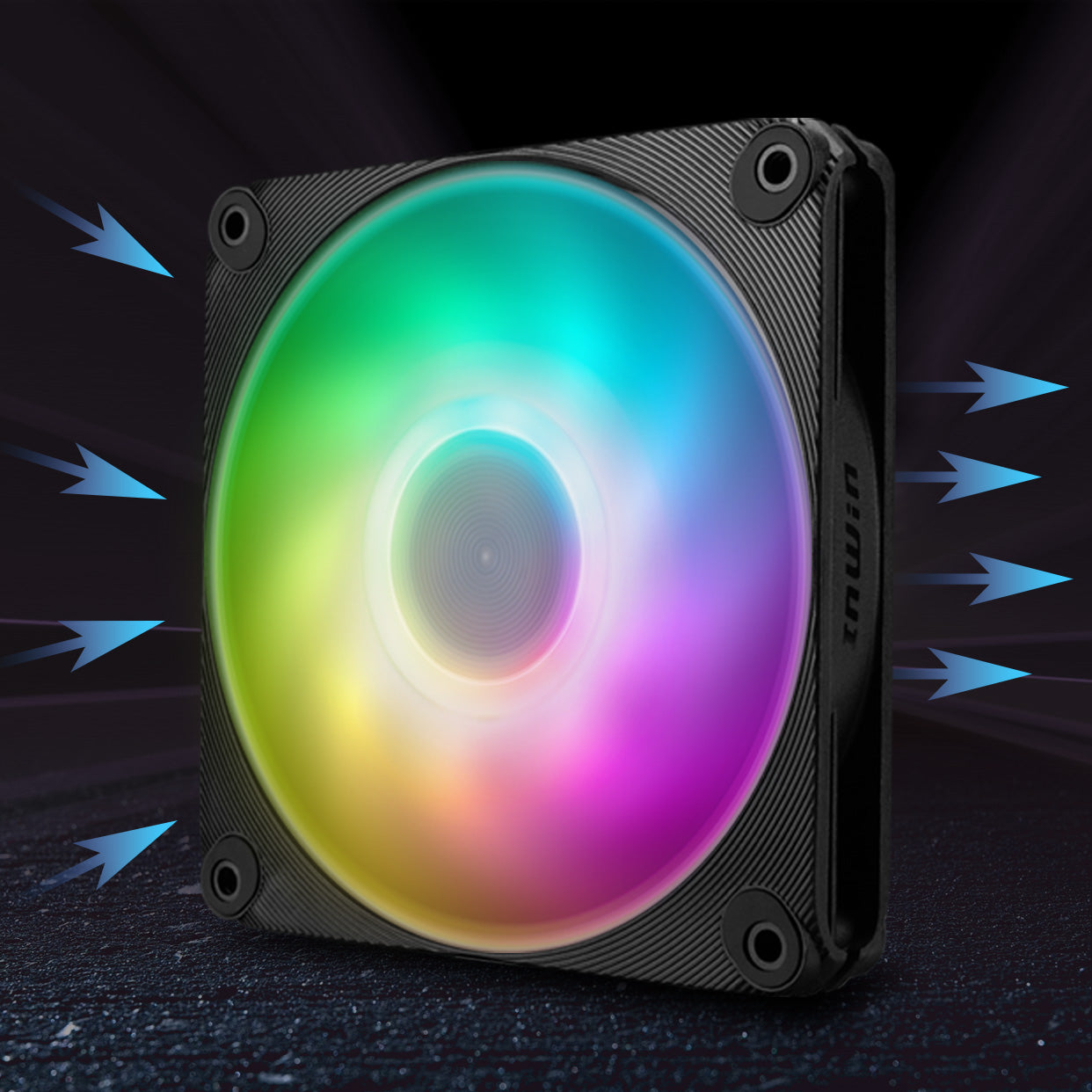

Outstanding Performance

Exclusive fan inner frame design brings less leakage of airflow, creating a more concentrated air movement, and offering more power for intense cooling.

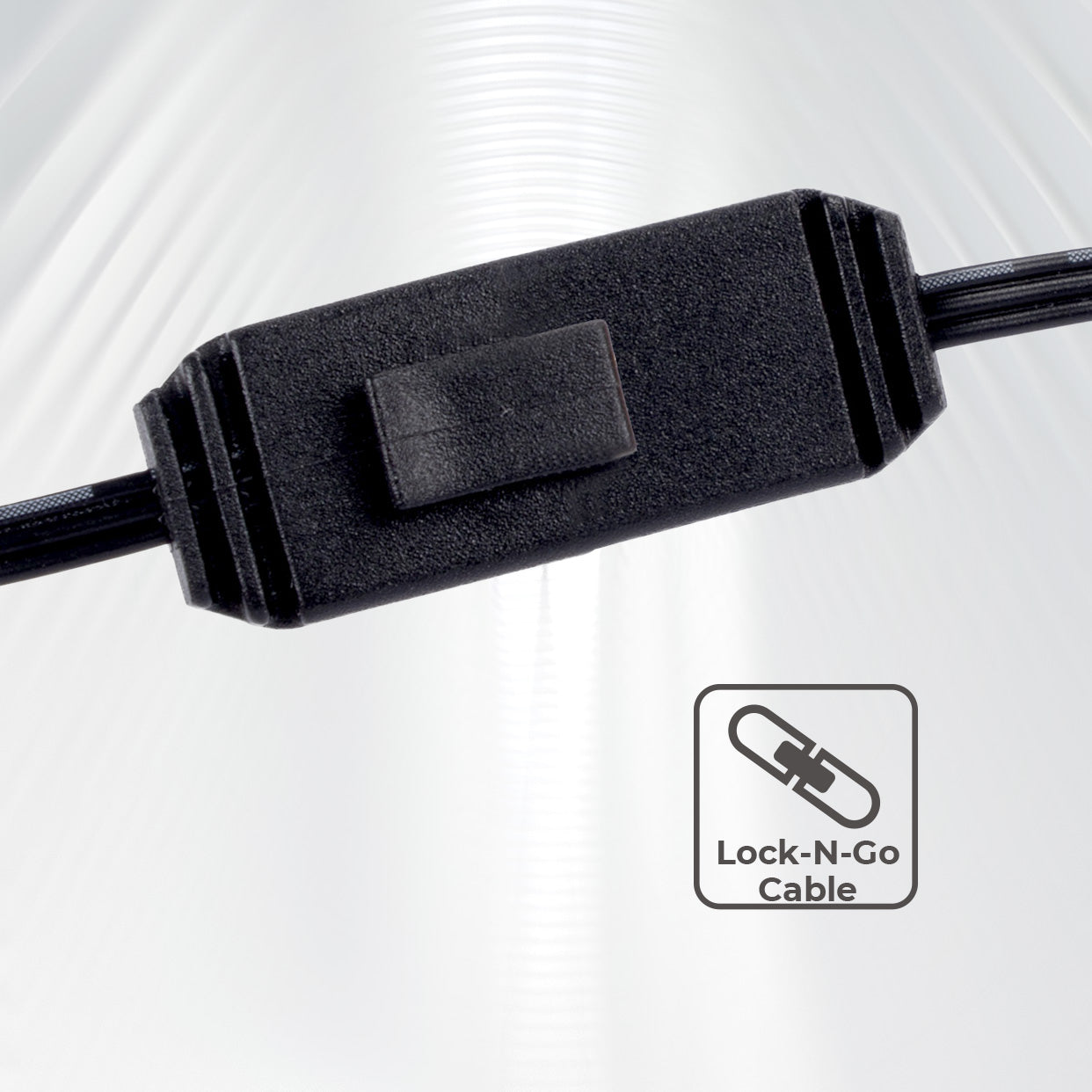

Lock-N-Go ARGB Cable

InWin introduces its exclusive anti-slide buckle design. The Lock-N-Go Cable ensures the ARGB cable never disconnects!

Extend Far Beyond

InWin extends the space limitation, but does not limit the quality or performance. Enjoy Mercury’s compact structure, while not sacrificing the noise level!


Mercury AM120S Fans x 3
Screws x 12
30 mm Radiator Screws x 12
ARGB One-Click Controller x 1

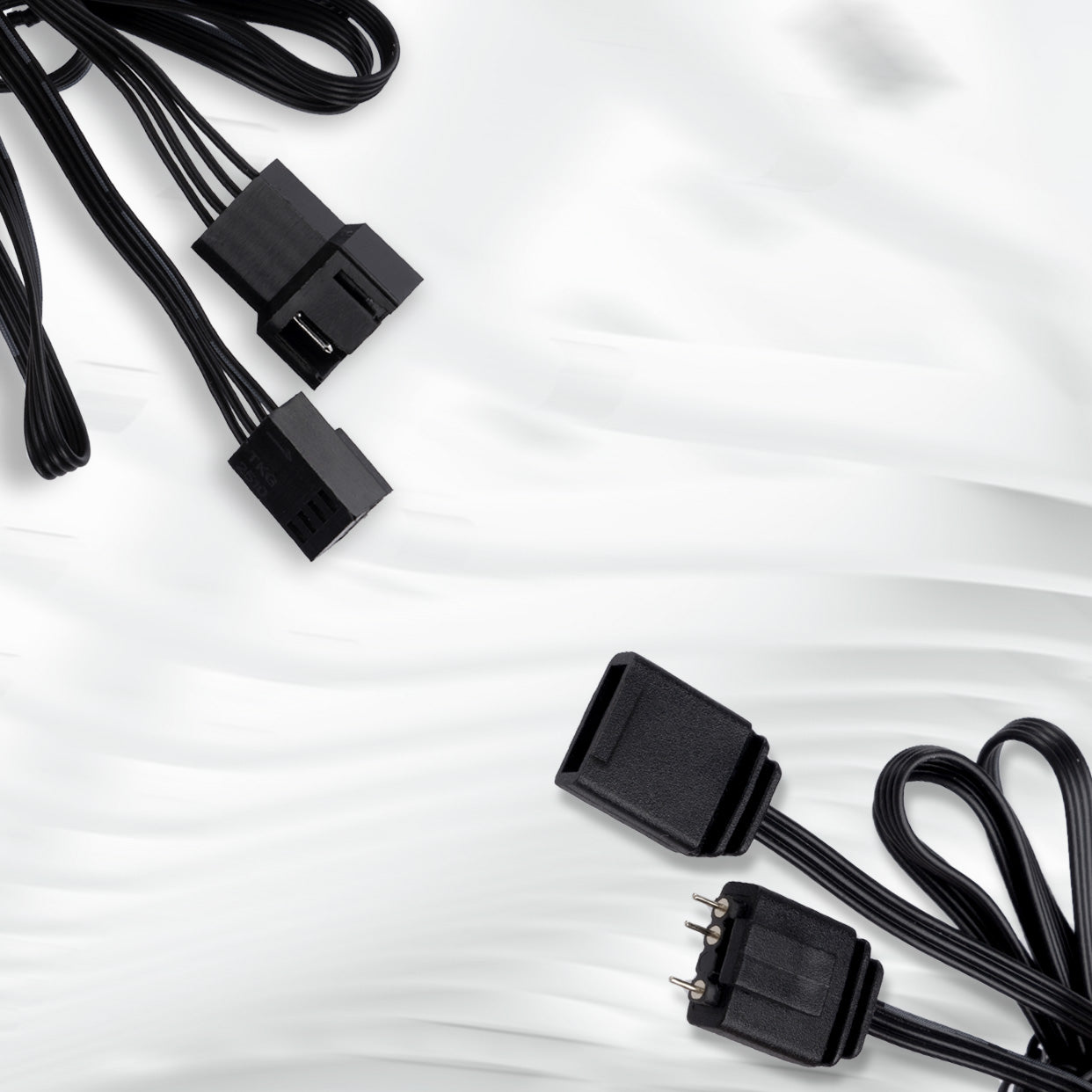

PWM Fan Extension Cables 500 mm x 2
ARGB Extension Cables 500 mm x 2

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
