P130II
Quantity:
![](https://cdn.shopify.com/s/files/1/0632/6881/5066/files/pii105_4feature.jpg?v=1692154467)
-
Completely Complies with Intel's ATX 3.0 Regulations
-
Fully Modular with the Newest PCI-E 5.0 (12VHPWR), 16-pin Connector Cable
-
80 PLUS® Platinum Certified Power Supply
-
Zero Fan Mode Maintains an Ideal Balance Between Noise and Thermal Levels
![](https://cdn.shopify.com/s/files/1/0632/6881/5066/files/product_icon_10year.jpg?v=1695716582)
![](https://cdn.shopify.com/s/files/1/0632/6881/5066/files/product_icon_80PLUS_P.jpg?v=1695717162)
![](https://cdn.shopify.com/s/files/1/0632/6881/5066/files/product_icon_pcie_5.jpg?v=1695716583)
![](https://cdn.shopify.com/s/files/1/0632/6881/5066/files/product_icon_axt_3.jpg?v=1695716582)
Specs
Model | P130II | |
---|---|---|
Part Number | IW-PS-PII1300W | |
Total Power | 1300W | |
Materials | SECC | |
Type | ATX12V V3.0 | |
Cable Management | Fully Modular | |
PFC | Active PFC ( >0.95) | |
Efficiency | 80 PLUS Platinum(Up to 92%) | |
MTBF (Hours) | > 100,000 hrs. | |
AC Input | 100-240 Vac,15-8A, 50-60Hz | |
Fan | 135 mm FDB Fan | |
Typical Load Fan Noise (dBA) (50% Loading) |
<25 dB(A) | |
Operating Temperature Range (°C) | 0 - 40 °C | |
Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | |
Safety Certifications | cTUVus、TUV、BSMI、RCM、CE、FCC、UKCA、CB | |
Product Dimensions (L x W x H) |
150 x 150 x 86 mm | |
Package Dimensions (L x W x H) |
355 x 210 x 105 mm | |
Net Weight | 2.8 kg | |
Gross Weight | 3.4 kg | |
Warranty | 10 Years | |

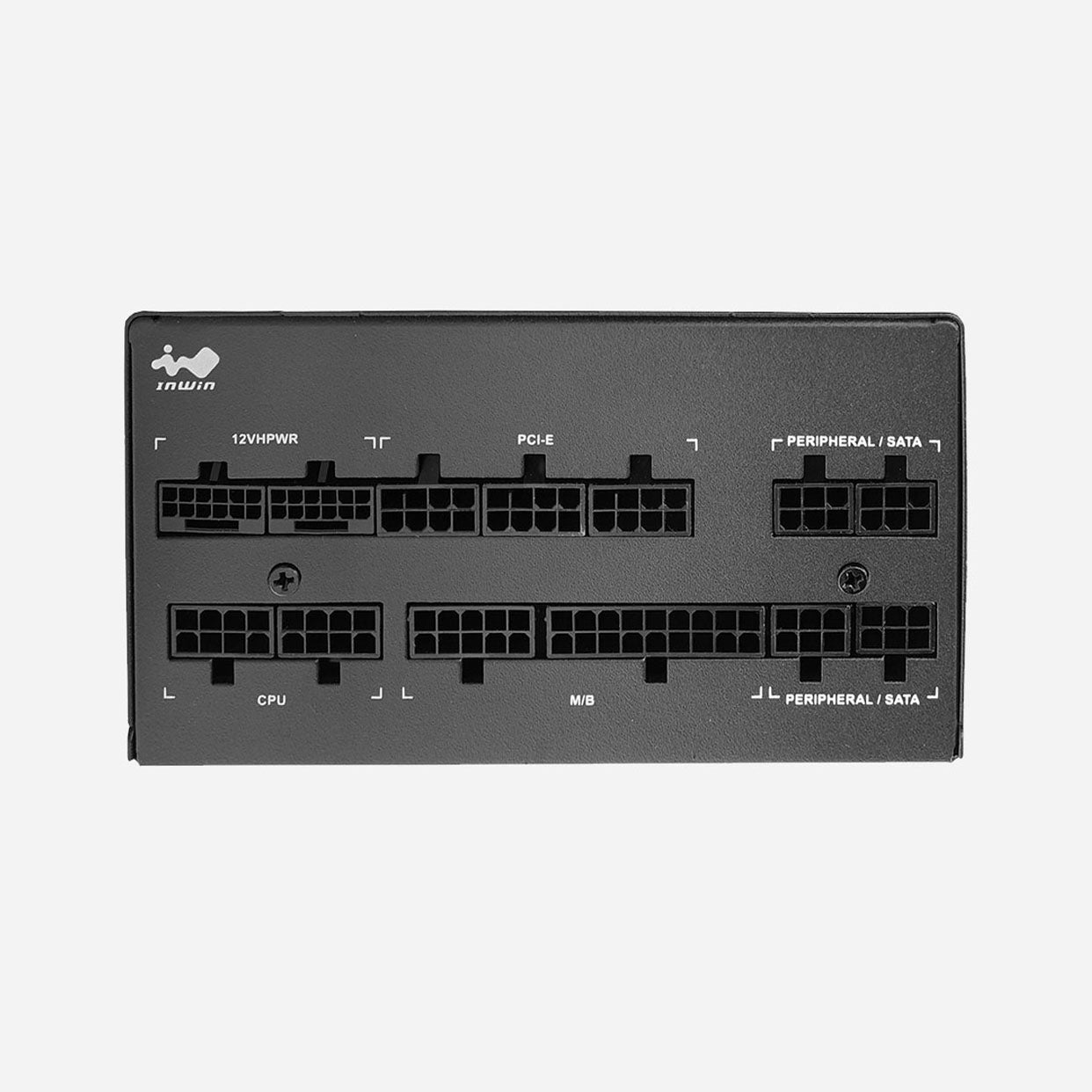

Connectors | 24 Pin Motherboard | 1 |
8 (4+4) Pin CPU | 2 | |
8 (6+2) Pin PCI-E | 6 | |
4 Pin Peripheral | 4 | |
PCI-E 5.0 12VHPWR | 2(600W) | |
4 Pin Peripheral | 3 | |
SATA (90 Degree) | 9 | |
Floppy | 1 | |
* InWin products comply with RoHS regulations. * Specifications may vary based on different regions. |
![](http://estore.in-win.com/cdn/shop/files/pii130_overview_01_m_1242x.jpg?v=1692154466)
PII Series is ATX 3.0 Ready
![](http://estore.in-win.com/cdn/shop/files/pii130_overview_02_m_548ffe52-a273-4ed0-9872-ba27e1ab020e_1242x.jpg?v=1692335612)

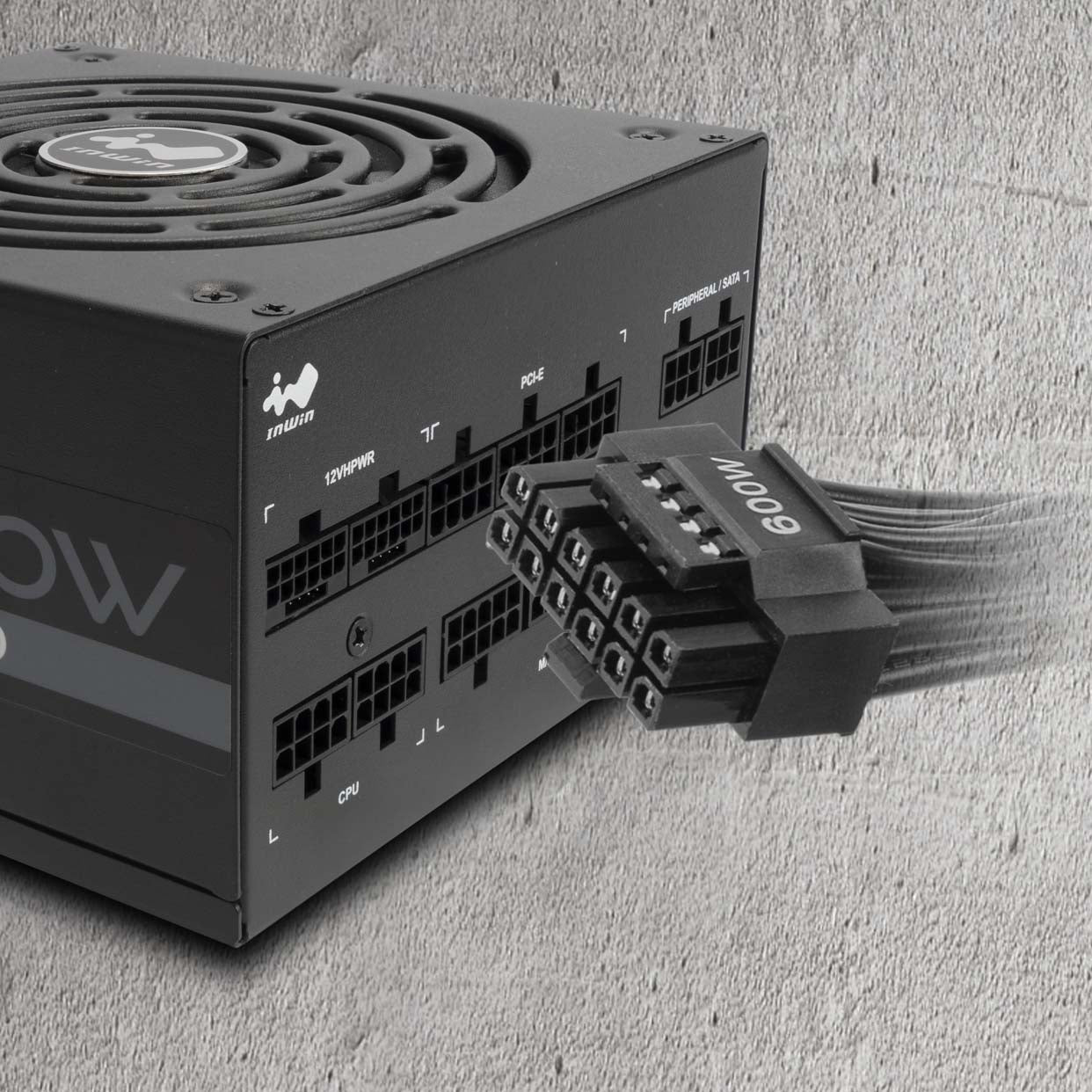

Here for High-End GPU Users with PCI-E 5.0
![](http://estore.in-win.com/cdn/shop/files/pii105_overview_04_1242x.jpg?v=1692154465)
Hibernation Mode
![](http://estore.in-win.com/cdn/shop/files/pii130_overview_03_m_1242x.jpg?v=1692154465)

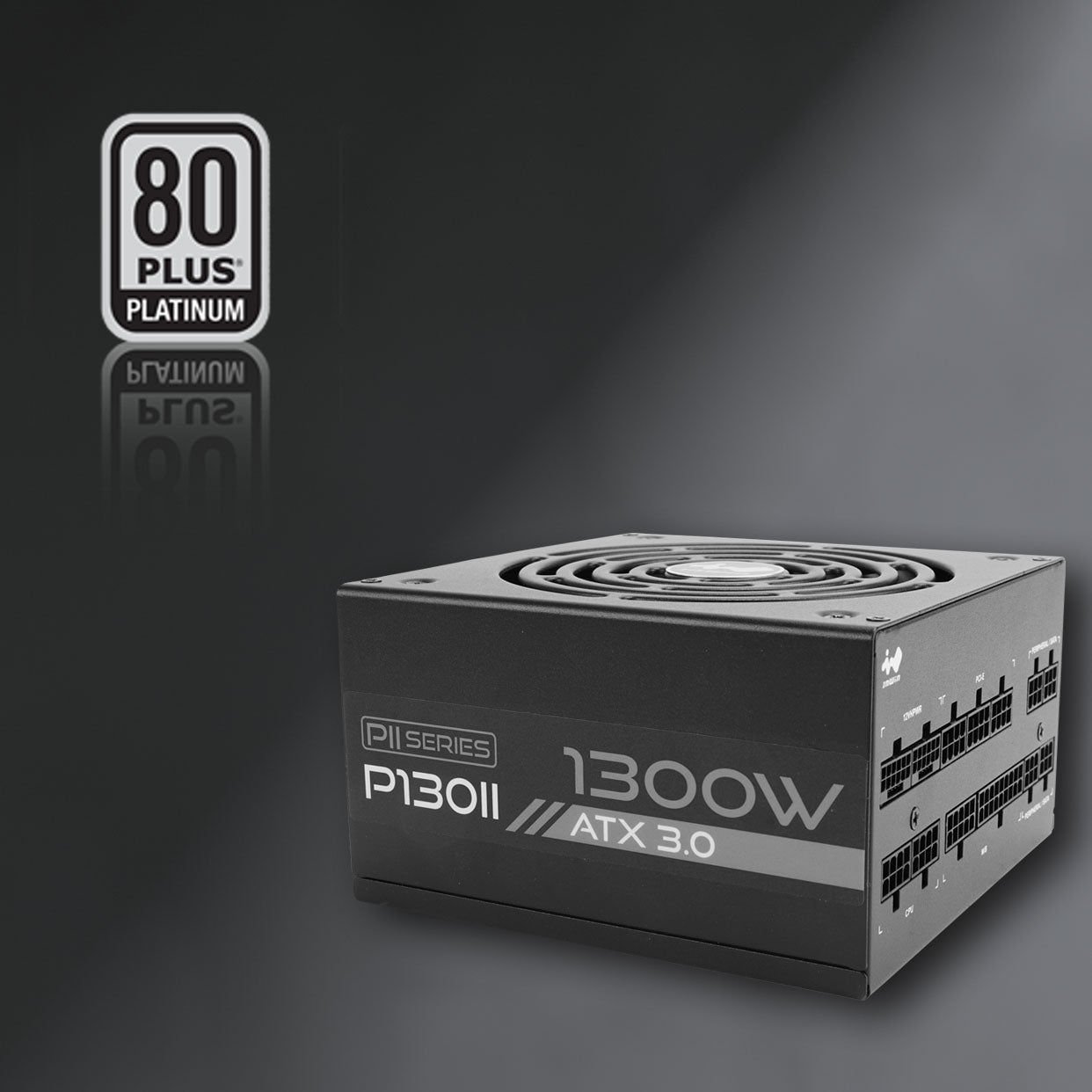

80 PLUS<sup>®</sup> Platinum Certified Power Supply
![](http://estore.in-win.com/cdn/shop/files/pii130_overview_05_m_1242x.jpg?v=1692154465)

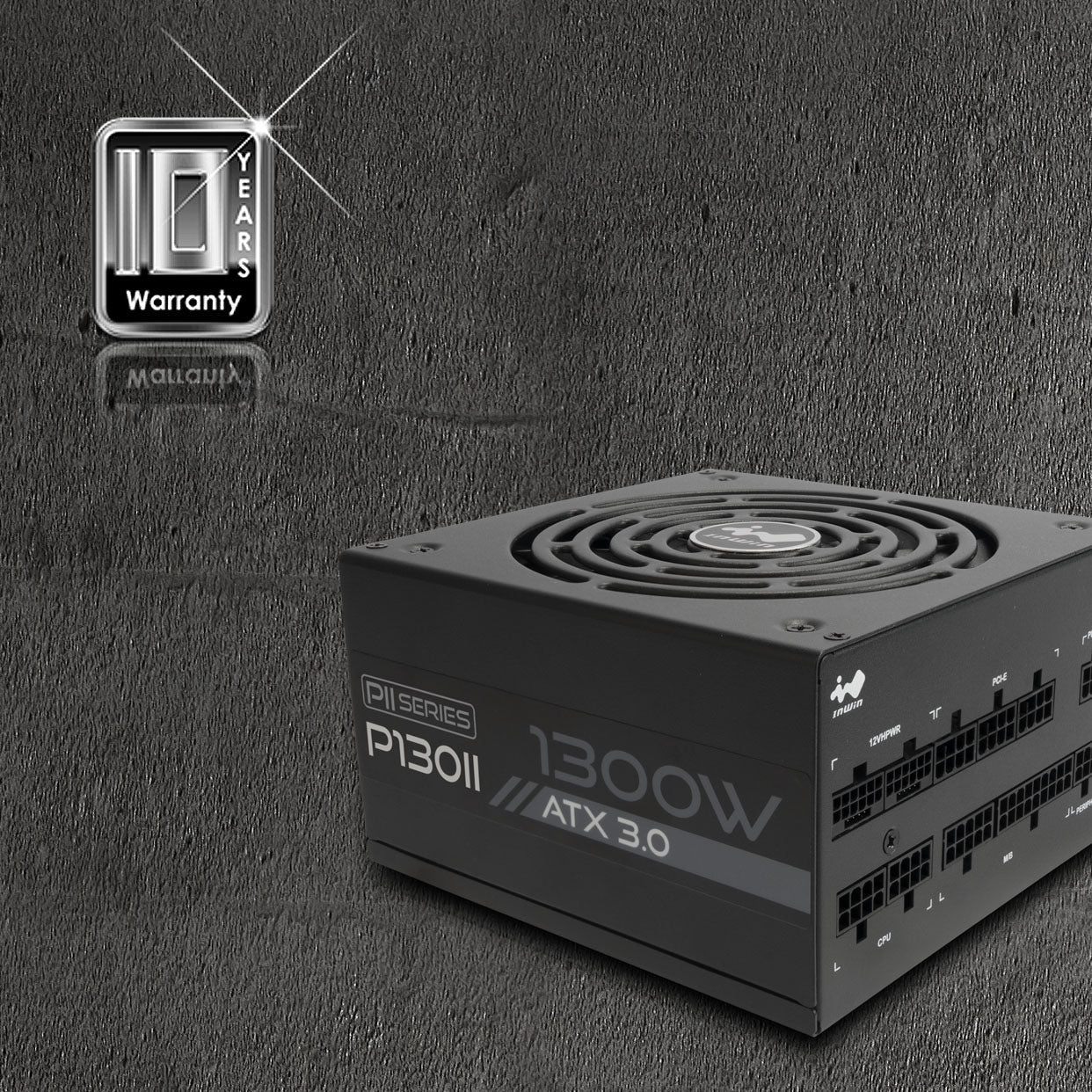

10-Year Warranty
![](http://estore.in-win.com/cdn/shop/files/pii130_components_800x.jpg?v=1692154465)
