Case Monsters-A:Lab Series-ROBERT
Extended ATX

-
Characteristic Headphone Hanger
-
Emoji Stickers
-
Collectible Characters Card
-
Build with Case Monsters
Specs
Model | Case Monsters - A: Lab Series |
---|---|
Model Number | IW-CS-CASEMONSTERS-001 |
Color | 001-ROBERT |
Case Type | Mid Tower |
Materials | Tempered Glass, SECC, ABS |
M/B Compatibility | 12” x 13” (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX |
Expansion Slots | 8 x PCI-E |
Maximum Compatibility | GPU Length: 390mm CPU Heatsink Height: 170mm |
I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio |
Internal Drive Bays | 4 x 2.5" 2 x 3.5" |
Thermal Solution Compatibility |
Air Cooling Fans: |
Power Supply Compatibility | PSII: ATX12V - Length up to 180mm |
Product Dimensions (L x W x H) |
537 x 270 x 528mm |
Package Dimensions (L x W x H) |
590 x 550 x 240mm |
Net Weight | 6.9 kg |
Gross Weight | 13.73 kg |
* Number of fans pre-installed may vary based on different regions. * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
Model | Sirius Loop ASL120 |
---|---|
Quantity Included | Single Pack Triple Pack |
Part Number |
ASL120FAN-1PK ASL120FAN-3PK |
Fan Size | 120 x 120 x 25mm |
Materials | PBT |
Rated Voltage | DC 12V |
Rated Power | 1.2W |
Rated Current | 0.1A |
ADD RGB Rated Voltage | DC 5V |
ADD RGB Rated Power | 1.25W |
ADD RGB Rated Current | 0.25A |
Speed Mode | PWM 500 - 1800 +/- 10% RPM |
Air Flow | 50 CFM |
Air Pressure | 1.67mm/ H2O |
LED | Addressable RGB |
Connector (Fan to Fan) | 4-Pin Modular |
Noise Level | 27 dB(A) (Max.) |
Bearing Type | Long Lifespan Sleeve Bearing |
Net Weight |
200 g 600 g |
Package Dimensions (L x W x H) |
125 x 30 x 185 mm 125 x 80 x 185 mm |
Warranty | 2 years |
* InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |

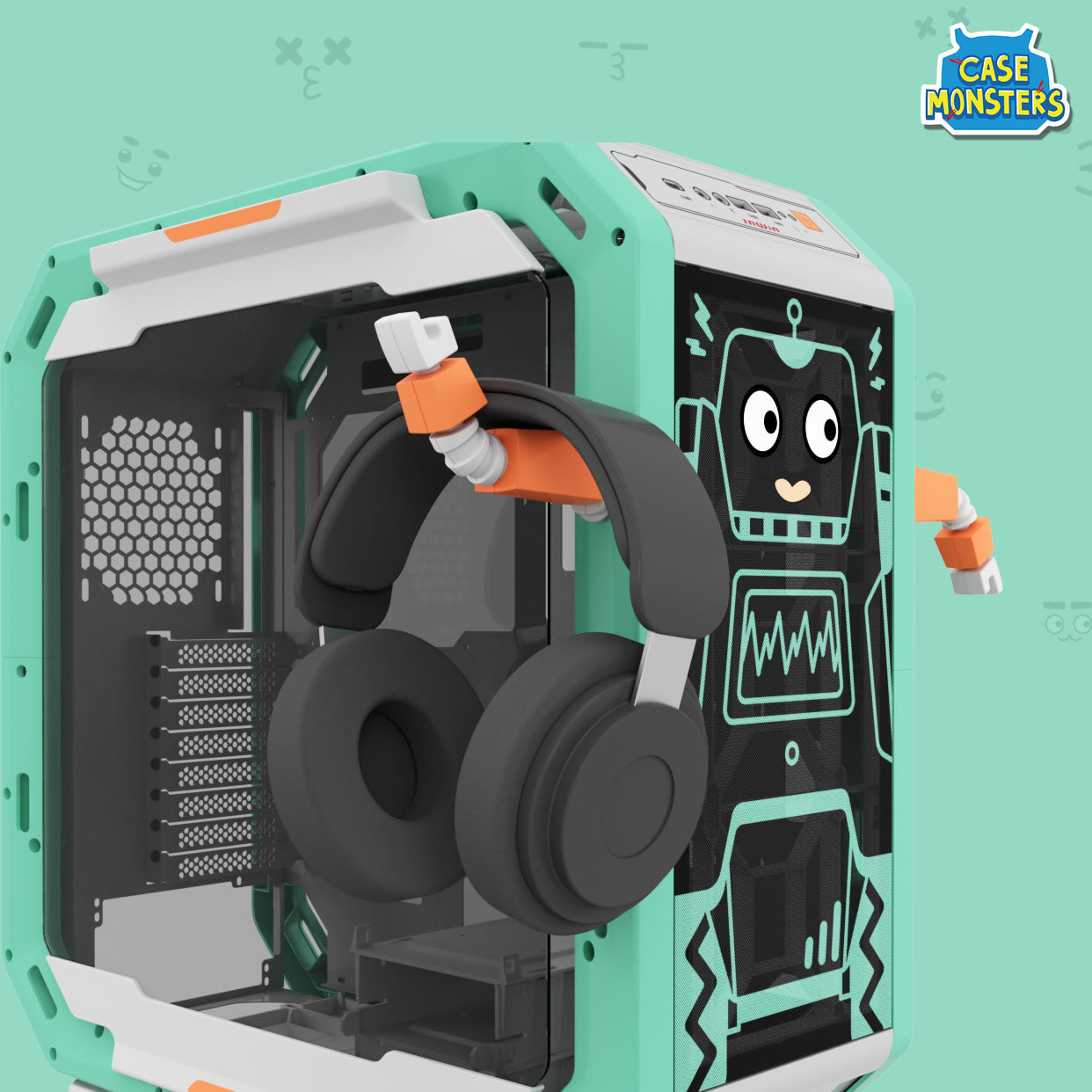

Characteristic Headphone Hanger

Not Just a Dust Filter

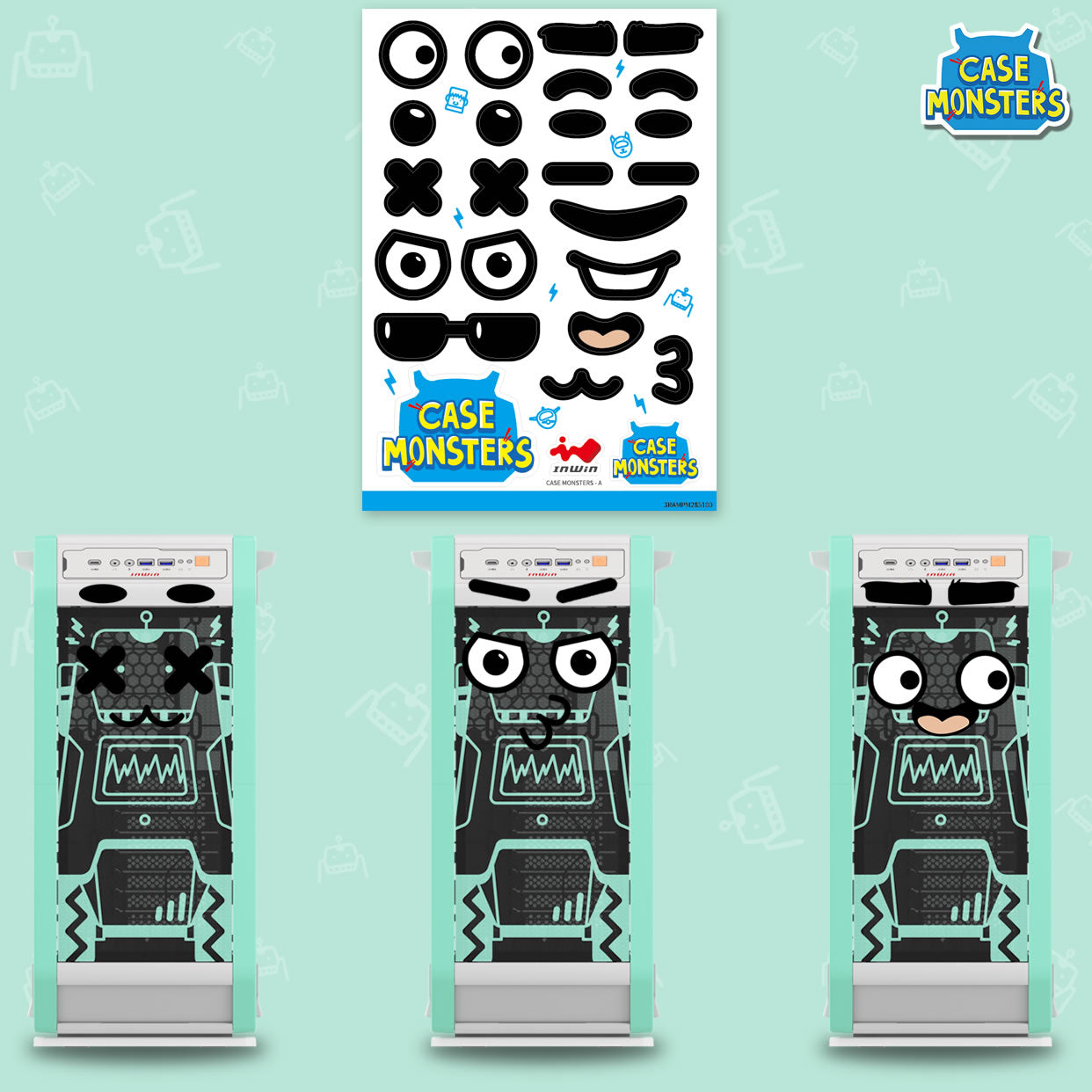

Emoji Stickers

Build with Case Monsters

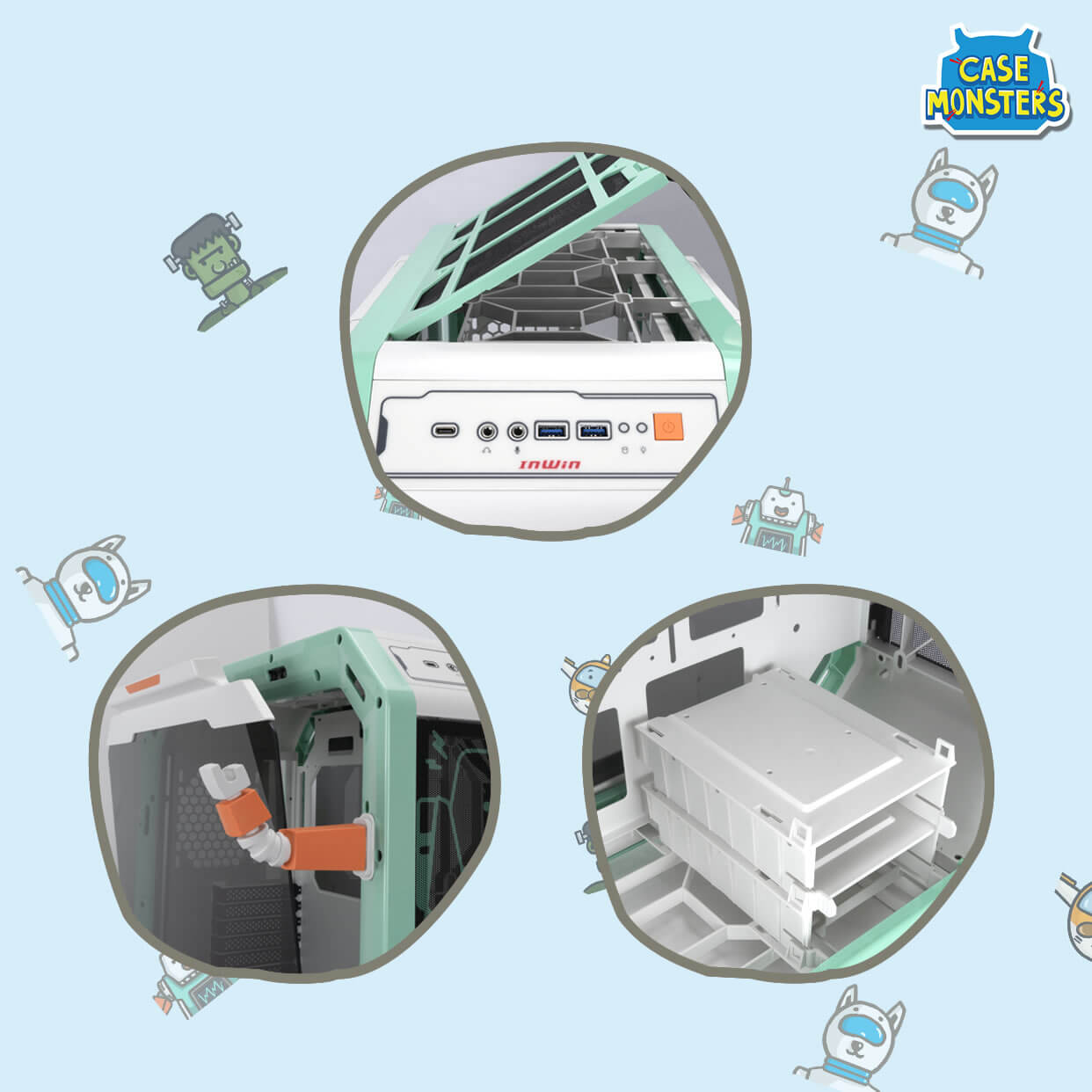

Hassle-Free Design

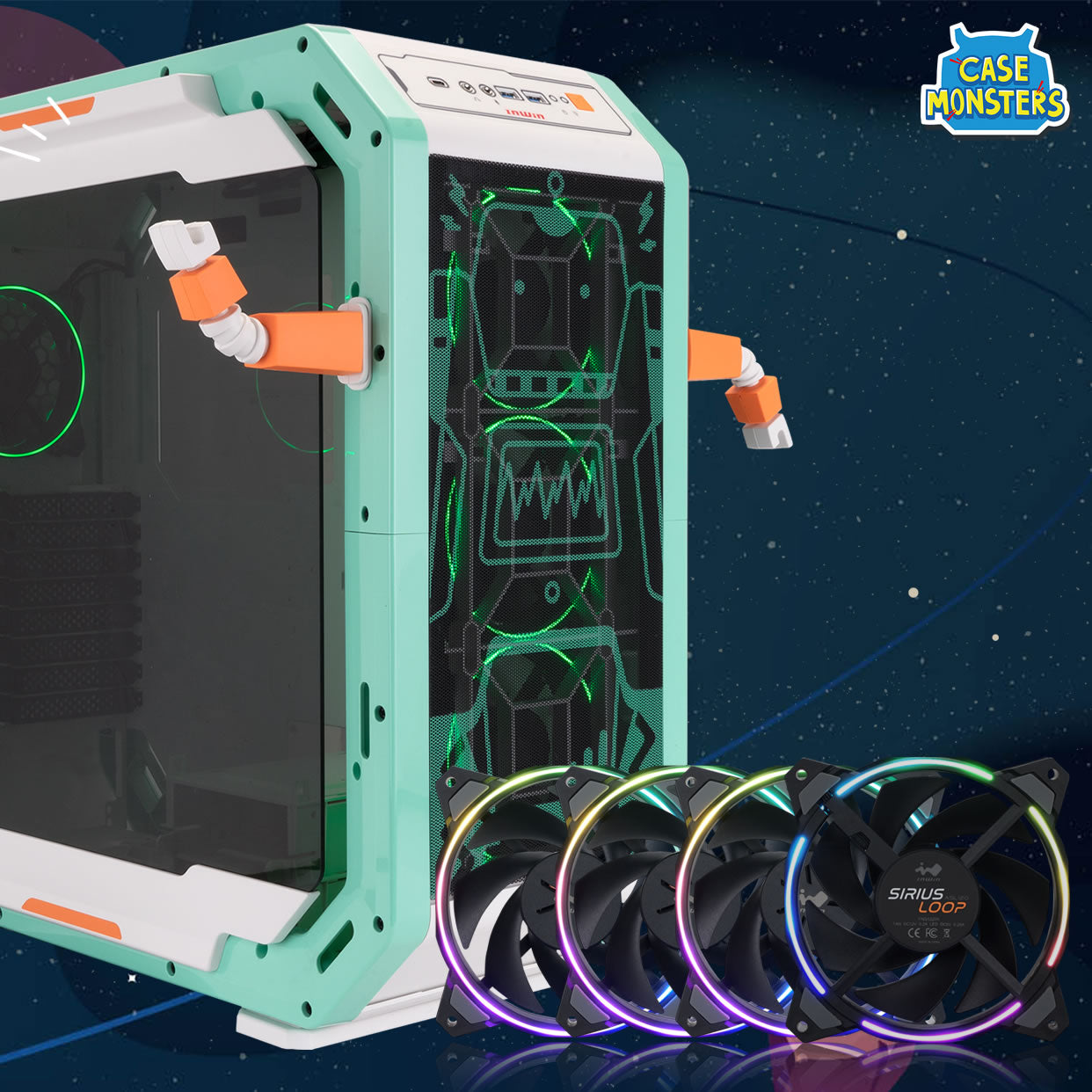

Included Sirius Loop Fans

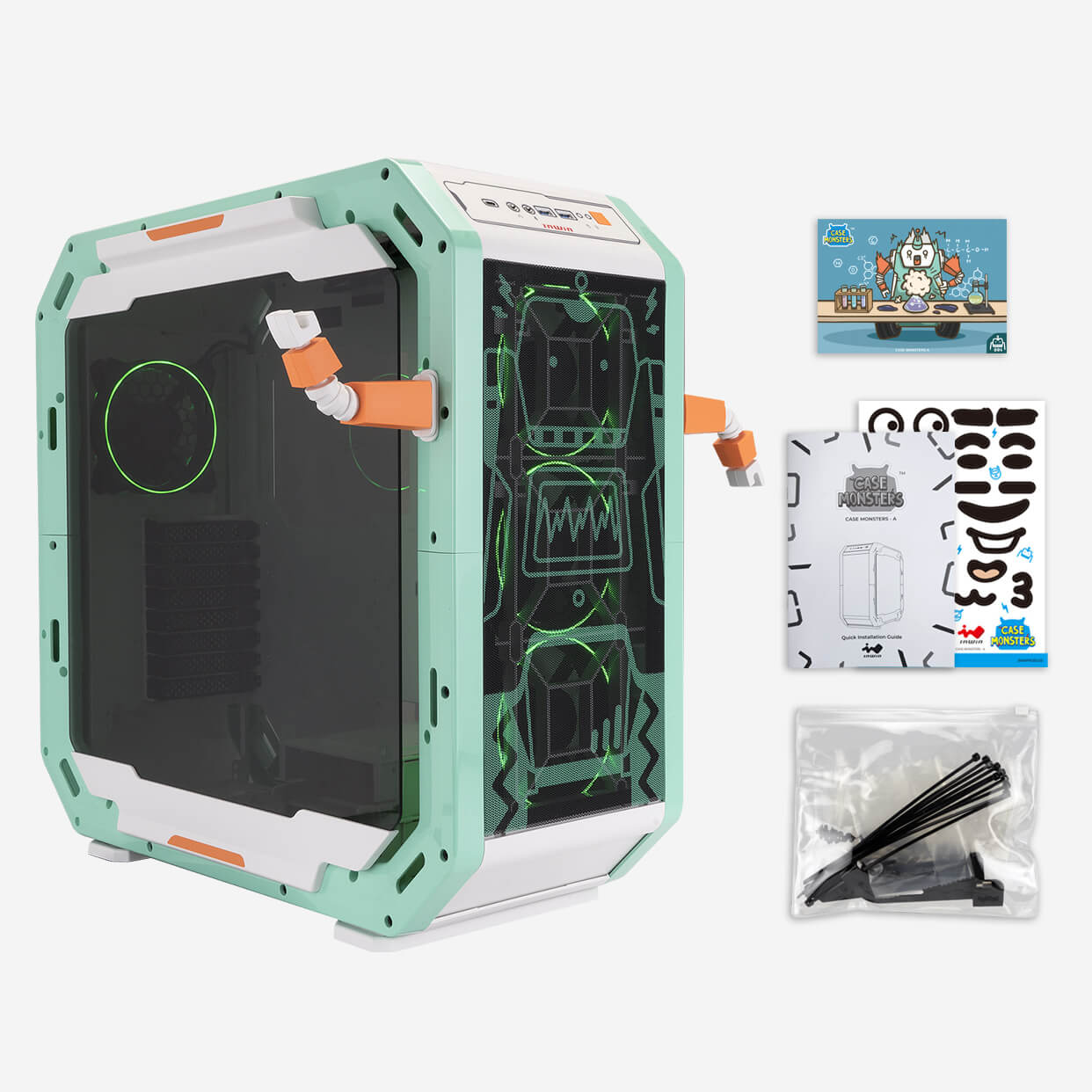

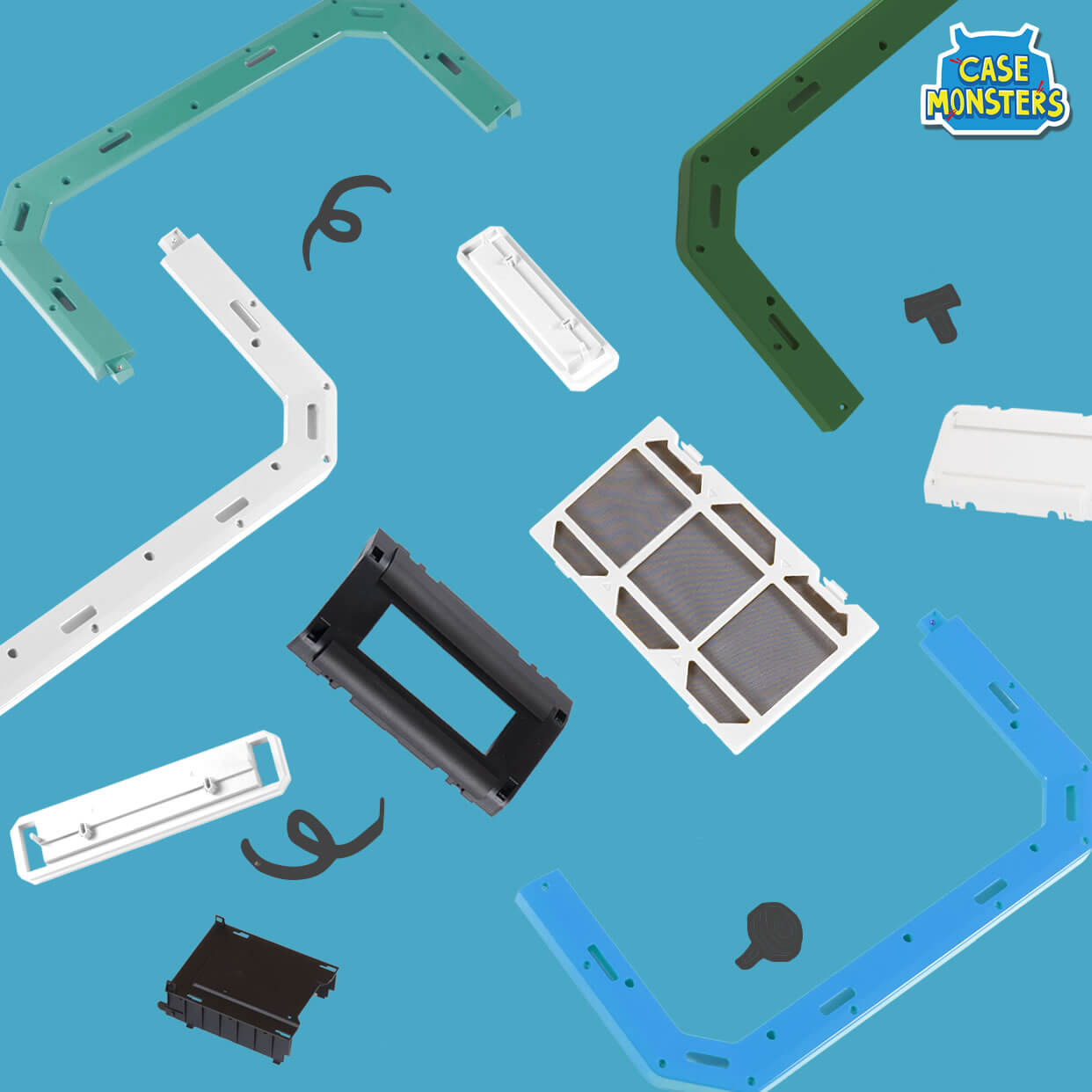

Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
Non-Modular Cable
4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)

Sirius Loop

Jupiter Series

Sirius Pure

Luna AL120

Sirius Extreme

Sirius Extreme Pure

Mercury AM120S

Modular ARGB Type 1
6-Pin Modular (PWM + ARGB)

Aurora

EGO

Modular ARGB Type 2
6-Pin Modular (PWM + ARGB)

Crown Series

Saturn Series

Modular RGB
8-Pin Modular (PWM + RGB)

Polaris RGB Series

Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
