€199.99
No reviews
No reviews
SKU: IW-CS-MFMINIM2-TBR

Mini ITX

In the PC customization world, ModFree Mini is more than an extension of ModFree. It embodies the ModFree DNA, allowing users to configure their PC’s true purpose. Its compact form can be its own standalone SFF setup or be part of a multisystem station. Explore the possibilities and experience the future of PC customization with ModFree mini.

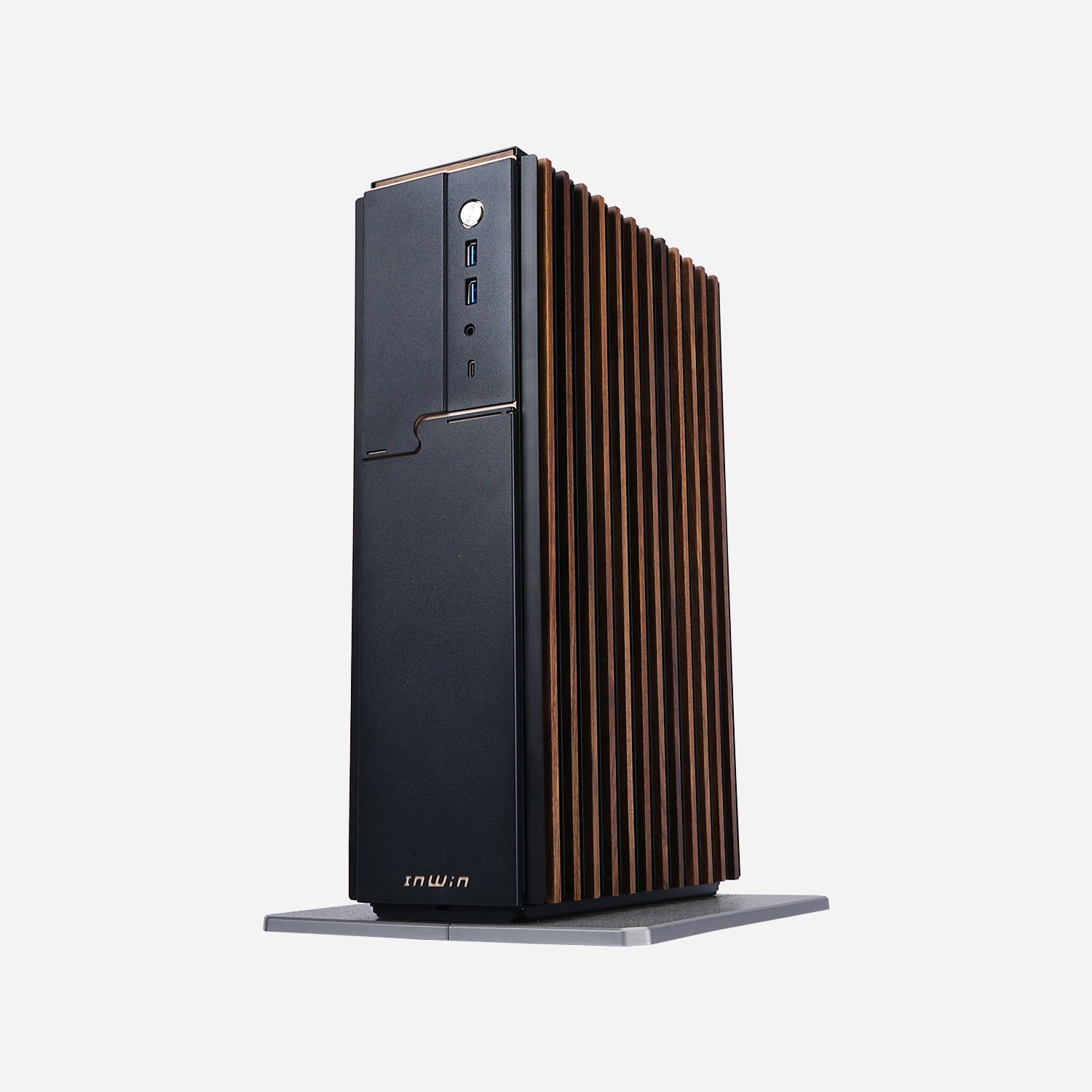

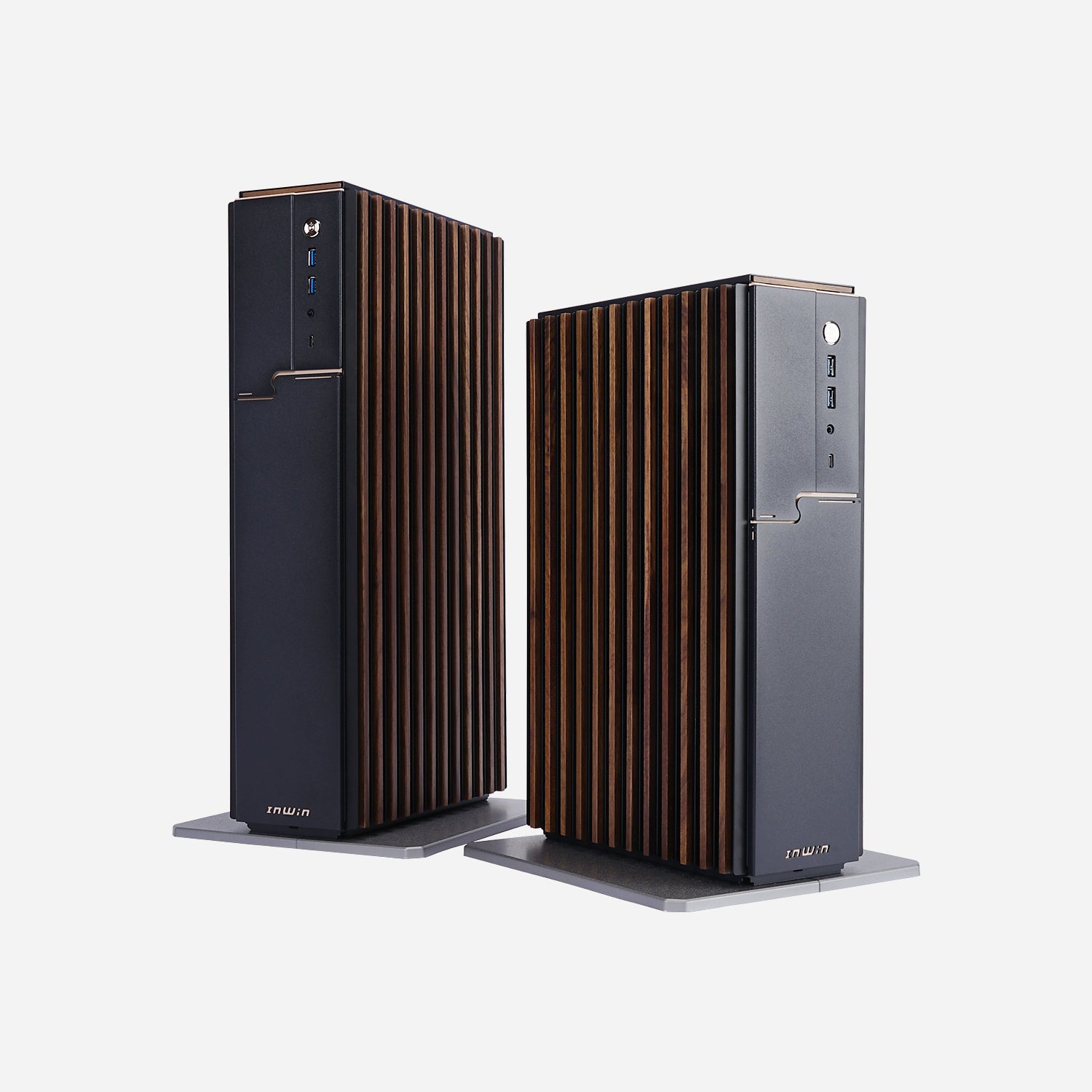

Color:Timber
Quantity:

ModFree mini Feature
  1. Small Size, Big Impact
  2. Versatile Options for Any Upgrade
  3. Efficient Cooling Solutions
  4. Intuitive Assembly Guide App

Specs

Model   ModFree Mini – Mod-II Edition
Model Number Timber IW-CS-MFMINIM2-TBR

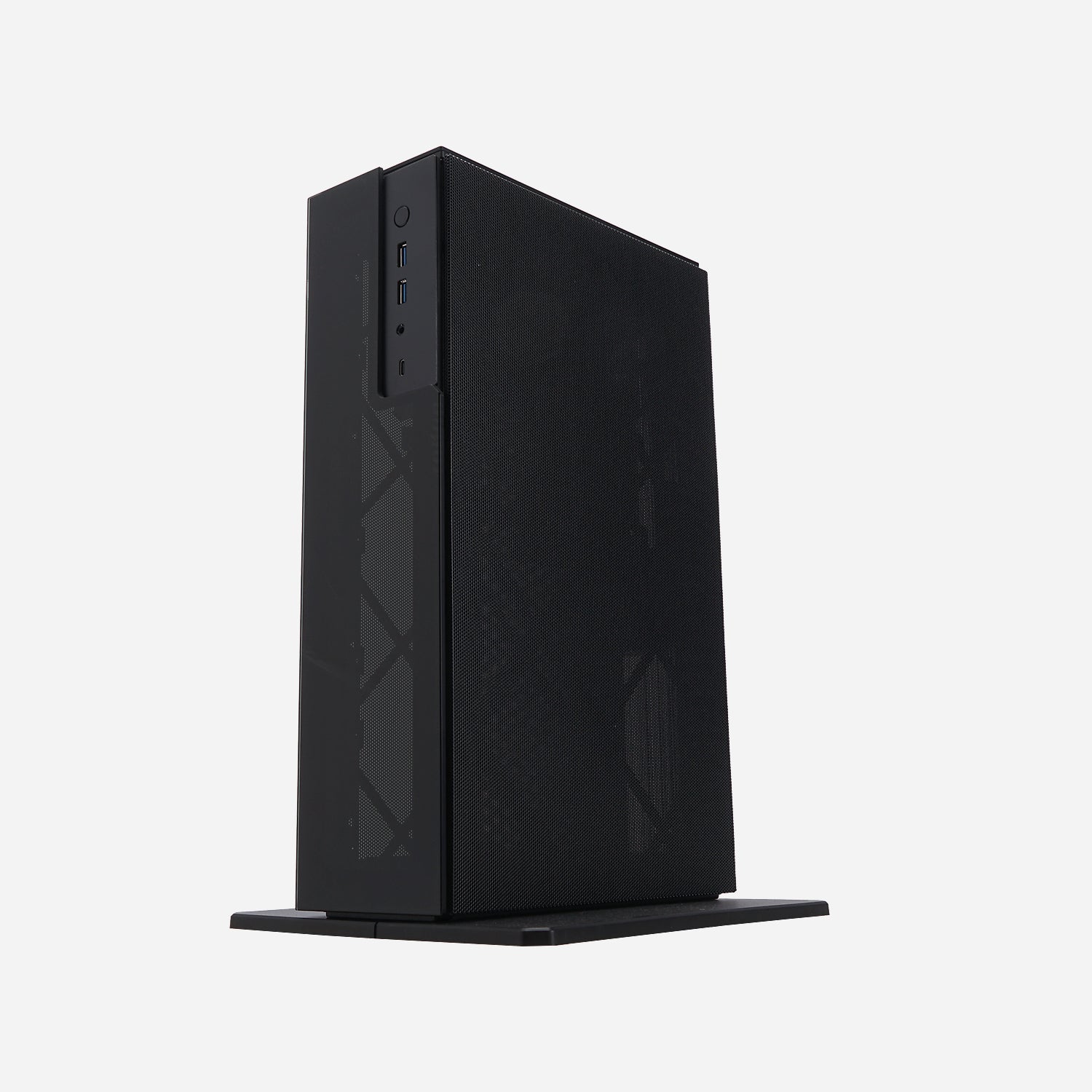

Mesh Up IW-CS-MFMINIM2-MESH

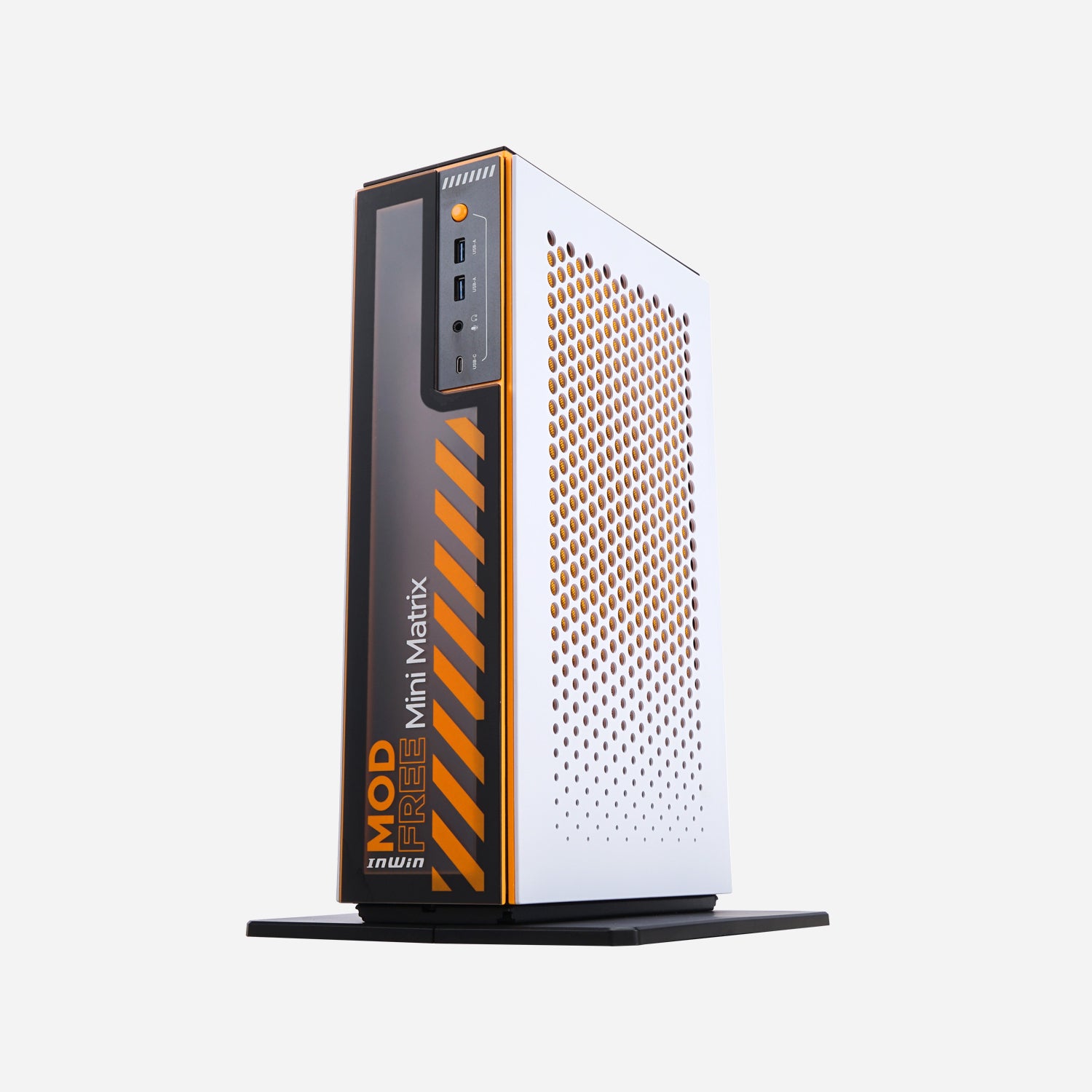

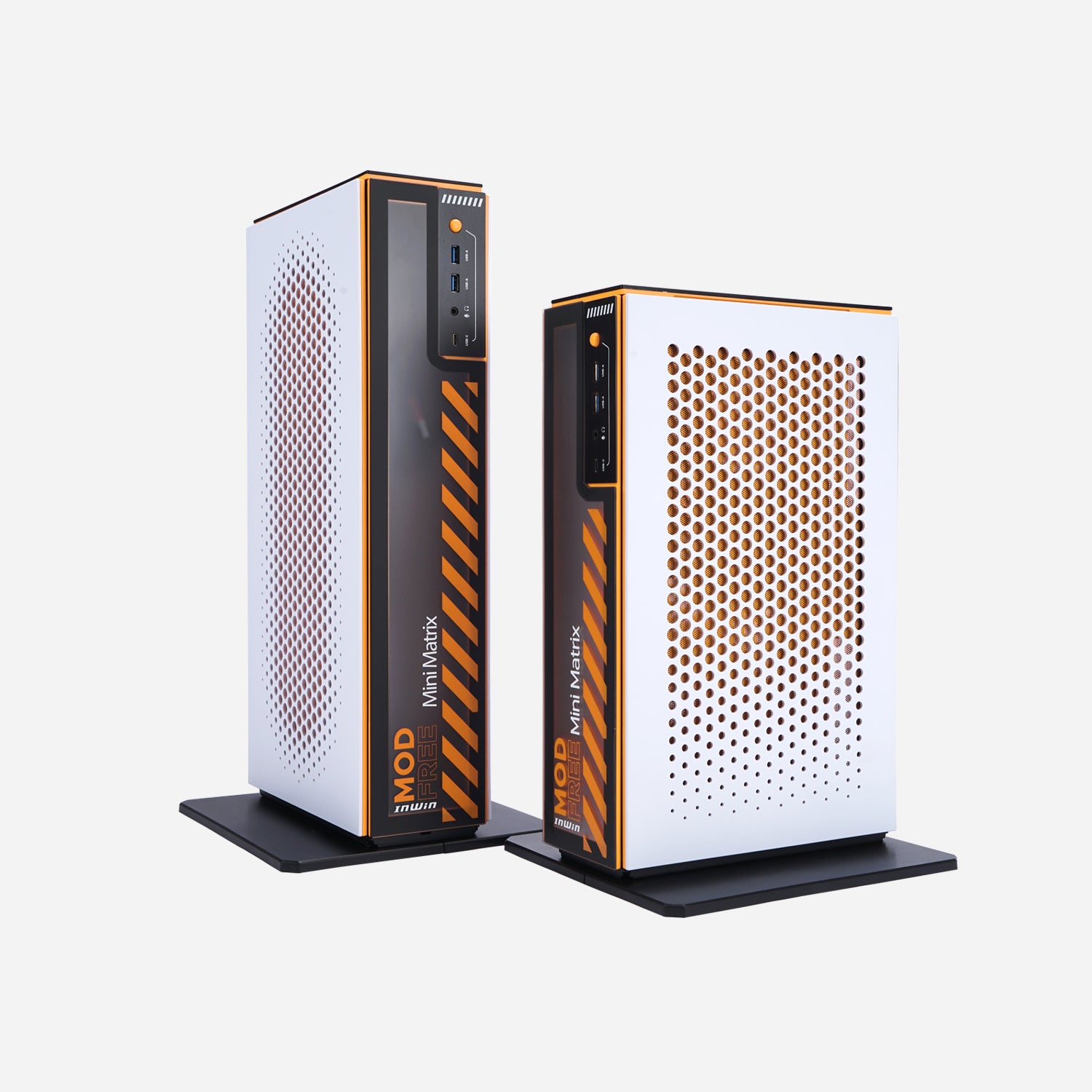

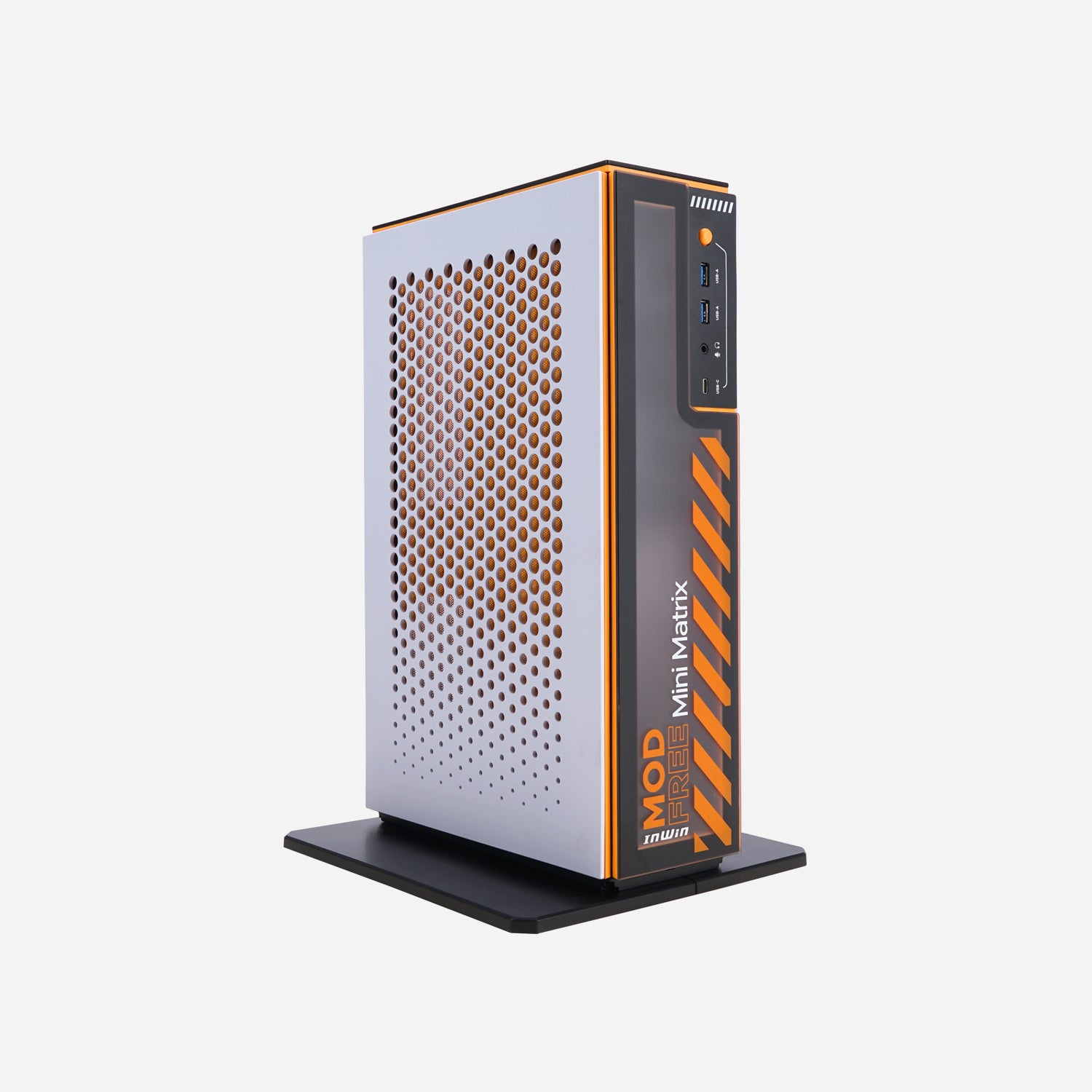

Monarch IW-CS-MFMINIM2-MNC
Model Number Timber Black, Brown
Mesh Up Black
Monarch White, Black, Orange
Case Type   Mini-ITX Tower
Materials Timber SECC, ABS, Aluminium, Walnut Wood
Mesh Up SECC, ABS, Tempered Glass
Monarch SECC, PMMA, ABS
M/B Compatibility   Mini-ITX
Maximum Compatibility   CPU Heatsink Height: 65 mm
I/O Ports   1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/MIC)
Internal Drive Bays   1 x 2.5"
2-in-1 Bracket Compatibility   N/A
Power Supply Compatibility   PSII: ATX12V - Length up to 170 mm
Product Dimensions
(L x W x H)
without Foot Stand		 Timber 270 x 126 x 407 mm
(10.6 x 5 x 16")
Mesh Up 264 x 112 x 412 mm
(10.4 x 4.4 x 16.2")
Monarch 263 x 113 x 407 mm
(10.4 x 4.4 x 16")
Product Dimensions
(L x W x H)		 Timber 268 x 240 x 425 mm
(10.6 x 9.5 x 16.7")
Mesh Up 268 x 240 x 430 mm
(10.6 x 9.5 x 16.9")
Monarch 268 x 240 x 425 mm
(10.6 x 9.5 x 16.7")
Package Dimensions
(L x W x H)		 Timber 530 x 240 x 380 mm
(20.9 x 9.4 x 14.9")
Mesh Up 518 x 228 x 362 mm
(20.4 x 9 x 14.3")
Monarch 518 x 228 x 362 mm
(20.4 x 9 x 14.3")
Net Weight Timber 5.3 kg / 11.68 lbs
Mesh Up 4.1 kg / 9.03 lbs
Monarch 3.7 kg / 8.15 lbs
Gross Weight Timber 6.25 kg / 13.77 lbs
Mesh Up 4.7 kg / 10.36 lbs
Monarch 4.3 kg / 9.47 lbs
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.
#color_Timber

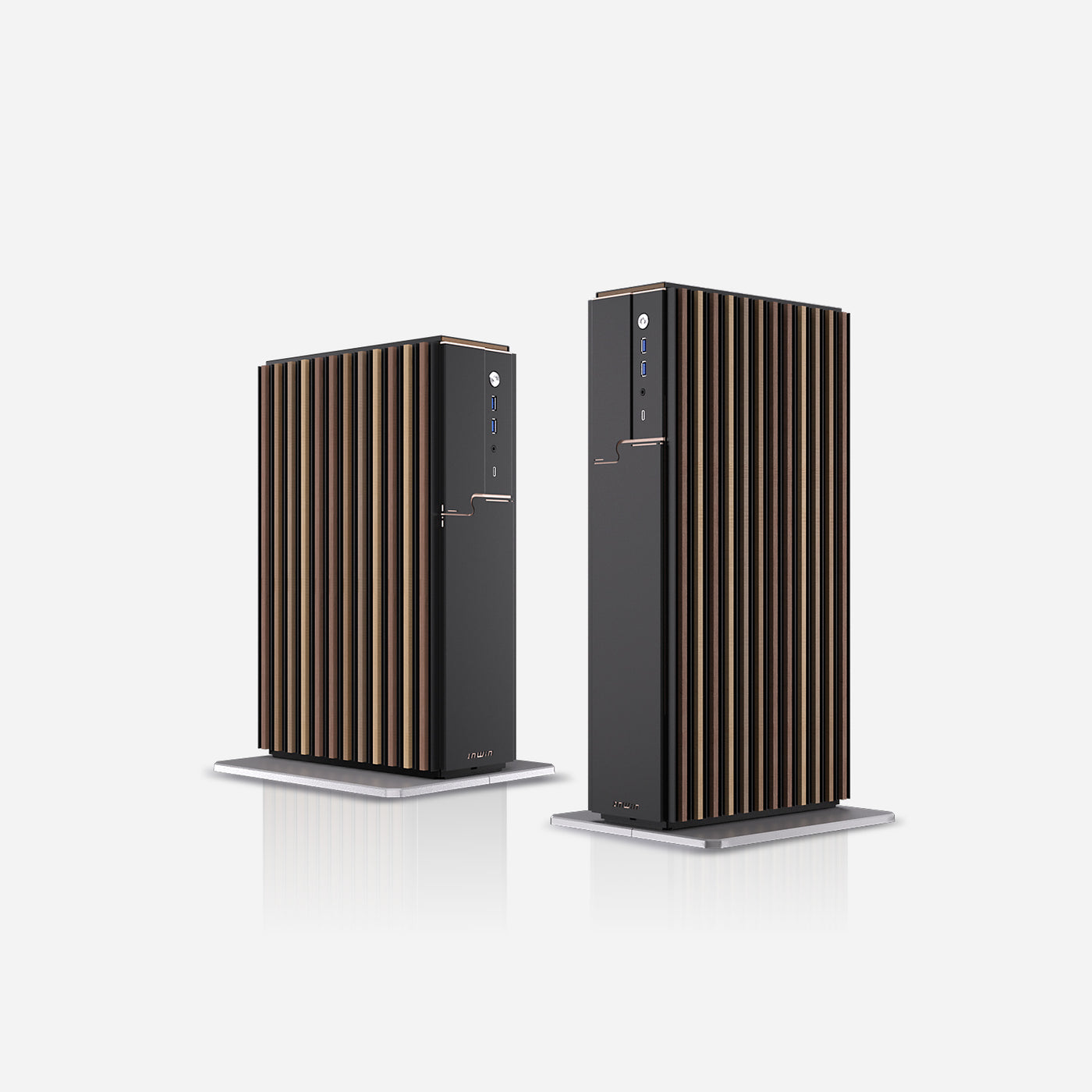

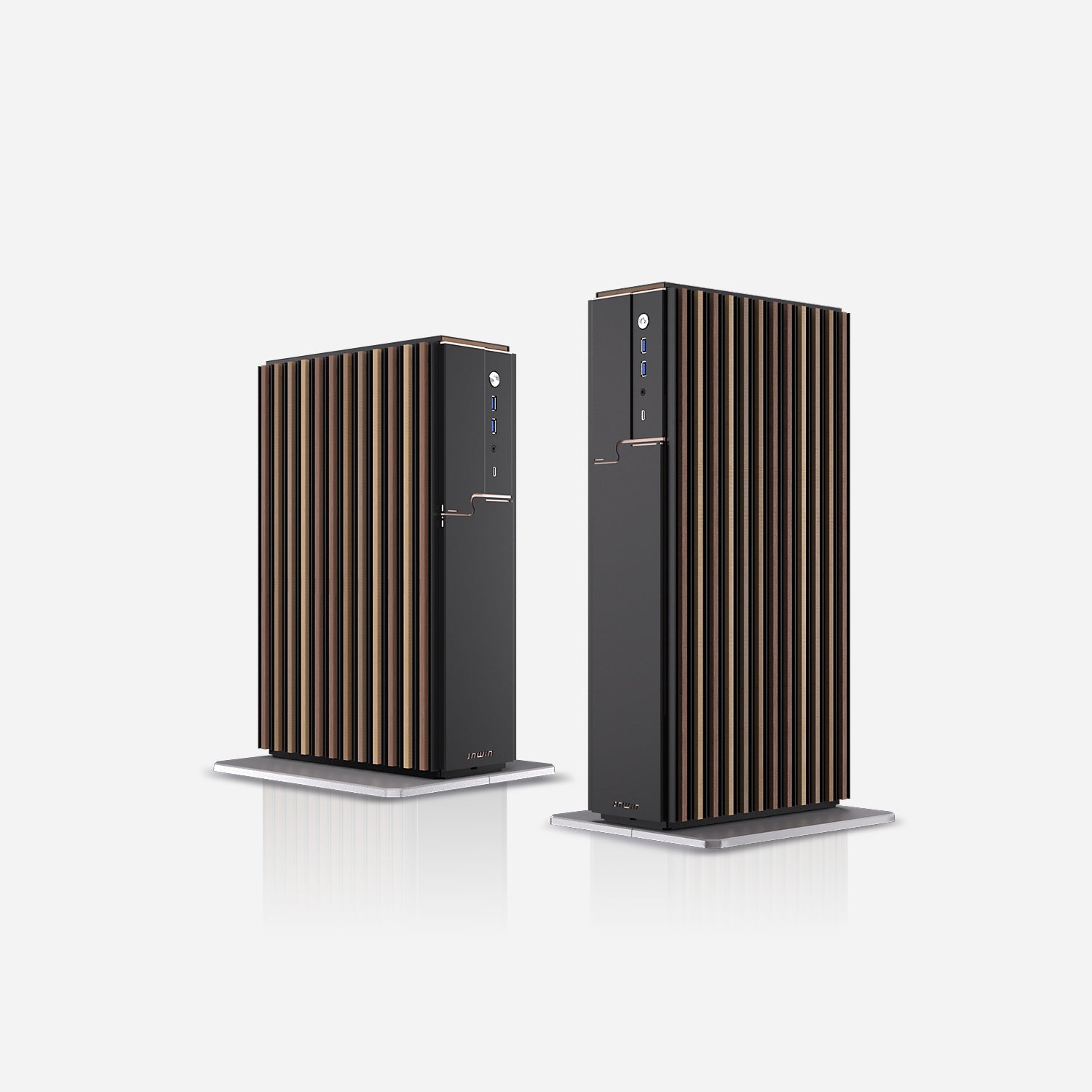

Small Size, Big Impact

The hallmark of ModFree mini is its compact size combined with the ModFree ecosystem. Build a SFF system to fit your needs, a compact transportable PC or even merge it with your main ModFree system to create a multi-PC setup!

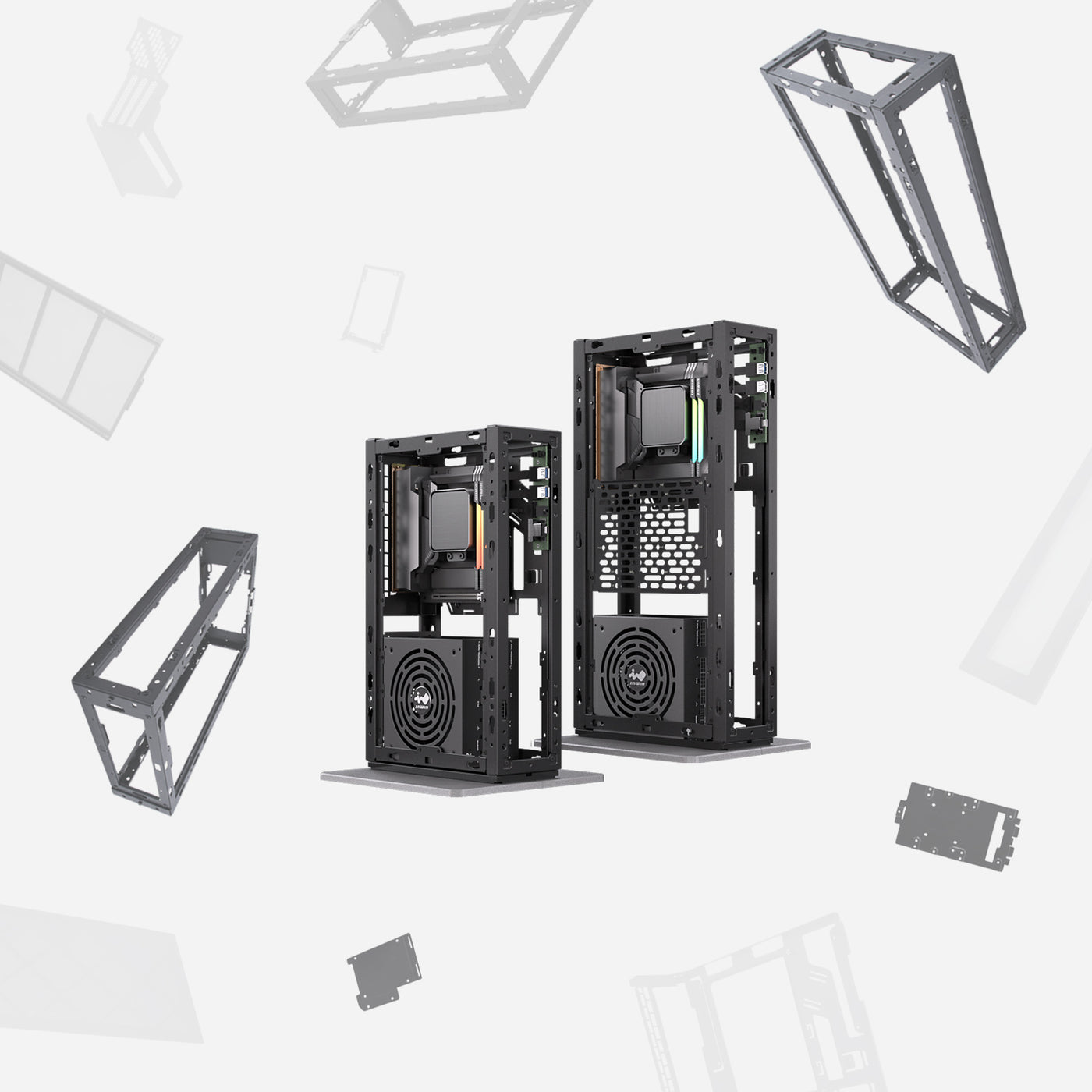

Versatile Options for Any Upgrade

The ModFree ecosystem allows users to be as creative as they wish with their system. Adding modules Mod II and III offers a variety of options when strategizing your component emphasis.

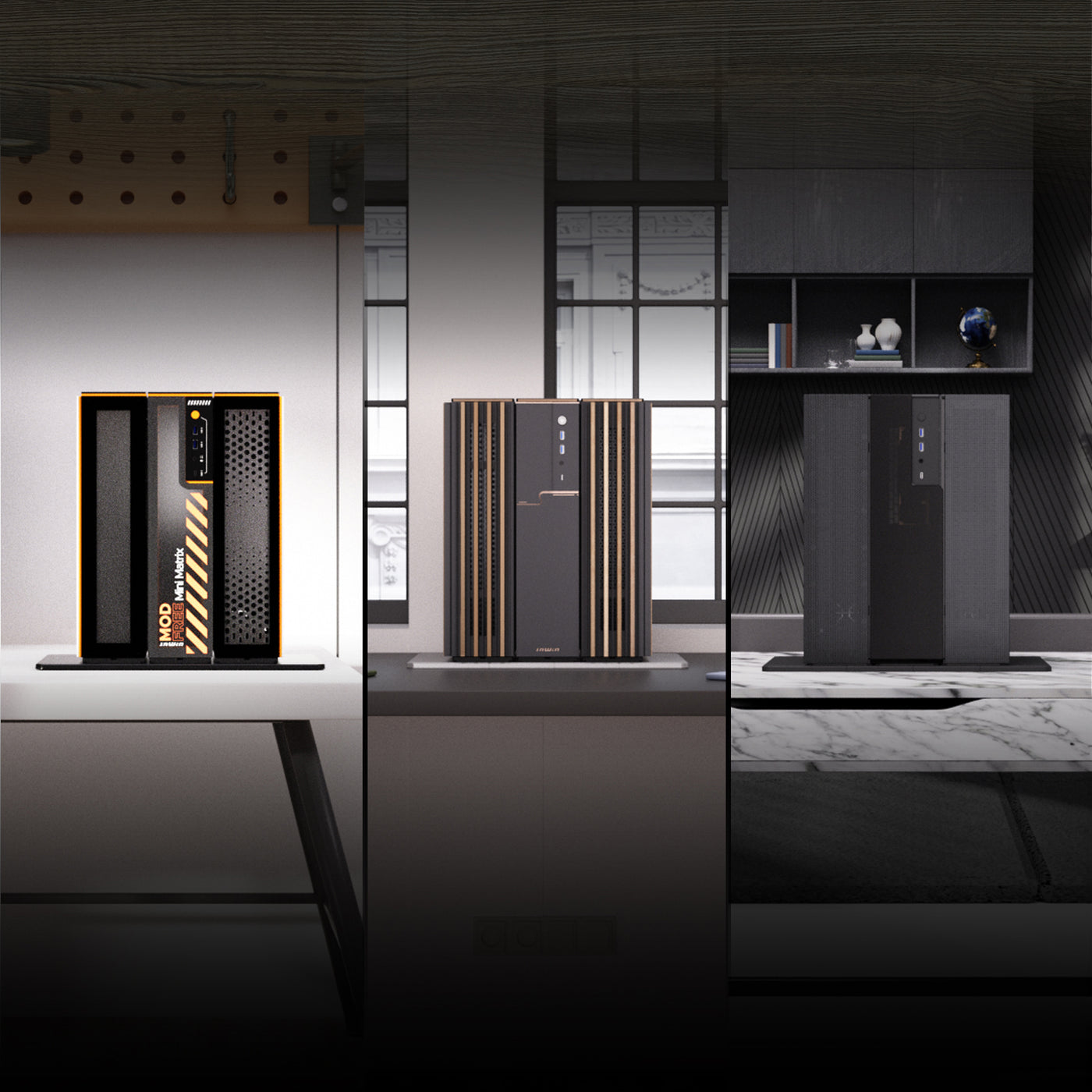

Panel Personalization

Discover the freedom of personalization with our three exquisite panel styles: Frost, Mesh, and Zen, allowing you to craft a PC chassis that reflects your unique taste.

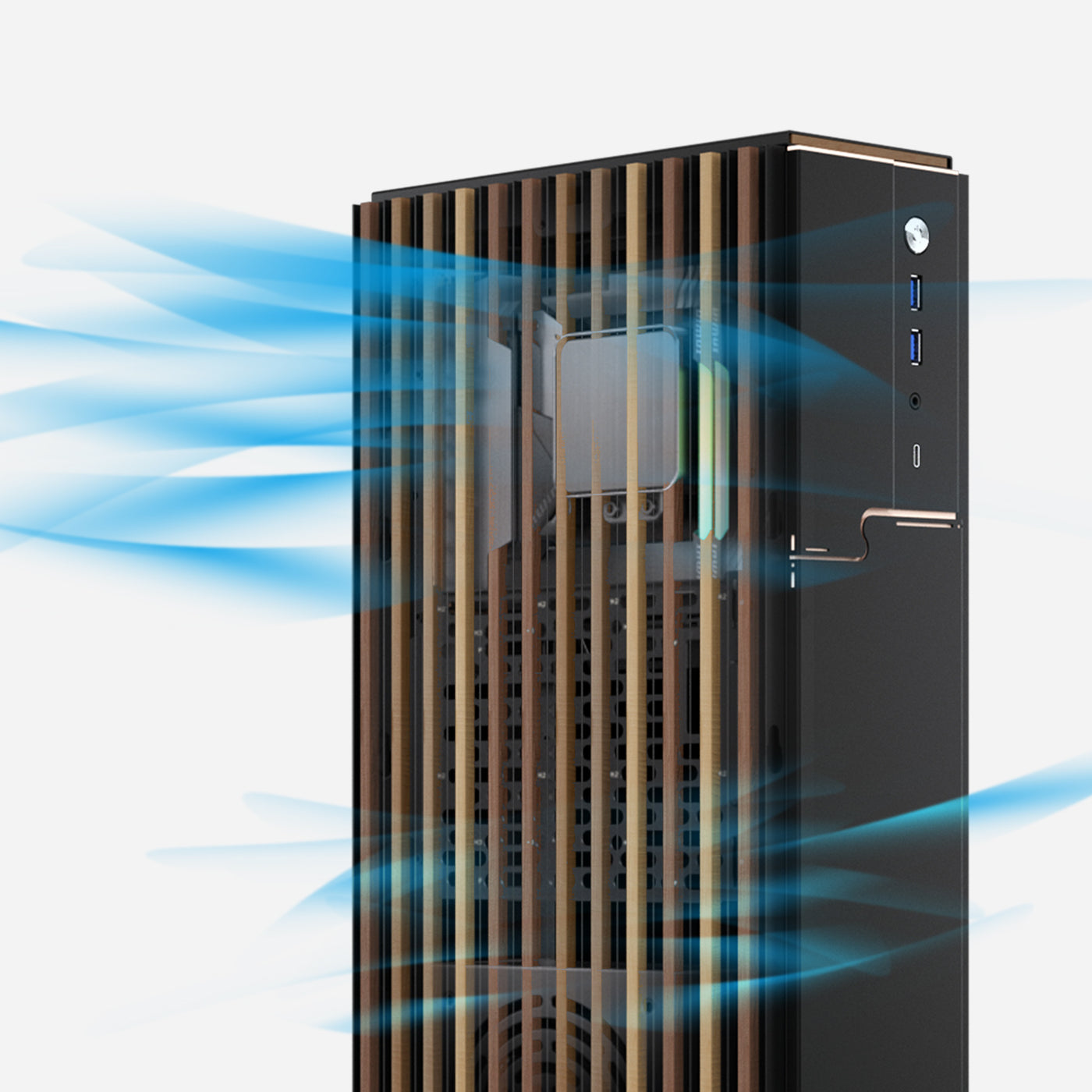

Efficient Cooling Solutions

InWin enhanced the ventilation with unique panel designs adorned with aesthetically pleasing ventilated patterns across all three panel styles, ensuring optimal airflow and cooling performance.

Intuitive Assembly Guide App

Building your dream PC has never been easier. ModFree Mini offers a dedicated mobile app with an interactive 3D assembly guide, ensuring a smooth and hassle-free setup process.

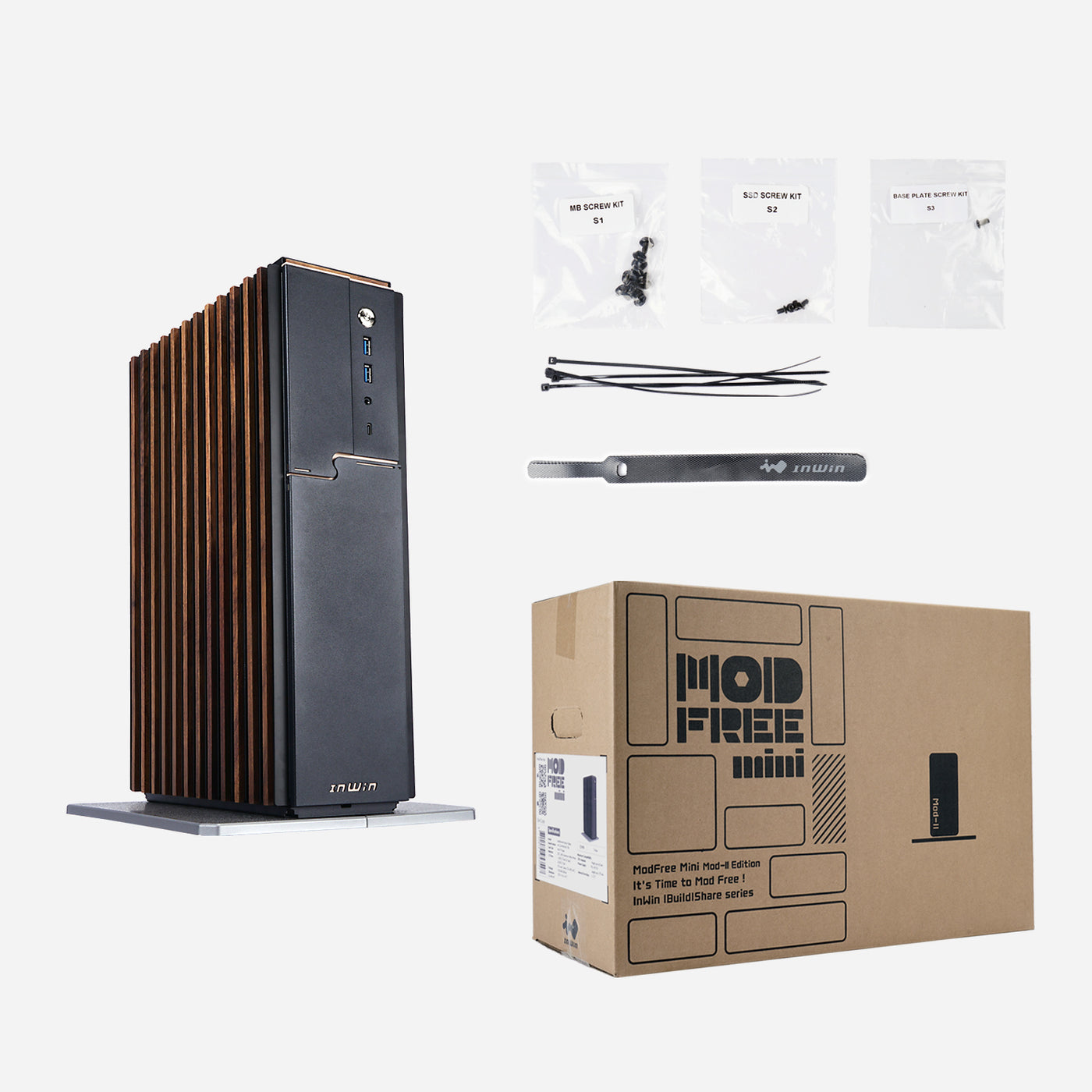

Components

ModFree Mini Mod-II Edition x 1
Accessories Bag x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

Non-Modular Cable
4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)

Sirius Loop

Jupiter Series

Sirius Pure

Luna AL120

Mercury AM120S

Sirius Extreme

Sirius Extreme Pure

Neptune AN Series

Neptune DN Series

Neptune DN PRO Series

Modular ARGB Type 1
6-Pin Modular (PWM + ARGB)

Aurora

EGO

Modular ARGB Type 2
6-Pin Modular (PWM + ARGB)

Crown Series

Saturn Series

Type-C Modular Cable
(PWM + ARGB)

Lynx Series

Modular RGB
8-Pin Modular (PWM + RGB)

Polaris RGB Series

Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
