N515

€193.90

No reviews

SKU: IW-CS-N515BLK-1AL120

Extended ATX

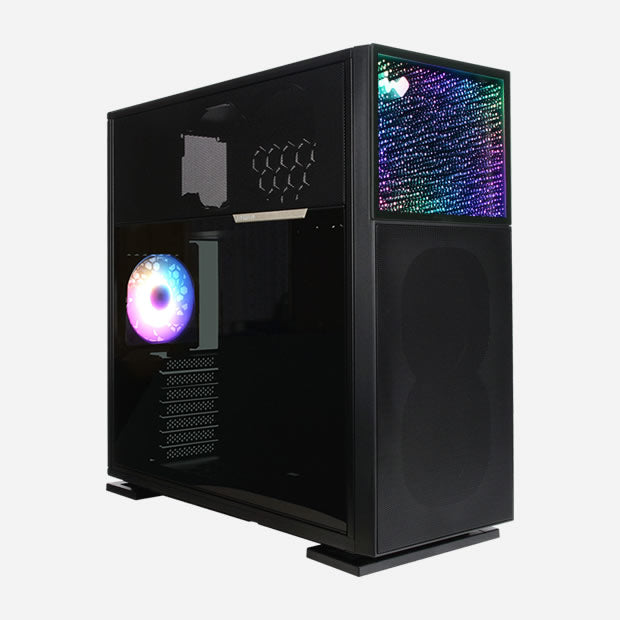

The N515 has a front panel showing an infinite crystal universe where light extends in all directions. N515 is prebuilt with a LUNA addressable RGB fan that will heighten your overall aesthetic experience!

Color:Black

Variant

Quantity:

Nebula’s Spectacular Luminous Visual Lighting Effects
Smooth and Powerful Mesh Panels that Increase Airflow
Pre-installed High Performance Bright LUNA Case Fan
Spacious Mid-Tower that Supports Full E-ATX

Specs

Model	N515
Model Number	IW-CS-N515BLK-1AL120
Colors	Black
Case Type	Mid Tower
Materials	SECC, ABS, Tempered Glass
M/B Compatibility	12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots	7 x PCI-E
Maximum Compatibility	VGA Card Length: 385 mm CPU Heatsink Height: 160 mm
I/O Ports	1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio
Internal Drive Bays	2 x 3.5" / 2.5" 2 x 2.5"
Thermal Solution Compatibility	Air Cooling Fans: Top: 3 x 120 mm Rear: 1 x 120 mm Bottom: 3 x 120 mm Front: 2 x 120 mm (1 InWin Luna AL120 Fan Included) Water Cooling Radiator: Top: 1 x 360 mm (Max. Length 405 mm & Thickness 80 mm) Rear: 1 x 120 mm Front: 1 x 240 mm Bottom: 1 x 360 mm (Slim) (Remove Graphics Card Holder)
Power Supply Compatibility	PSII: ATX12V - Length up to 200 mm
Product Dimensions (L x W x H)	515 x 225 x 502 mm 20.3 x 8.9 x 19.8"
Package Dimensions (L x W x H)	610 x 335 x 572 mm 24.0 x 13.2 x 22.5"
Net Weight	11.65 kg / 25.7 lbs
Gross Weight	13.73 kg / 30.3 lbs
* InWin products comply with RoHS regulation. * Specifications may vary based on different regions. * Number of fans pre-installed may vary based on different regions

Model	Luna AL120
Quantity Included	Single Pack Triple Pack
Model Number	IW-FN-AL120-1PK IW-FN-AL120-3PK
Colors	Black
Fan Size	120 x 120 x 25 mm
Materials	PC, PBT
Rated Voltage	DC 12V
Rated Power	3.96W
Rated Current	0.33A
ADD RGB Rated Voltage	DC 5V
ADD RGB Rated Power	1.5W
ADD RGB Rated Current	0.3A
Speed Mode	PWM 600-1800 +/-10% RPM
Air Flow	82.96 CFM
Air Pressure	2.31 mm / H2O
LED	Addressable RGB
Connector (Fan to Fan)	Non-Modular Cables
Connector to M/B	4-Pin (PWM, 12V), 3-Pin (ARGB, 5V)
Noise Level	25 dB(A) (Normal)
Bearing Type	Long Lifespan Sleeve Bearing
Net Weight	133 g / 0.29 lbs
Gross Weight	169 g / 0.37 lbs
Package Dimension (L x W x H)	185 x 125 x 30 mm 7.3 x 4.9 x 1.2"
Warranty	2 years
* Specifications may vary based on different regions. * Our products comply with RoHS regulations.

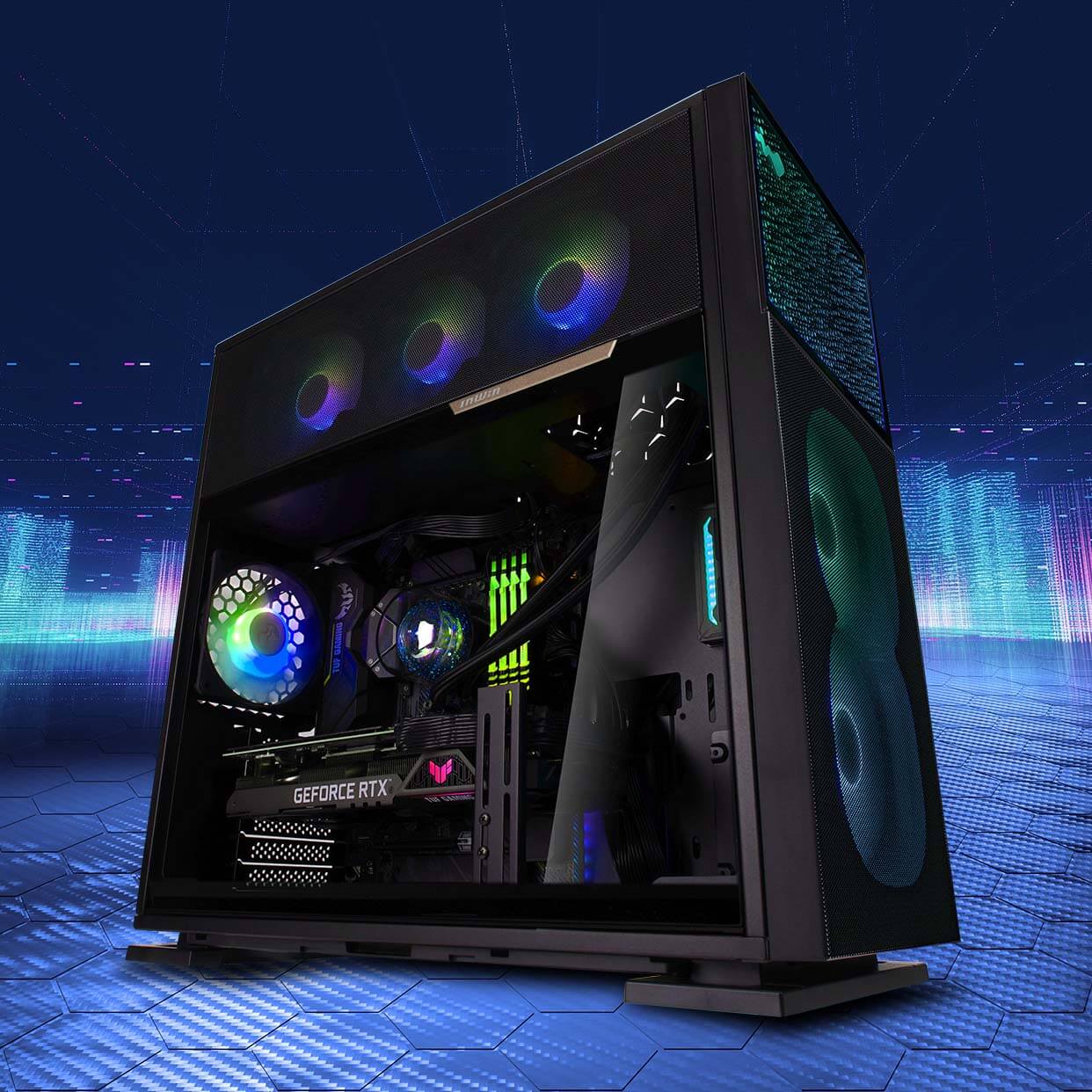

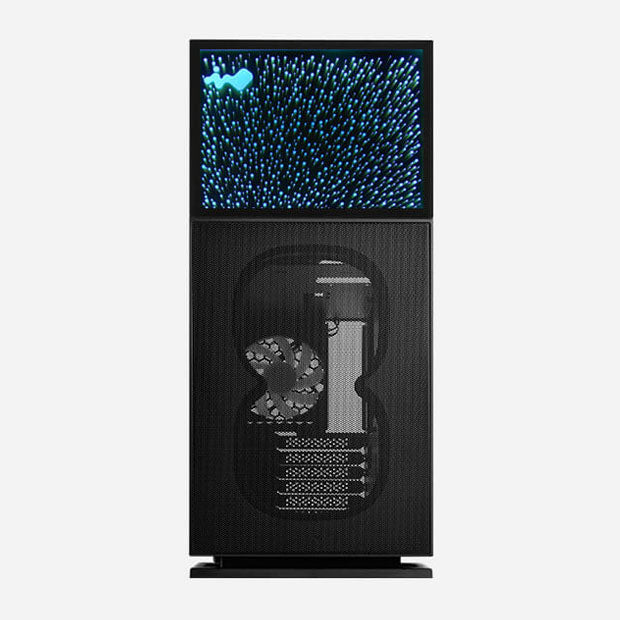

Nebula’s Visual Lighting Effects

The Nebula Panel creates a celestial universe with an infinite depth perception. The lighting effects can be synced with an ARGB motherboard according to your preference.

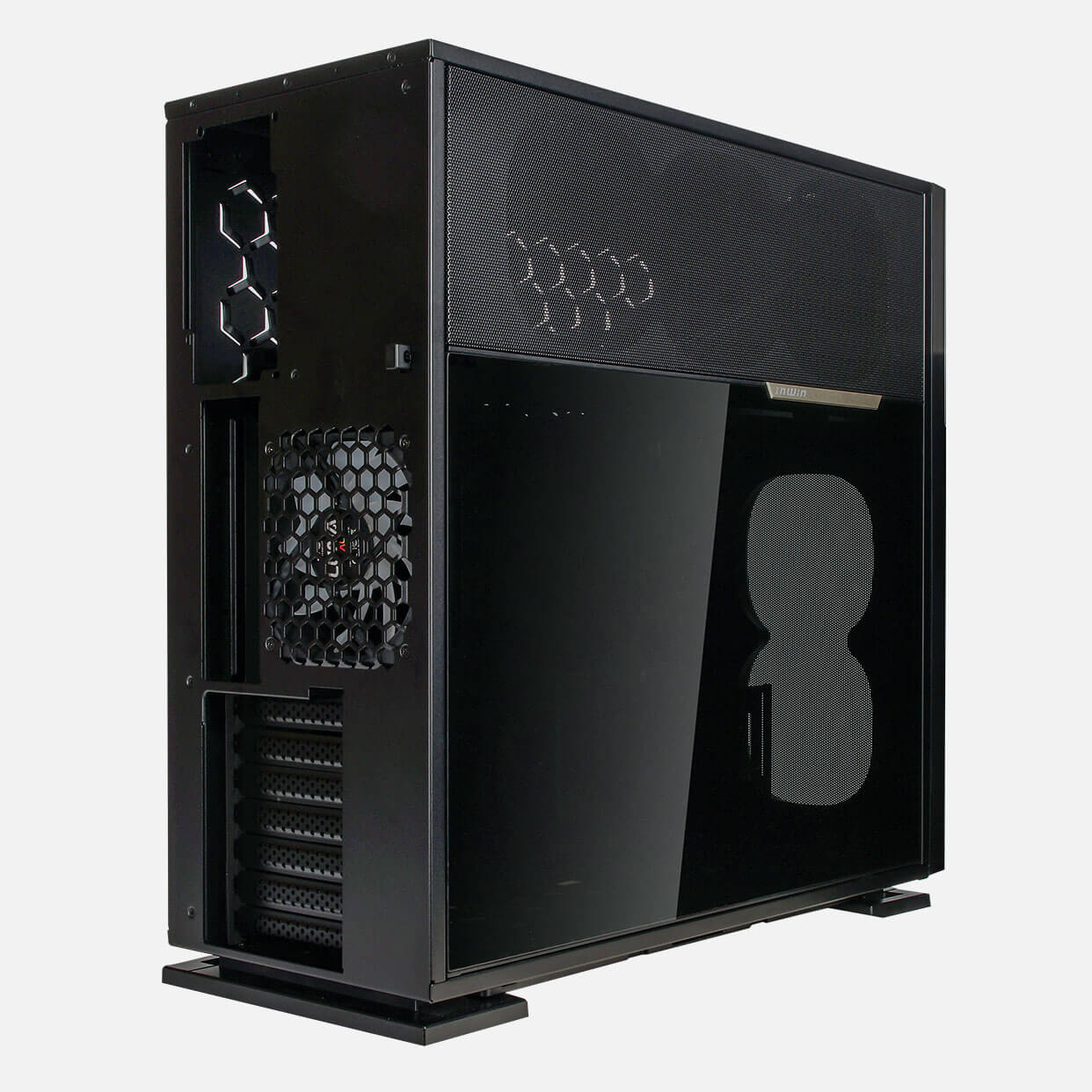

Mesh Panels that Increase Airflow

A side mesh panel is provided so that considerable air flows into the system.

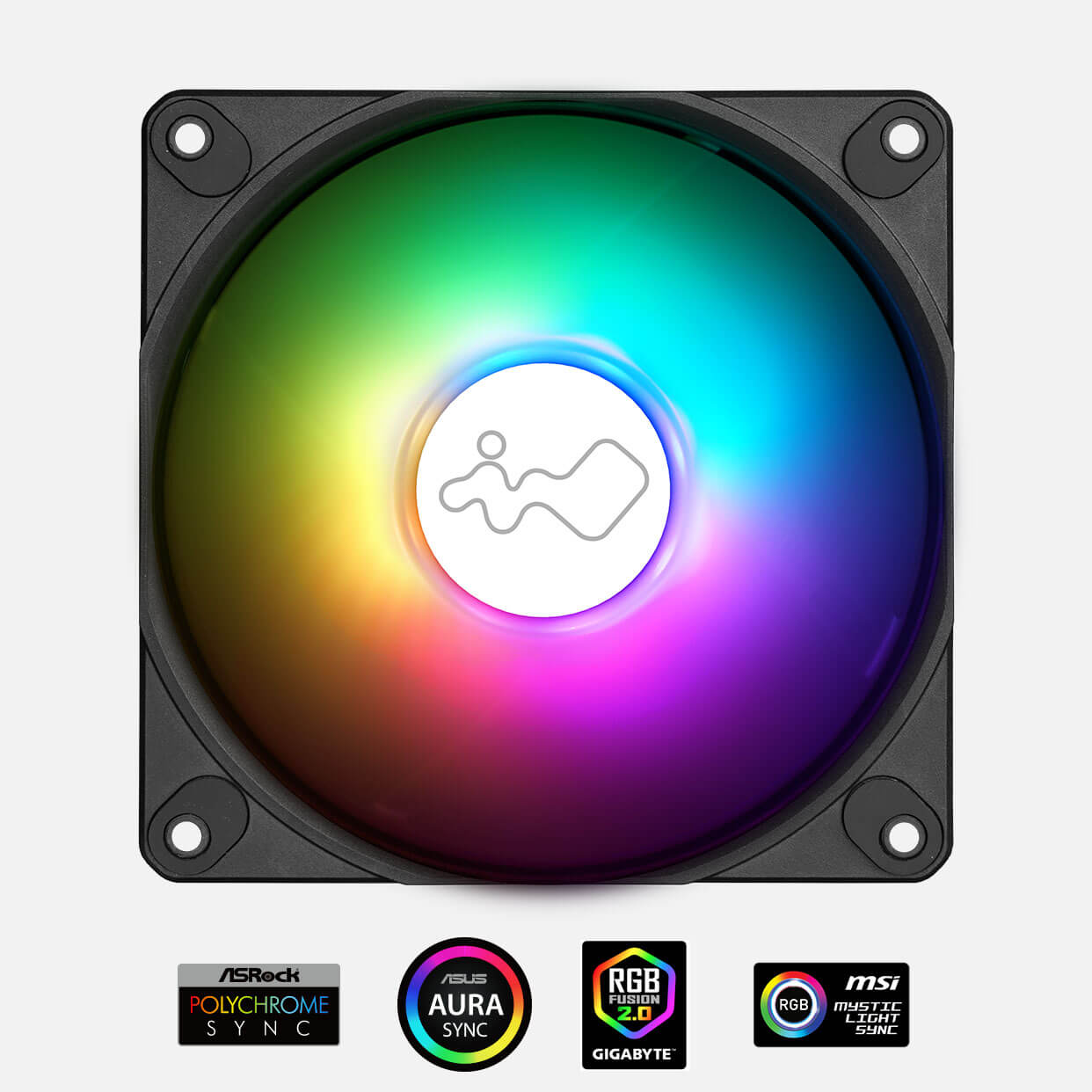

Bright LUNA Case Fan

Pre-installed Luna AL120 ARGB cooling fan will provide powerful cooling performance, while reflecting ARGB lighting through its crescent white fan blades.

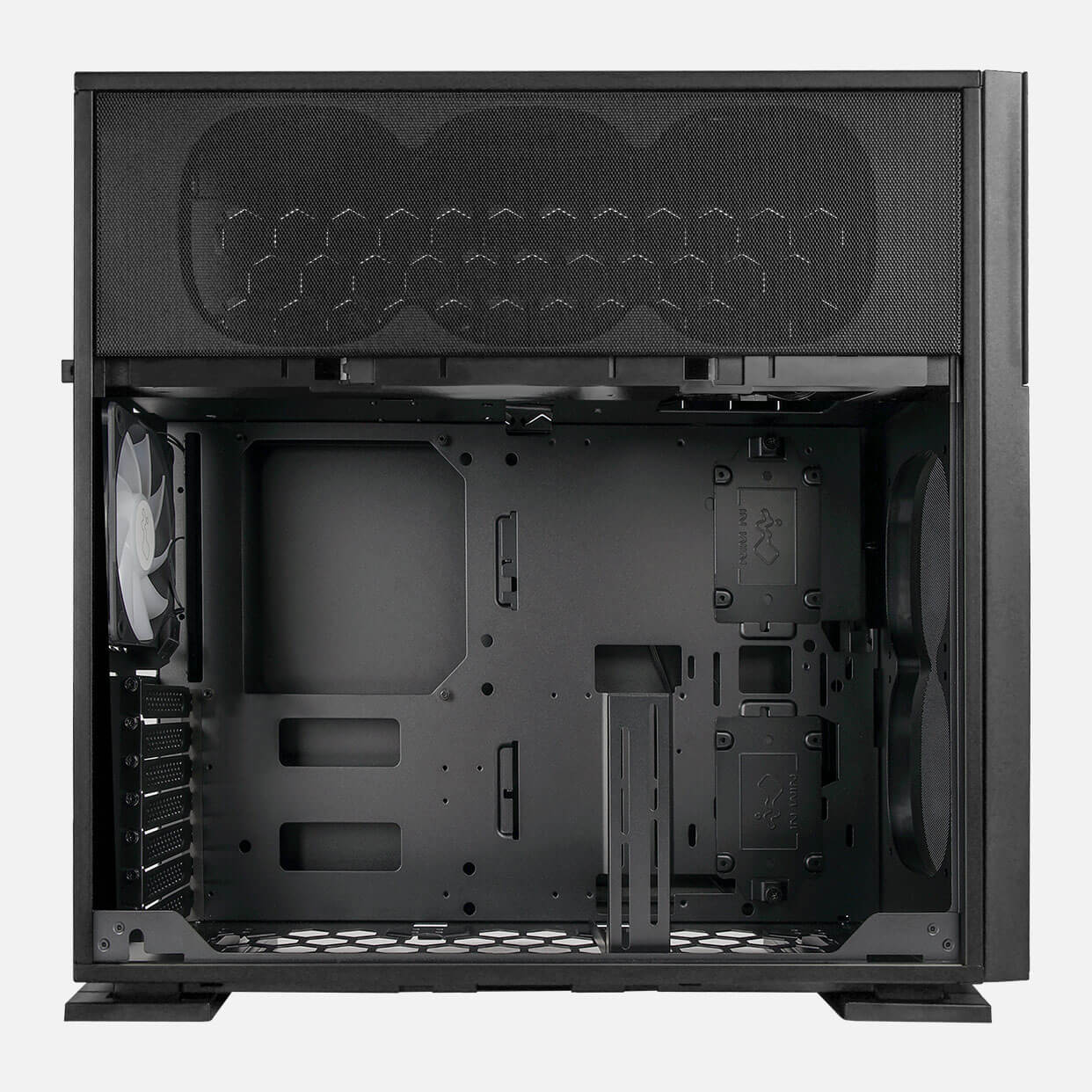

Highly Expandable

The N515 supports full E-ATX and a space for a VGA card length up to 385mm, all designed to bring the best out of your build.

Components

N515 Chassis x 1
LUNA AL120 Fan (Pre-installed) x 1
QR Code Card x 1
Accessories Bag x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

Non-Modular Cable 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)	Sirius Loop	Jupiter Series	Sirius Pure	Luna AL120	Mercury AM120S
Non-Modular Cable 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)	Sirius Extreme	Sirius Extreme Pure	Neptune AN Series	Neptune DN Series	Neptune DN PRO Series
Modular ARGB Type 1 6-Pin Modular (PWM + ARGB)	Aurora	EGO
Modular ARGB Type 2 6-Pin Modular (PWM + ARGB)	Crown Series	Saturn Series
Type-C Modular Cable (PWM + ARGB)	Lynx Series
Modular RGB 8-Pin Modular (PWM + RGB)	Polaris RGB Series	Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
