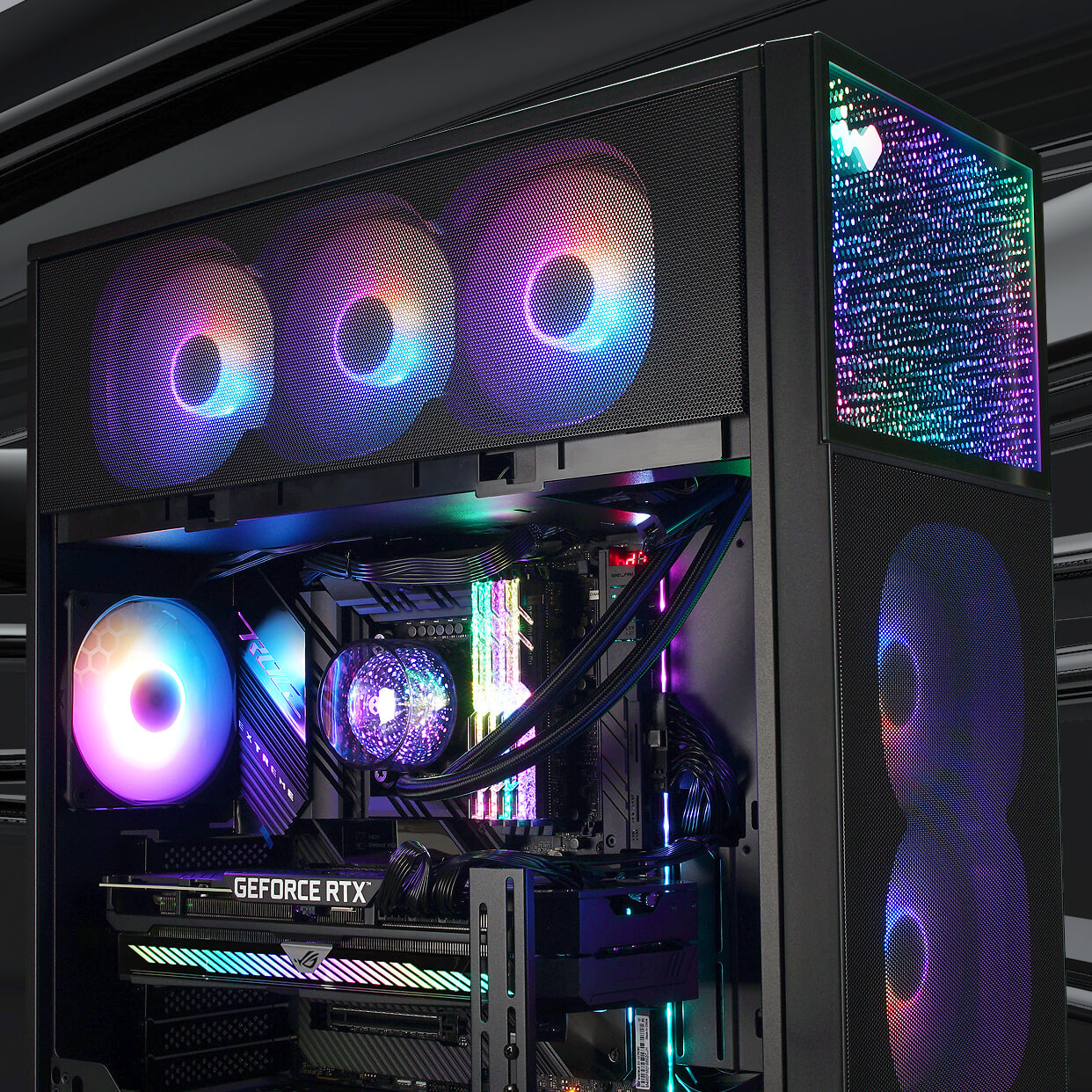

N515 Nebula Ultra Cooling Edition
Extended ATX
AIO Liquid Cooler
Specs
Model | N515 Nebula Ultra Cooling Edition | |
---|---|---|
Model Number | IW-CS-N515BLK-3ALNR36 | |
Colors | Black | |
Case Type | Mid Tower | |
Materials | SECC, ABS, Tempered Glass | |
M/B Compatibility | 12" x 13" E-ATX, ATX, Micro-ATX, Mini-ITX | |
Expansion Slots | 7 x PCI-E | |
Maximum Compatibility | VGA Card Length: 385 mm CPU Heatsink Height: 160 mm |
|
I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio |
|
Internal Drive Bays | 2 x 3.5" / 2.5" 2 x 2.5" |
|
Thermal Solution Compatibility |
Air Cooling Fans: |
|
Power Supply Compatibility | PSII: ATX12V - Length up to 200 mm |
|
Product Dimensions (L x W x H) |
515 x 225 x 502 mm |
|
Package Dimensions (L x W x H) |
610 x 335 x 572 mm |
|
Net Weight | 11.6 kg / 25.6 lb | |
Gross Weight | 13.7 kg / 30.2 lb | |
* InWin products comply with RoHS regulations. * Specifications may vary based on different regions. * Number of fans pre-installed may vary based on different regions |
Model | NR36 | |
---|---|---|
Model Number | IW-LC-NR36 | |
CPU Socket Support | Intel® LGA 1700/ 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150 AMD ® AM5/ AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4 |
|
Radiator | Dimensions (L x W x H) |
397 x 120 x 27 mm 15.6 x 4.7 x 1.1" |
Materials | Aluminium | |
Tube Length | 450 mm | |
Tube Material | Rubber with Nylon Braided Sleeve | |
Water Block | Dimensions (L x W x H) |
87.3 x 75 x 68 mm 3.4 x 3.0 x 2.7" |
Materials | Copper, Glass, Plastic | |
Pump | Dimensions (L x W x H) |
66 x 50 x 31 mm 2.6 x 2.0 x 1.2" |
Materials | PPS GF | |
Pump Speed | 5200 +/- 10% RPM | |
Fans | Model | Luna Series AL120 |
Quantity Included | 3 PCS | |
Dimensions (L x W x H) |
120 x 120 x 25 mm 4.7 x 4.7 x 1.0" |
|
Speed Mode | PWM 600-1800 +/-10% RPM | |
Noise Level | 25 dB(A) (Normal) | |
Airflow | 82.96 CFM | |
Air Pressure | 2.31 mm / H2O | |
Connectors | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | |
Bearing Type | Long Lifespan Sleeve Bearing | |
Package Contents | 1 x InWin NR Series 360 mm CPU Liquid Cooler | |
3 x InWin AL120 Addressable Fans | ||
ARGB One-Click Controller | ||
Fan and Radiator Mounting Screws Pack | ||
Mounting Kit for CPU Sockets | ||
Cable Pack | ||
Package Dimensions (L x W x H) |
459 x 244 x 136 mm 18.1 x 9.6 x 5.4" |
|
Net Weight | 1.05 kg / 2.31 lb | |
Gross Weight | 2.45 kg / 5.4 lb | |
Warranty | 3 Years | |
* InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
Product Name | Luna AL120 | |
---|---|---|
Quantity Included | Single Pack Triple Pack |
|
Part Number | IW-FN-AL120-1PK IW-FN-AL120-3PK |
|
Color | Black | |
Fan Size | 120 x 120 x 25 mm | |
Material | PC, PBT | |
Rated Voltage | DC 12V | |
Rated Power | 3.96W | |
Rated Current | 0.33A | |
ADD RGB Rated Voltage | DC 5V | |
ADD RGB Rated Power | 1.5W | |
ADD RGB Rated Current | 0.3A | |
Speed Mode | PWM 600-1800 +/-10% RPM | |
Air Flow | 82.96 CFM | |
Air Pressure | 2.31 mm / H2O | |
LED | Addressable RGB | |
Connector (Fan to Fan) | Non-Modular Cables | |
Connector to M/B | 4-Pin (PWM, 12V), 3-Pin (ARGB, 5V) | |
Noise Level | 25 dB(A) (Normal) | |
Bearing Type | Long Lifespan Sleeve Bearing | |
Net Weight | 133 g / 0.29 lbs 399 g / 0.88 lbs |
|
Gross Weight | 169 g / 0.37 lbs 484 g / 1.07 lbs |
|
Package Dimension (H x L x W) | 125 x 185 x 30 mm 4.9 x 7.2 x 1.2" 125 x 185 x 82 mm 4.9 x 7.2 x 3.2" |
|
Warranty | 2 years | |
* Specifications may vary based on different regions. * Our products comply with RoHS regulations. |

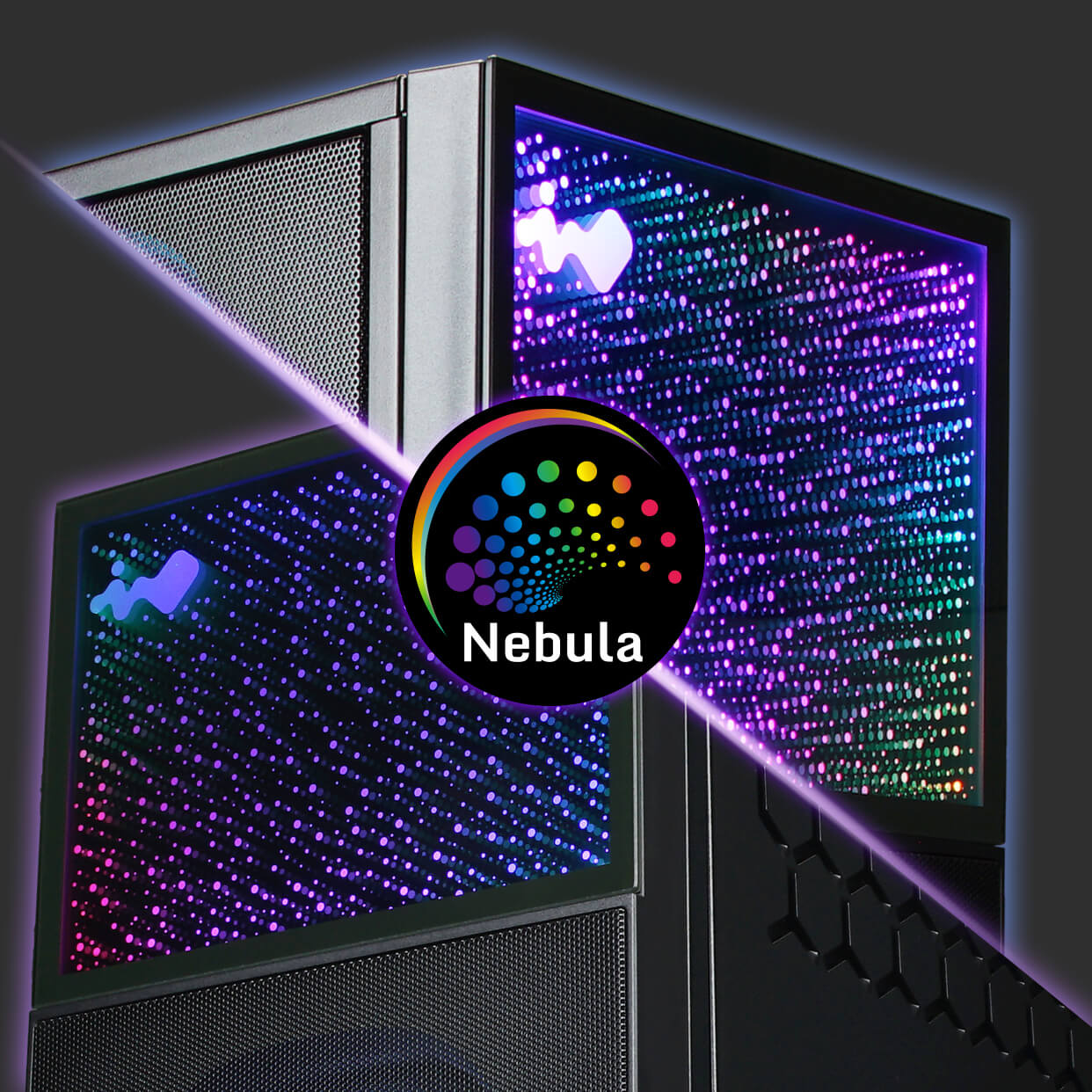

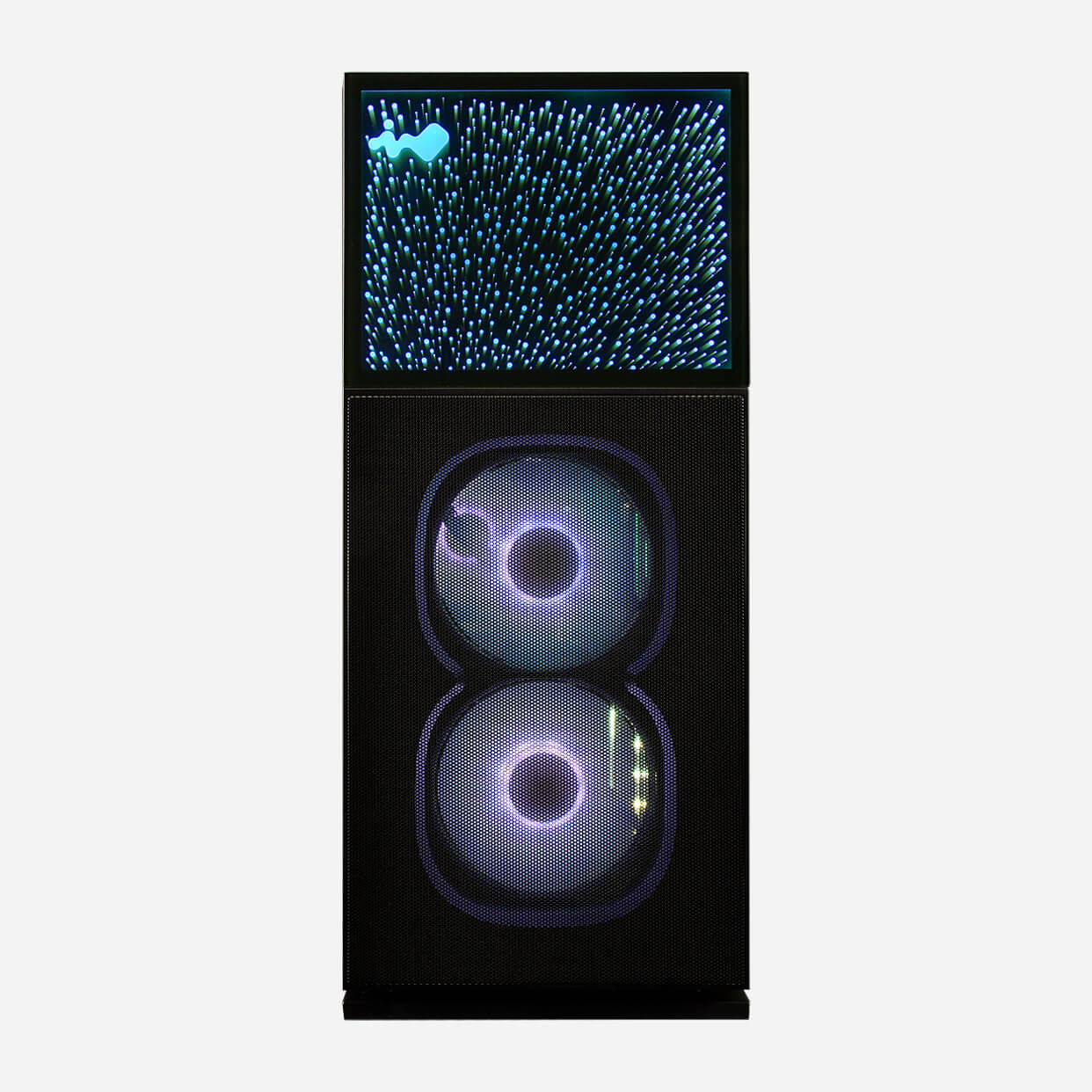

Nebula Effects
Laser-etching Technique

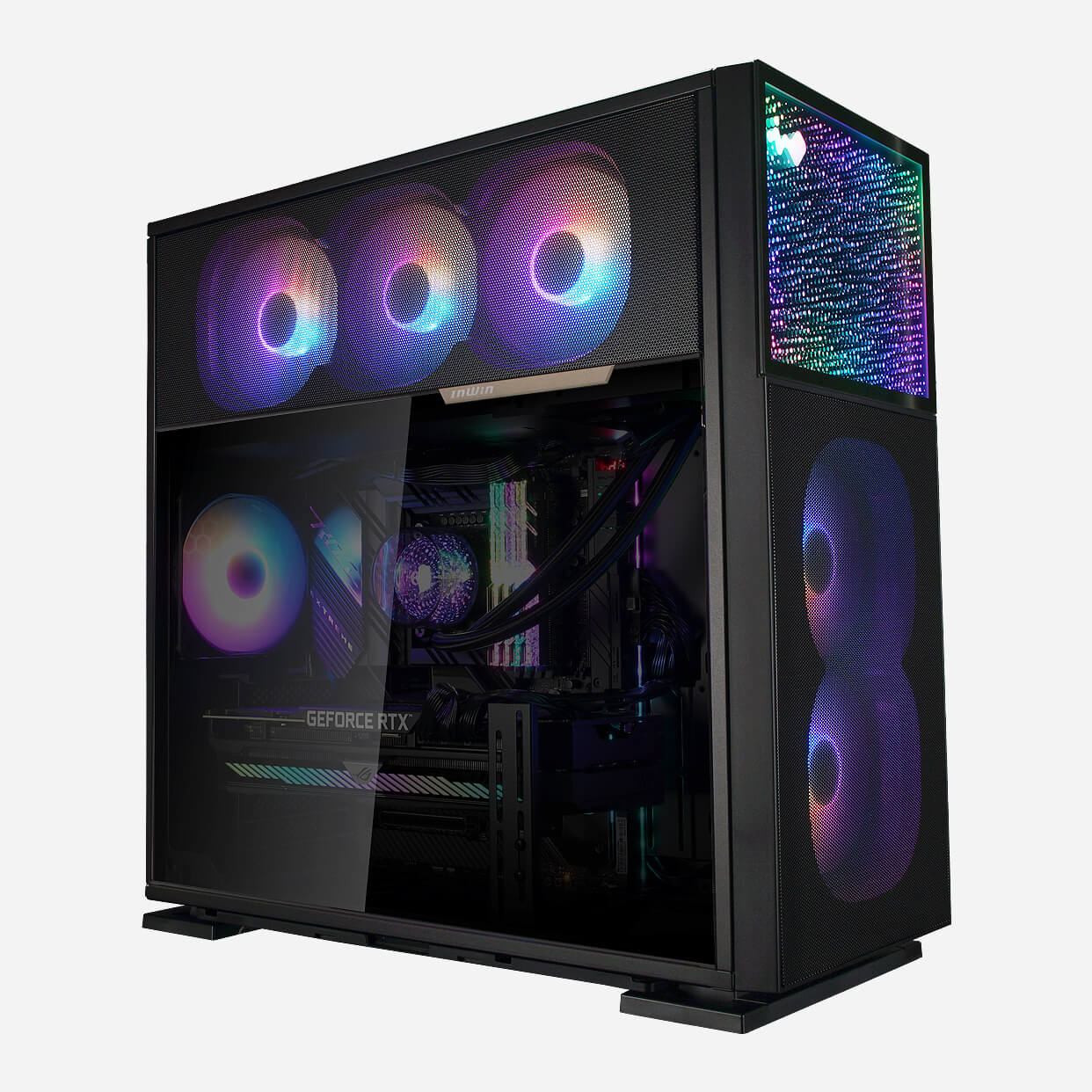

Mesh Panels that Increase Airflow
ARGB PWM fan Luna AL120

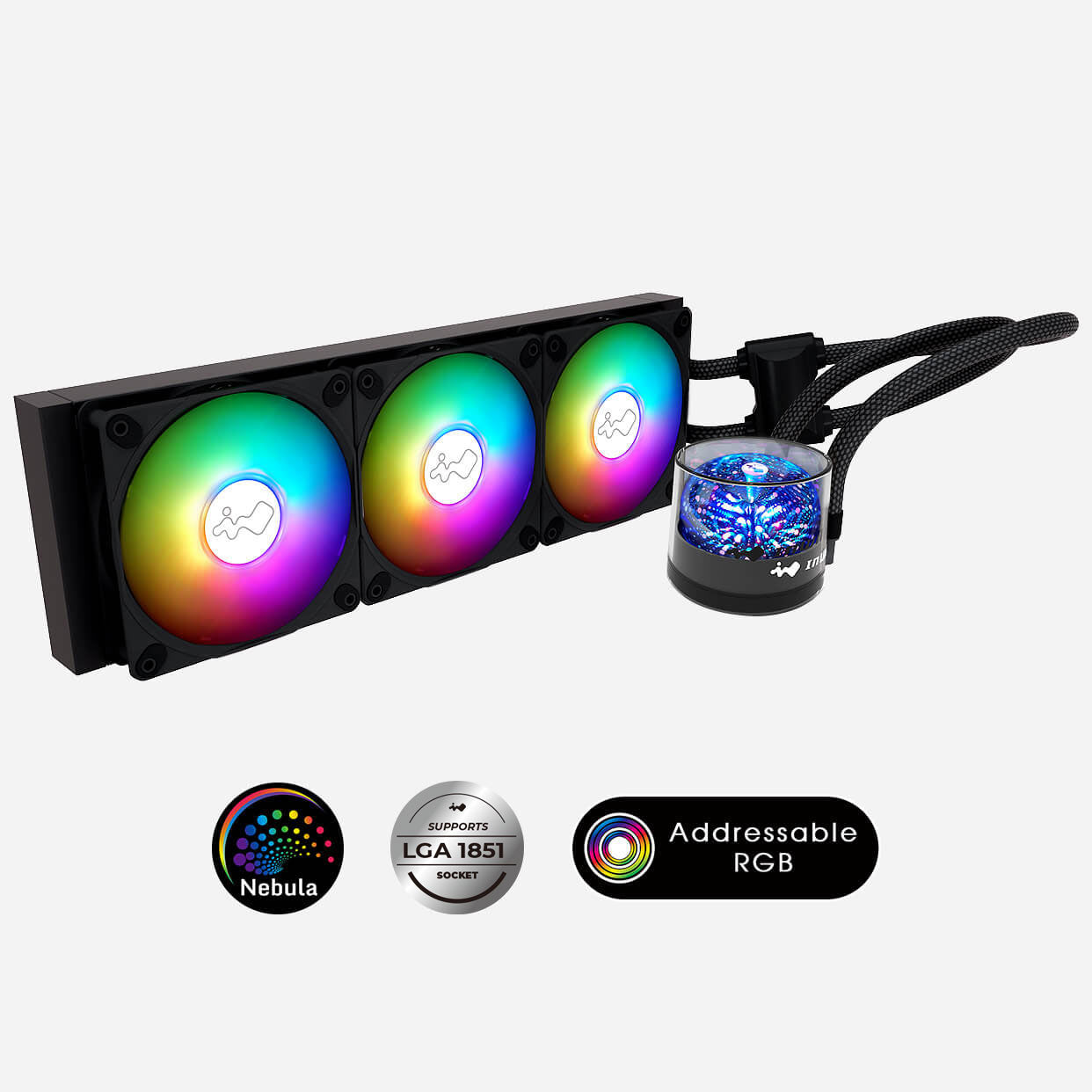

NR36 Water Block Liquid CPU Cooler

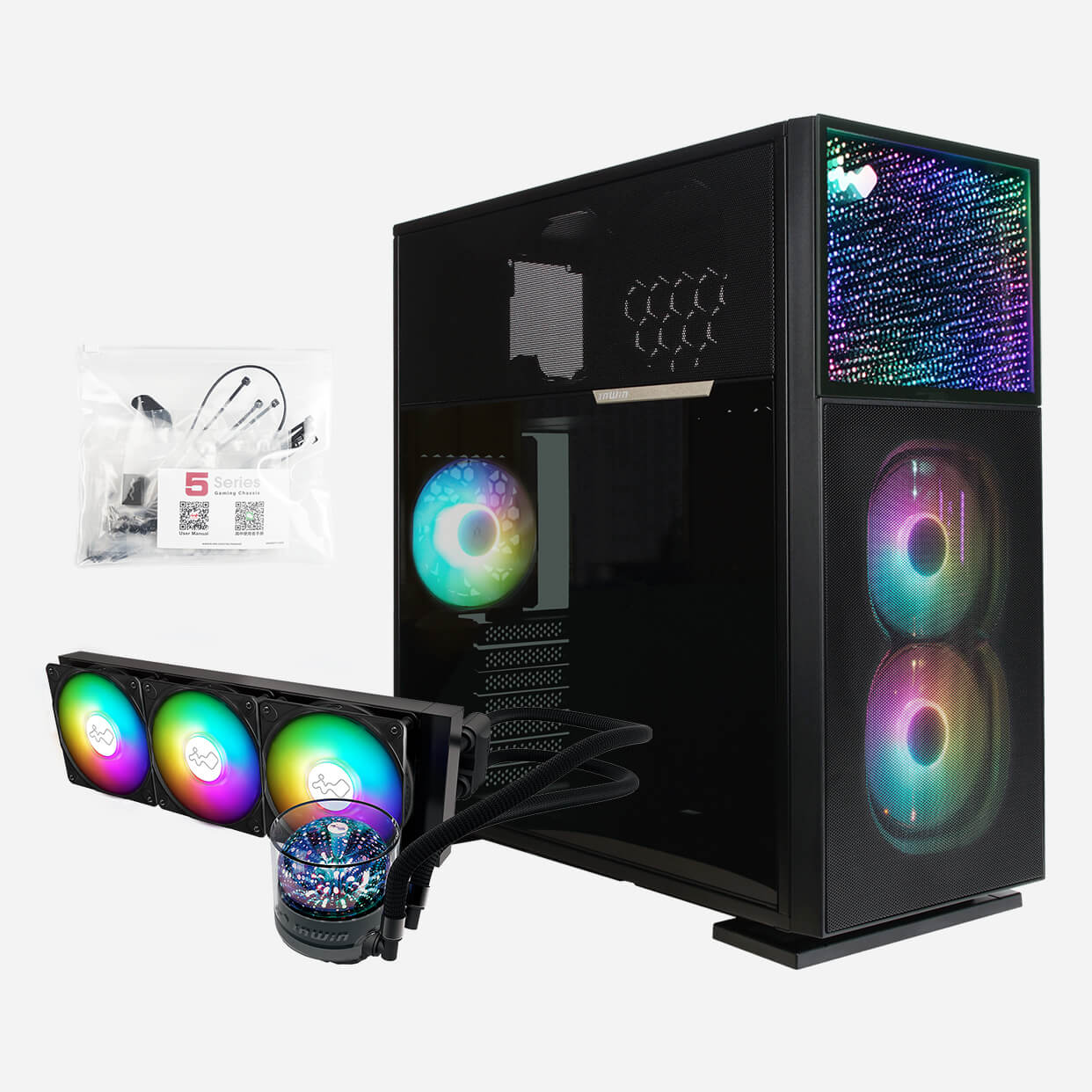

Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
Non-Modular Cable |
Sirius Loop |
Jupiter Series |
Sirius Pure |
Luna AL120 |
Mercury AM120S |
|
---|---|---|---|---|---|---|
Sirius Extreme |
Sirius Extreme Pure |
Neptune AN Series |
Neptune DN Series |
Neptune DN PRO Series |
||
Modular ARGB Type 1 |
Aurora |
EGO |
||||
Modular ARGB Type 2 |
Crown Series |
Saturn Series |
||||
Modular RGB |
Polaris RGB Series |
Polaris AluminumRGB Series |
InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
