PRISM

PRISM

€139.99
No reviews
No reviews
SKU: IW-CS-PRISMBLK-4VX120

Inspired by InWin’s Tòu chassis, PRISM’s mirrored glass panels hide your components when the lights are off and reveal them when illuminated, creating a transparent-to-opaque visual effect.

Quantity:
  1. Dual-Perspective: Transparent & Mirror
  2. Panoramic View
  3. Versatile Cooling Options
  4. Supports Vertical & Horizonal GPUs

Specs

Model PRISM
Model Number IW-CS-PRISMBLK-4VX120
Color Black
Case Type Mid Tower
Materials SPCC, Tempered Glass
M/B Compatibility ATX, Micro-ATX, Mini-ITX
Expansion Slots 7 x PCI-E
(Riser Card Optional; Not Included in Package)
Maximum Compatibility GPU Length: 435 mm
CPU Heatsink Height: 175 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
LED Lighting Control Switch
Internal Drive Bays 2 x 3.5" / 2 x 2.5"
(2.5" SSD H 7 mm Max.)
Thermal Solution Compatibility Air Cooling Fans:
Front: 3 x 120 / 140 mm
Top: 3 x 120 / 2 x 140 mm
Rear: 1 x 120 mm
Side: 3 x 120 mm
(4 InWin VX120 Fans Included)

Water Cooling Radiators:
Front: 1 x 240 / 360 mm
Top: 1 x 240 / 280 / 360 mm
Rear: 1 x 120 mm
Side: 1 x 240 / 360 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 238 mm
Product Dimensions
(L x W x H)		 530 x 275 x 500 mm
20.9 x 10.8 x 19.7"
Package Dimensions
(L x W x H)		 583 x 370 x 638 mm
22.9 x 14.5 x 25.1"
Net Weight 10.01 Kg / 22.2 lbs
Gross Weight 12.3 Kg / 27.1 lbs
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

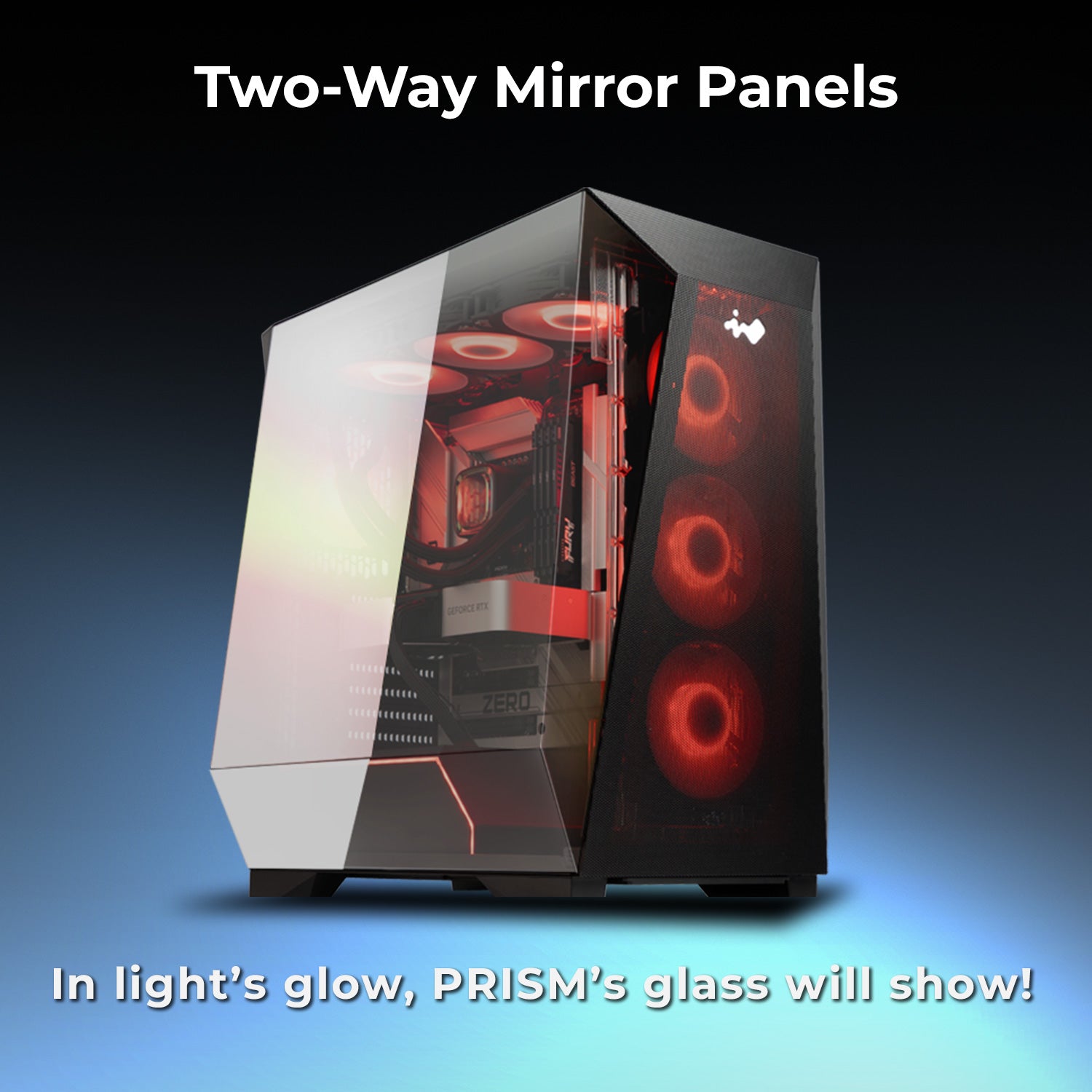

Two-Way Mirror Panels

PRISM’s mirrored glass panels conceal your components when the lights are off and reveal them when illuminated, creating a stunning transparent-to-opaque visual effect.

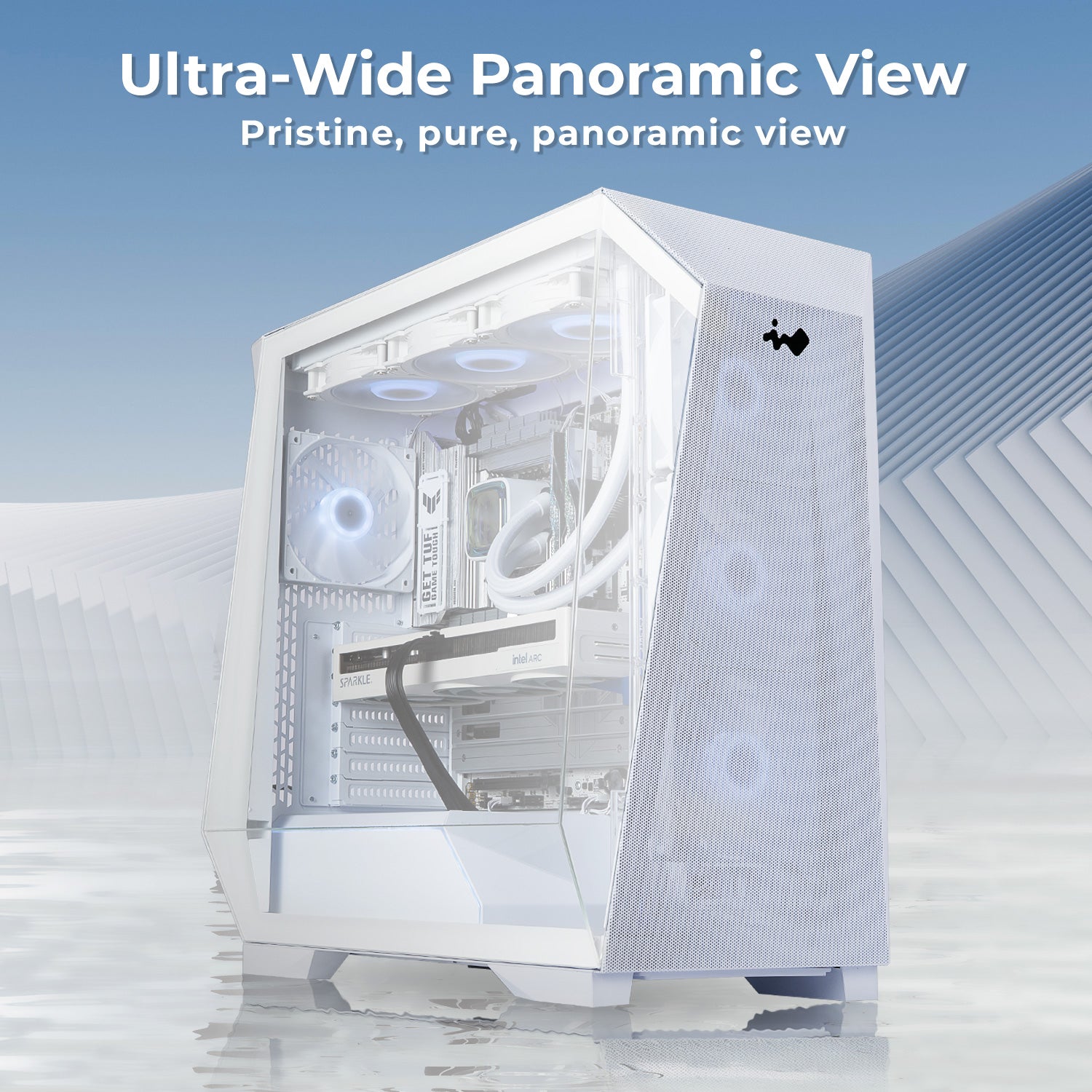

Ultra-Wide Panoramic View

PRISM features a spliced, seamless three-piece glass panel, creating a frameless panoramic view.

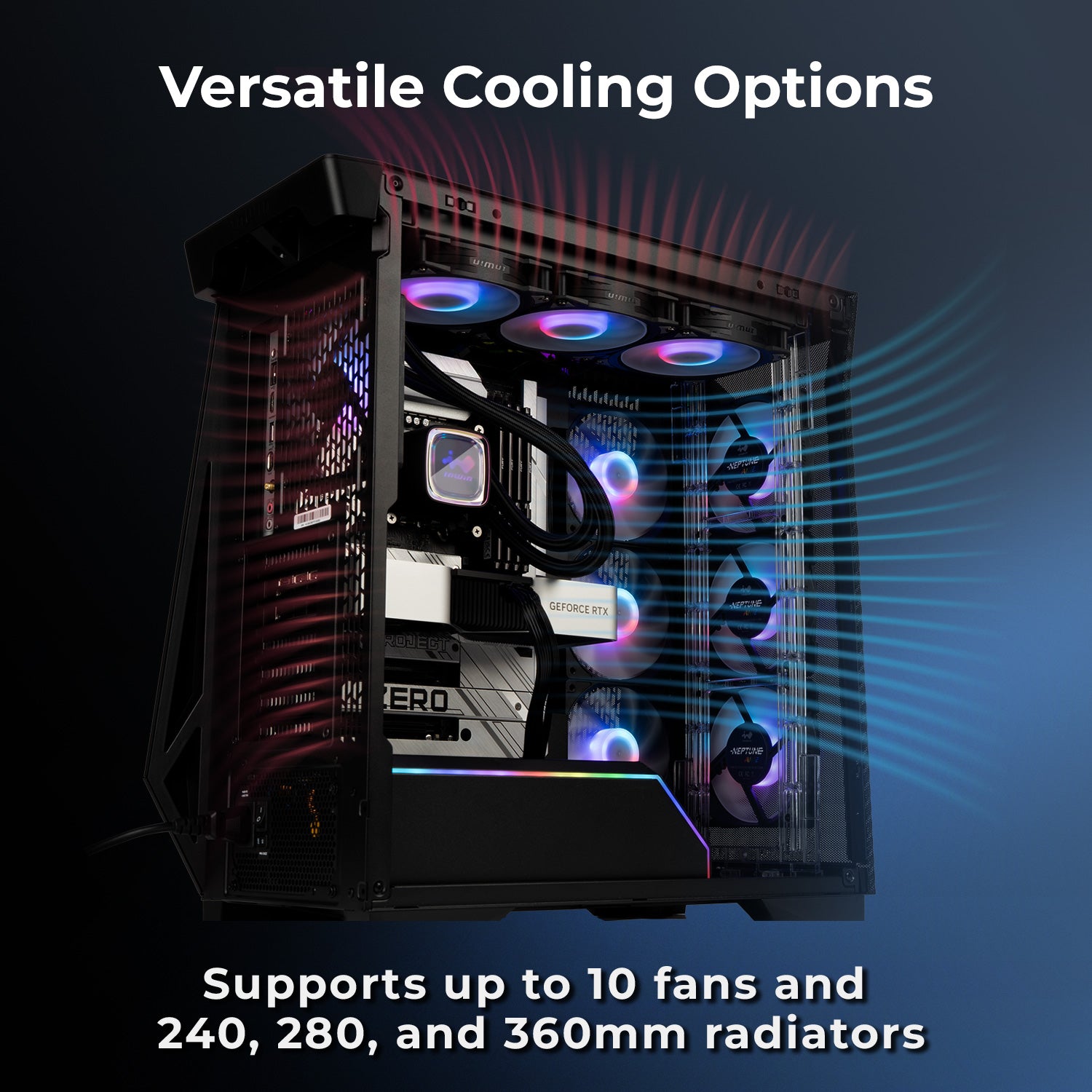

Versatile Cooling Options

Supports up to 10 fans and 240, 280, and 360mm radiators, featuring four pre-installed VORTEX fans. The perforated front and geometric mesh side panels enhance airflow for superior cooling.

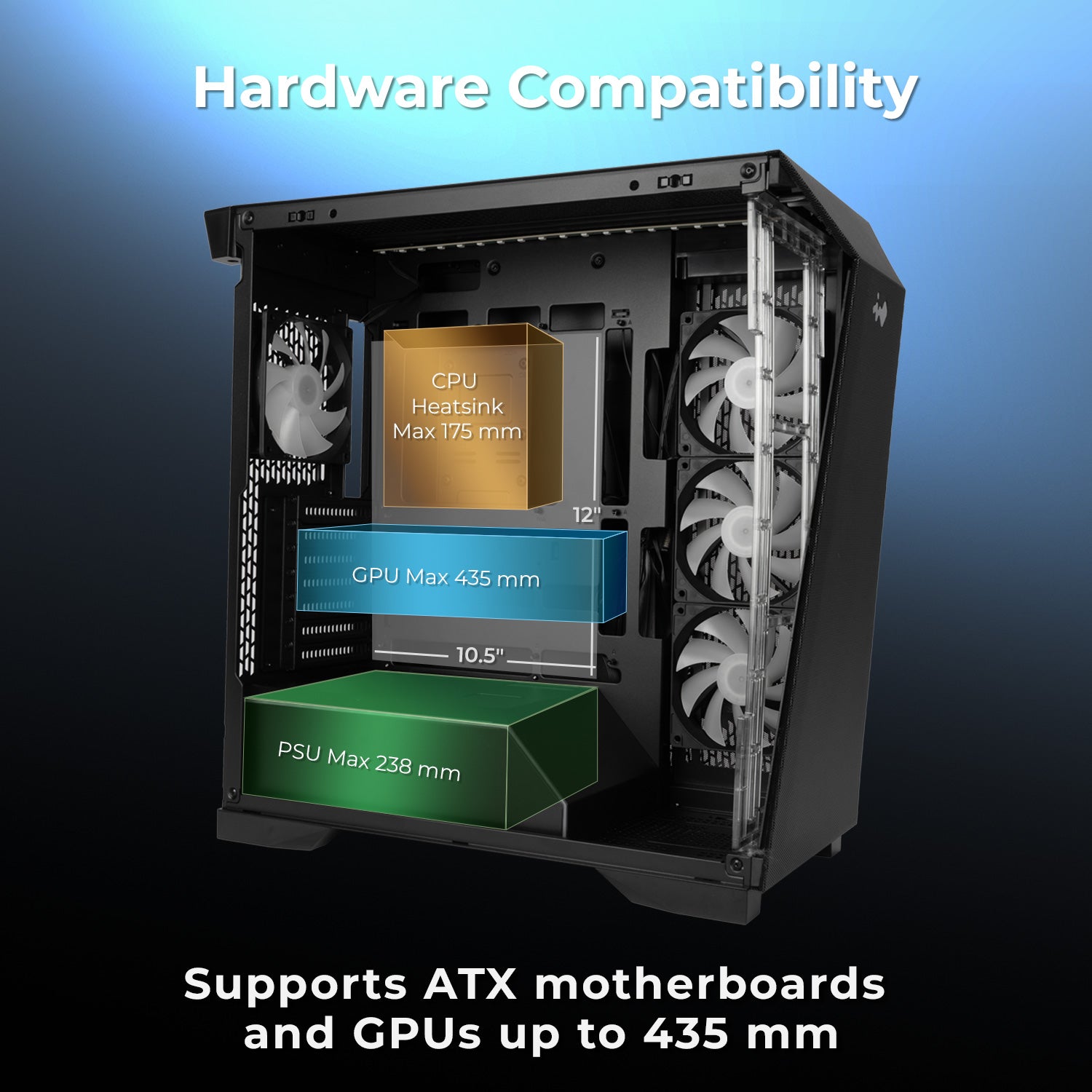

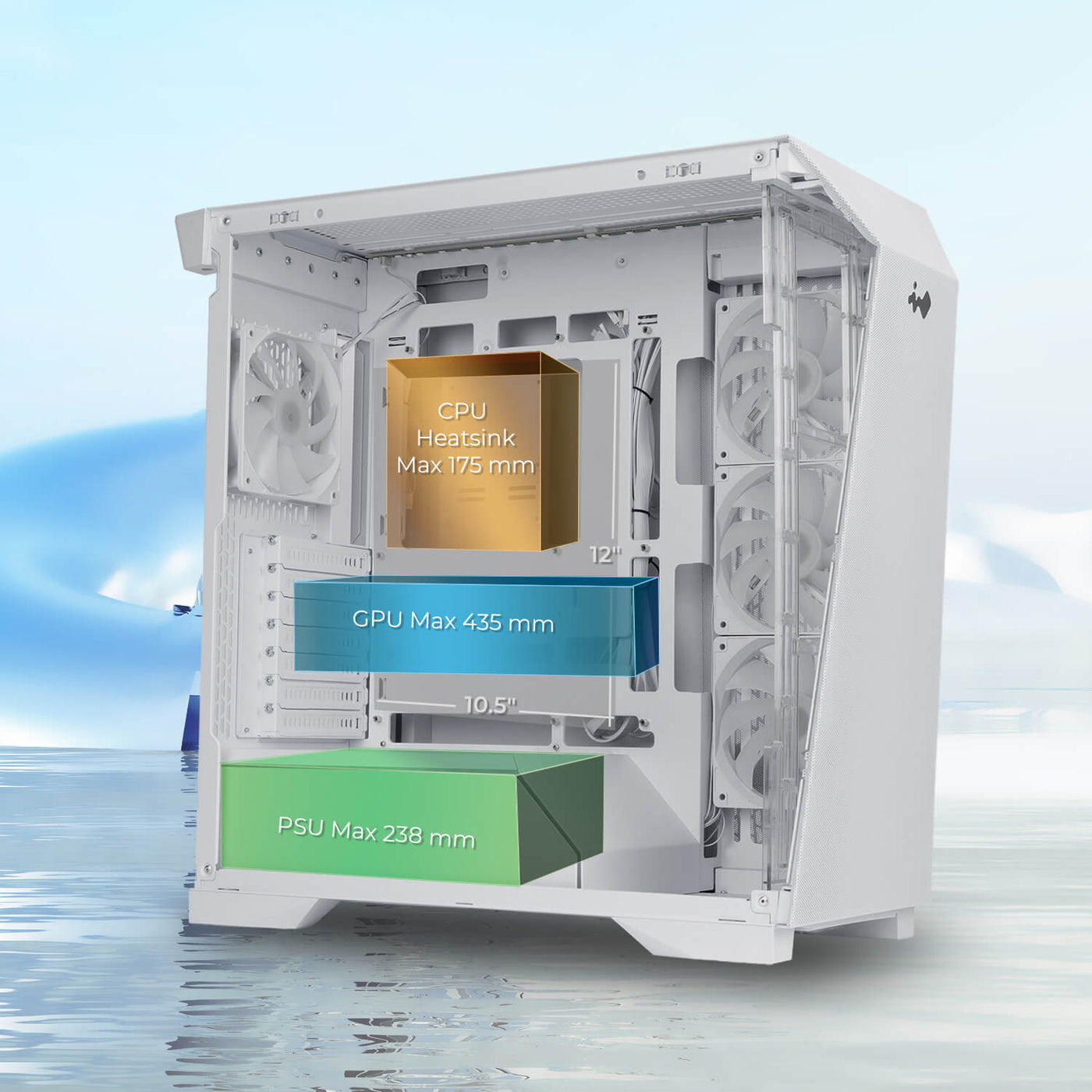

Hardware Compatibility

PRISM supports up to ATX motherboards and GPUs up to 435mm in length, it is the ideal chassis for high-performance workstations and gaming rigs.
* Supports Back-Connector ATX and Micro-ATX motherboards

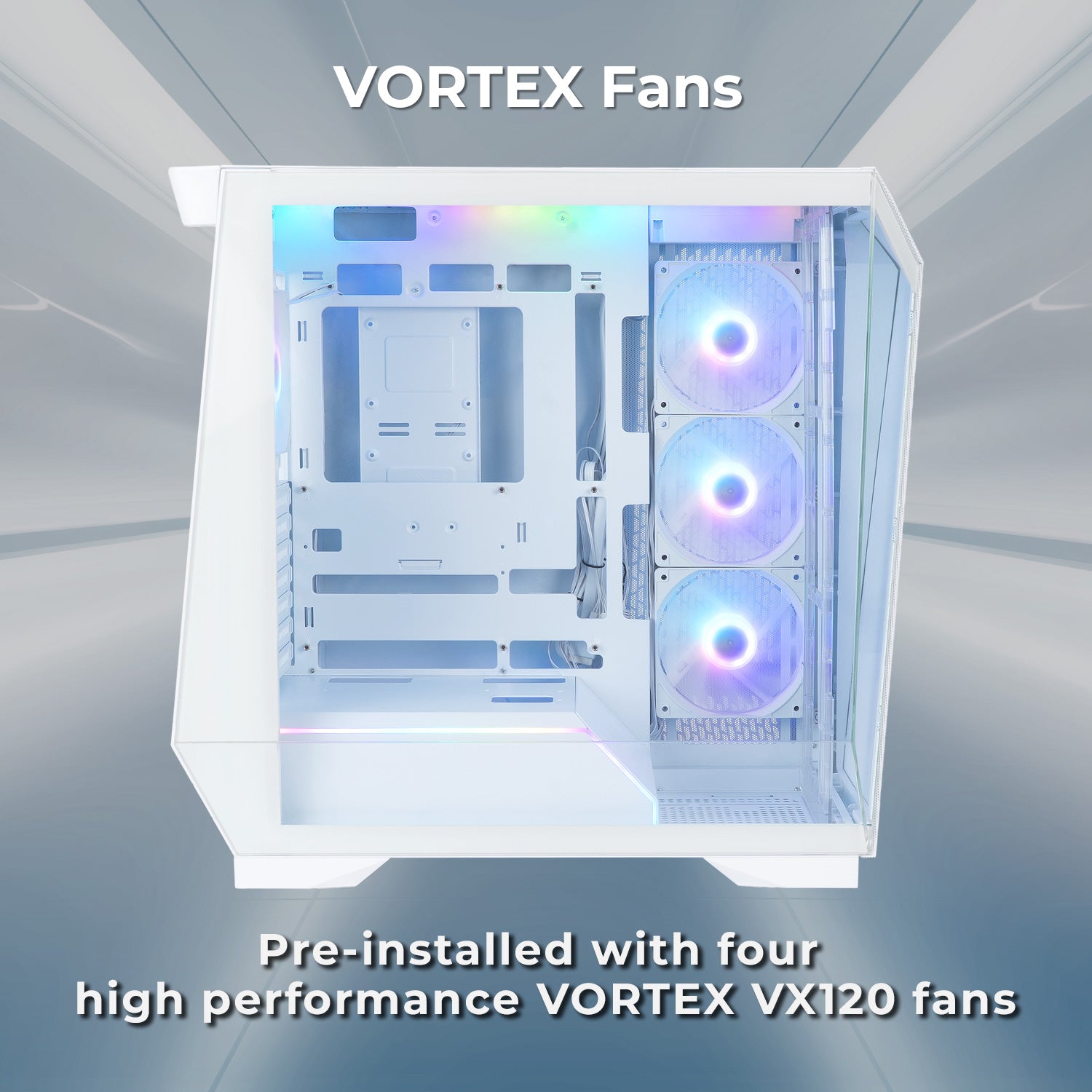

VORTEX Fans

PRISM comes pre-installed with four high performance fans, the VORTEX VX120, providing concentrated airflow along with ARGB visual aesthetics.

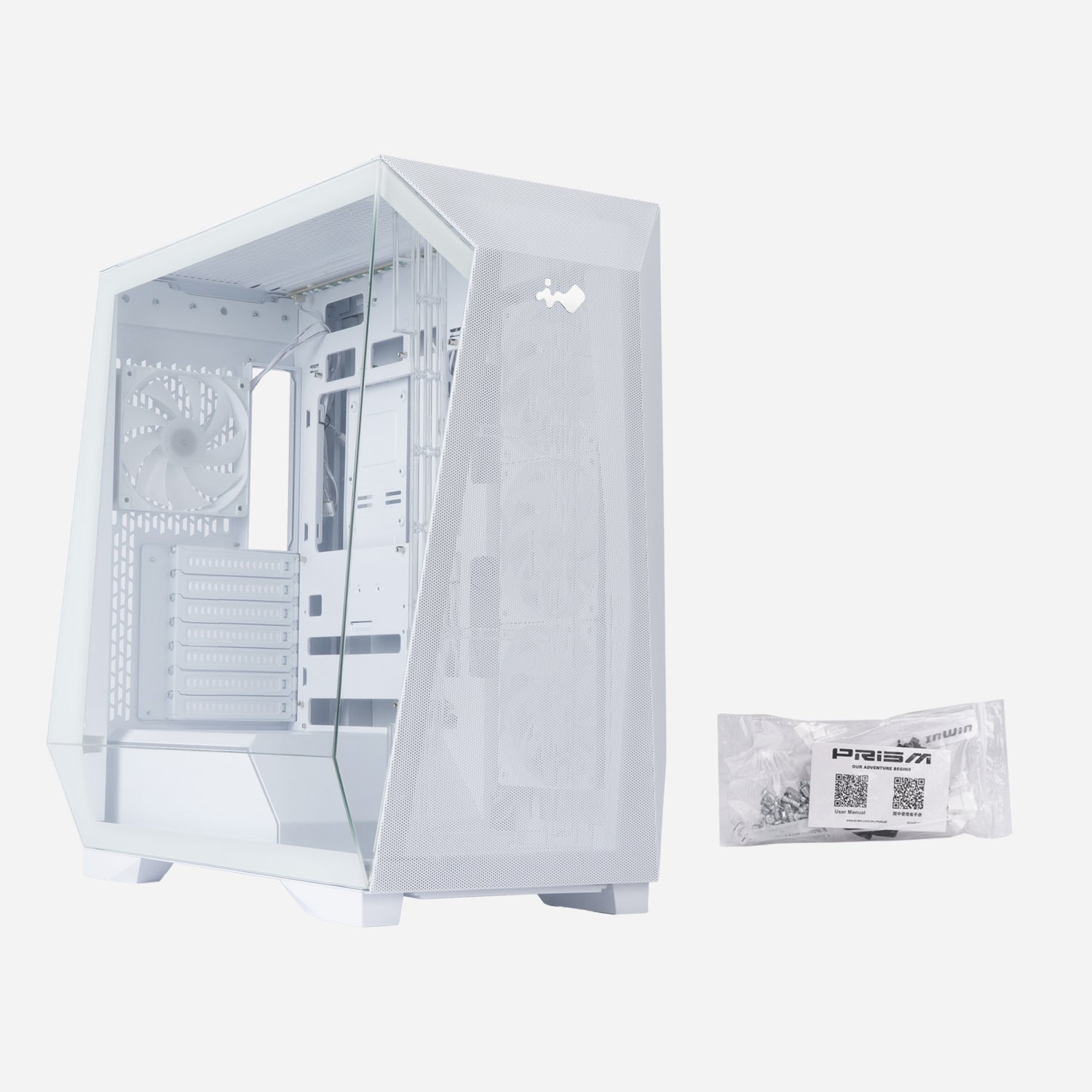

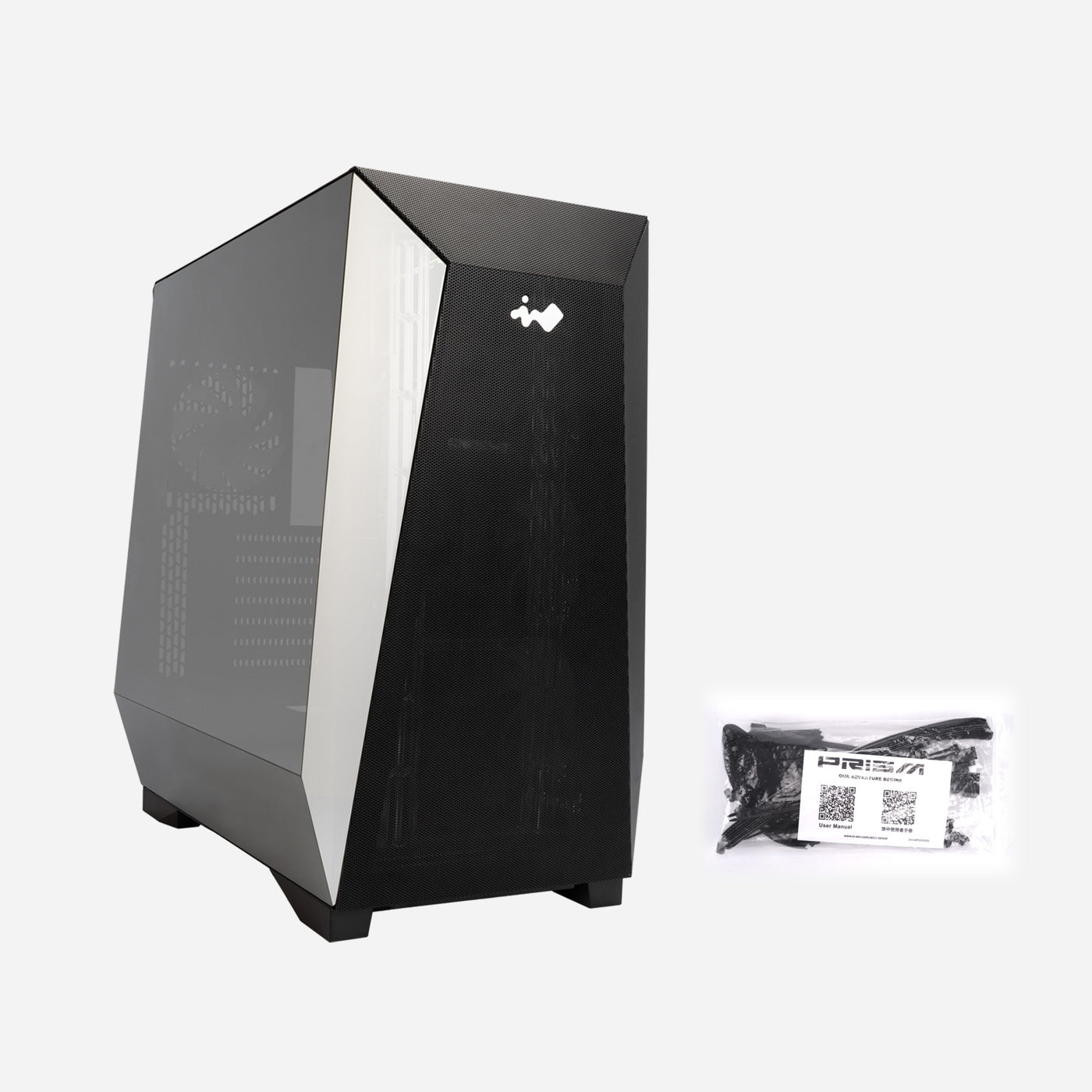

Components

PRISM Chassis x 1
VORTEX Fans x 3
QR Code Card x 1
Accessories Bag x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

Non-Modular Cable
4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)

Sirius Loop

Jupiter Series

Sirius Pure

Luna AL120

Mercury AM120S

Sirius Extreme

Sirius Extreme Pure

Neptune AN Series

Neptune DN Series

Neptune DN PRO Series

Modular ARGB Type 1
6-Pin Modular (PWM + ARGB)

Aurora

EGO

Modular ARGB Type 2
6-Pin Modular (PWM + ARGB)

Crown Series

Saturn Series

Type-C Modular Cable
(PWM + ARGB)

Lynx Series

Modular RGB
8-Pin Modular (PWM + RGB)

Polaris RGB Series

Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
