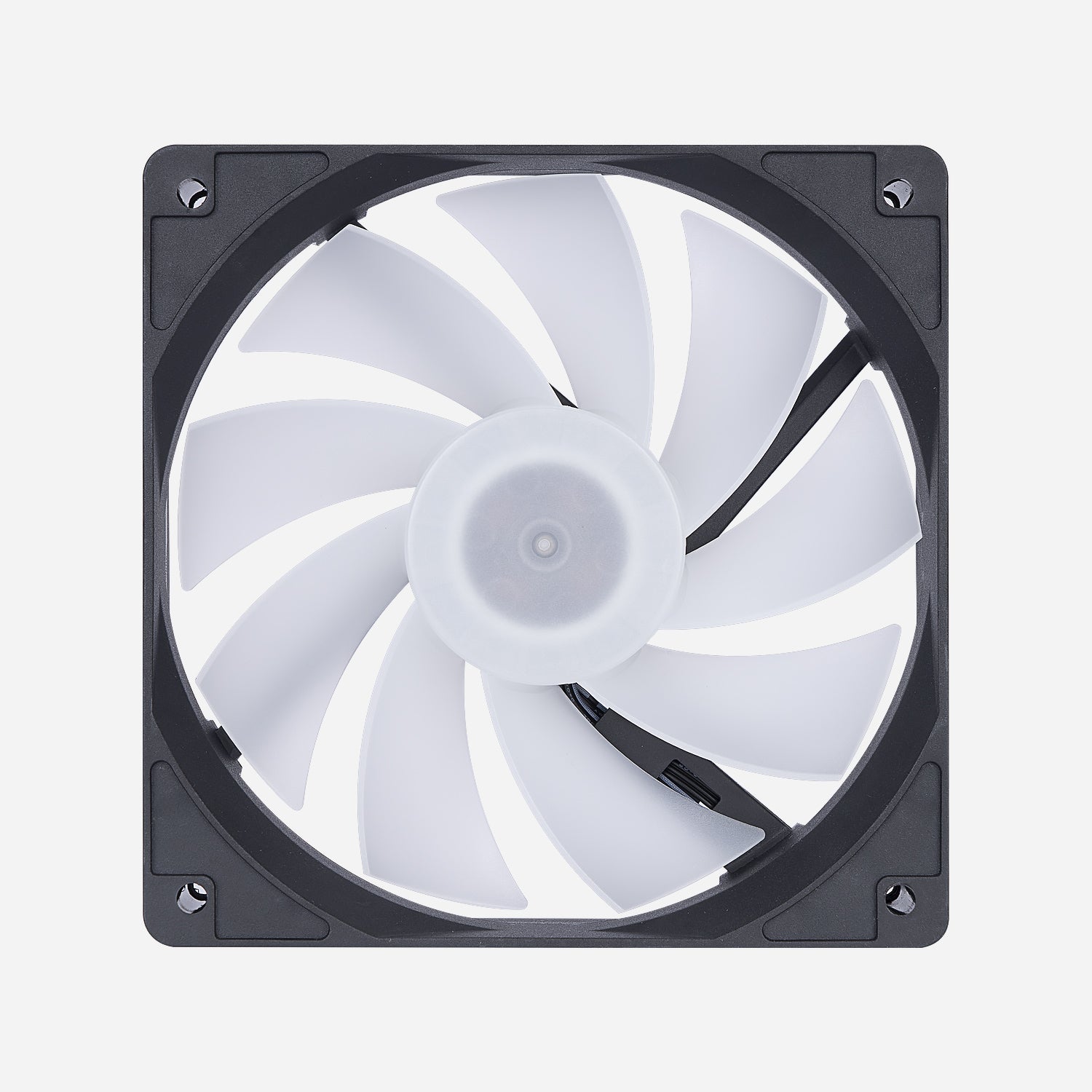

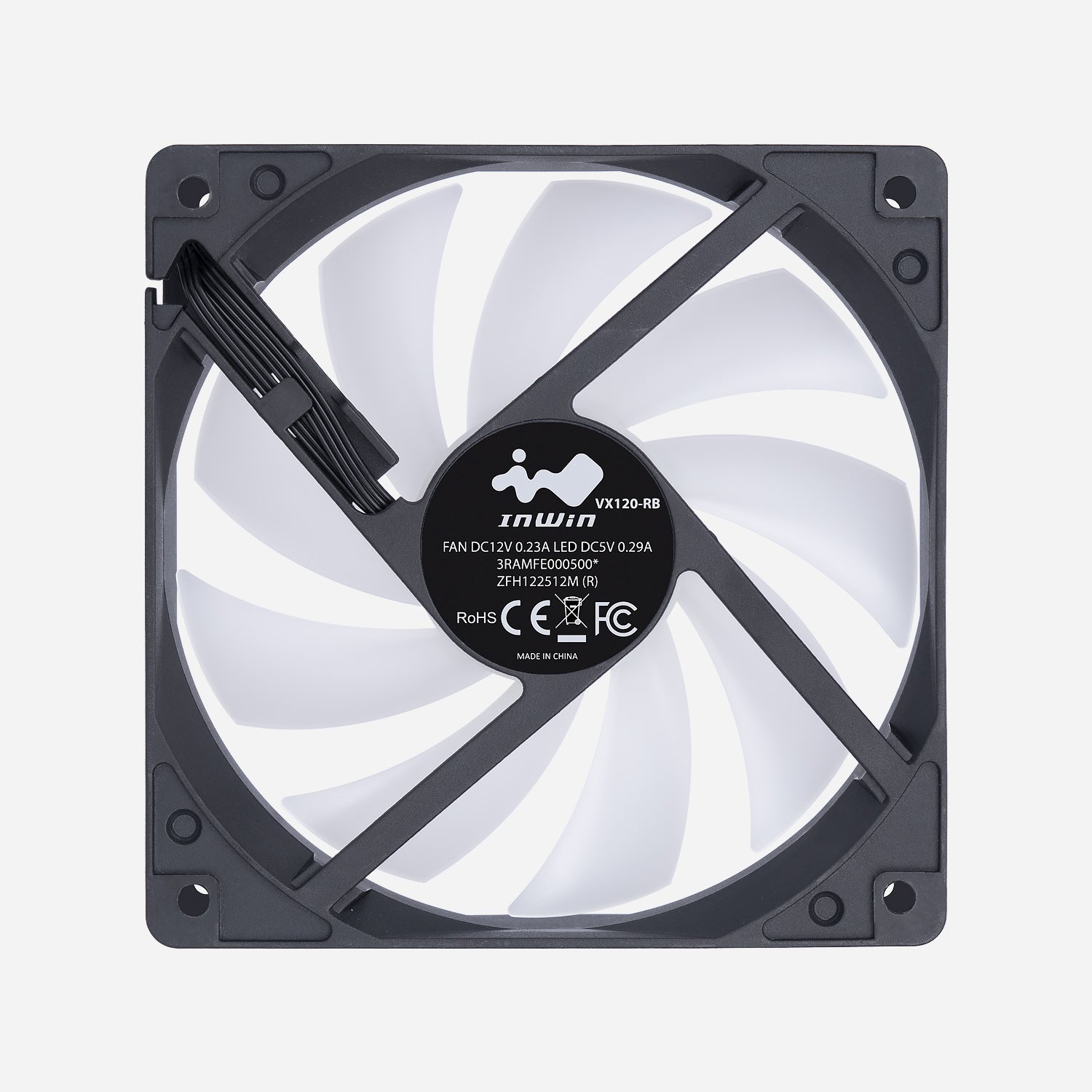

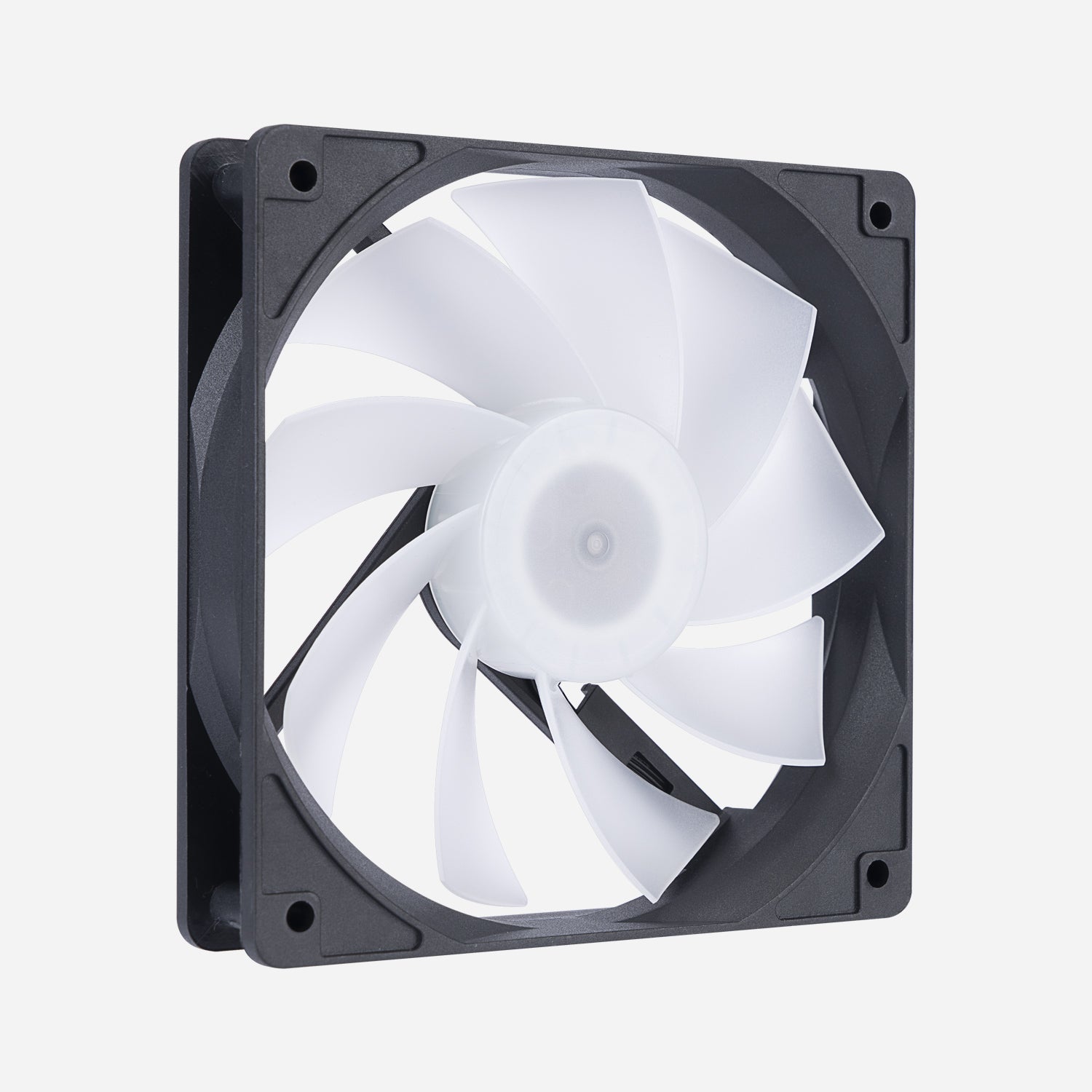

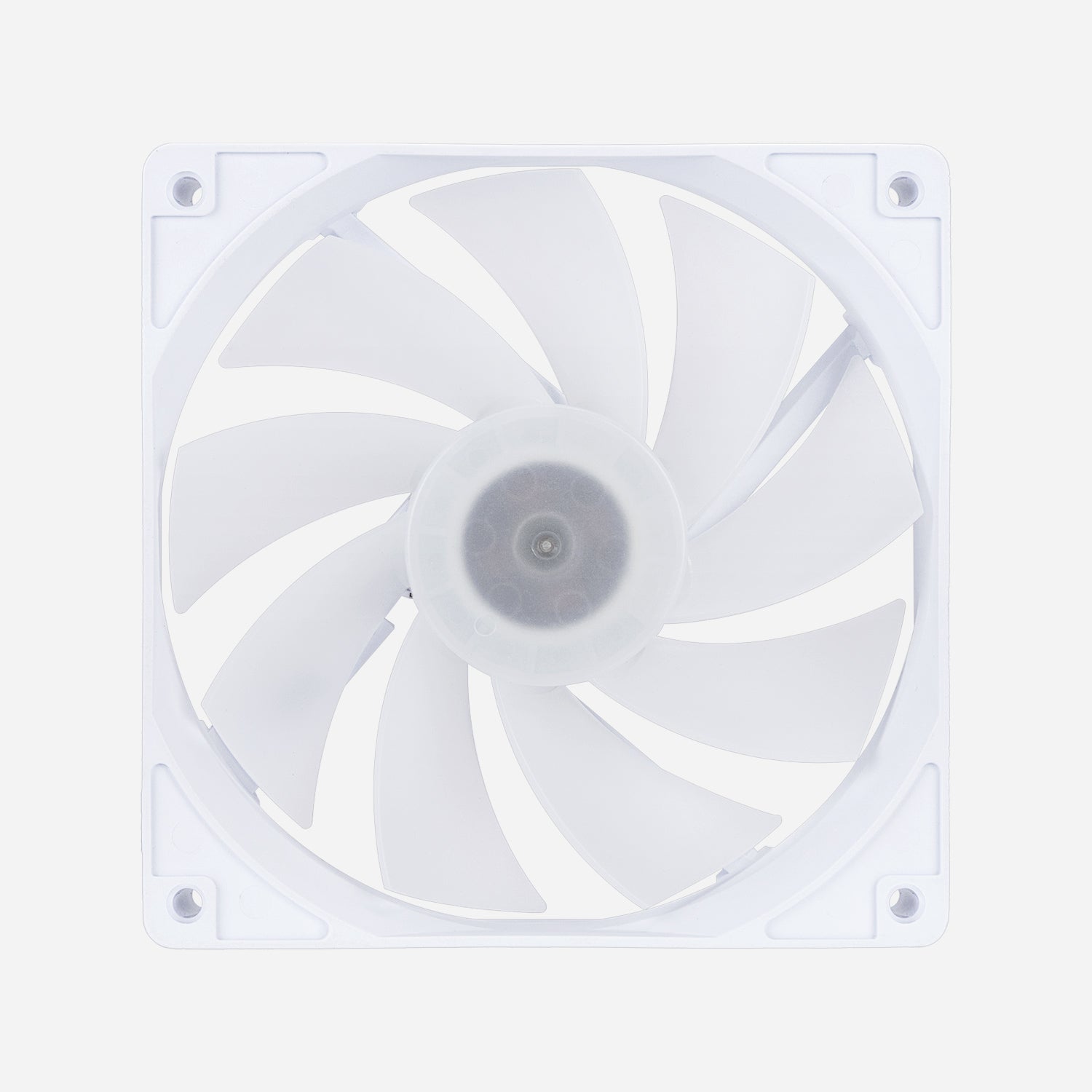

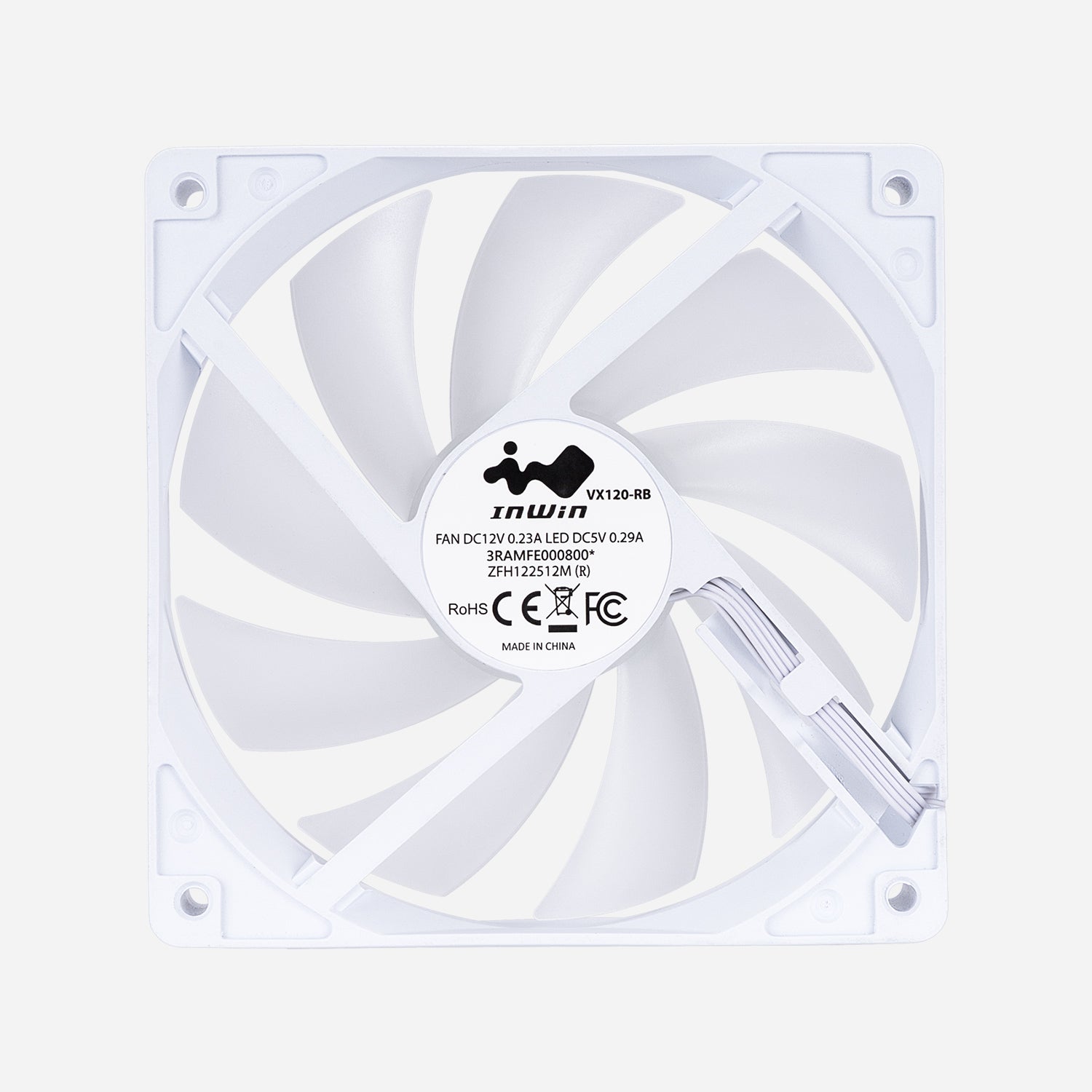

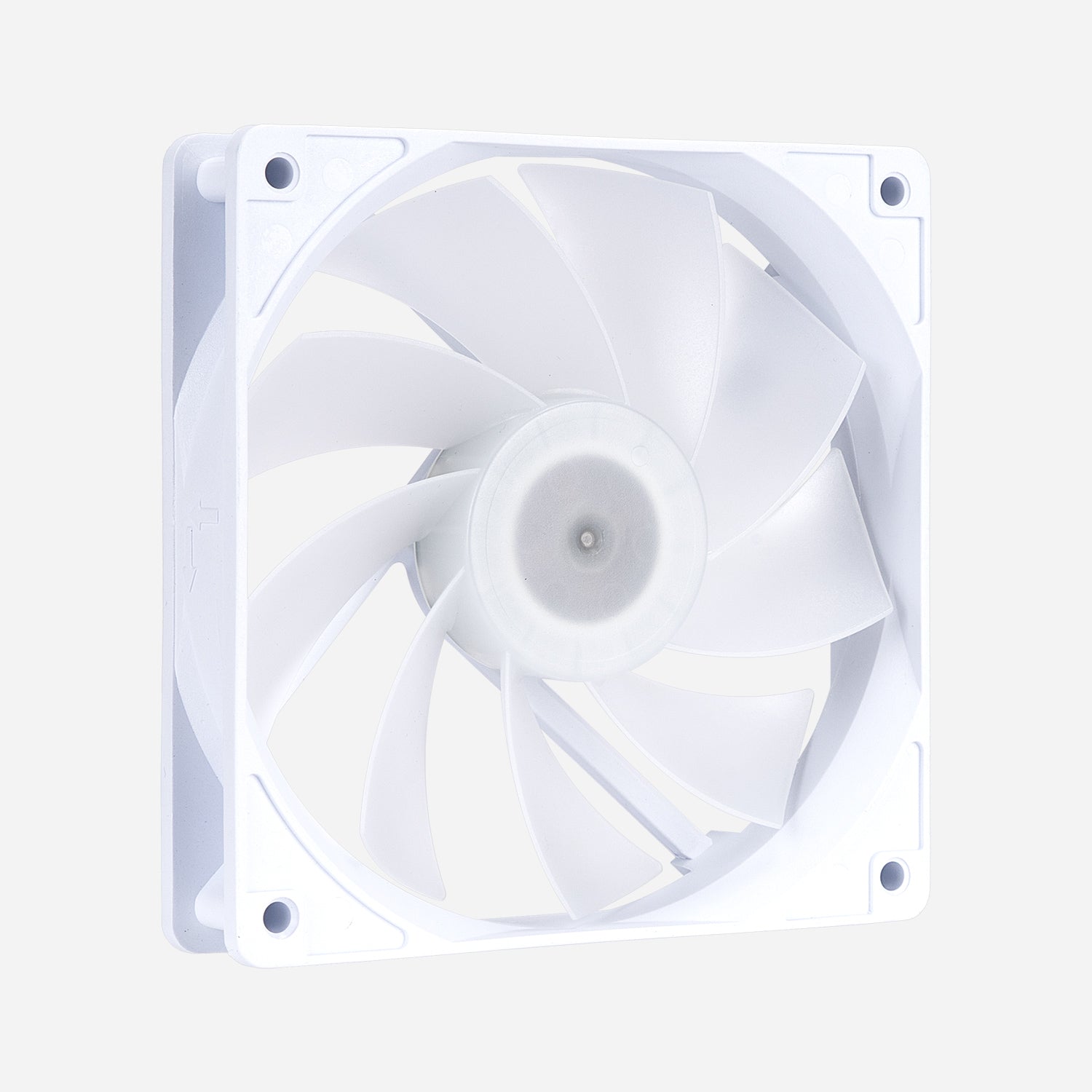

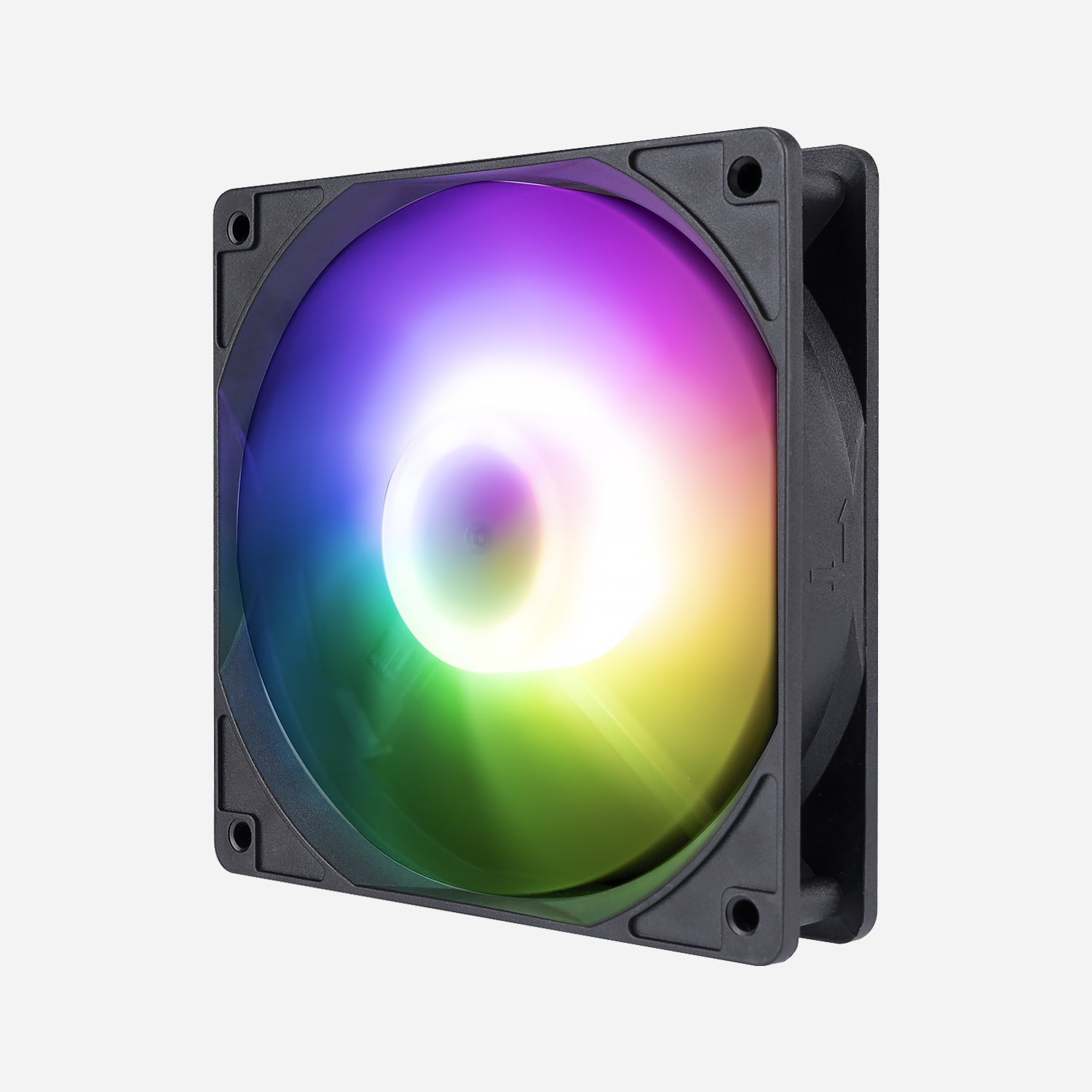

VORTEX-Reverse Blade
Specs
| Model | VORTEX | |
|---|---|---|
| Quantity Included | Single Pack | |
| Style | Reverse Blade | |
| Model Number | IW-FN-VX120-RB-1PK | IW-FN-VX120P-RB-1PK |
| Colors | Black | White |
| Fan Size | 120 x 120 x 25 mm | |
| Materials | PBT, PC | |
| Rated Voltage | DC 12V | |
| Rated Power | 2.76W | |
| Rated Current | 0.23A | |
| ARGB Rated Voltage | DC 5V | |
| ARGB Rated Power | 1.45W | |
| ARGB Rated Current | 0.29A | |
| Speed Mode | PWM 600 - 1600 RPM | |
| Air Flow | 63.89 CFM | |
| Air Pressure | 1.05 mm / H2O | |
| LED | Addressable RGB | |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | |
| Noise Level | 37.2 dB(A) | |
| Bearing Type |
Hydro Bearing |
|
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
||

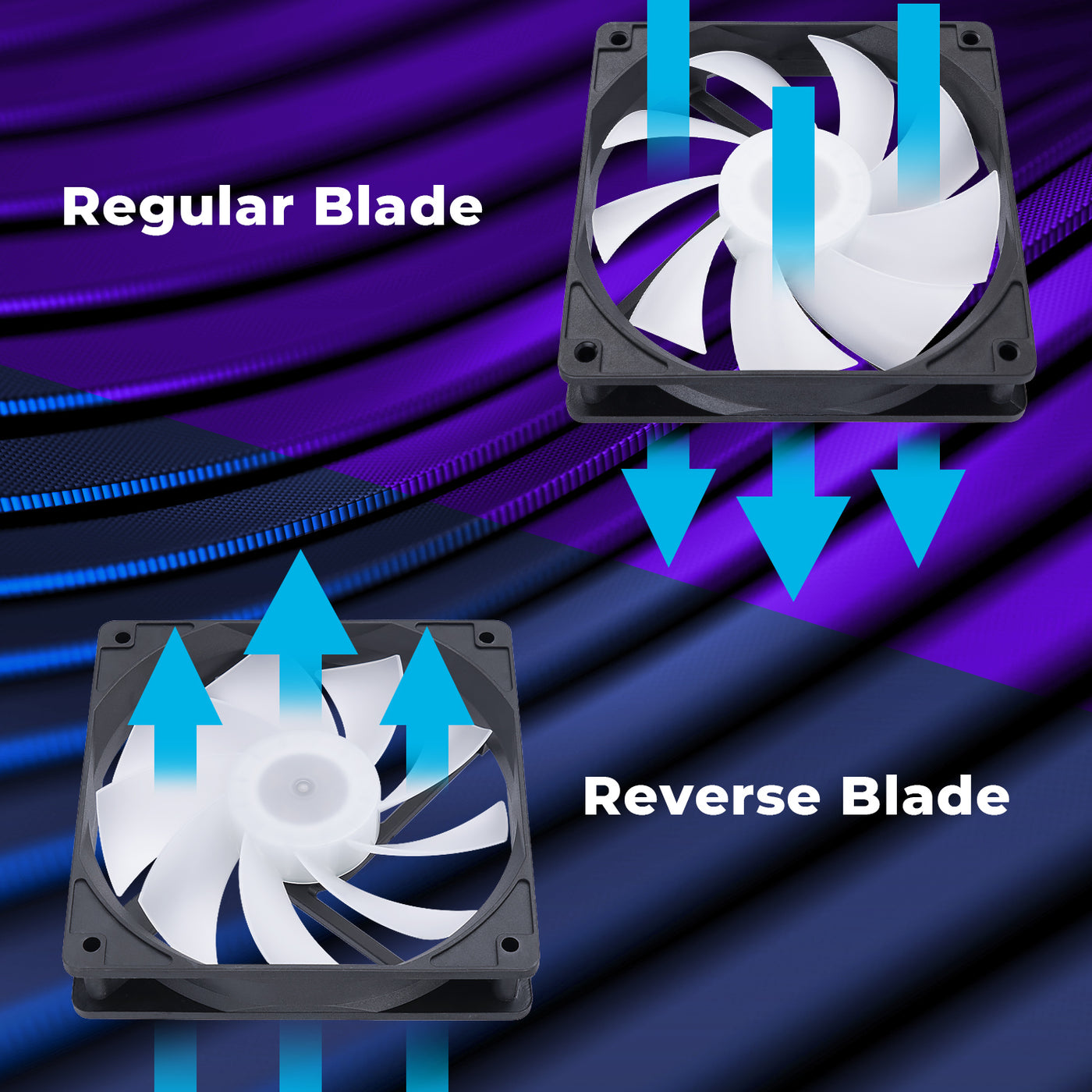

Two Blade Variants for ARGB Visibility

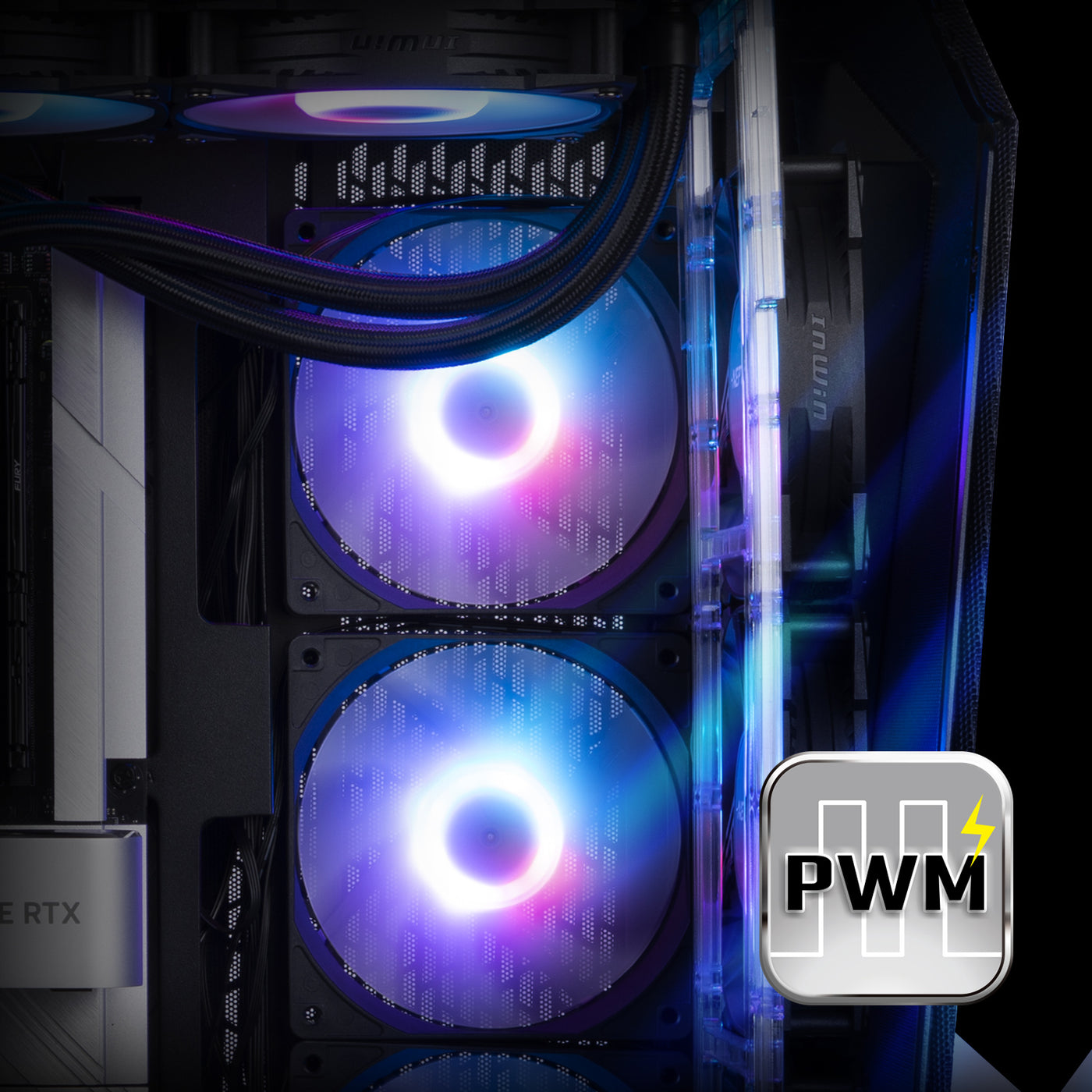

Intelligent PWM Cooling

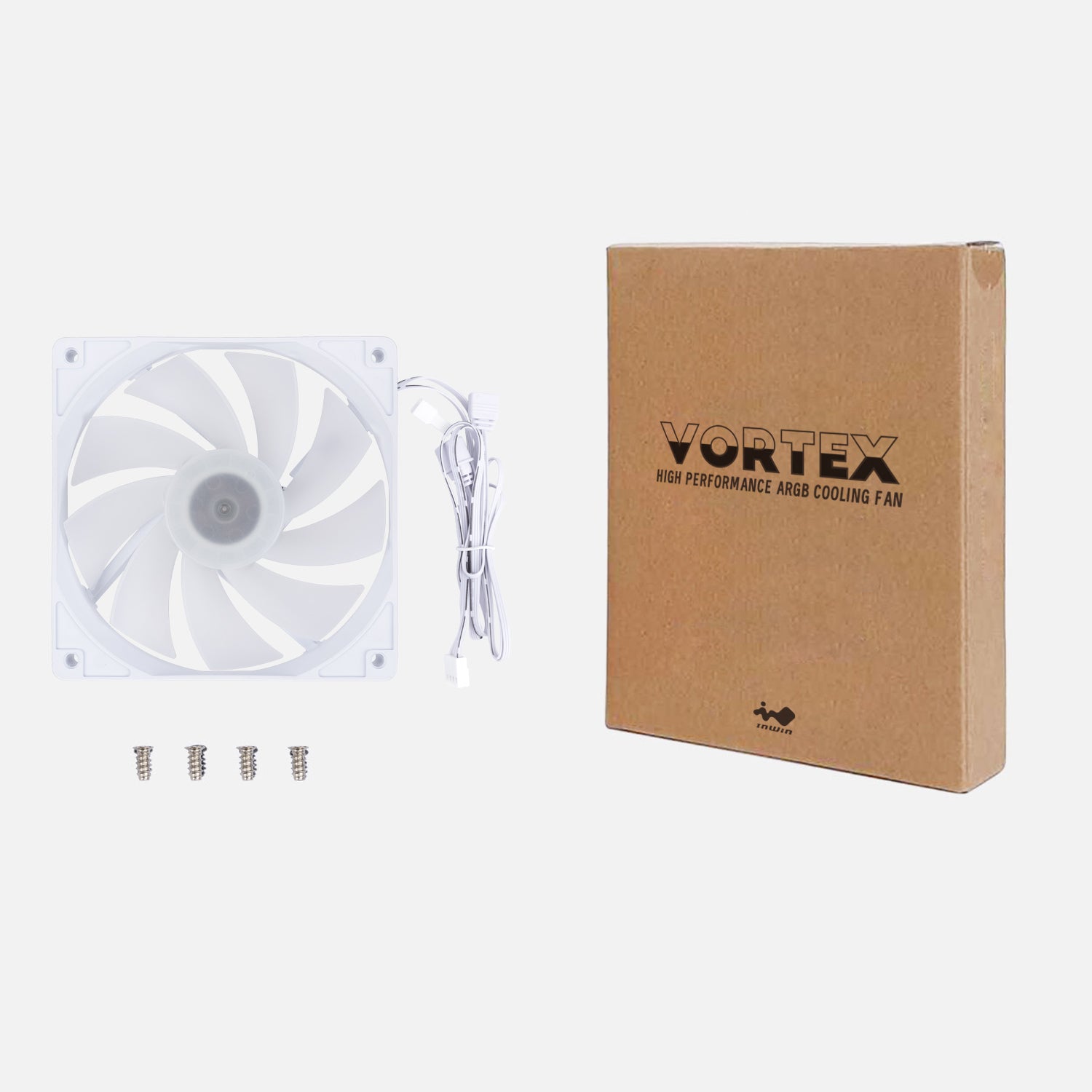

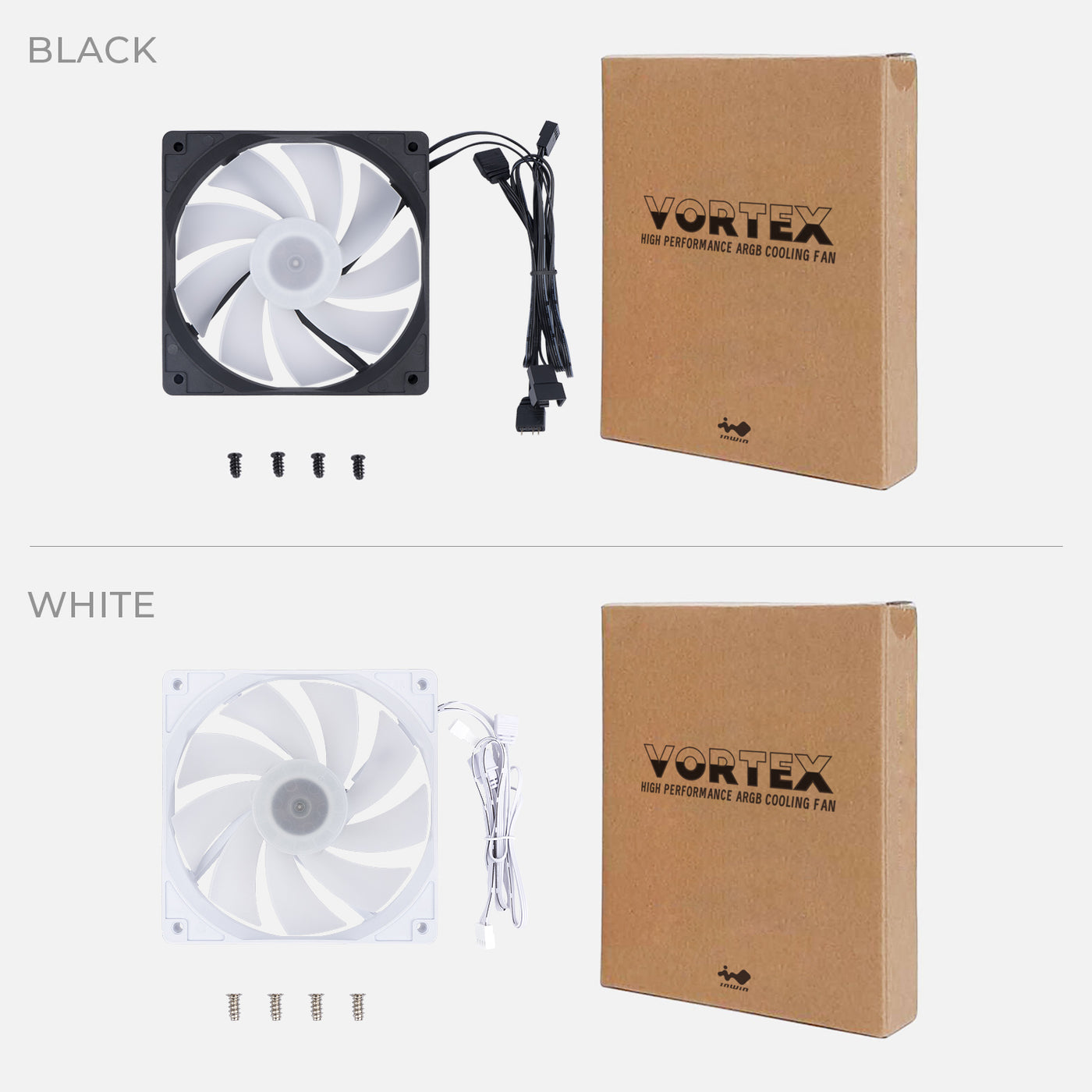

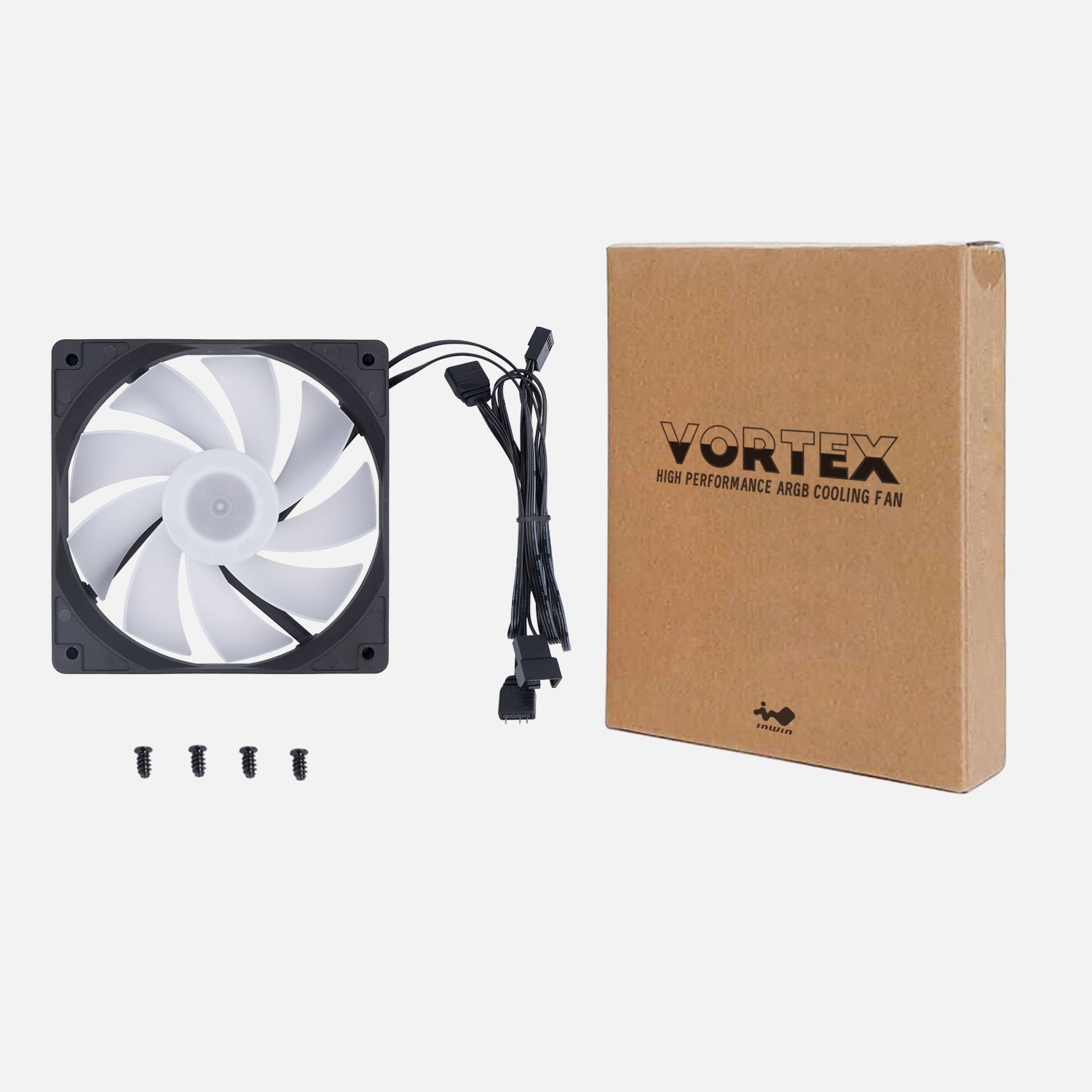

Components
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
|
Non-Modular Cable
|
Sirius Loop
|
Jupiter Series
|
Sirius Pure
|
Luna AL120
|
Mercury AM120S
|
|---|---|---|---|---|---|
|
Sirius Extreme
|
Sirius Extreme Pure
|
Neptune AN Series
|
Neptune DN Series
|
Neptune DN PRO Series
|
|
|
Modular ARGB Type 1
|
Aurora
|
EGO
|
|||
|
Modular ARGB Type 2
|
Crown Series
|
Saturn Series
|
|||
|
Type-C Modular Cable
|
Lynx Series
|
||||
|
Modular RGB
|
Polaris RGB Series
|
Polaris AluminumRGB Series
|
InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
