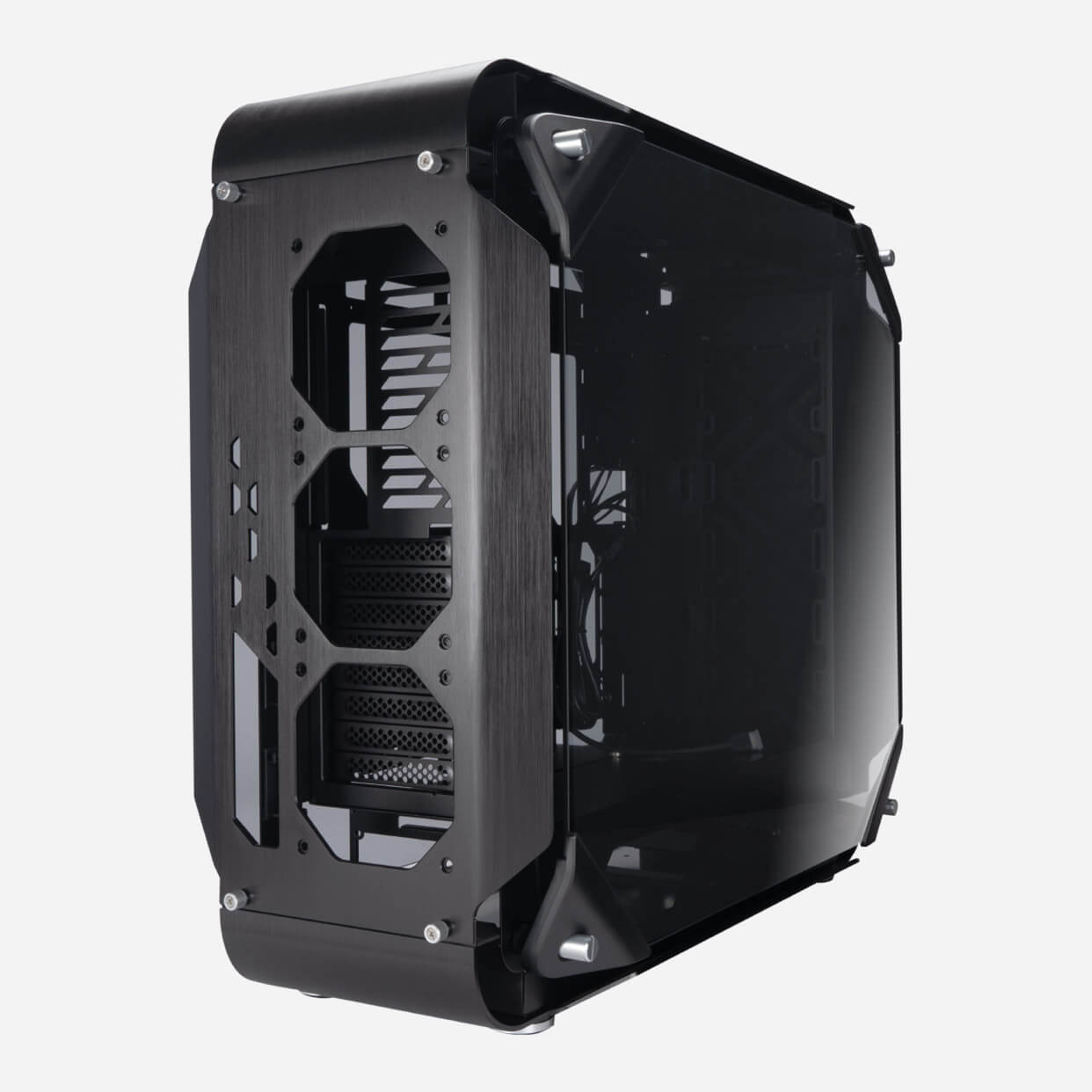

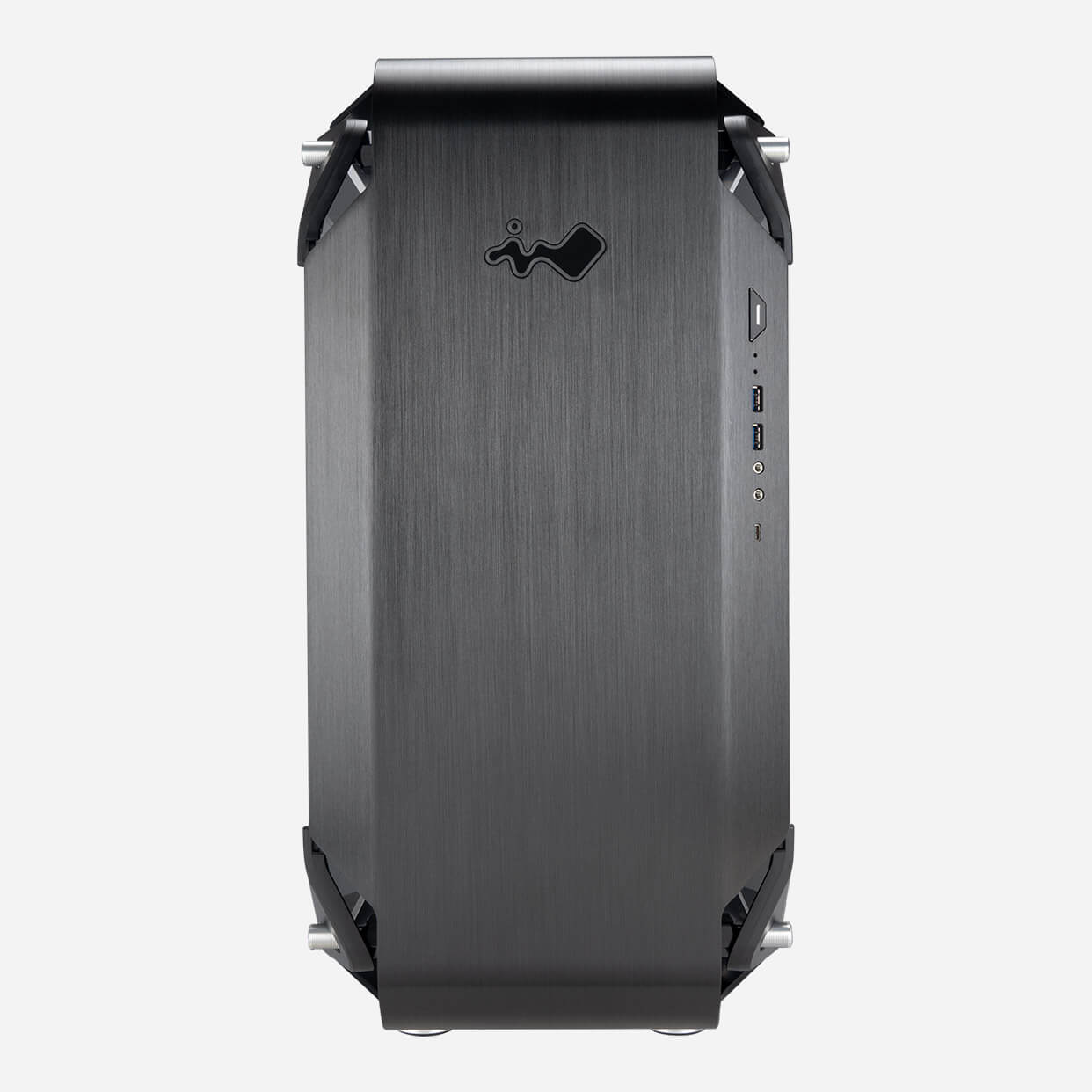

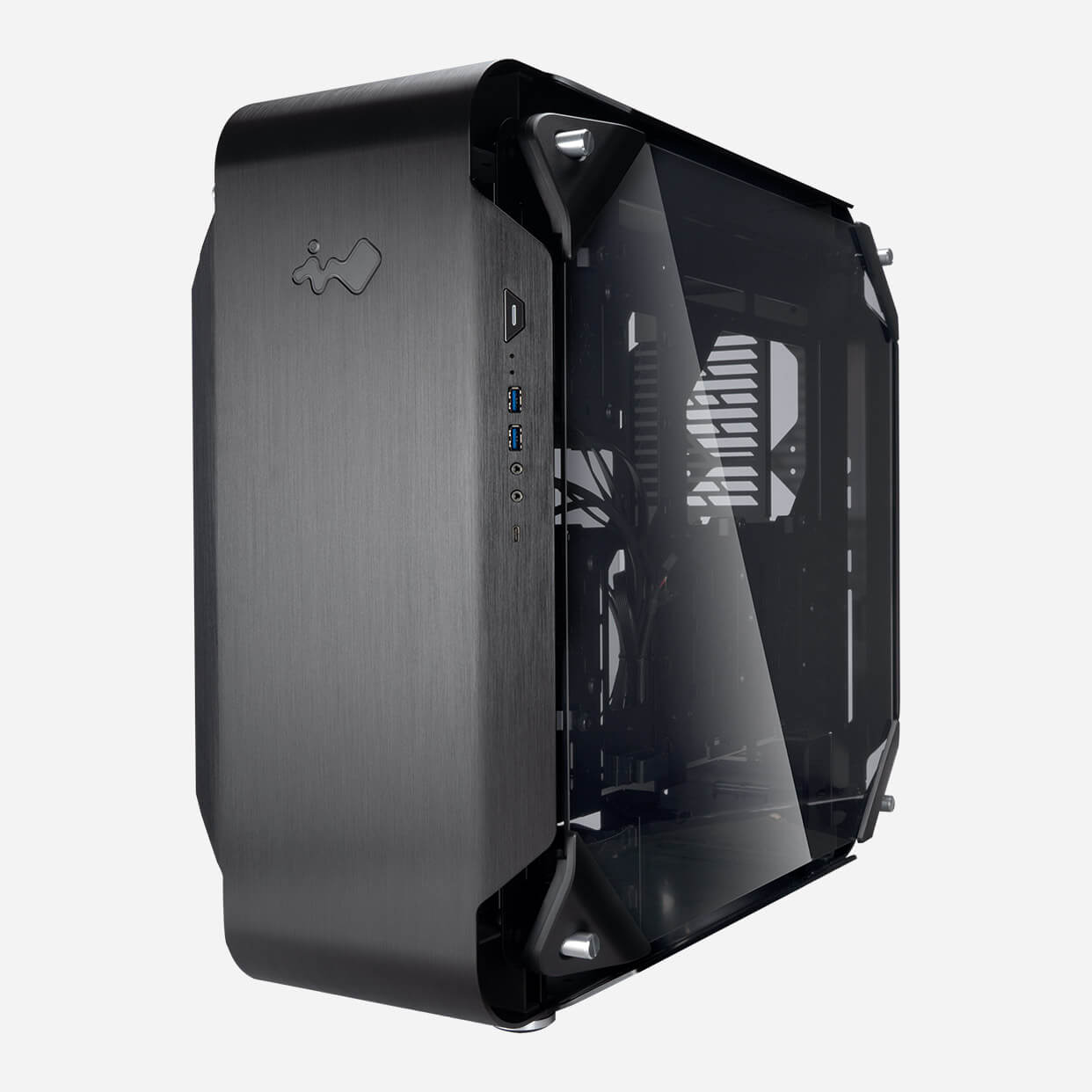

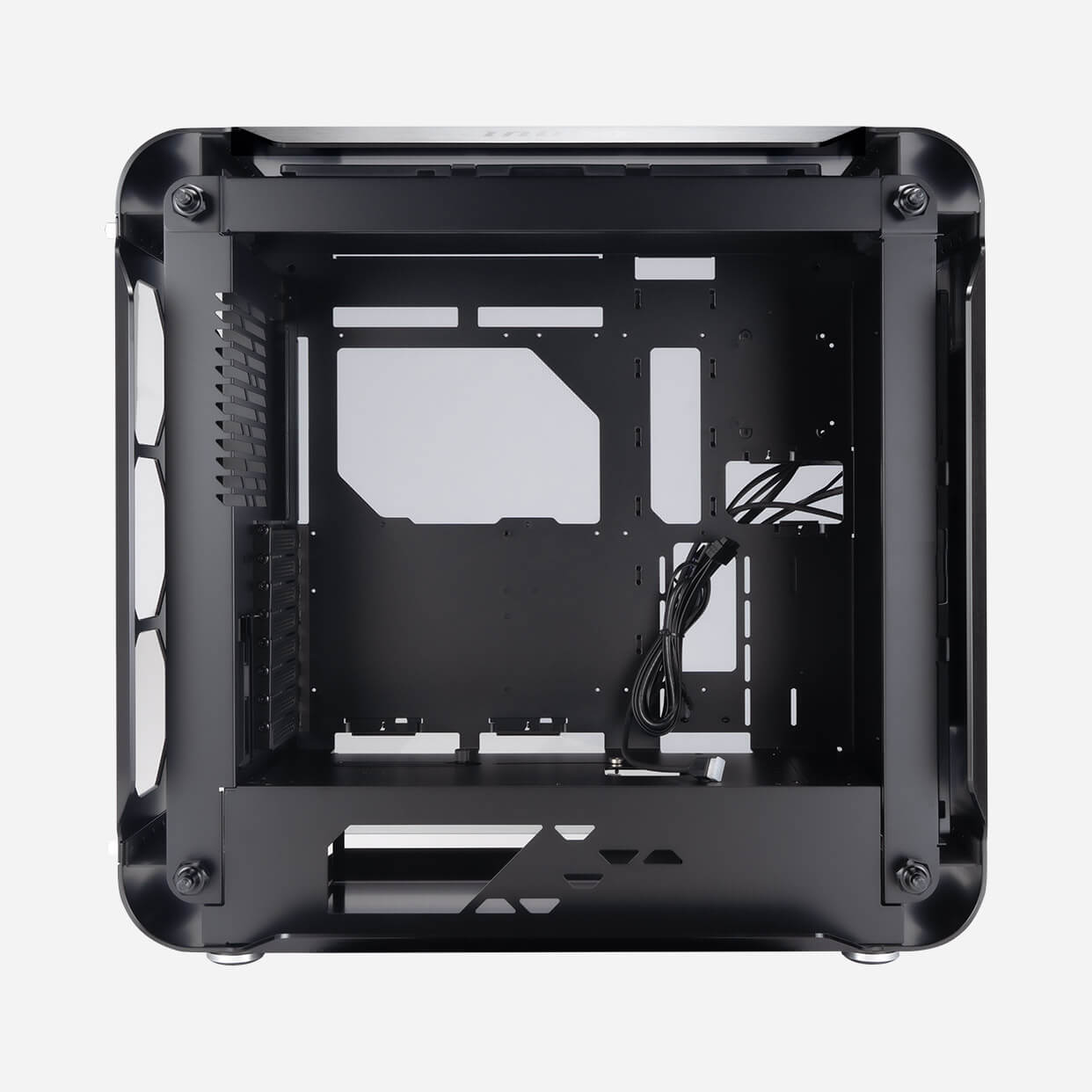

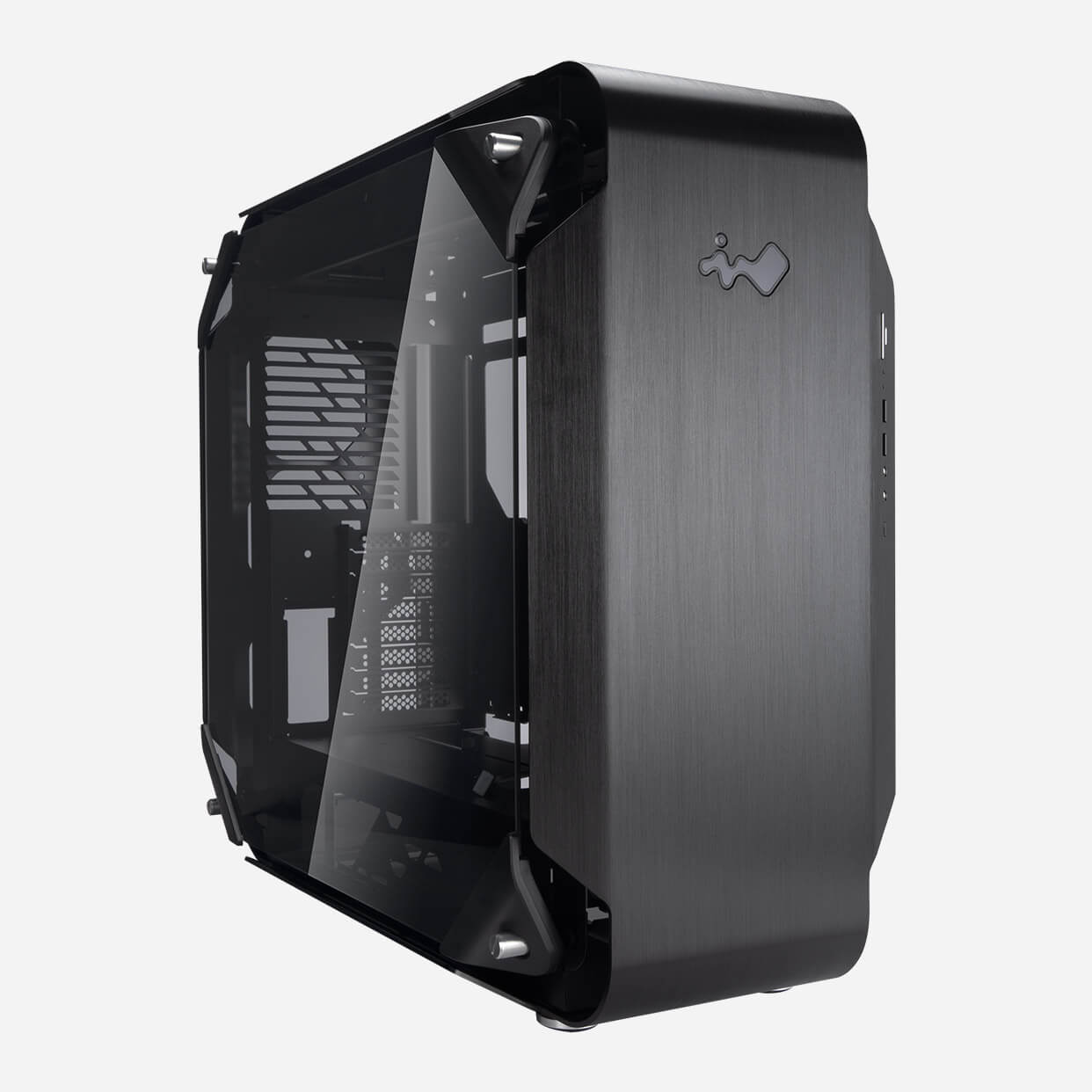

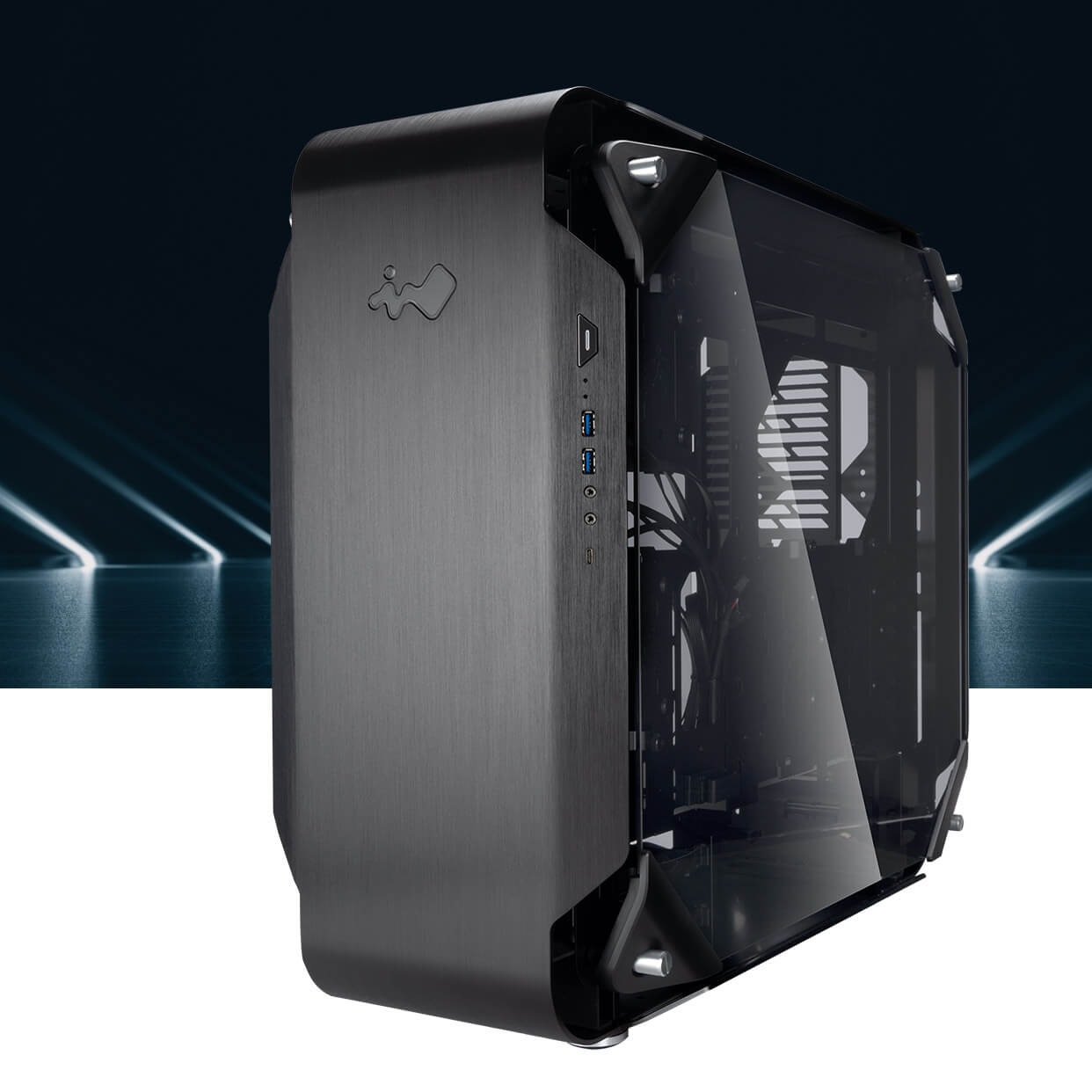

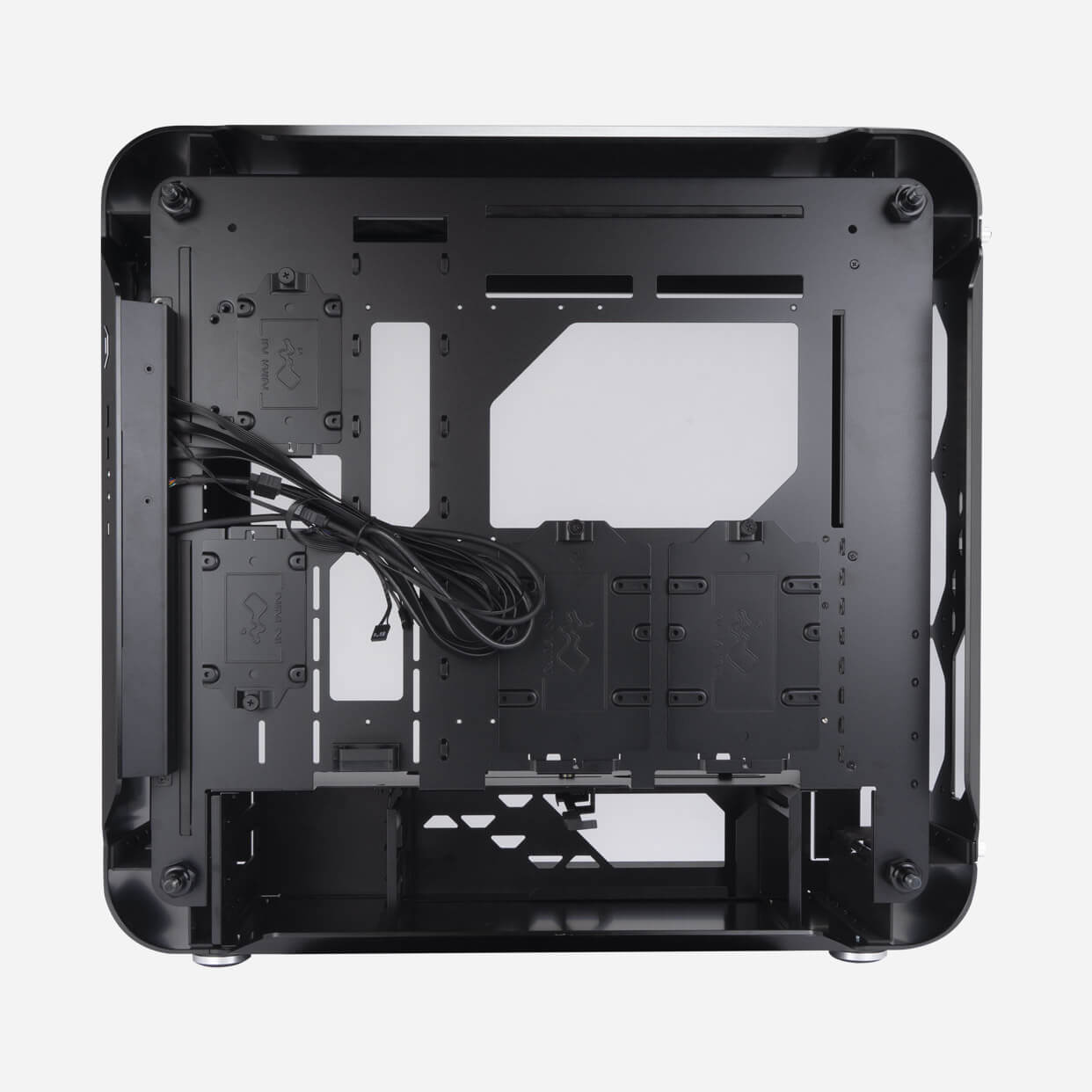

925
Extended ATX
-
Sleek Ingenuity, Designed for Quality and Aesthetics
-
Subtle ARGB Logo, Offering a Touch of Lighting for a Classy Rig
-
Dual GPU Placement
-
Highly Expandable for Superb Performance
Specs
| Model | 925 | |
|---|---|---|
| Model Number | IW-CS-925BLK | |
| Colors | Black | |
| Case Type | Full Tower | |
| Materials | Aluminium, SECC, Tempered Glass | |
| M/B Compatibility |
12”x13” E-ATX, ATX, Micro-ATX, Mini-ITX | |
| Expansion Slots | 8 x PCI-E 2 x Vertical PCI-E (Riser Card Optional, Not Included in Package) |
|
| Maximum Compatibility | VGA Card Length: 420 mm CPU Heatsink Height: 200 mm |
|
| I/O Ports | 1 x USB 3.1 Gen 2 Type-C 2 x USB3.0 HD Audio |
|
| Internal Drive Bays |
4 x 3.5" 3 x 2.5" |
|
| Thermal Solution Compatibility |
Air Cooling Fans: Front: 3 x 120 mm / 2 x 140 mm Top: 3 x 120 mm Rear: 3 x 120 mm Water Cooling Radiator: Front: 1 x 240 / 280 mm (Supports up to 360 mm radiator when the two HDD cages removed) Top: 1 x 360 mm |
|
| Power Supply Compatibility |
PSII: ATX12V Length up to 200 mm |
|
| Product Dimensions (L x W x H) |
608 x 280 x 570 mm 23.9" x 11" x 22.4" |
|
| Package Dimension (L x W x H) |
695 x 392 x 652 mm 27.3" x 15.4" x 25.6" |
|
| Net Weight | 17.8 kg, 39lb | |
| Gross Weight | 21 Kg, 46lb | |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
||
| Model | Sirius Loop ASL120 | |
|---|---|---|
| Model Number | ASL120FAN-1PK ASL120FAN-3PK |
|
| Fan Size | 120 x 120 x 25 mm | |
| Materials | PBT | |
| Rated Voltage | DC 12V | |
| Rated Power | 1.2W | |
| Rated Current | 0.1A | |
| ADD RGB Rated Voltage | DC 5V | |
| ADD RGB Rated Power | 1.25W | |
| ADD RGB Rated Current | 0.25A | |
| Speed Mode | PWM 500-1800 +/- 10% RPM | |
| Air Flow | 50 CFM | |
| Air Pressure | 1.67 mm / H2O | |
| LED | Addressable RGB | |
| Connector to M/B | 4-Pin (12V), 3-Pin (ARGB, 5V) | |
| Noise Level | 27 dB(A) (Max.) | |
| Bearing Type | Long Lifespan Sleeve Bearing | |
| Net Weight | 200g 600 g |
|
| Package Dimensions (L x W x H) | 185 x 125 x 30mm 7.28 x 4.92 x 1.18" 125 x 80 x 185 mm |
|
| Warranty | 2 Years | |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
||
Sleek, Rugged Mini tank
All Those Curves!
Lighten Up
Dual RGB Loops
Stay Glassy PCMR
Specialized Thumbscrews
Dual GPU Placement
Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
|
Non-Modular Cable
|
Sirius Loop
|
Jupiter Series
|
Sirius Pure
|
Luna AL120
|
Mercury AM120S
|
|---|---|---|---|---|---|
|
Sirius Extreme
|
Sirius Extreme Pure
|
Neptune AN Series
|
Neptune DN Series
|
Neptune DN PRO Series
|
|
|
Modular ARGB Type 1
|
Aurora
|
EGO
|
|||
|
Modular ARGB Type 2
|
Crown Series
|
Saturn Series
|
|||
|
Type-C Modular Cable
|
Lynx Series
|
||||
|
Modular RGB
|
Polaris RGB Series
|
Polaris AluminumRGB Series
|
InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
