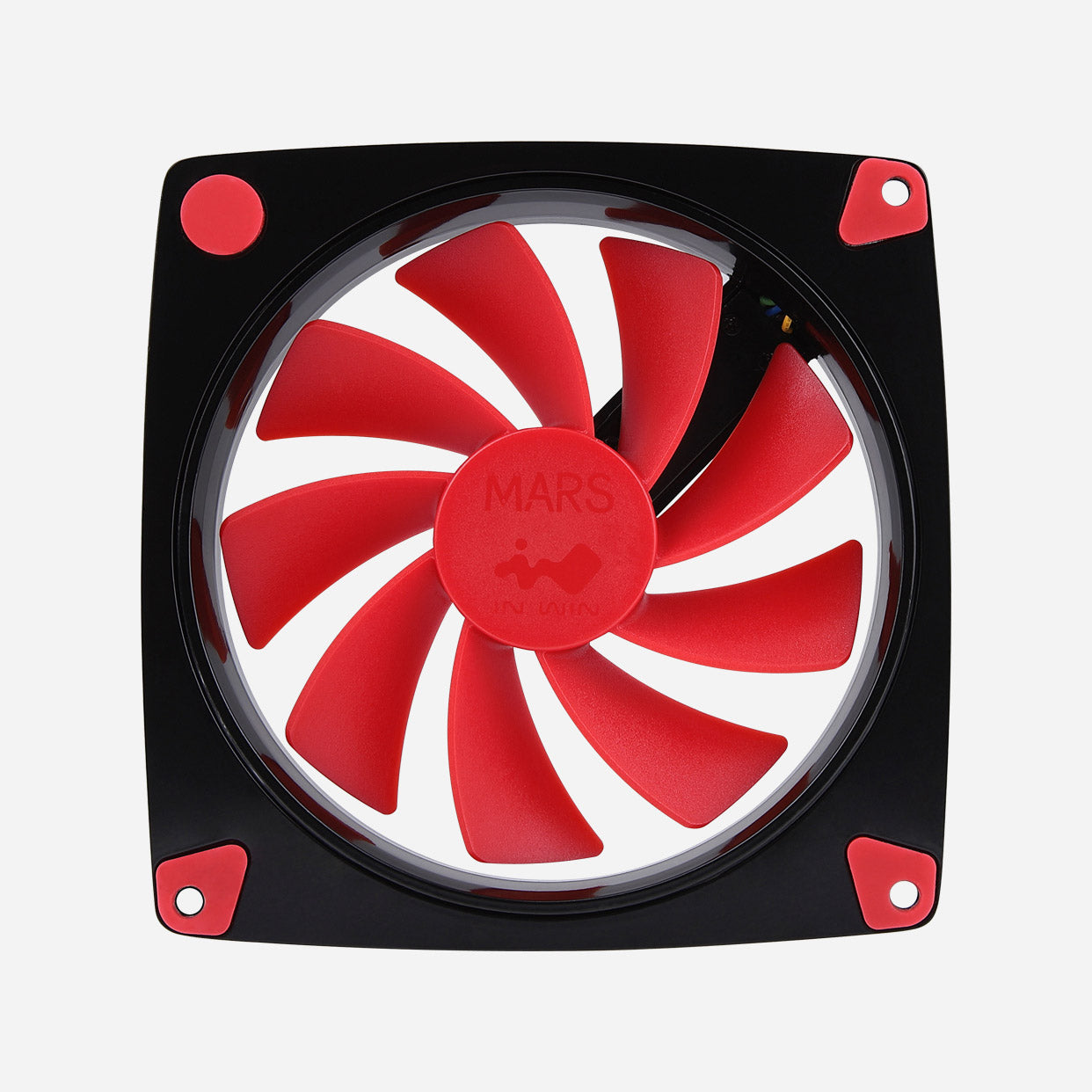

MARS
Specs
Model | MARS | |
---|---|---|
Colors | Black/Red | |
Model Number | MARSFAN-1PK-RED | |
Fan Size | 120 x 120 x 25 mm | |
Materials | Aluminium, PC | |
Starting Voltage | 5V | |
Rated Voltage | DC 12V | |
Rated Power | 0.96W | |
Rated Current | 0.08A | |
Speed Mode | 600 - 1400 +/- 10% RPM | |
Air Flow | 38.73 CFM | |
Air Pressure | 0.69 mm / H2O | |
Connector (Fan to Fan) | 4-Pin Modular | |
Noise Level | 25 dB(A) | |
Bearing Type | Double Ball Bearing | |
Net Weight | 220 g | |
Gross Weight | 345 g | |
Package Dimension (L x W x H) |
139 x 29 x 183.5 mm | |
Warranty | 5 years | |
* InWin's products comply with RoHS regulation. * Specifications may vary based on different regions |

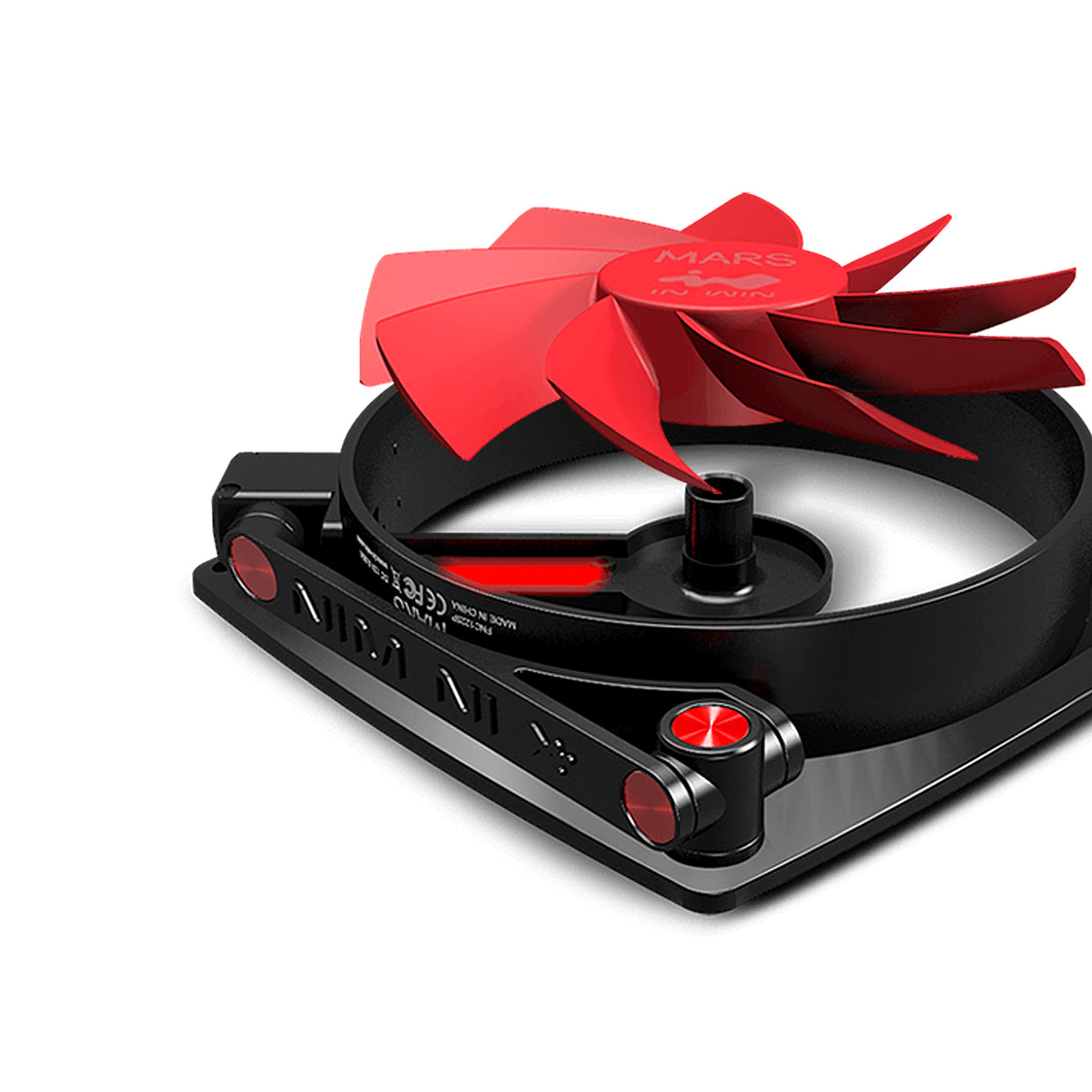

Innovative Transformer Design

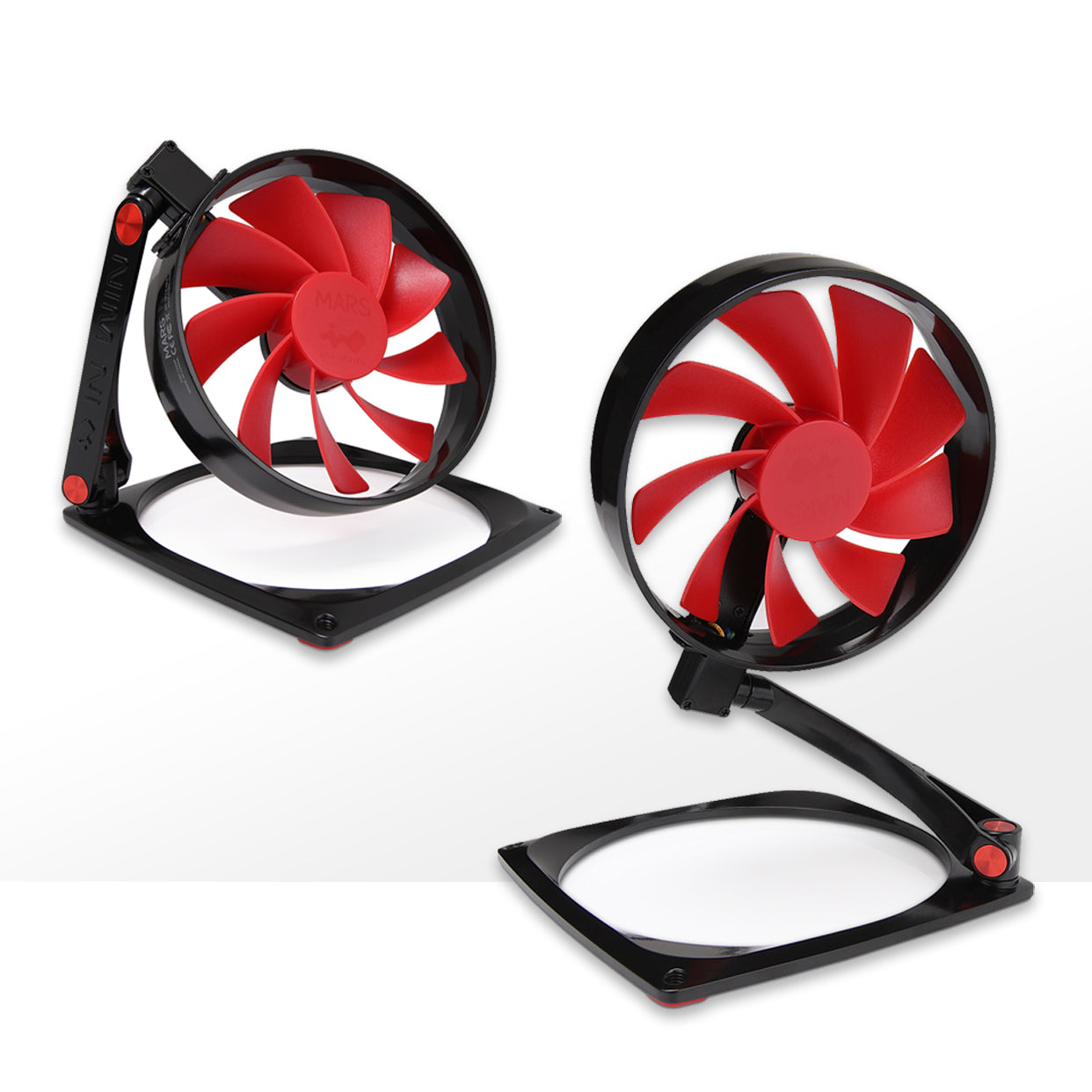

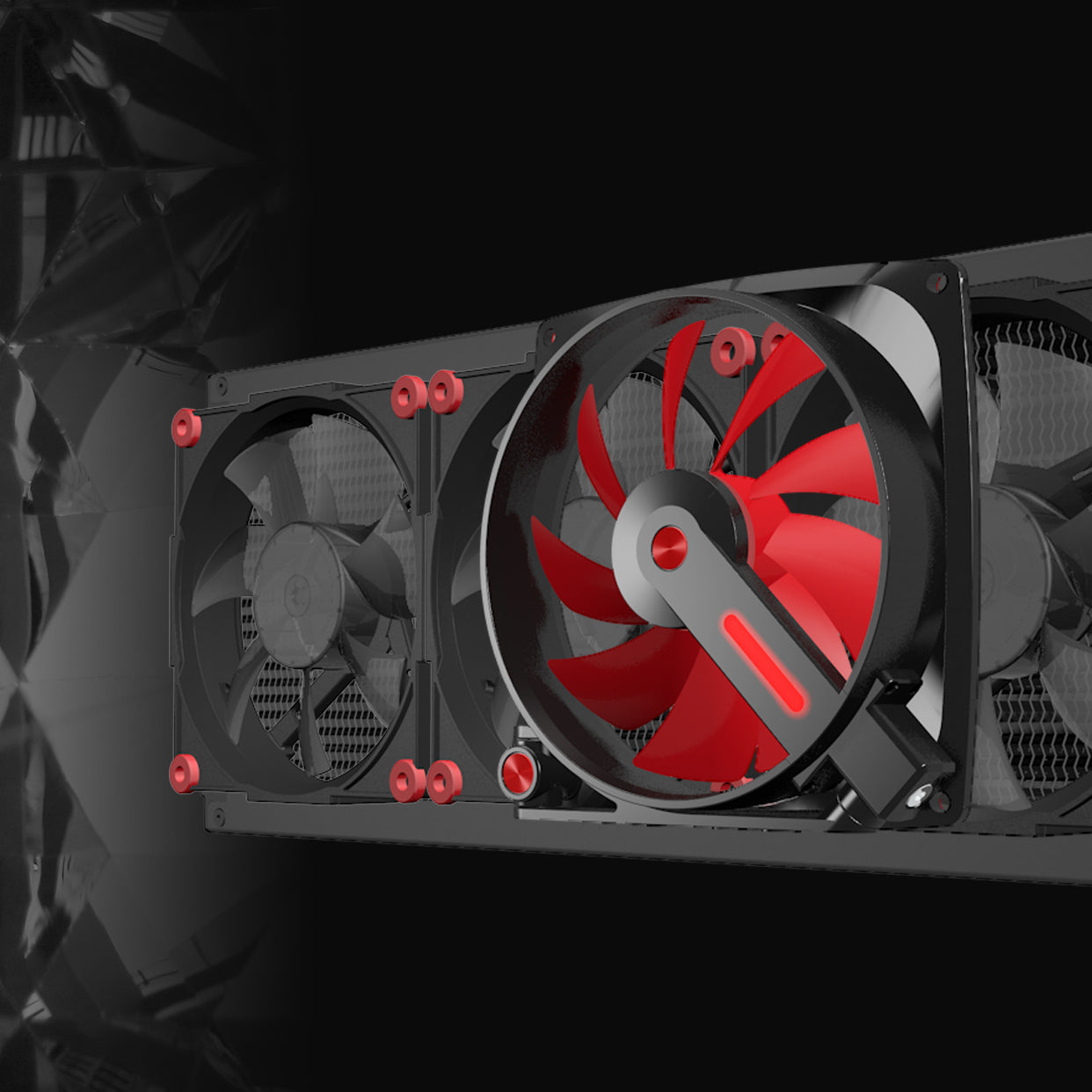

Stacked Cooling

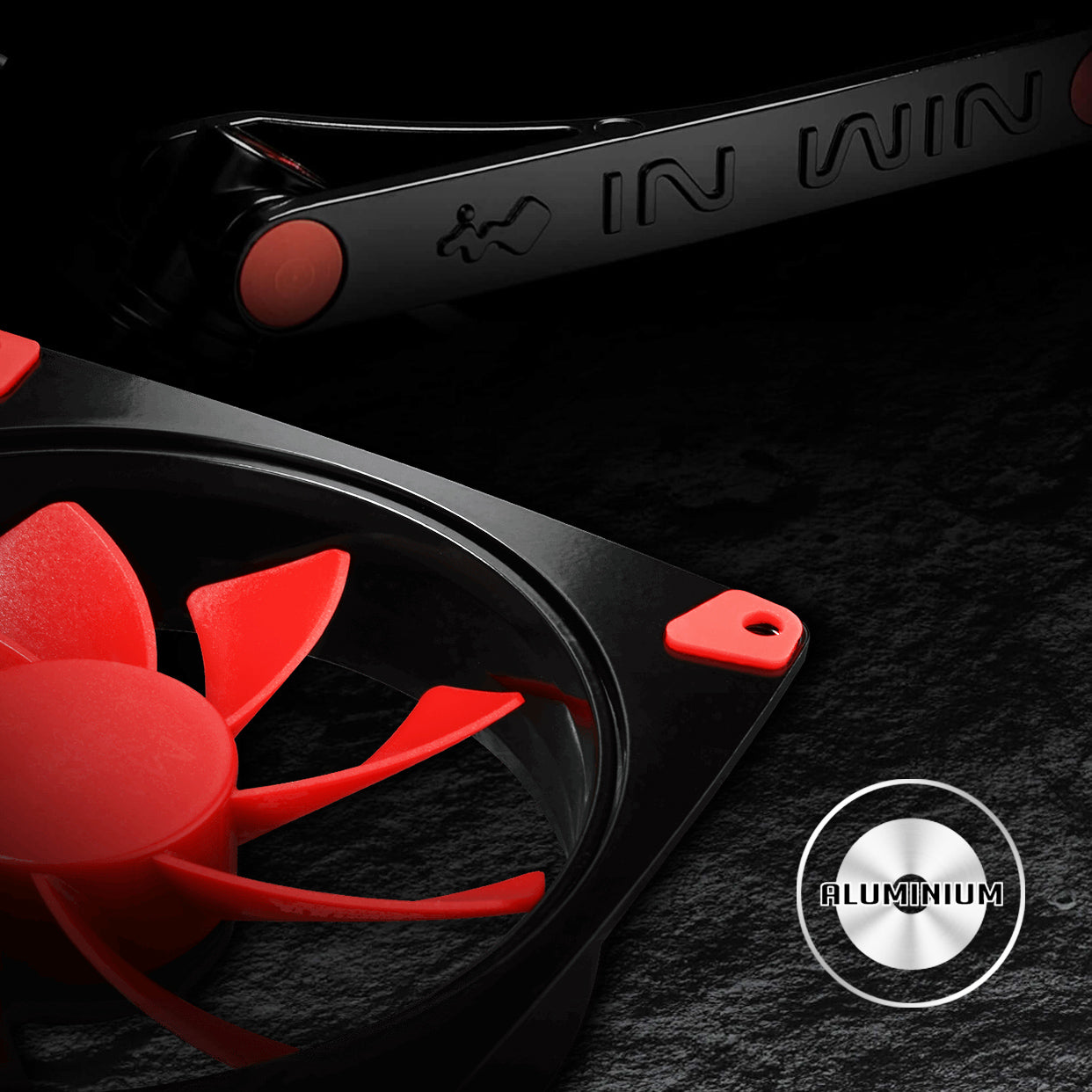

Premium Quality

Double Ball Bearing Case Fan

Modular Connector

Be Cool!

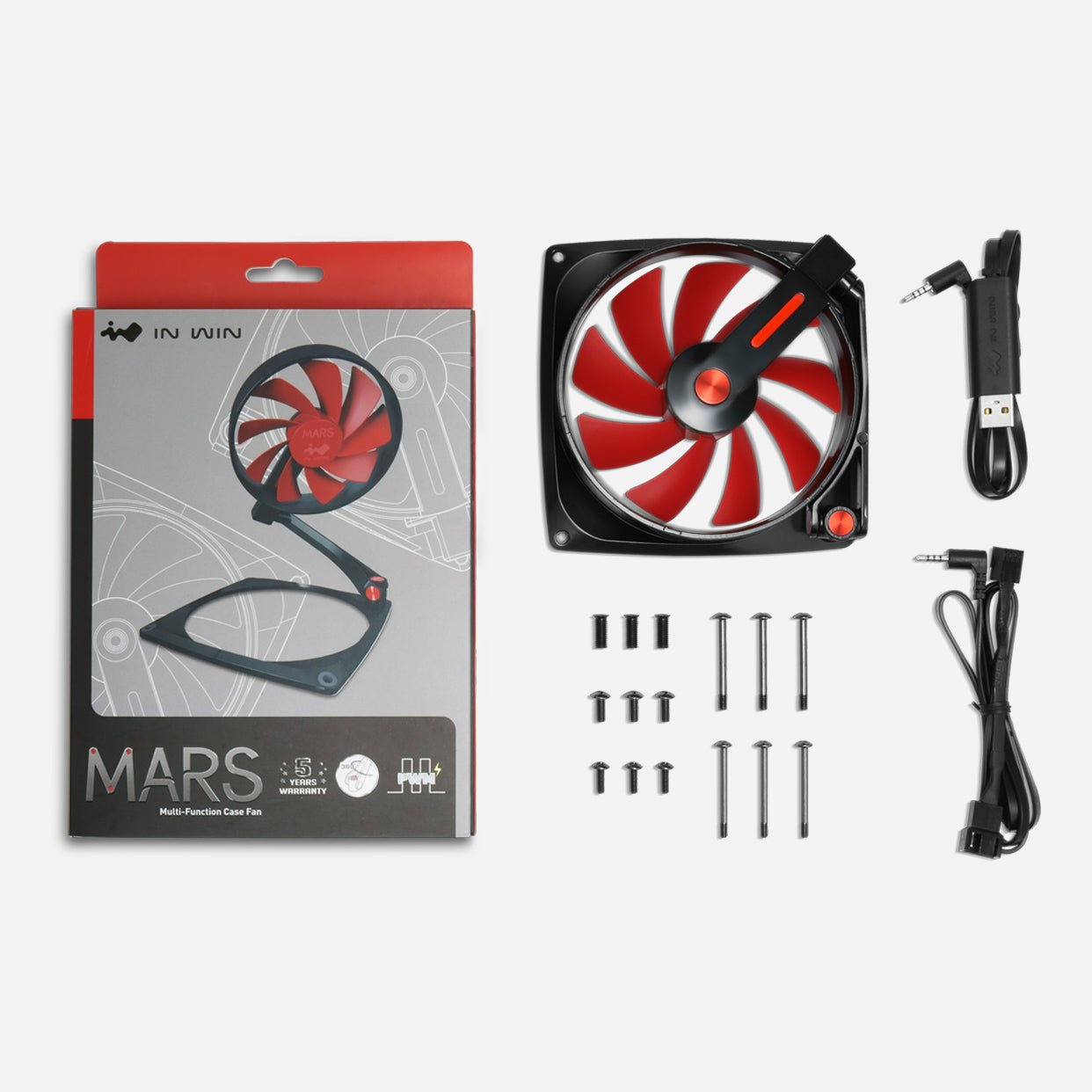

Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
Non-Modular Cable
4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)

Sirius Loop

Jupiter Series

Sirius Pure

Luna AL120

Sirius Extreme

Sirius Extreme Pure

Mercury AM120S

Modular ARGB Type 1
6-Pin Modular (PWM + ARGB)

Aurora

EGO

Modular ARGB Type 2
6-Pin Modular (PWM + ARGB)

Crown Series

Saturn Series

Modular RGB
8-Pin Modular (PWM + RGB)

Polaris RGB Series

Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
