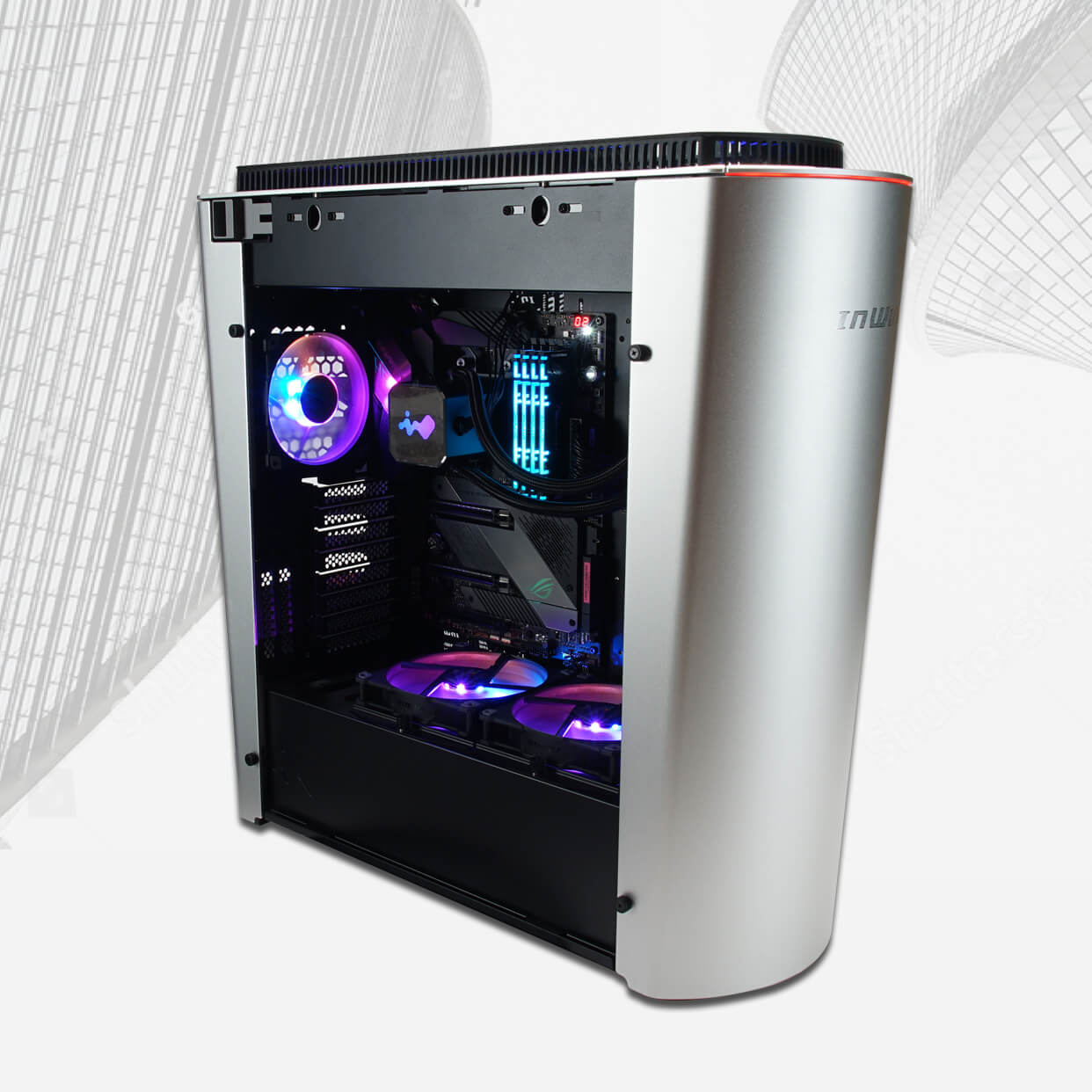

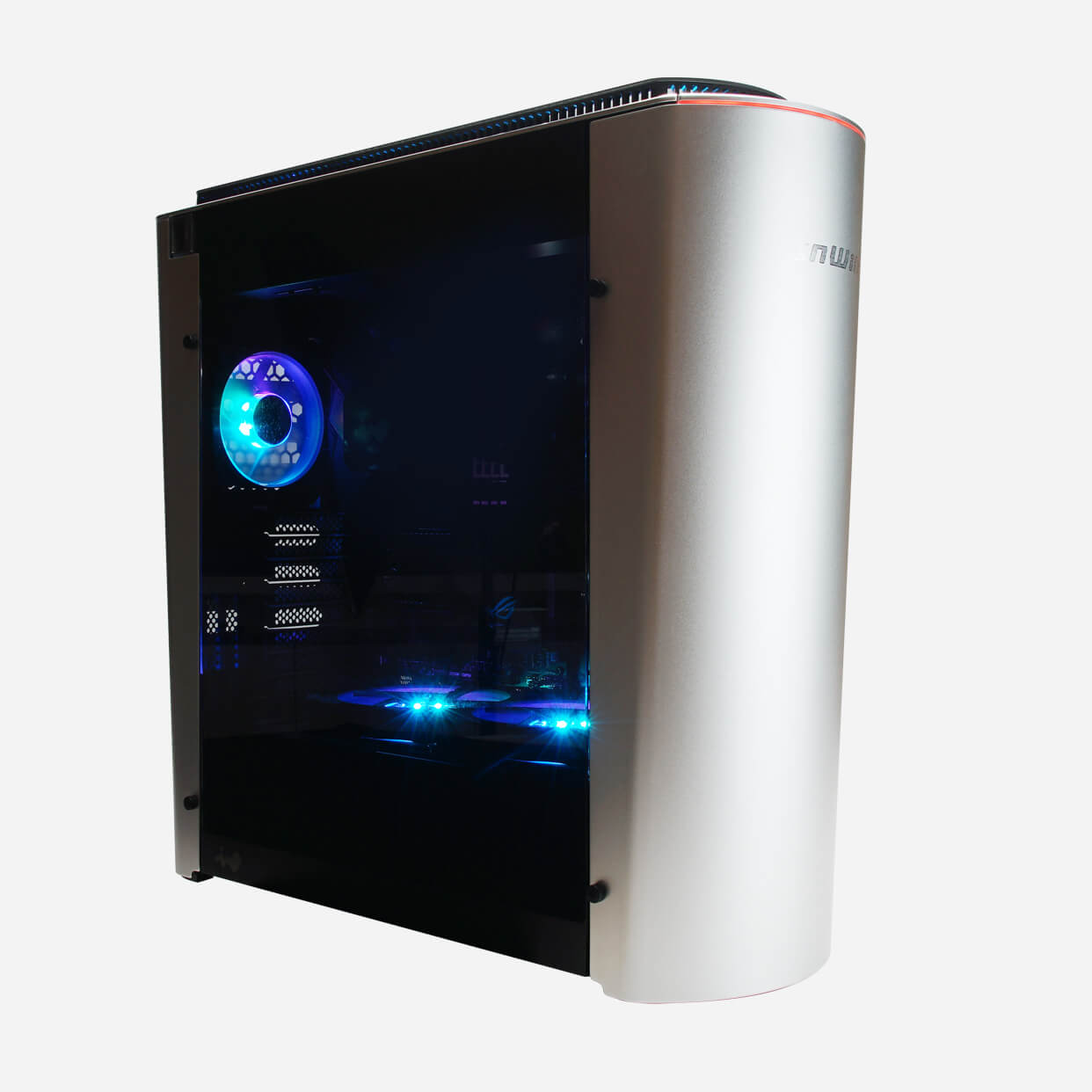

915 Deluxe Edition
Extended ATX
Power Supply
-

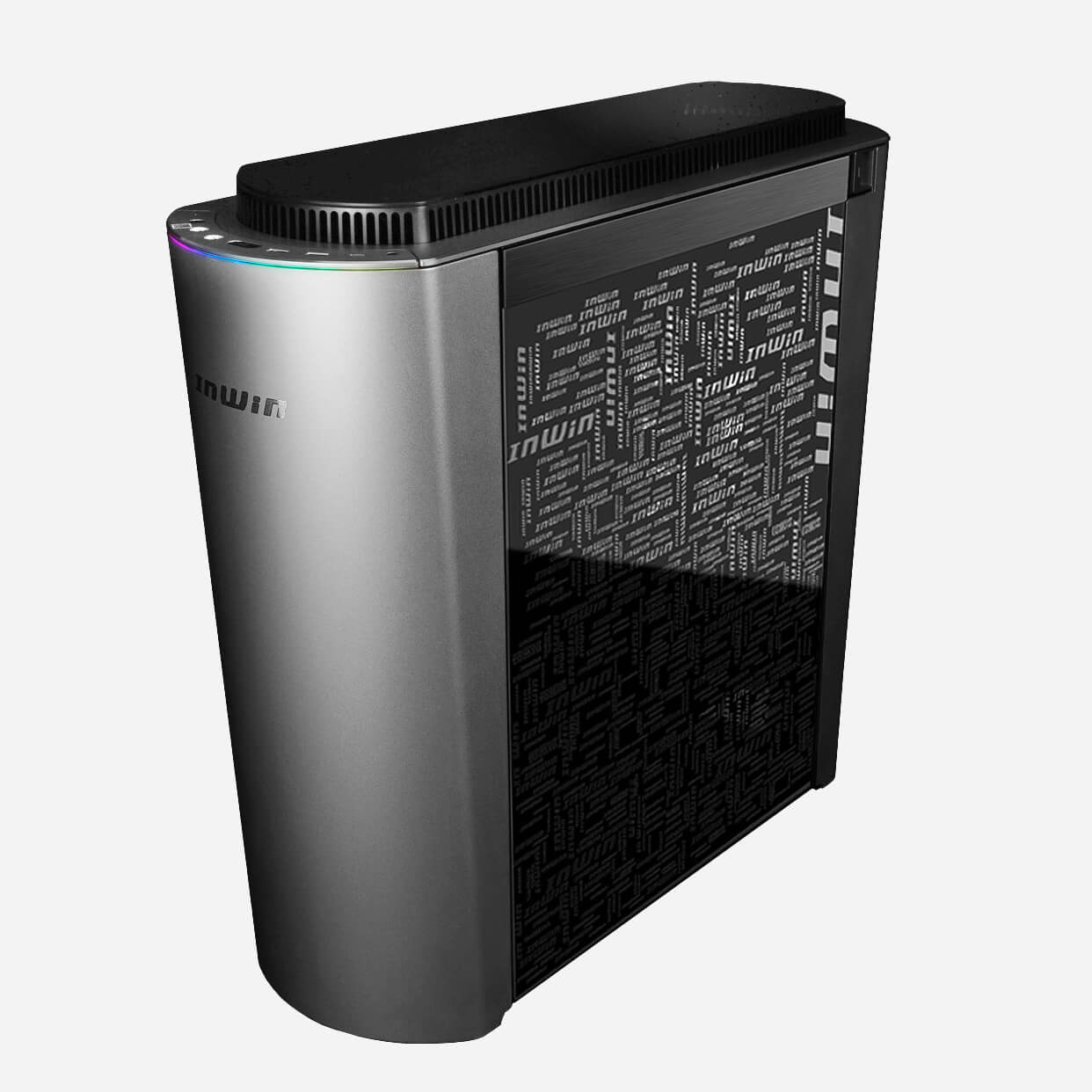

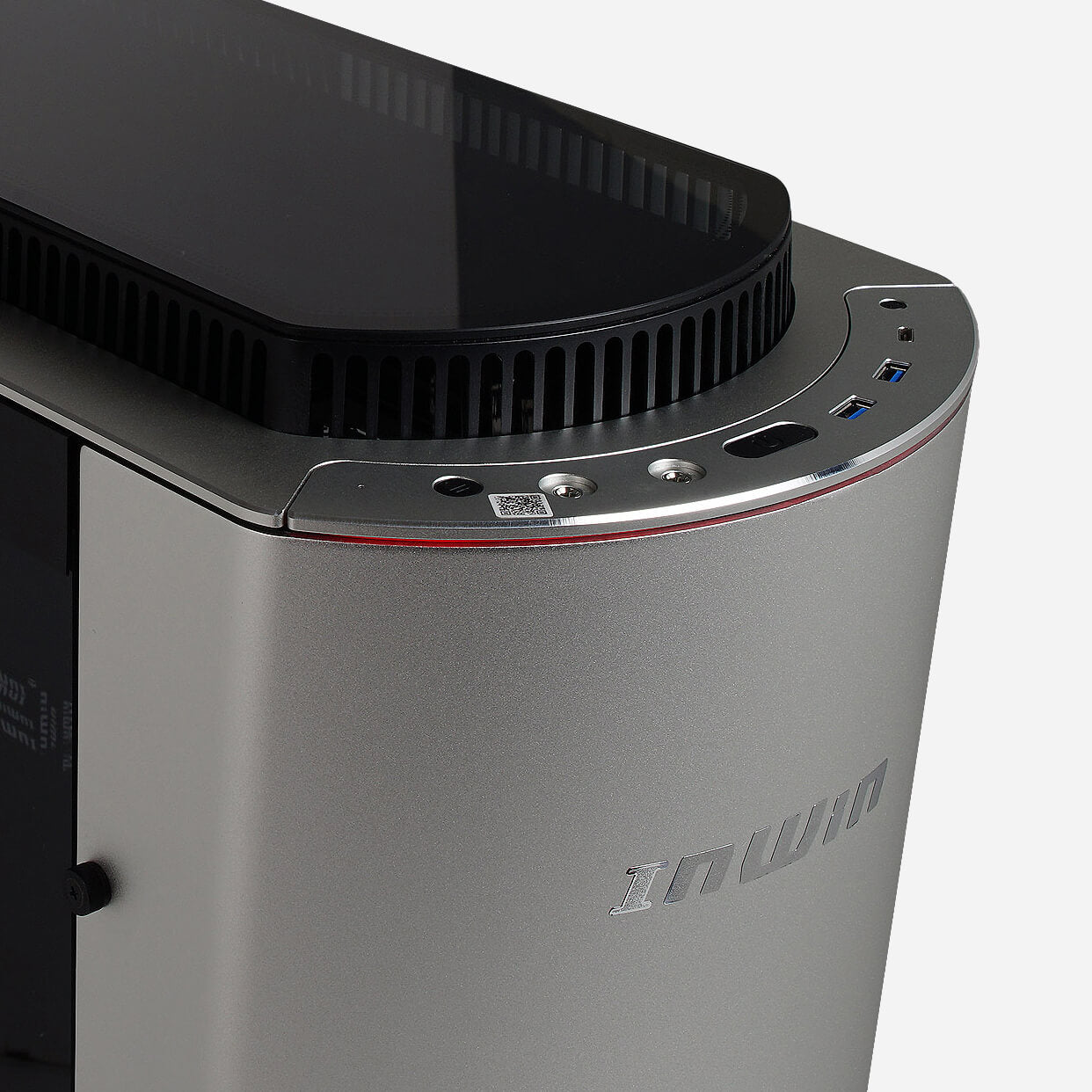

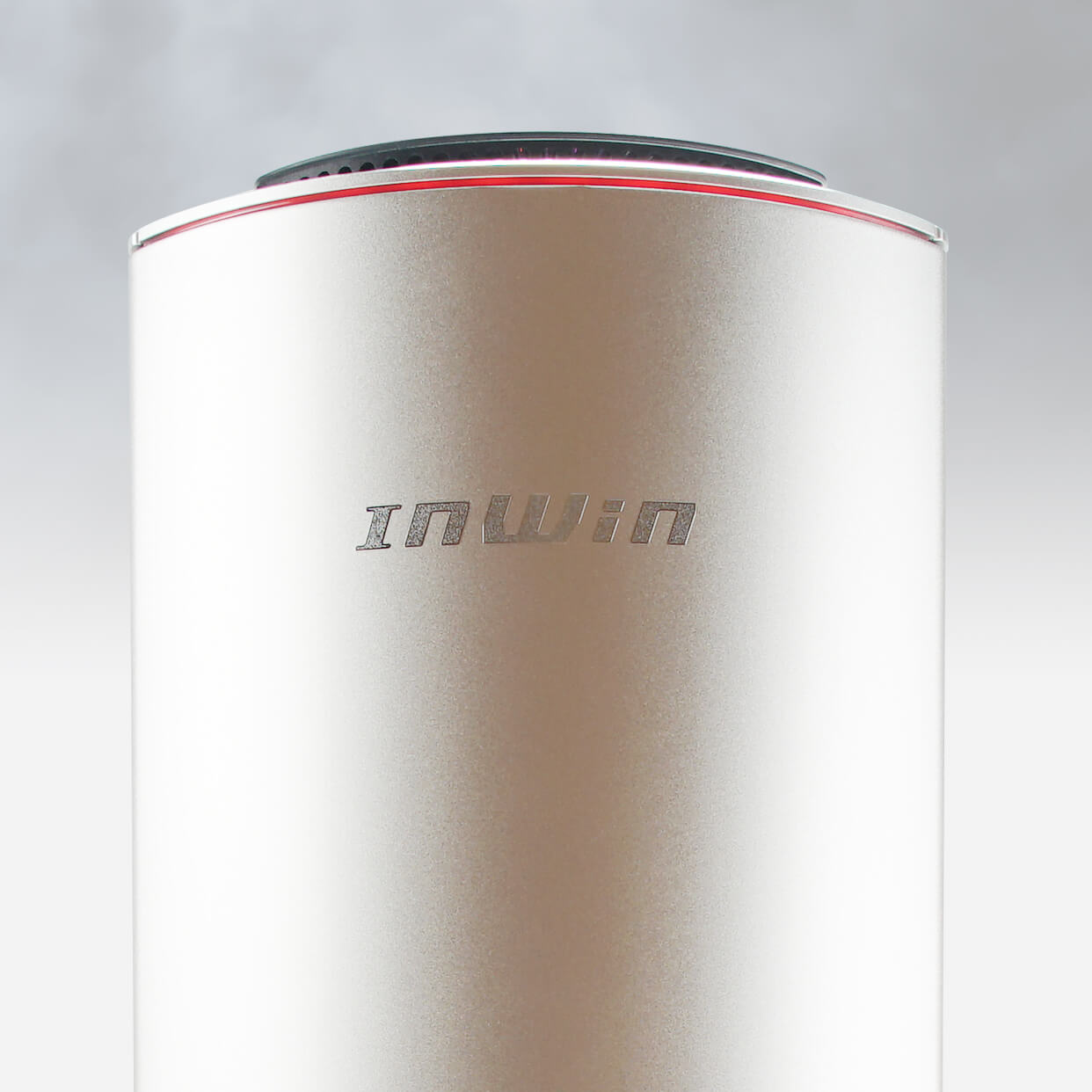

Curved Aluminium Structure with Automatic Elevating Ventilation Cover
-
Illuminated Addressable RGB LED Control!
-

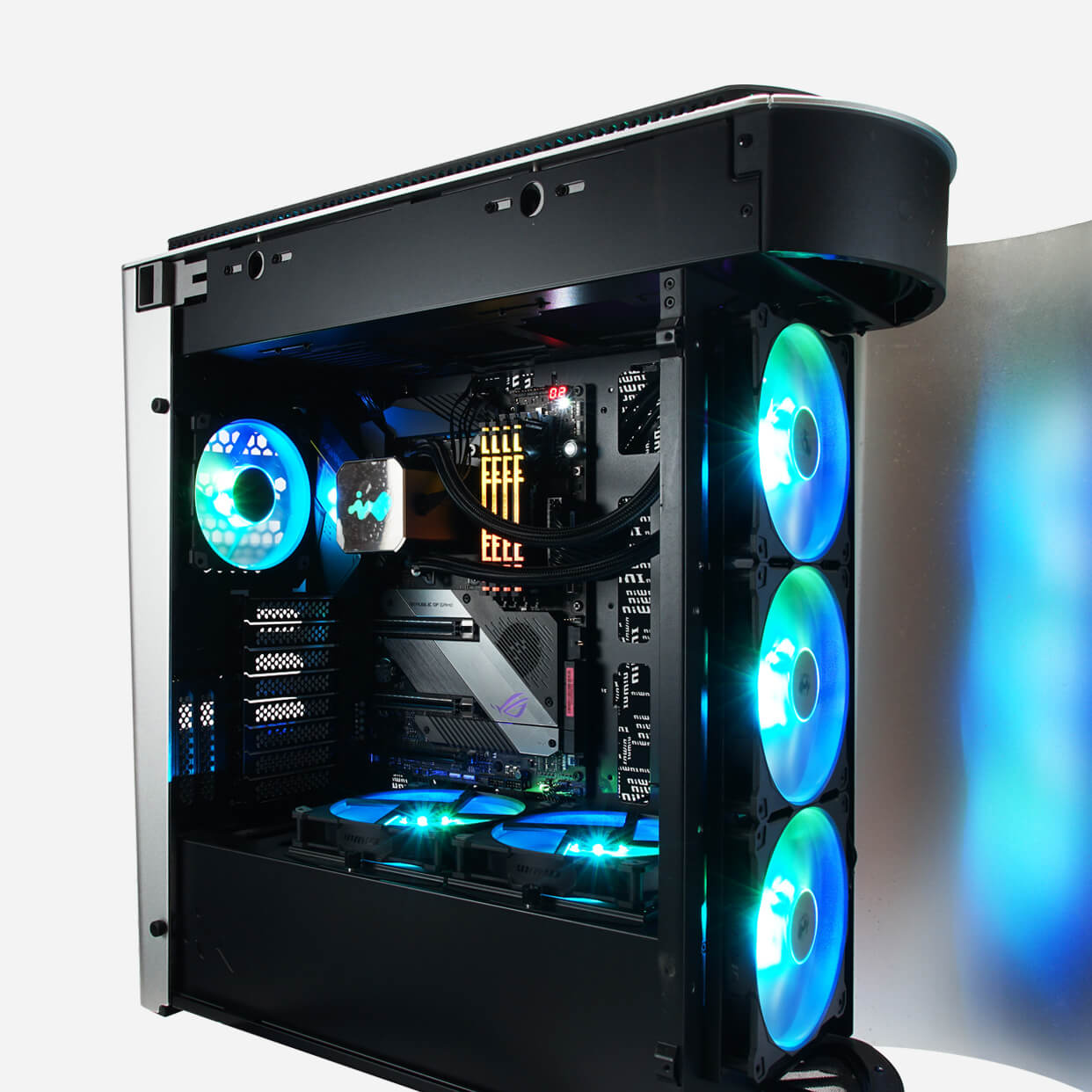

High Flexibility with Cooling Performance
-
850W PSU & 6 x Case Fan Included
Specs
| Model | 915 | |
|---|---|---|
| Model Number | IW-915Sil-6AJP85 | |
| Colors | Silver | |
| Case Type | Full Tower | |
| Materials | Aluminium, Tempered Glass, ABS, SECC | |
| M/B Compatibility | 12" x 13.5" E-ATX, ATX, Micro-ATX, Mini-ITX | |
| Expansion Slots | 8 x PCI-E 2 x Vertical PCI-E (Riser Card Optional, Not Included in Package) |
|
| Maximum Compatibility | VGA Card Length: 410 mm VGA Card Width: 168 mm Vertical Display VGA Card Height: 50 mm CPU Heatsink Height: 164 mm |
|

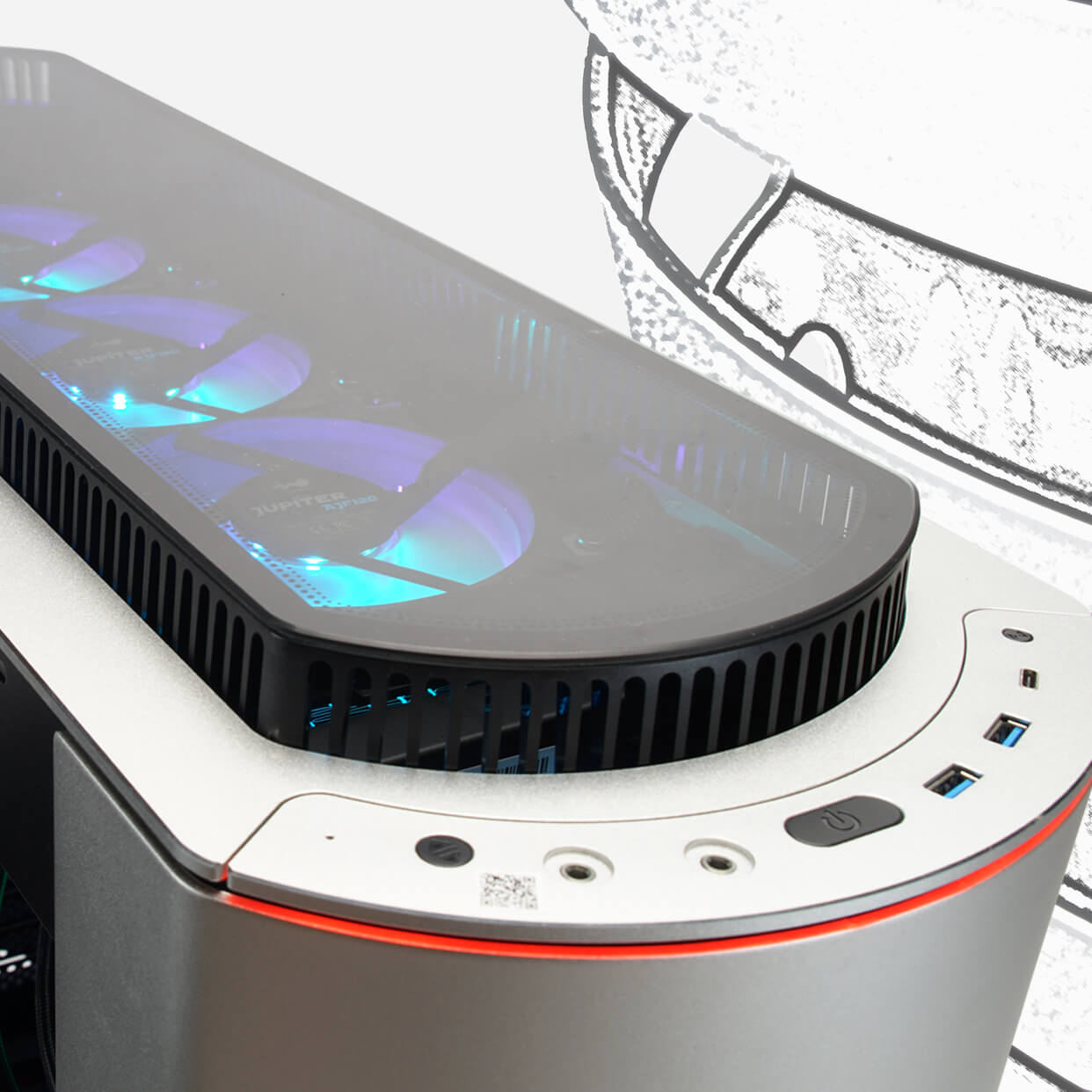

| I/O Ports | 1 x USB 3.1 Gen 2 Type-C 2 x USB 3.0 HD Audio Top Cover Ventilation & LED Lighting Control Switch |
|
| Internal Drive Bays | 4 x 2.5" / 3.5" (Bottom Drive Bay Trays) 5 x 2.5" (4 Brackets and 1 Mounting Area on Motherboard Trays) 4 x 2.5" (Multifunctional Fan Bracket Mounts) Max Drive Support:13 x 2.5” Drives or 4 x 3.5” Drives and 9 x 2.5” Drives |
|
| Thermal Solution Compatibility |
Air Cooling Fans: Front: 3 x 120 / 140 mm Top: 3 x 120 / 140 mm Rear: 1 x 120 mm Bottom: 2 x 120 / 140 mm Water Cooling Radiators: Front: 1 x 280 / 360 mm (280mm Radiator Height up to 53mm, 360mm Radiator Height up to 56mm) Top: 1 x 280 / 360 mm (Height up to 70mm) Rear: 1 x 120 mm Bottom: 1 x 240 / 280 mm |
|
| Power Supply Compatibility |
PSII: ATX12V- 250 mm Mounting Area (1 P85 850W PSU Pre-installed) |
|
| Product Dimension (L x W x H) |
590 x 230 x 570 mm |
|
| Product Dimension (L x W x H) with Screw, Handle, Stand, and Top Raised Height |
645 x 238 x 595 mm |
|
| Package Dimension (L x W x H) |
792 x 392 x 740 mm |
|
| Net Weight | 16.4 kg, 36.2lb | |
| Gross Weight | 19.8 kg, 43.7lb | |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
||

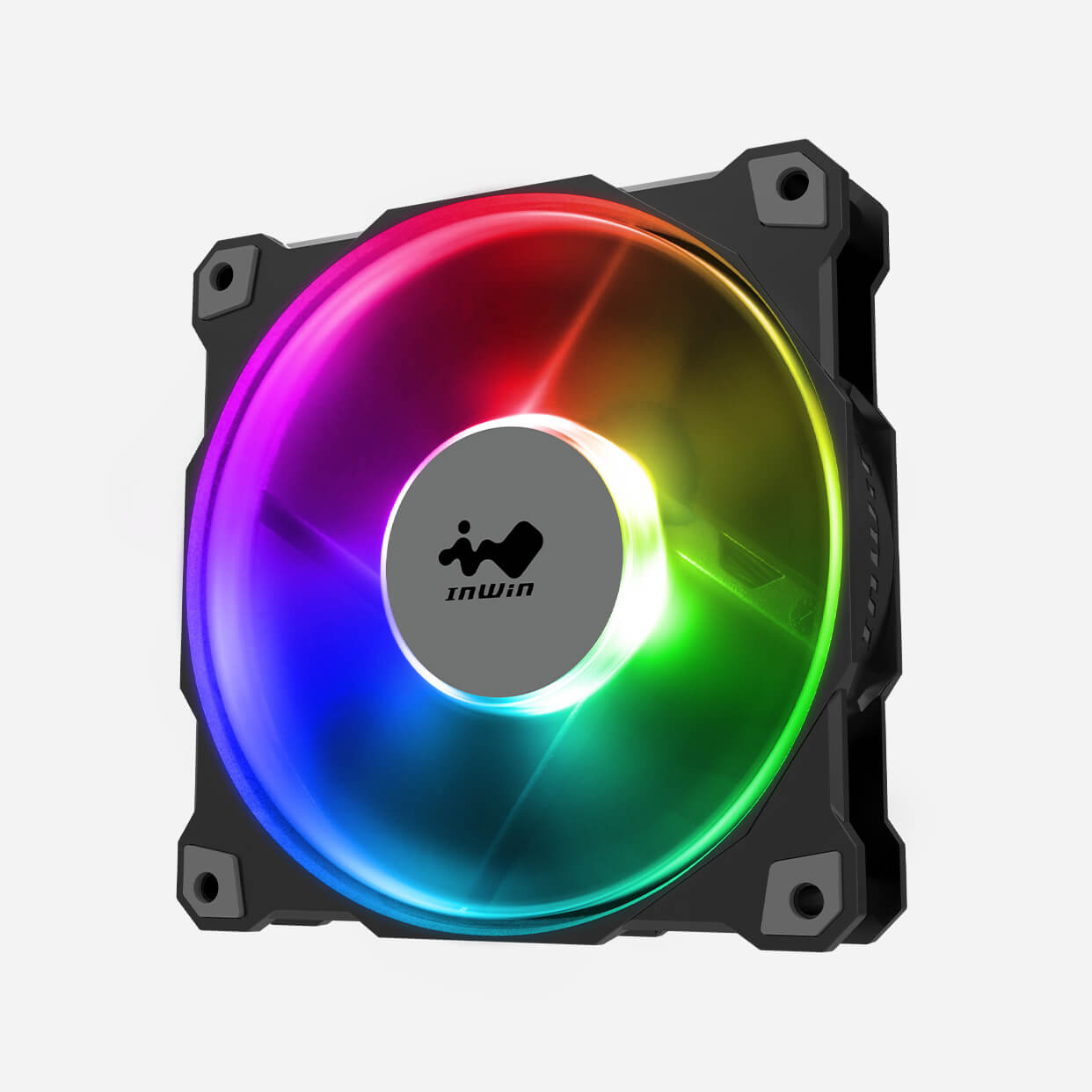

| Model | Jupiter AJ120 | |
|---|---|---|
| Model Number |
IW-FN-AJ120-1PK |
|
| Fan Size | 120 x 120 x 25 mm | |
| Materials | PBT, PC | |
| Rated Voltage | DC 12V | |
| Rated Power | 2.4W | |
| Rated Current | 0.20A | |
| ADD RGB Rated Voltage | DC 5V | |
| ADD RGB Rated Power | 1.1W | |
| ADD RGB Rated Current | 0.22A | |
| Speed Mode | PWM 500 - 1800 +/- 10% RPM | |
| Air Flow | 70.32 CFM | |
| Air Pressure | 2.62mm / H2O | |
| LED | Addressable RGB | |
| Fan Connector | 4-Pin | |
| Noise Level | 35 dB(A) (Max.) | |
| Bearing Type | Long Lifespan Sleeve Bearing | |
| MTBF | >30,000 hrs | |
| Net Weight |
200g 600g |
|
| Package Dimension(H x L x W) | 185 x 125 x 80 mm | |
| Warranty | 2 years | |
| * InWin products comply with RoHS regulation. * Specifications may vary based on different regions |
||
| Product Name | Jupiter AJ140 | |
|---|---|---|
| Quantity Included | Triple Pack | |
| Model Number | IW-FN-AJ140-3PK | |
| Fan Size | 140 x 140 x 25 mm | |
| Materials | PBT, PC | |
| Rated Voltage | DC 12V | |
| Rated Power | 2.52W | |
| Rated Current | 0.21A | |
| ADD RGB Rated Voltage | DC 5V | |
| ADD RGB Rated Power | 1.1W | |
| ADD RGB Rated Current | 0.22A (max.) | |
| Speed Mode (PWM) | PWM 500~1400 RPM | |
| Air Flow | 100.45 CFM | |
| Air Pressure | 1.56mm/ H2O | |
| LED | Addressable RGB | |
| Connector (Fan to Fan) | Original Cable | |
| Connector to M/B | 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V) | |
| Noise Level | 34 dB(A) | |
| Bearing Type | Long Lifespan Sleeve Bearing | |
| Gross Weight | 554 g | |
| Package Dimension(L x W x H) | 144 x 90 x 216 mm | |
| Warranty | 2 Years | |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions |
||

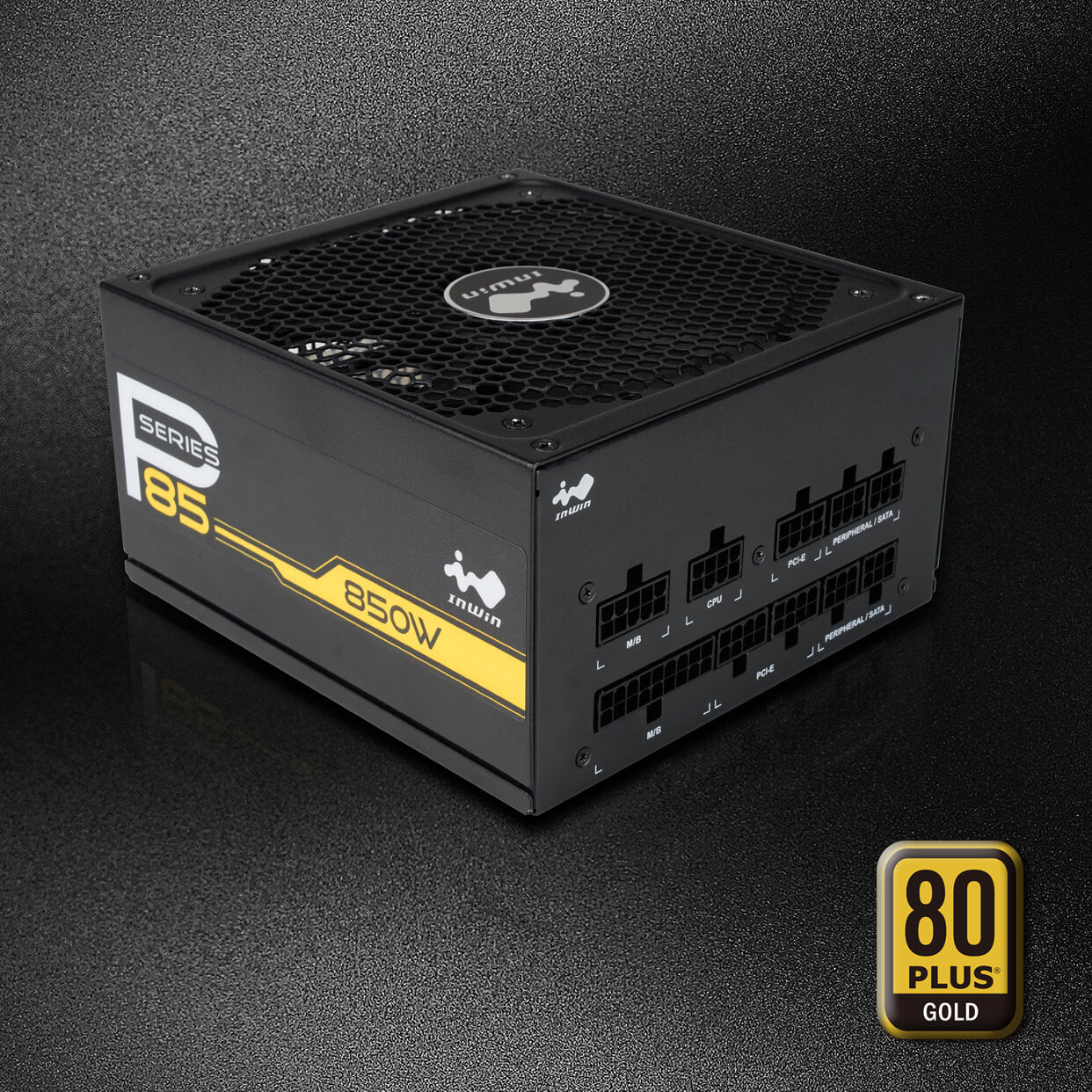

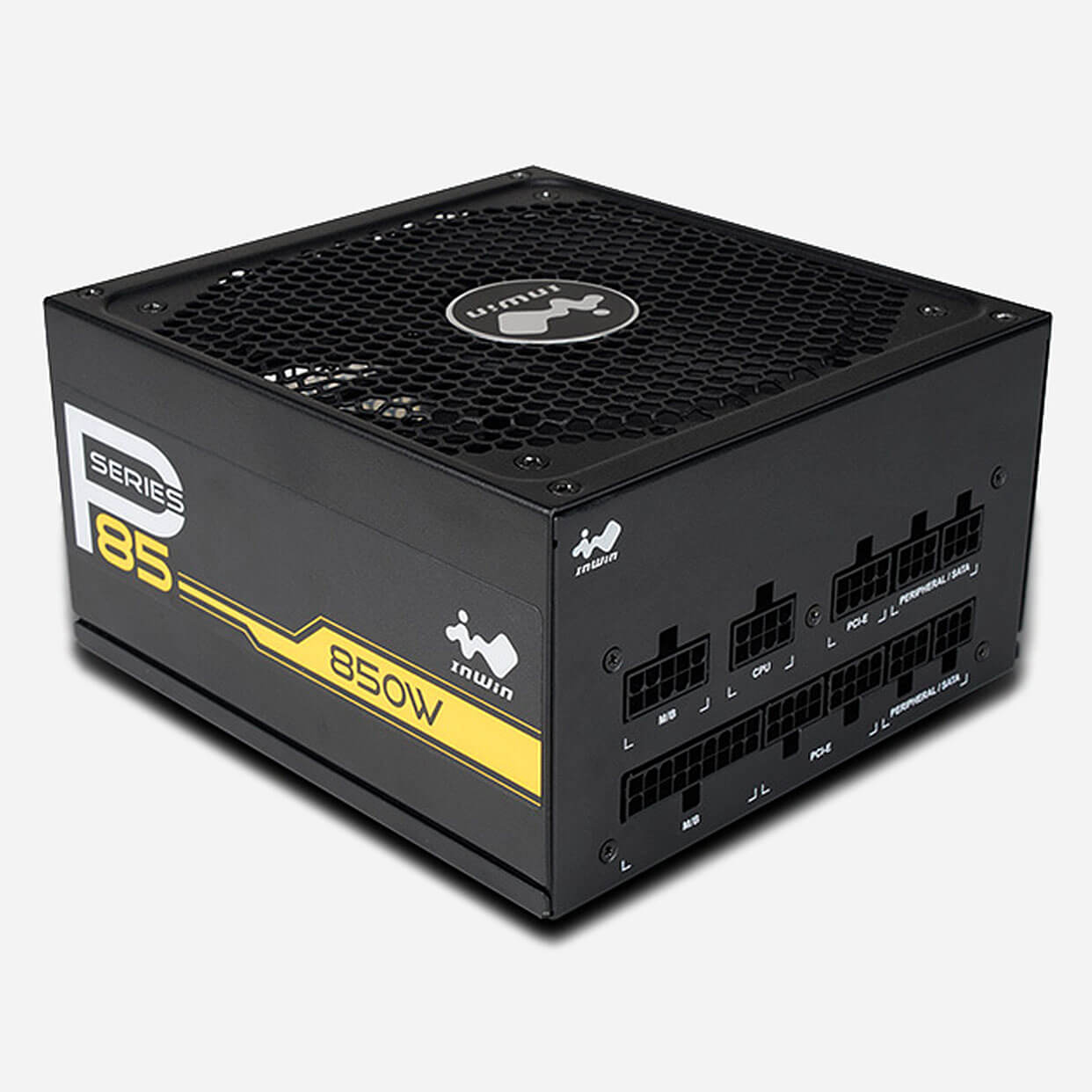

| Model | P85 |
|---|---|
| Model Number | IW-PS-P850W |
| Total Power | 850W |
| Material | SECC |
| Type | ATX12V V2.4 EPS12V V2.92 |
| Cable Management | Fully Modular |
| PFC | Active PFC ( >0.95) |
| Efficiency | 80 PLUS® Gold (Up to 90%) |
| MTBF (Hours) | >100,000 hrs. |
| AC Input | 100-240Vac.,10A, 50-60Hz |
| Fan | 135mm FDB Fan |
| Typical Load Fan Noise (dBA) (50% Loading) |
<25dB(A) |
| Operating Temperature Range (°C) | 0~40 °C |
| Full Protection | OCP/ OVP/ UVP/ SCP/ OTP/ OPP |
| Safety Certifications | cTUVus/ TUV/ CB/ BSMI/ CE/ FCC/ EAC/ CCC/ RCM |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Package Dimensions (L x W x H) |
210 x 325 x 100 mm |
| Net Weight | 2.64 kg |
| Gross Weight | 3.12 kg |
| Warranty | 5 Years |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|

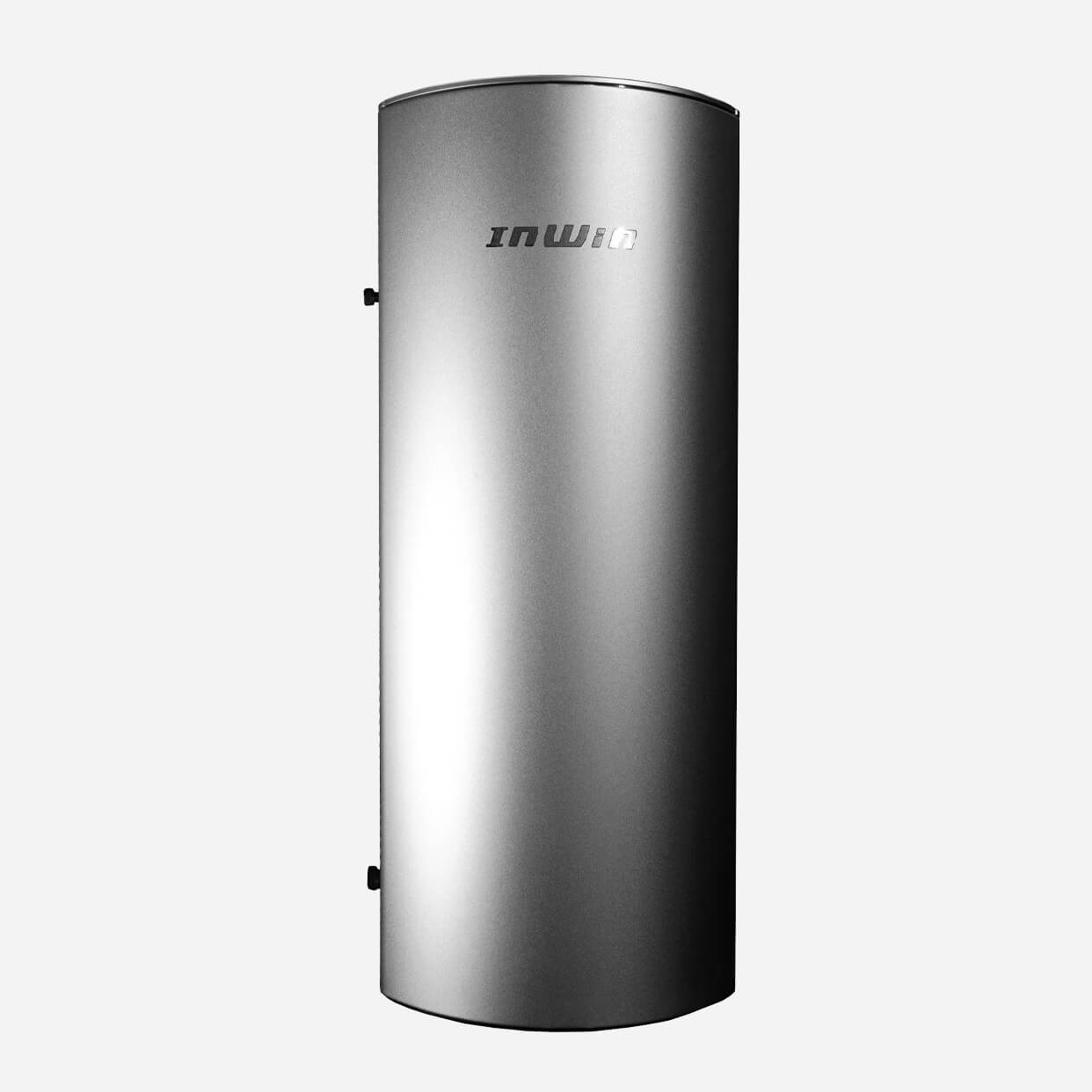

Highlighting Those Curves!
Beat the Heat!
Illuminated LED Control & Sync!
Versatile PSU Chamber Design

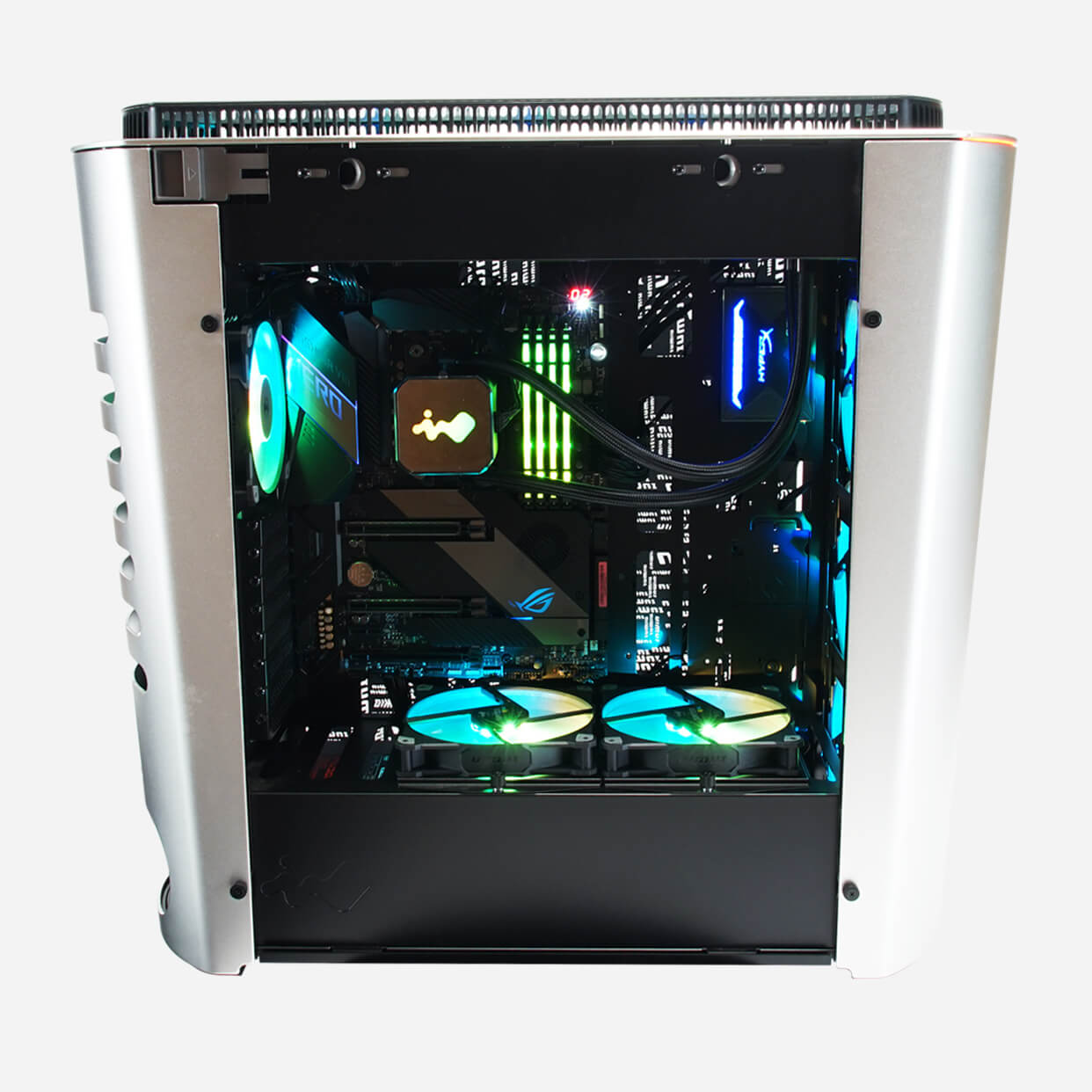

Dual GPU Placement
Prebuild Jupiter Series High Airflow Case Fan
Gold Standard of Power

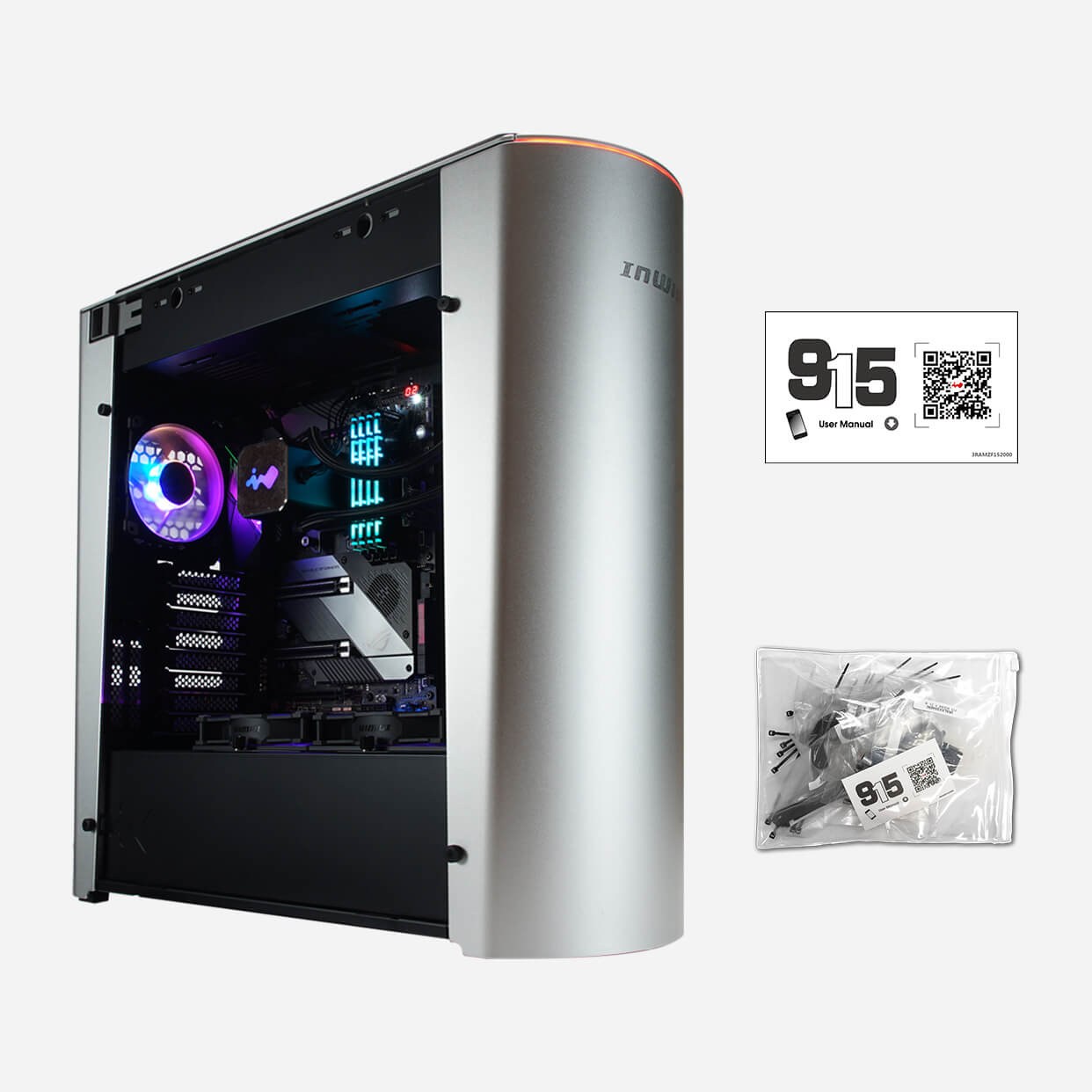

Components
