€14.90
No reviews
No reviews
SKU: IW-FN-ASN140-1PK

The Saturn ASN140 fans cool your PC with high airflow/air pressure. Daisy-chain ASN140 fans together with our patented modular connectors!

Quantity Included:1 Pack
Quantity:
  1. Patented Modular Connector Design
  2. ARGB Lighting Effect
  3. High Airflow with Intelligent Cooling
  4. Shockproof Rubber Stands

Specs

 Model Saturn ASN140
Quantity Included Single Pack
Triple Pack
Model Number

IW-FN-ASN140-1PK
IW-FN-ASN140-3PK
Colors Black, White
Fan Size 140 x 140 x 25 mm
Materials PC, PBT
Rated Voltage DC 12V
Rated Power 3.24W
Rated Current 0.27A
ADD RGB Rated Voltage DC 5V
ADD RGB Rated Power 1.5W
ADD RGB Rated Current 0.30A
Speed Mode PWM 500 - 1400 RPM
Air Flow 93.97 CFM
Air Pressure 1.73 mm / H2O
LED Addressable RGB
Connector (Fan to Fan) 6-pin Modular
Connector to M/B 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)
Noise Level 36 dB(A)
Bearing Type Long Lifespan Sleeve Bearing
Gross Weight 190 g / 0.41 lbs
583 g / 1.28 lbs
Package Dimensions
(L x W x H)		 147 x 205 x 28 mm
5.75 x 8.07 x 1.1"
144 x 216 x 90mm
5.66 x 8.5 x 3.54"
Warranty 2 Years
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

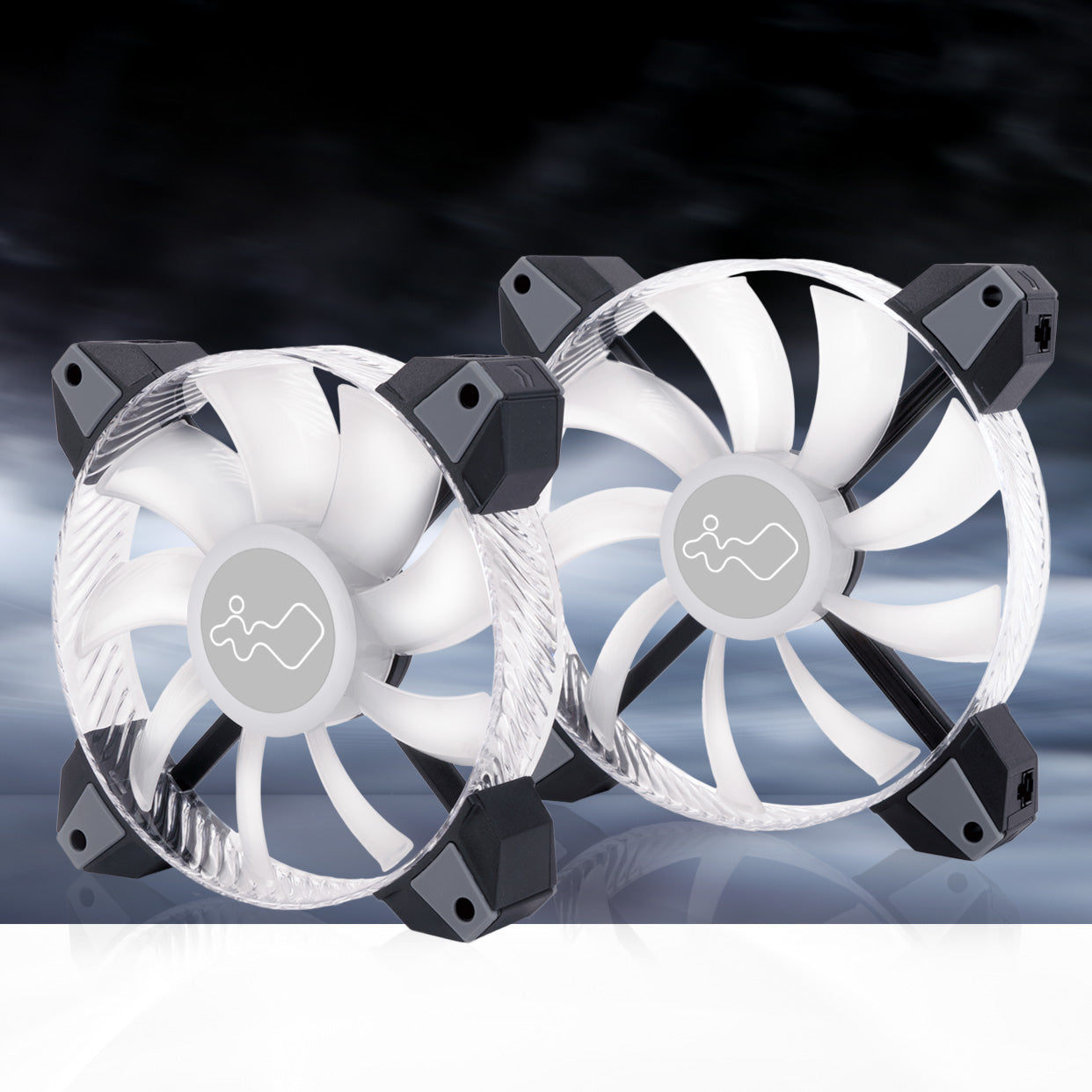

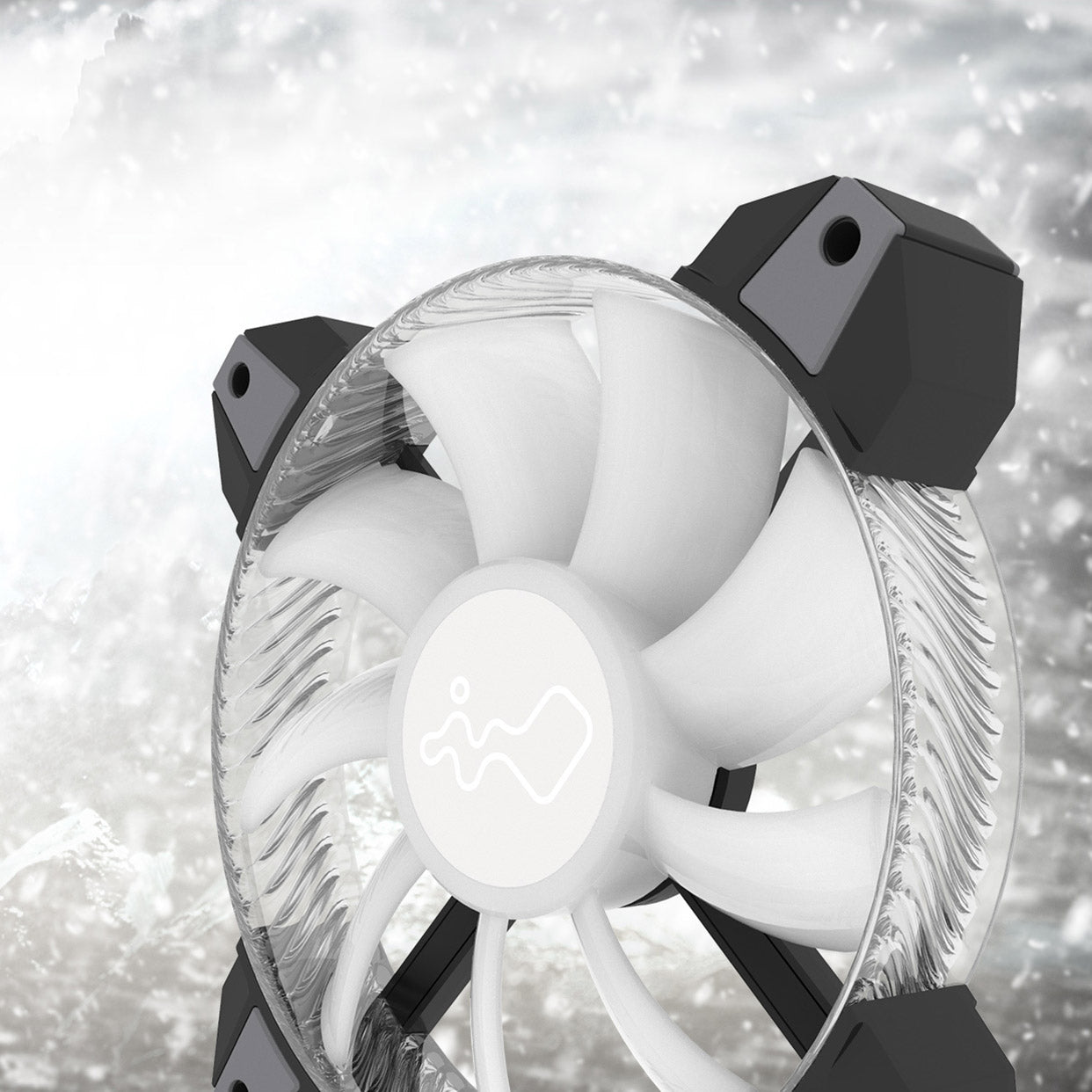

Vast Celestial Cooling

The Saturn ASN140 fans cool your PC with highest airflow in Saturn Series, leaving it as icy-cold as the vast regions of space!

The Chain Gang!

Daisy chain the Saturn ASN140 fans together with our patented modular connectors for faster and easier cooling! Cable management has never been easier!

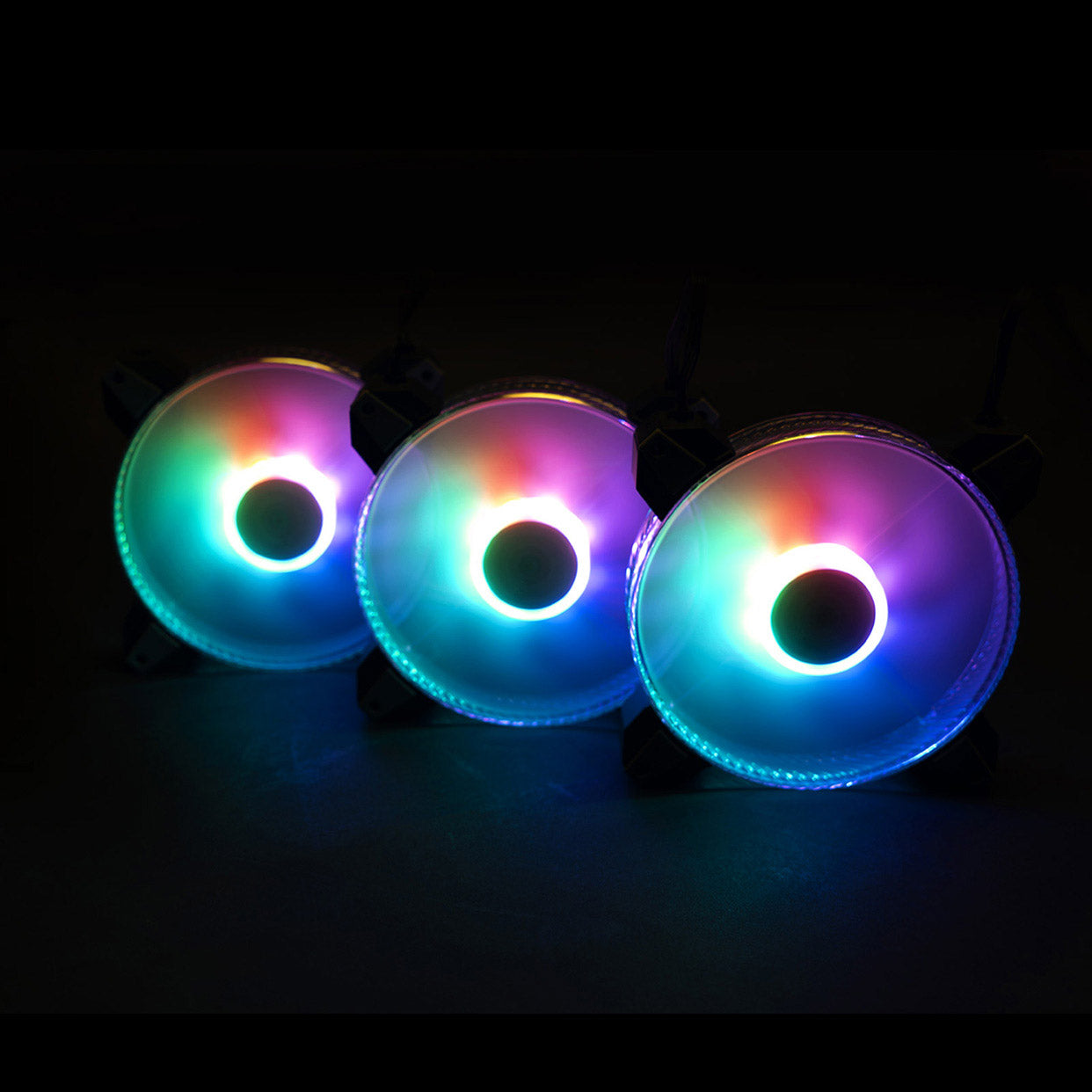

Interstellar Lights

Enjoy the mythical ARGB lights that bleed through the transparent striped ring of Saturn ASN140. These lights are out of this world!

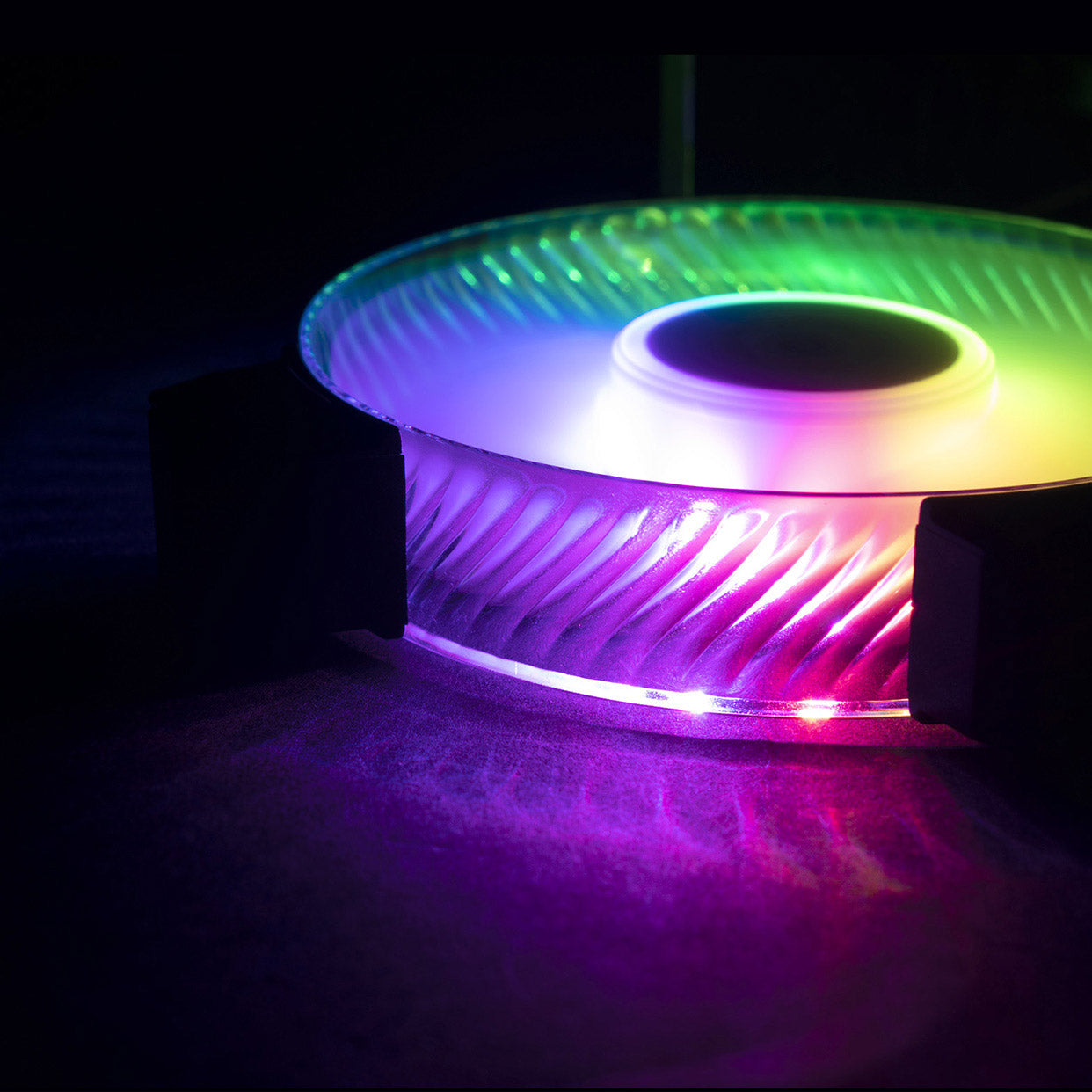

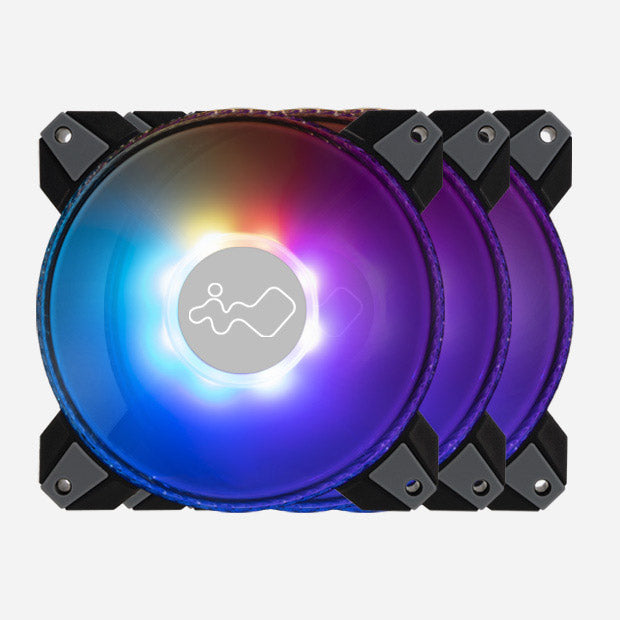

Ring of Saturn

The rigid stripes found along the transparent frame of the ASN140 showcases the beauty of their architecture and provides a unique perspective when the lights bleed through.

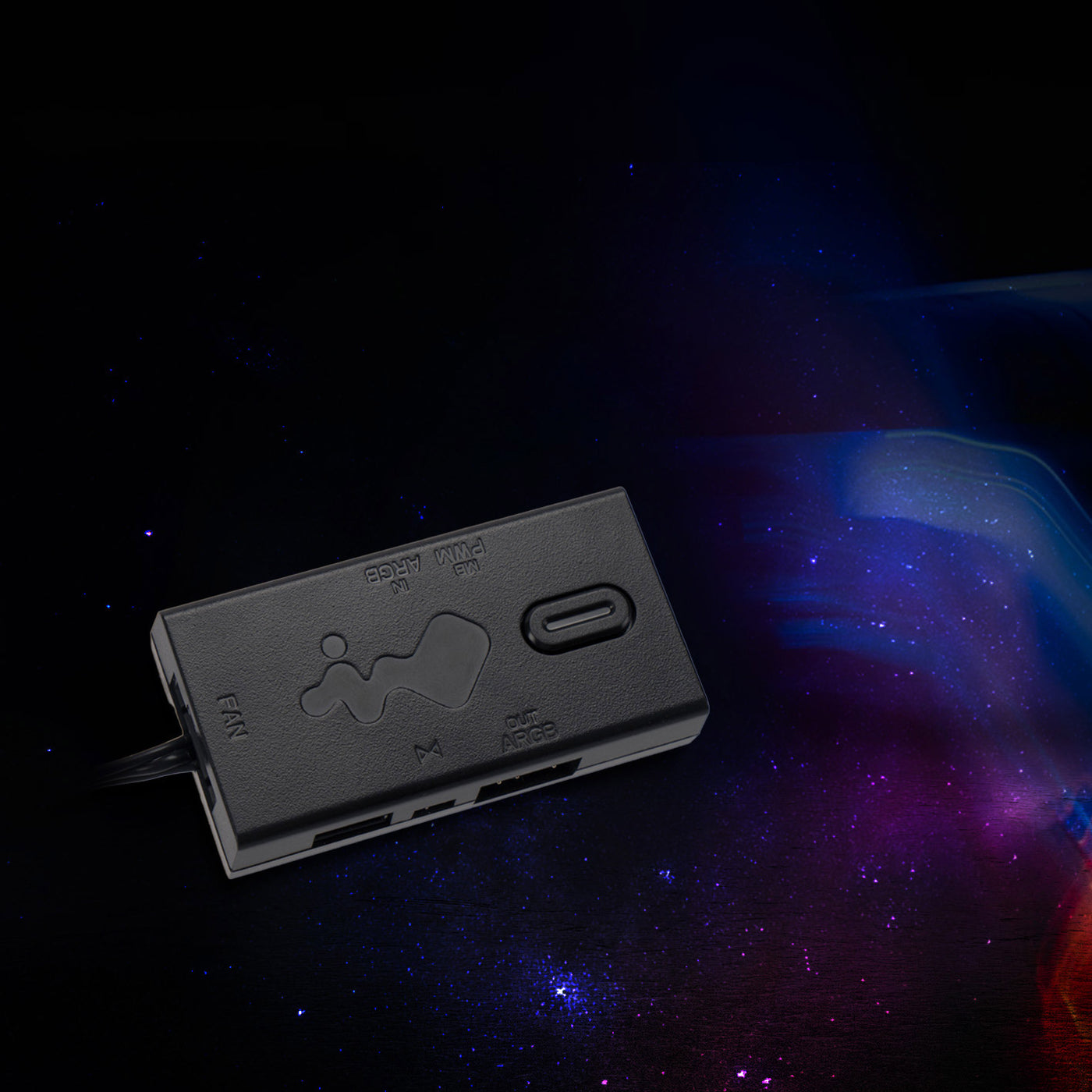

ARGB One-Click Controller PLUS

The upgraded ARGB One-Click Controller PLUS allow you to control the ARGB lighting effect without an ARGB M/B and syncs even more ARGB enabled items.

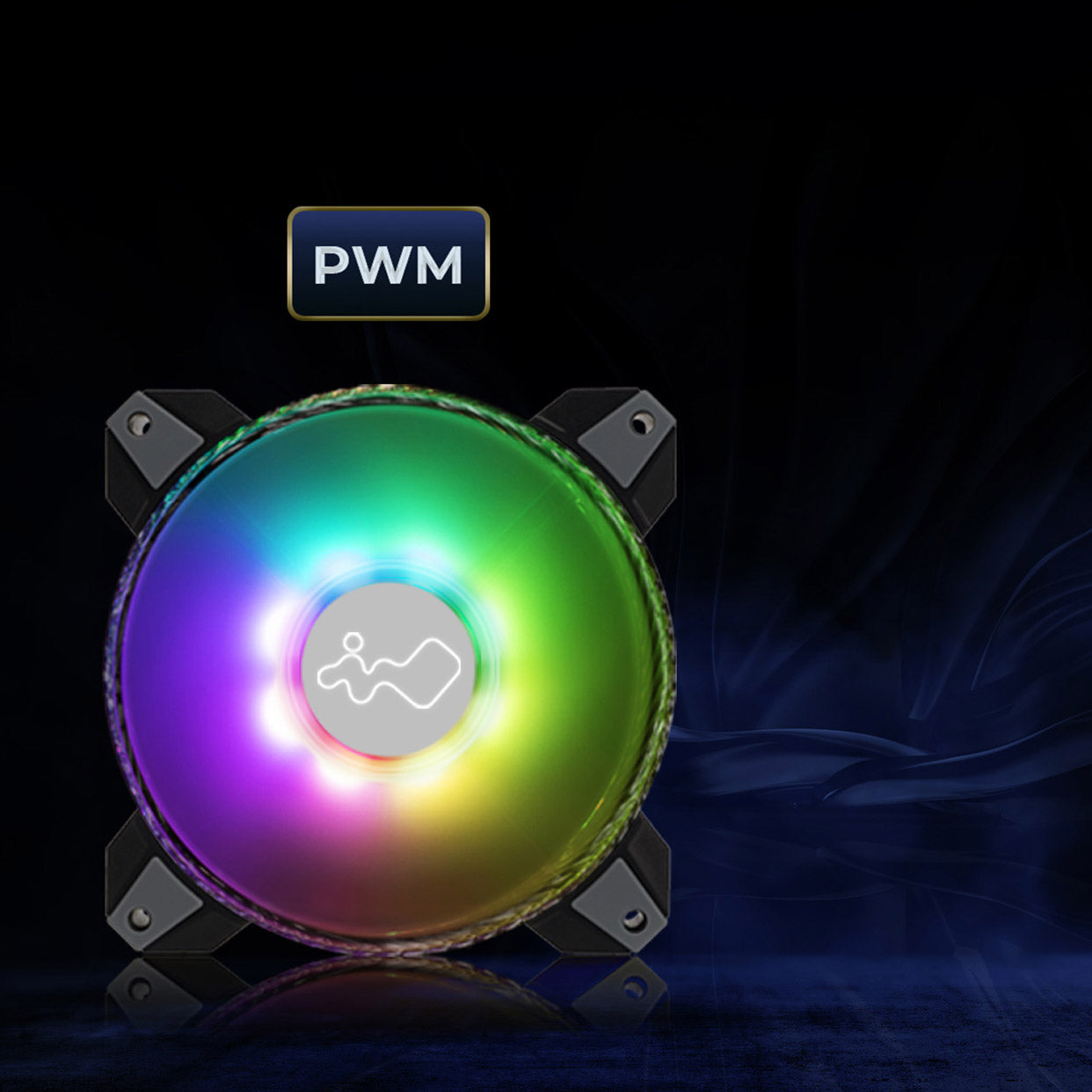

PWM Intelligent Cooling

The Saturn fans possess PWM function to ensure your system won’t overheat. Likewise, the fan speed will reduce on lower usage to maintain the longevity of the fans.

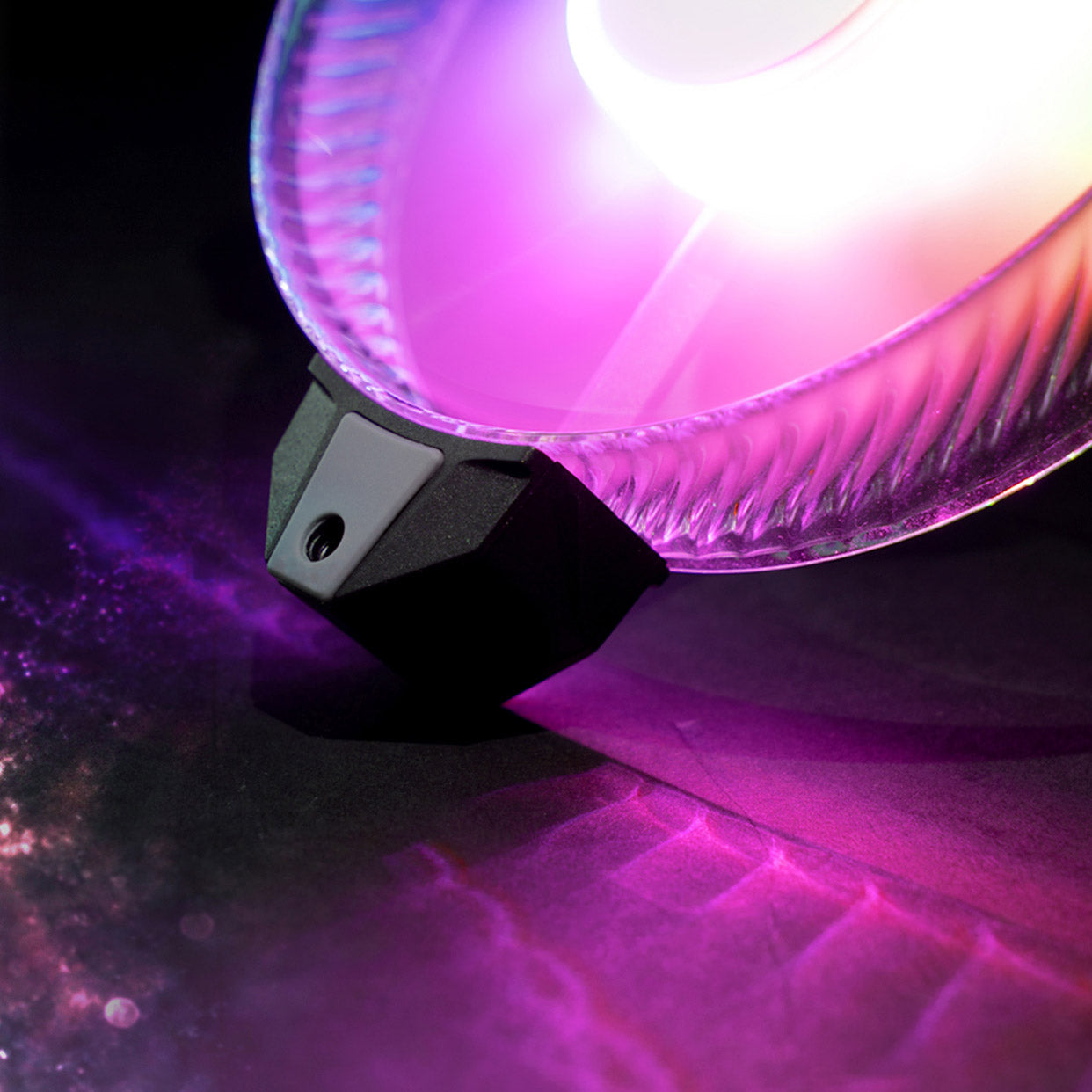

Shockproof Rubber Stands

Four shockproof rubber stands on each edge of the fan to reduce operating vibrations and noises to an absolute minimum.

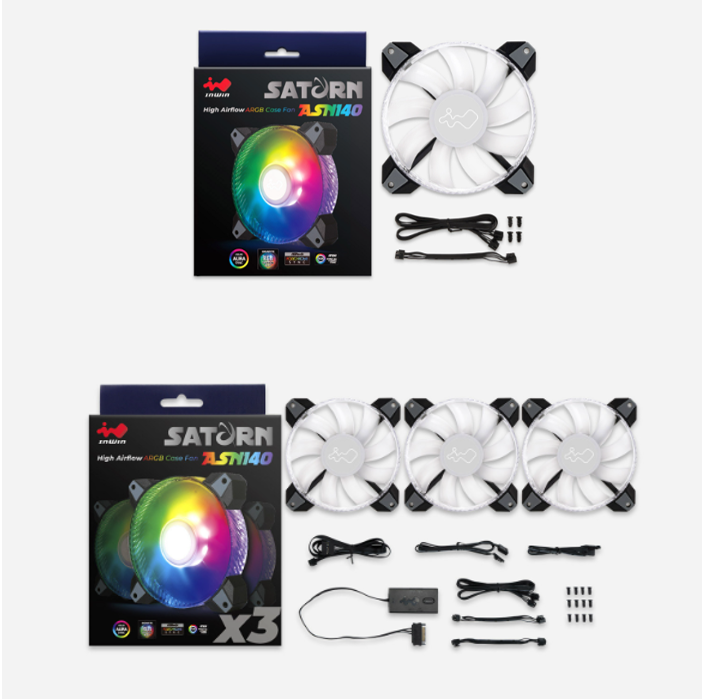

Components

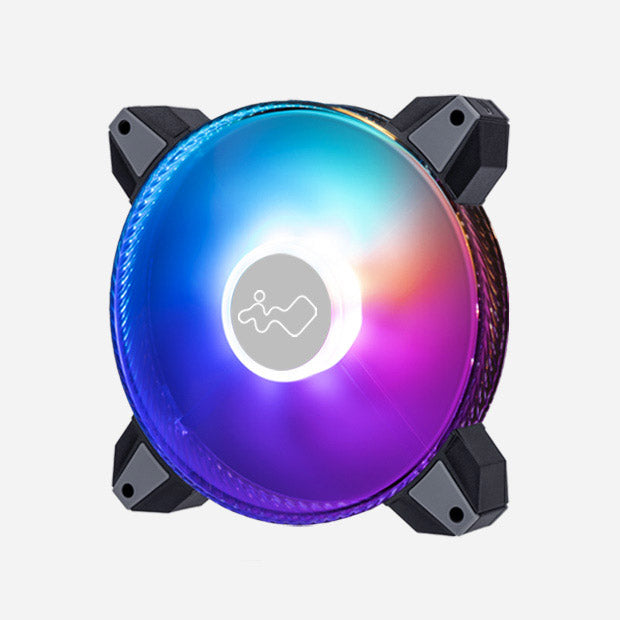

1-Pack：
Saturn ASN140 Fan x 1
6-6 Pin Fan Cables 100mm x 1
6-6 Pin Fan Cable 1000mm x 1
Screws x 4

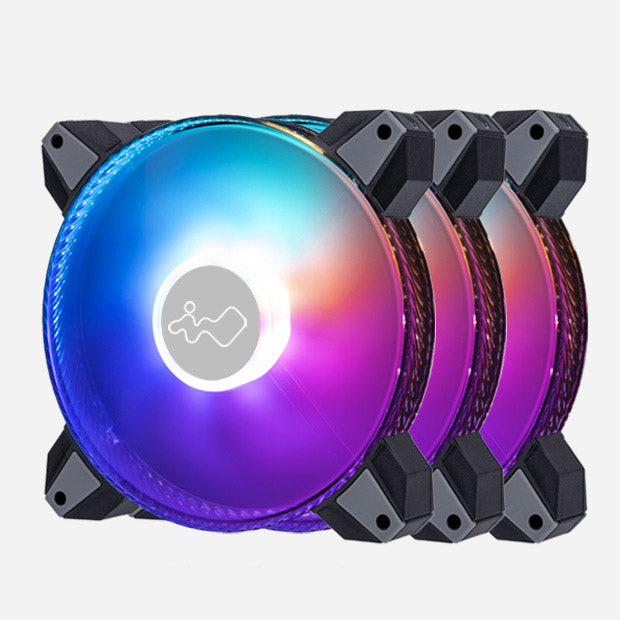

3-Pack：
Saturn ASN140 Fan x 3
ARGB One-Click Controller PLUS x 1
6-6 Pin Fan Cables 100mm x 2
6-6 Pin Fan Cable 1000mm x 1
Screws x 12
ARGB Cable x 1
PWM Cable x 1
Main Cable x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

Non-Modular Cable
4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)

Sirius Loop

Jupiter Series

Sirius Pure

Luna AL120

Mercury AM120S

Sirius Extreme

Sirius Extreme Pure

Neptune AN Series

Neptune DN Series

Neptune DN PRO Series

Modular ARGB Type 1
6-Pin Modular (PWM + ARGB)

Aurora

EGO

Modular ARGB Type 2
6-Pin Modular (PWM + ARGB)

Crown Series

Saturn Series

Type-C Modular Cable
(PWM + ARGB)

Lynx Series

Modular RGB
8-Pin Modular (PWM + RGB)

Polaris RGB Series

Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
