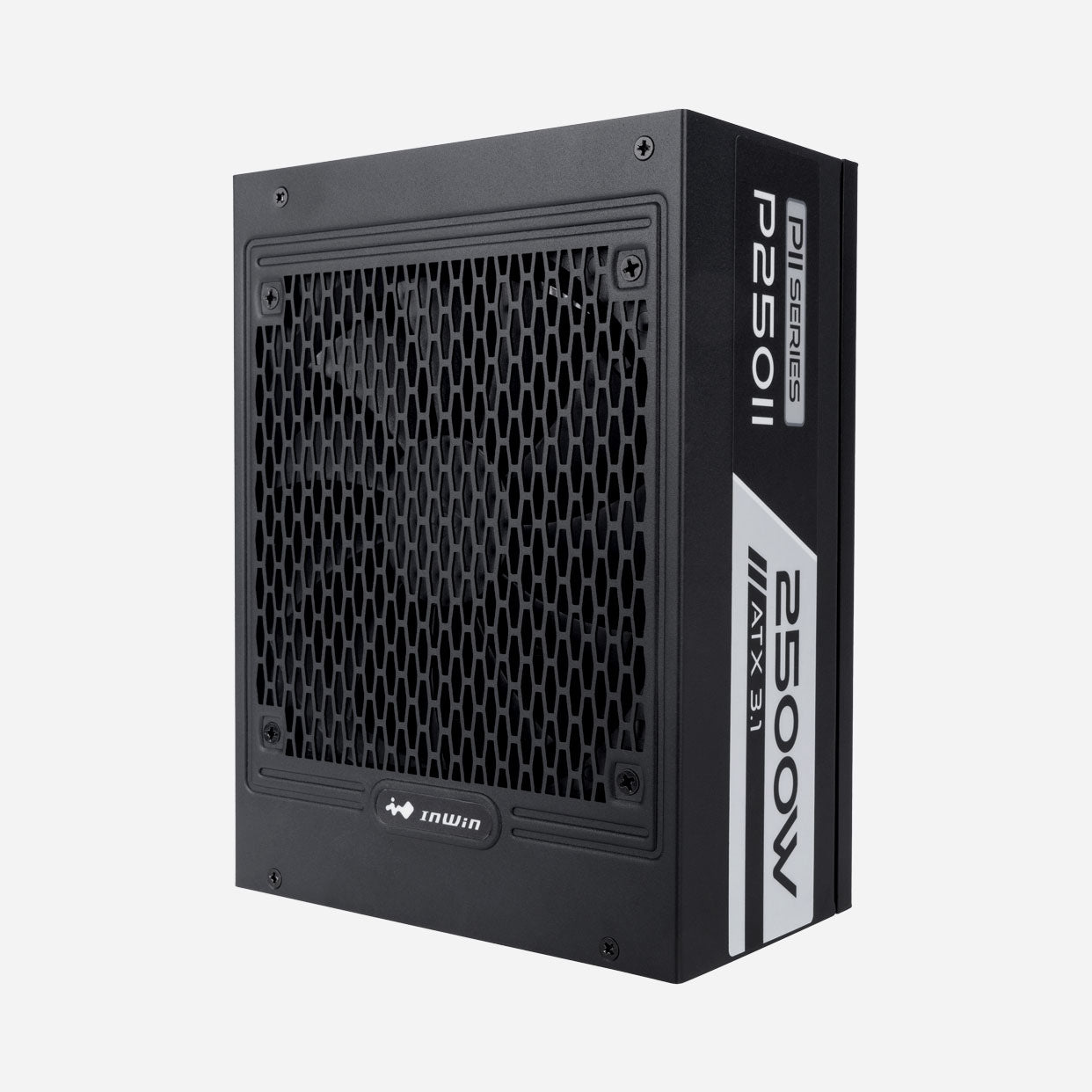

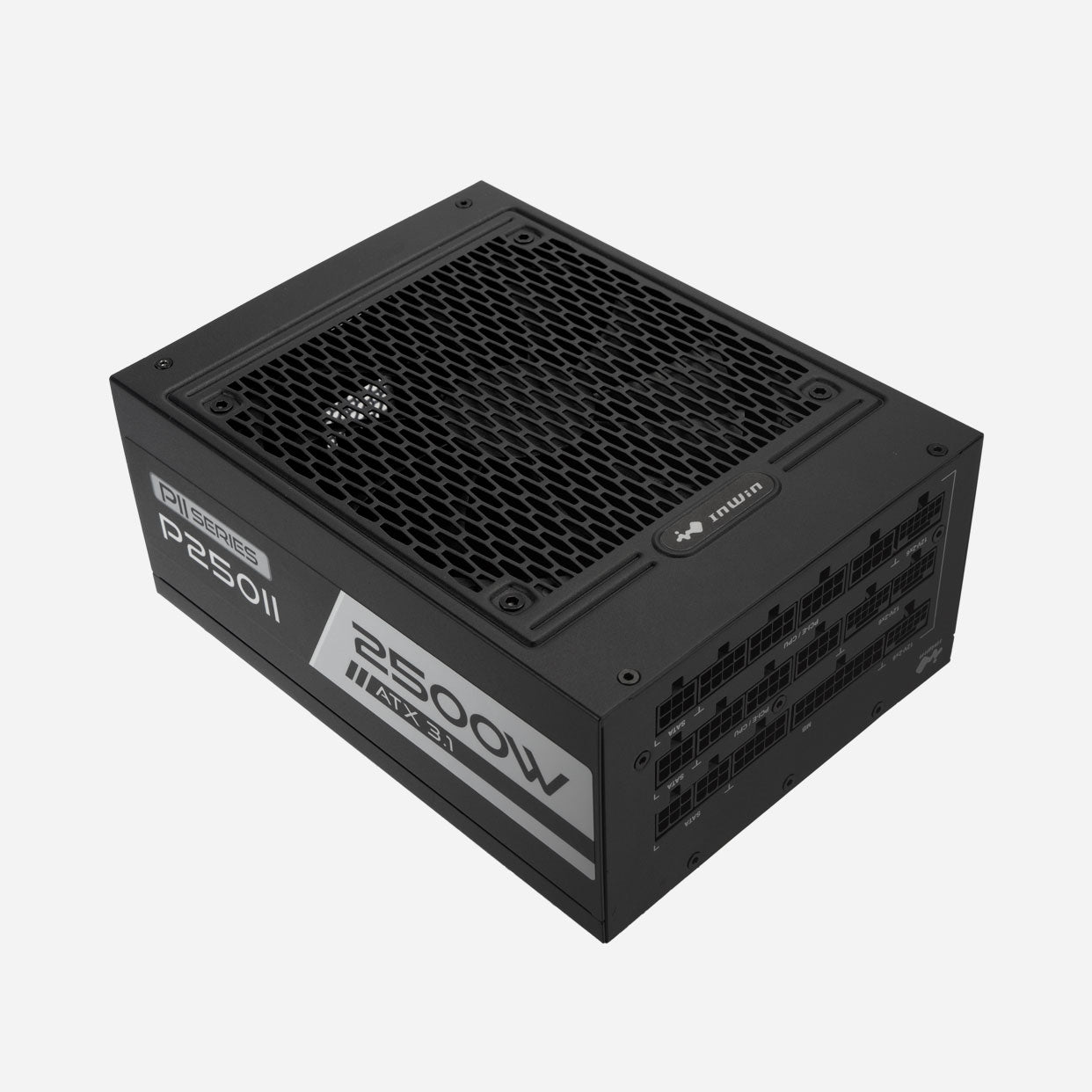

P250II
Quantity:

-
Fully Meets the Newest Generation (ATX3.1) of Intel’s PSDG
-
Powerful and Resilient, up to 2500W maximum output.
-
Industrial-grade design, optimized for workstations
-
230V EU® Platinum Plus a 10-Year Warranty



Specs
Model | P250II | |
---|---|---|
Part Number | IW-PS-PII2500W | |

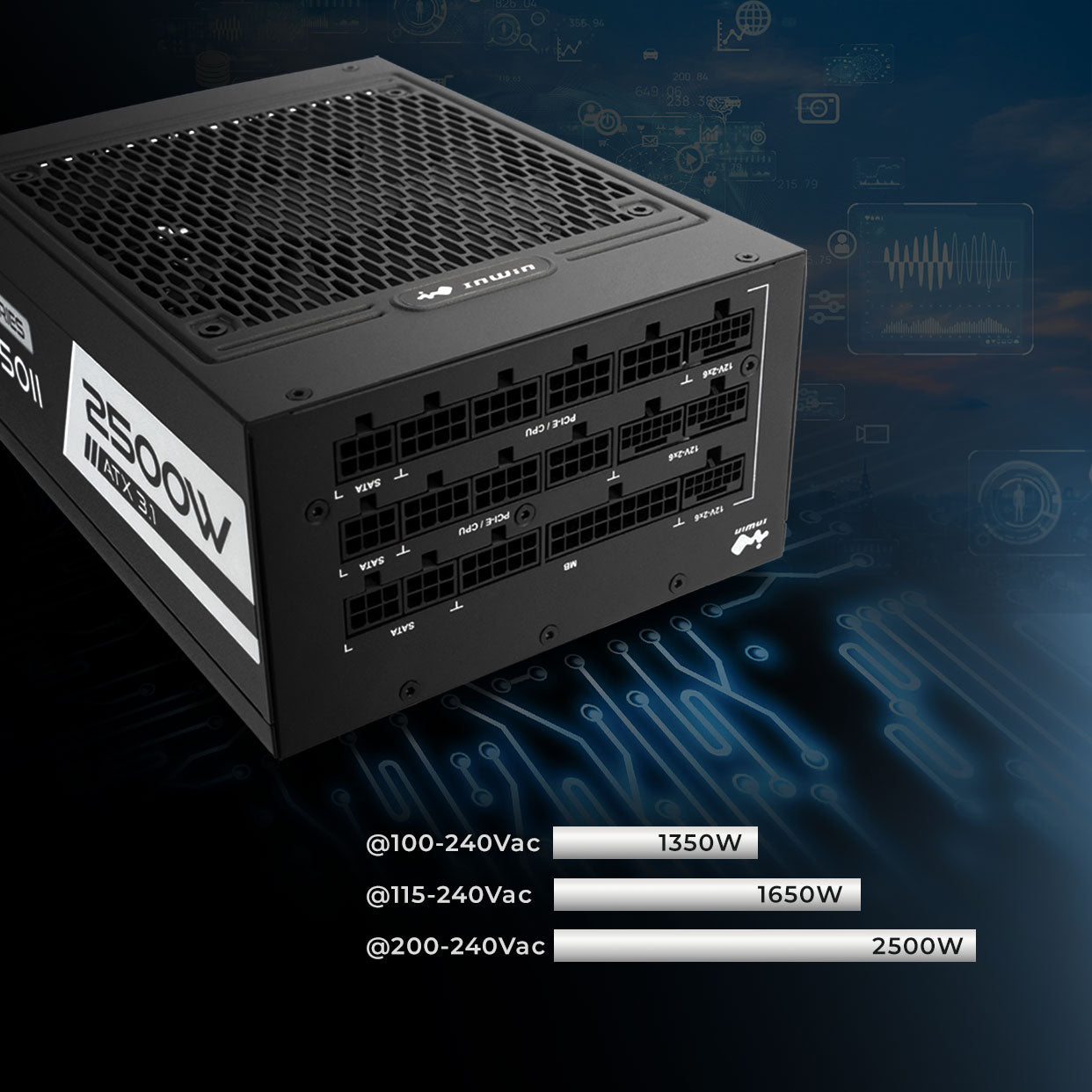

Total Power | 2500W@200-240Vac 1650W@115-240Vac 1350W@100-240Vac |
|
Materials | SECC | |
Type | ATX12V V3.1 | |

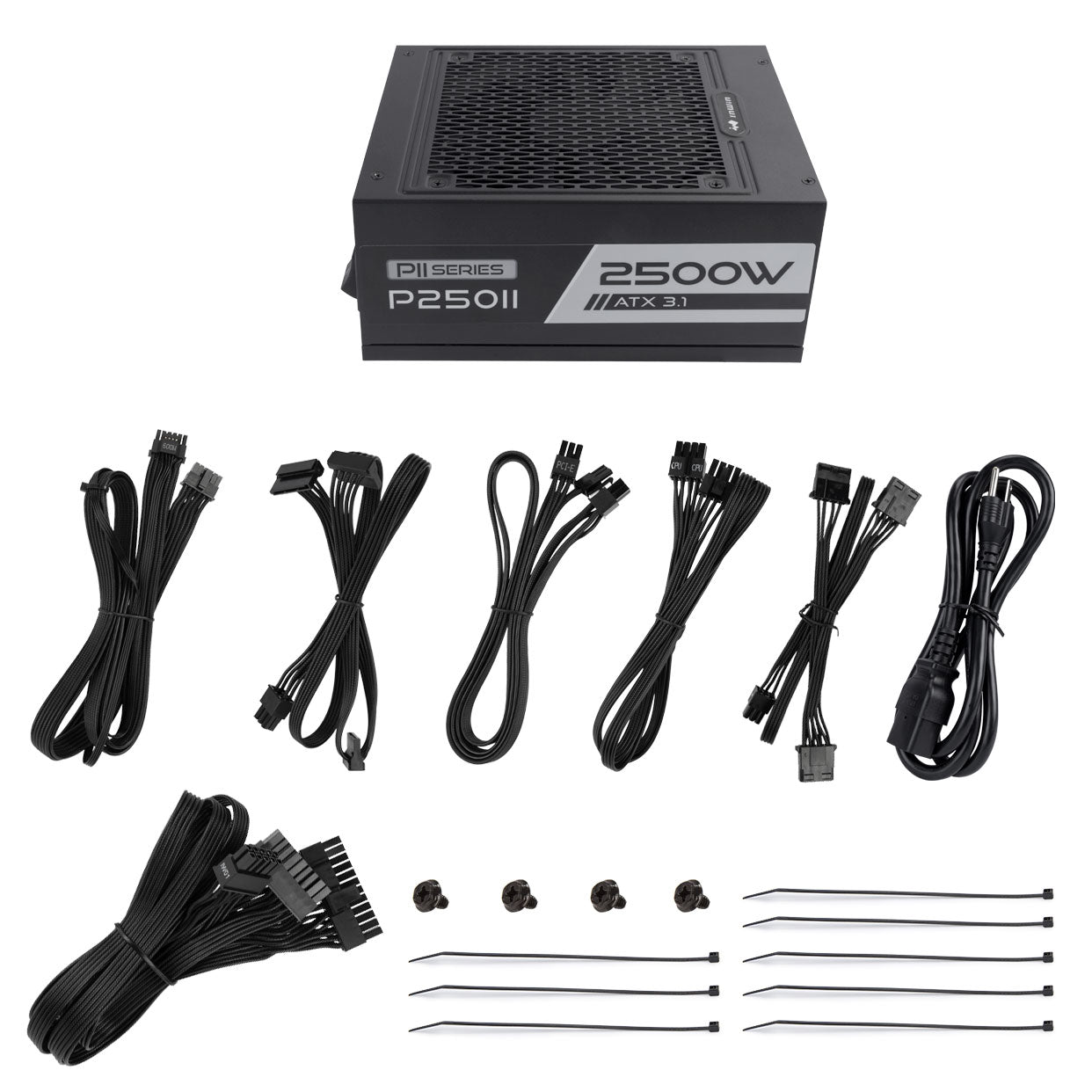

Cable Management | Fully Modular | |
PFC | Active PFC ( >0.95) | |
Efficiency | 80 PLUS® 230V EU Platinum (Up to 92%) | |
MTBF (Hours) | > 100,000 hrs. | |

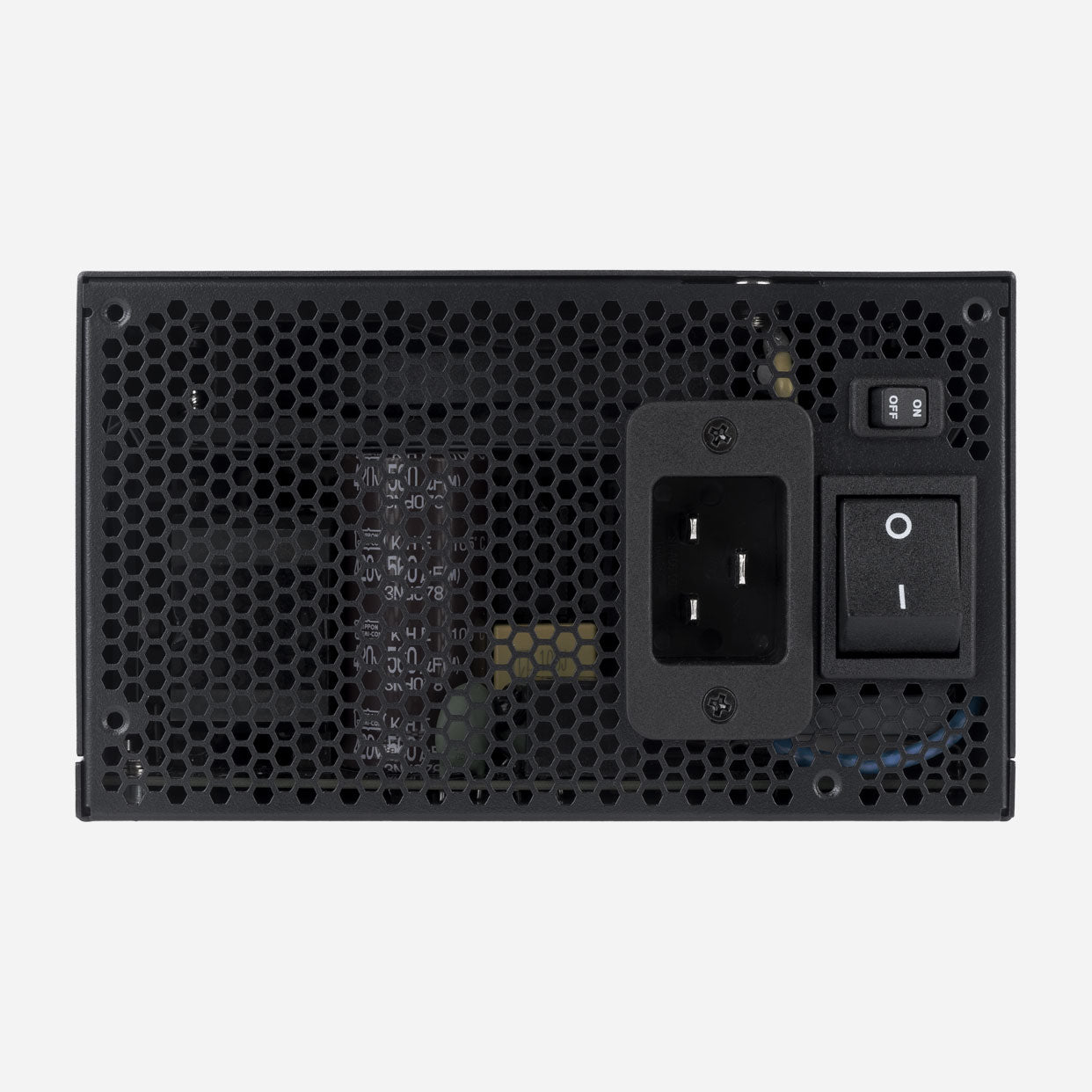

AC Input | 100-240Vac, 20-15A, 50-60Hz | |

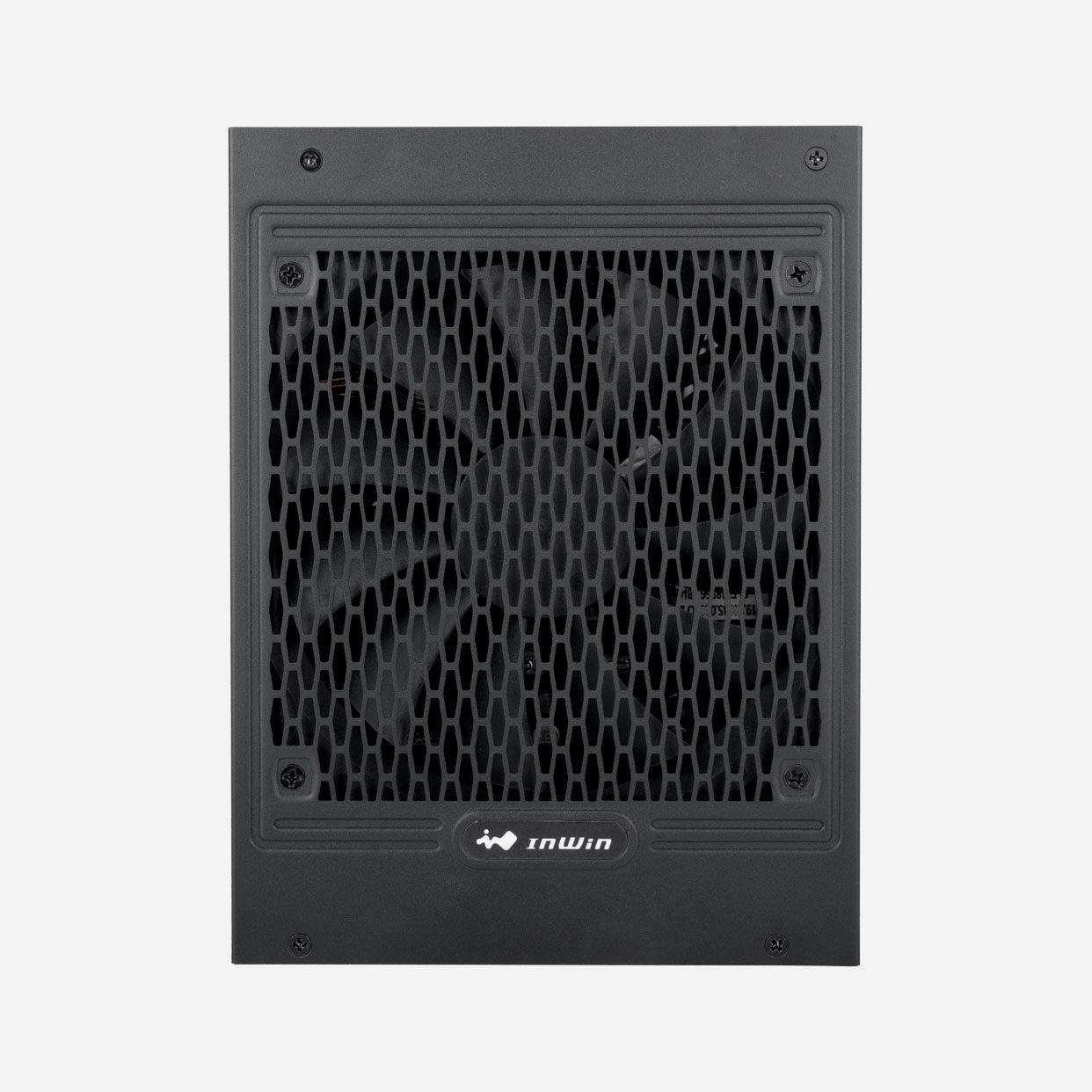

Fan | 135 mm Double Ball Bearing Fan | |
Typical Load Fan Noise (dBA) (50% Loading) |
<25 dB(A) | |
Operating Temperature Range (°C) | 0 - 50 °C | |
Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | |
Safety Certifications | cTUVus / TUV / CB / CE / FCC / EAC / RCM / BSMI / UKCA |
|
Product Dimensions (L x W x H) |
200 x 150 x 86 mm | |

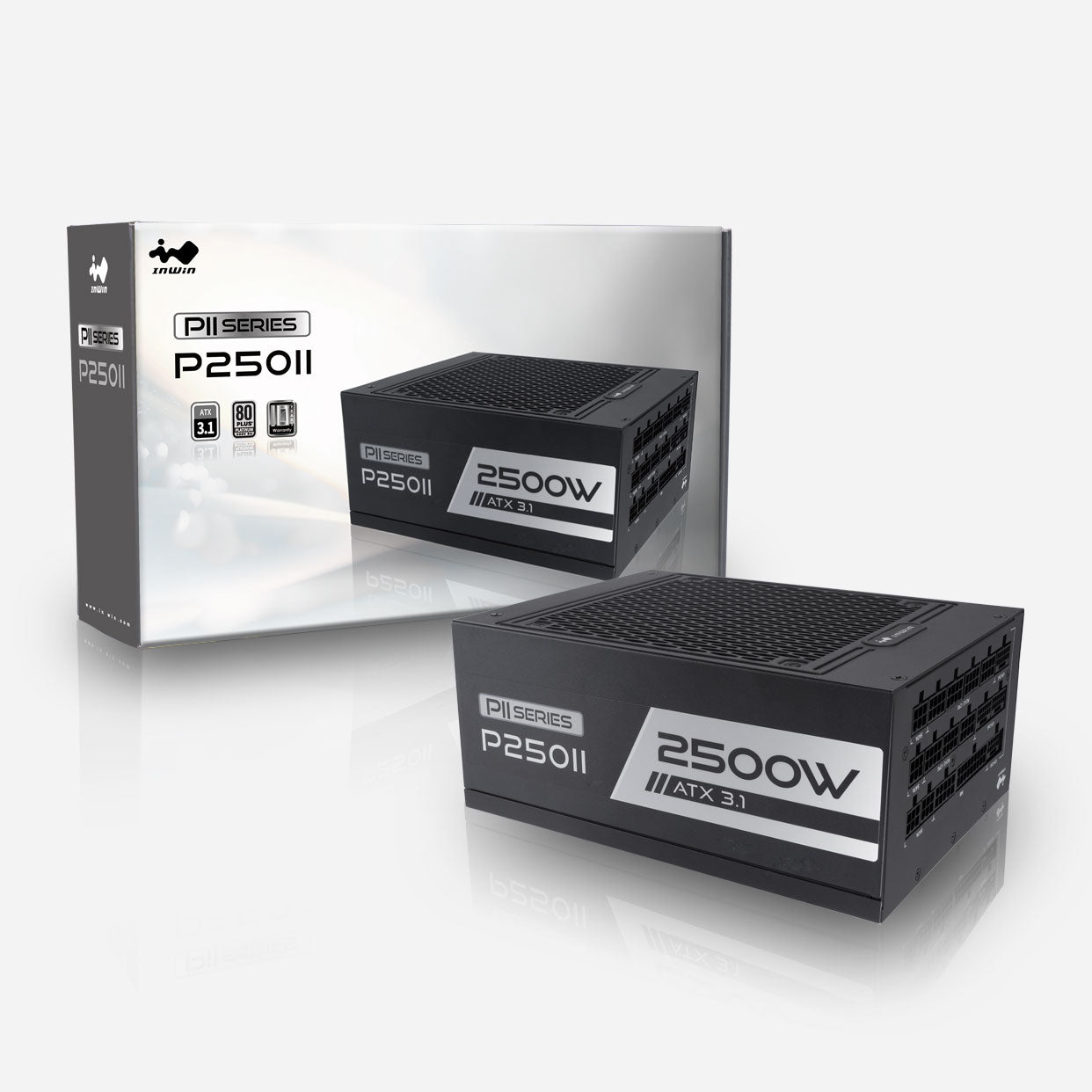

Package Dimensions (L x W x H) |
395 x 245 x 105 mm | |
Net Weight | 4.1 kg / 9.02 lb | |
Gross Weight | 4.7 kg / 10.34 lb | |
Warranty | 10 Years | |

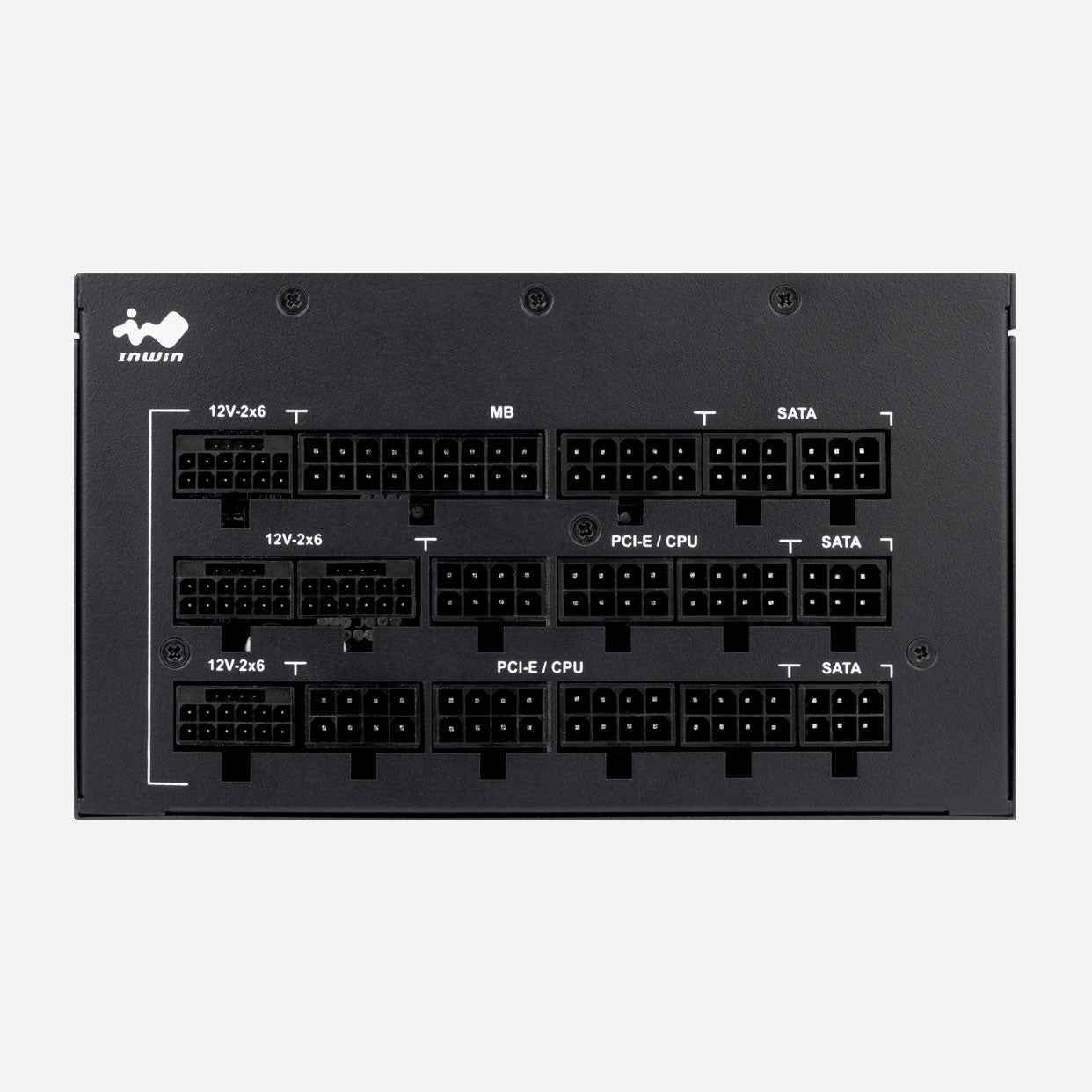

Connectors | 24 Pin Motherboard | 1 |
8 (4+4) Pin CPU | 2 | |
8 (6+2) Pin PCI-E | 5 | |
PCI-E 12V-2x6 | 4 | |
SATA | 12 | |
4 Pin Peripheral | 1 | |
* InWin products comply with RoHS regulations. * Specifications may vary based on different regions. |

The Legendary Powerhouse

ATX3.1 & PCIe 12V-2x6 Compliant

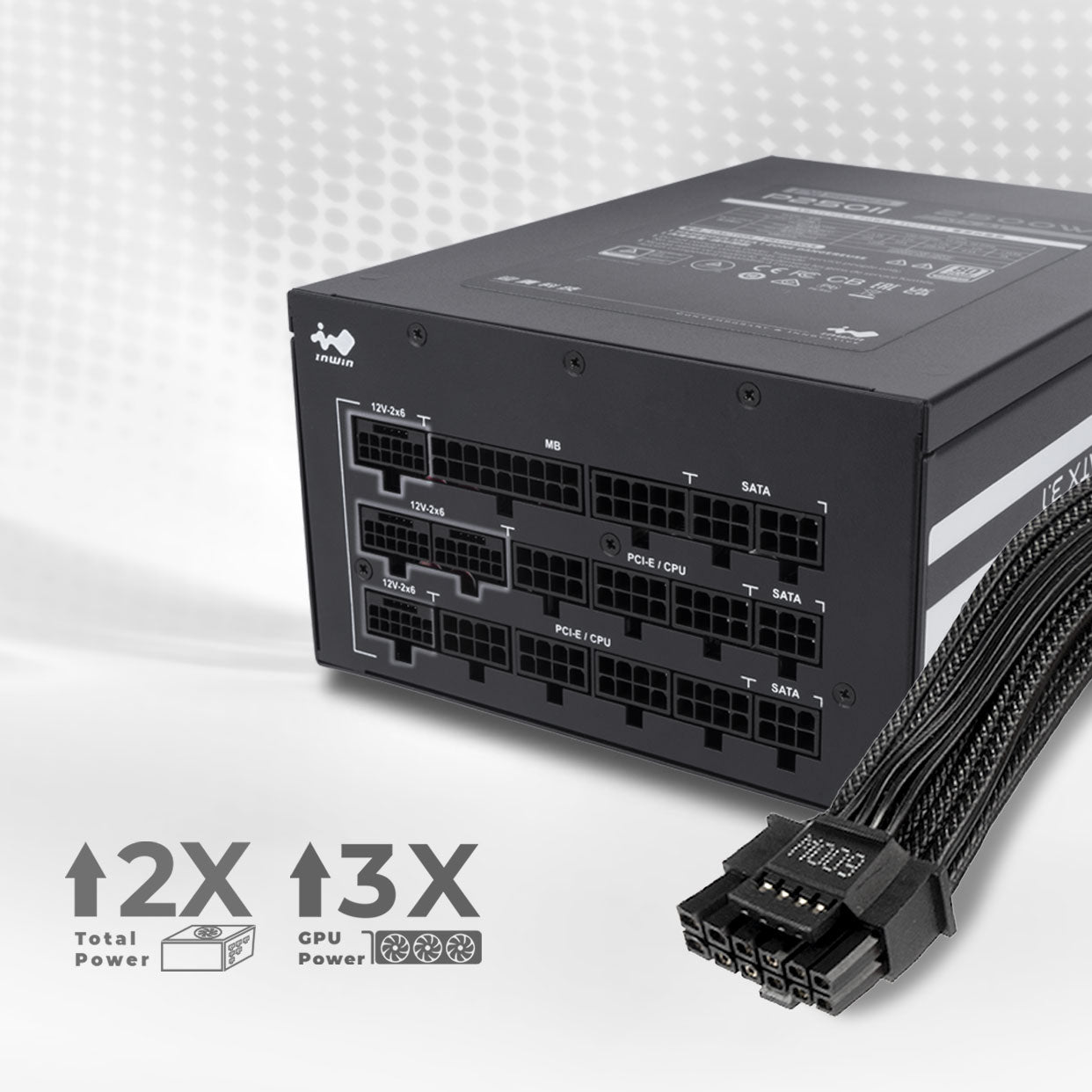

Enhanced Connectivity for Optimized Performance

Hibernation Mode

230V EU <sup>®</sup> Platinum Plus a 10-Year Warranty
