€134.99
Sold out
No reviews
No reviews
SKU: IW-LC-AR36BLK

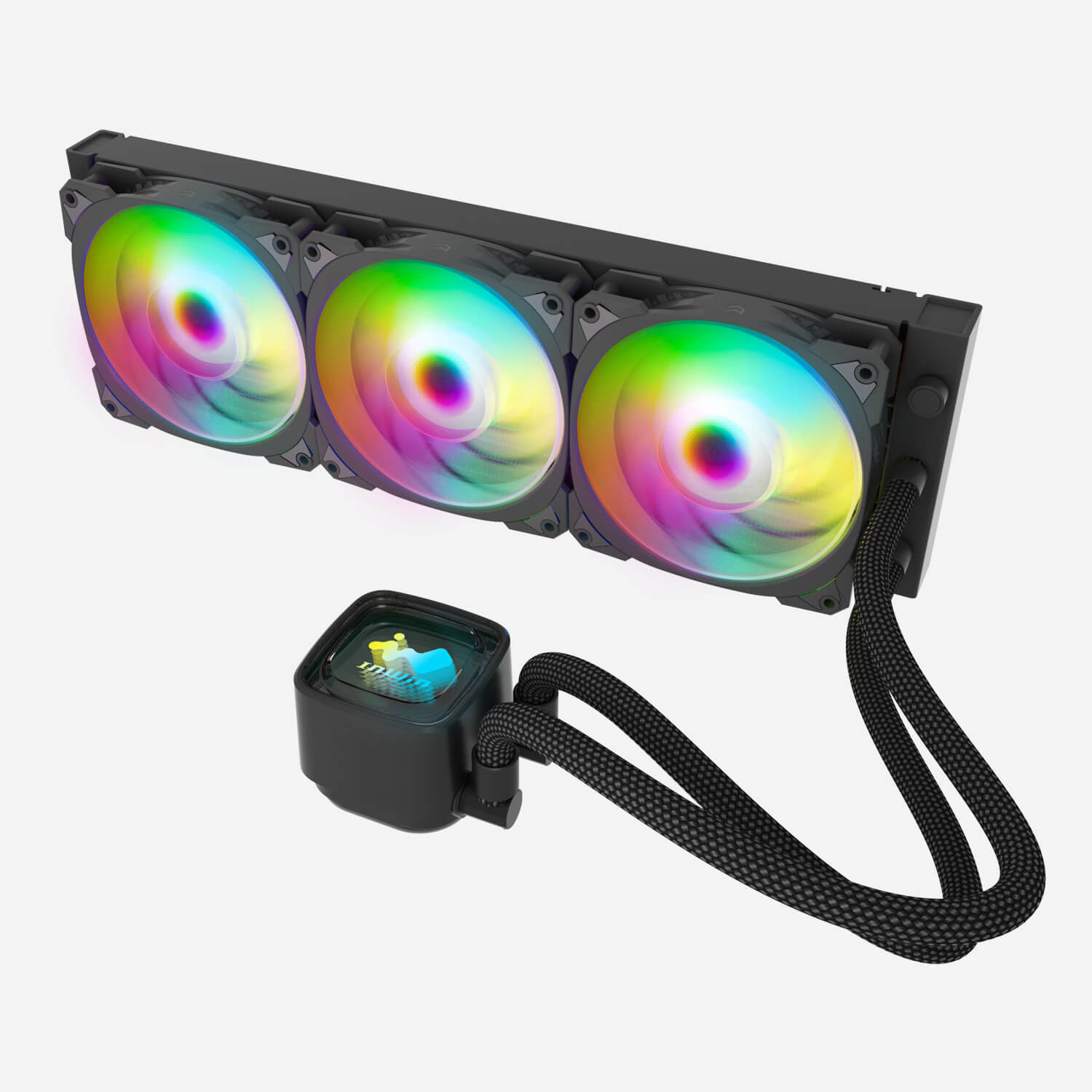

Bothered by a hot CPU and complex installations? The AR All-in-One Liquid CPU Cooler offers high-performance cooling and effortless setup. Equipped with three high-static-pressure Neptune AN120/AN120P fans and a striking ARGB infinity water block, delivering excellent thermal performance in style!

*The AR36 AIO will be available around mid-January 2025.

color:Black
  1. Infinity Mirror Design on Water Block
  2. Paired with InWin’s ARGB, Silent Static Pressure Fans, Neptune AN120/AN120P
  3. FIN-Tastic Heat Dissipation
  4. Supports AM5 and LGA1851

Specs

Model AR36
Model Number IW-LC-AR36BLK IW-LC-AR36WHI
Colors Black White
CPU Socket Support Intel® LGA 1851/ 1700/ 15xx/ 1200/ 115x
AMD AMD AM5/ AM4/ AMx/ FMx
Radiator Dimensions
(L x W x H)		 397 x 120 x 27 mm
15.6 x 4.7 x 1.06"
Material Aluminium
Tube Length 450 mm
Tube Material Rubber with Nylon Braided Sleeve
Water Block Dimensions
(L x W x H)		 65 x 65 x 56 mm
2.5 x 2.5 x 2.2"
Materials Plastic
Pump Pump Speed 3100 RPM +/- 10%
Power DC 12V, 0.28A (0.3A MAX)
Fans Model Neptune AN120 Neptune AN120P
Quantity Included 3 PCS
Dimensions
(L x W x H)		 120 x 120 x 25 mm
4.7 x 4.7 x 1.0"
Speed Mode PWM 900 - 2200 +/- 10% RPM
Noise Level 20.5 dB(A) (Normal)
Airflow 23.87 - 60.1 CFM
Air Pressure 0.36 - 2.27 mm / H2O
Connectors 4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Bearing Type Long Lifespan Sleeve Bearing
Package Contents 1 x InWin AR36 Liquid CPU Cooler
3 x InWin Neptune AN120 Fans 3 x InWin Neptune AN120P Fans
Accessories Bag
Package Dimensions
(L x W x H) 		448 x 137 x 205 mm
17.6 x 5.3 x 8"
Net Weight 1.8 Kg / 2.2 lbs
Gross Weight 2.4 Kg / 5.2 lbs
Warranty 3 Years
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.

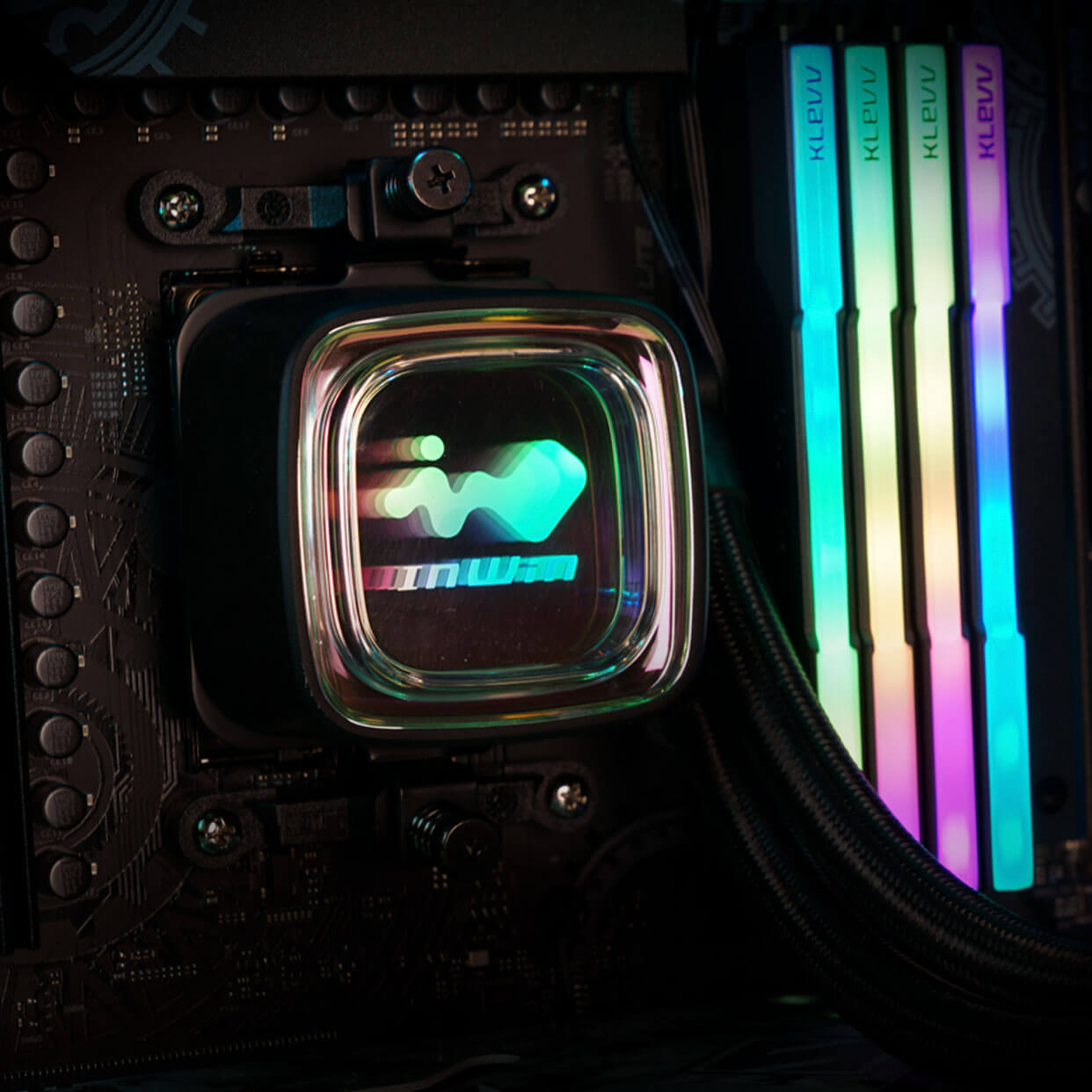

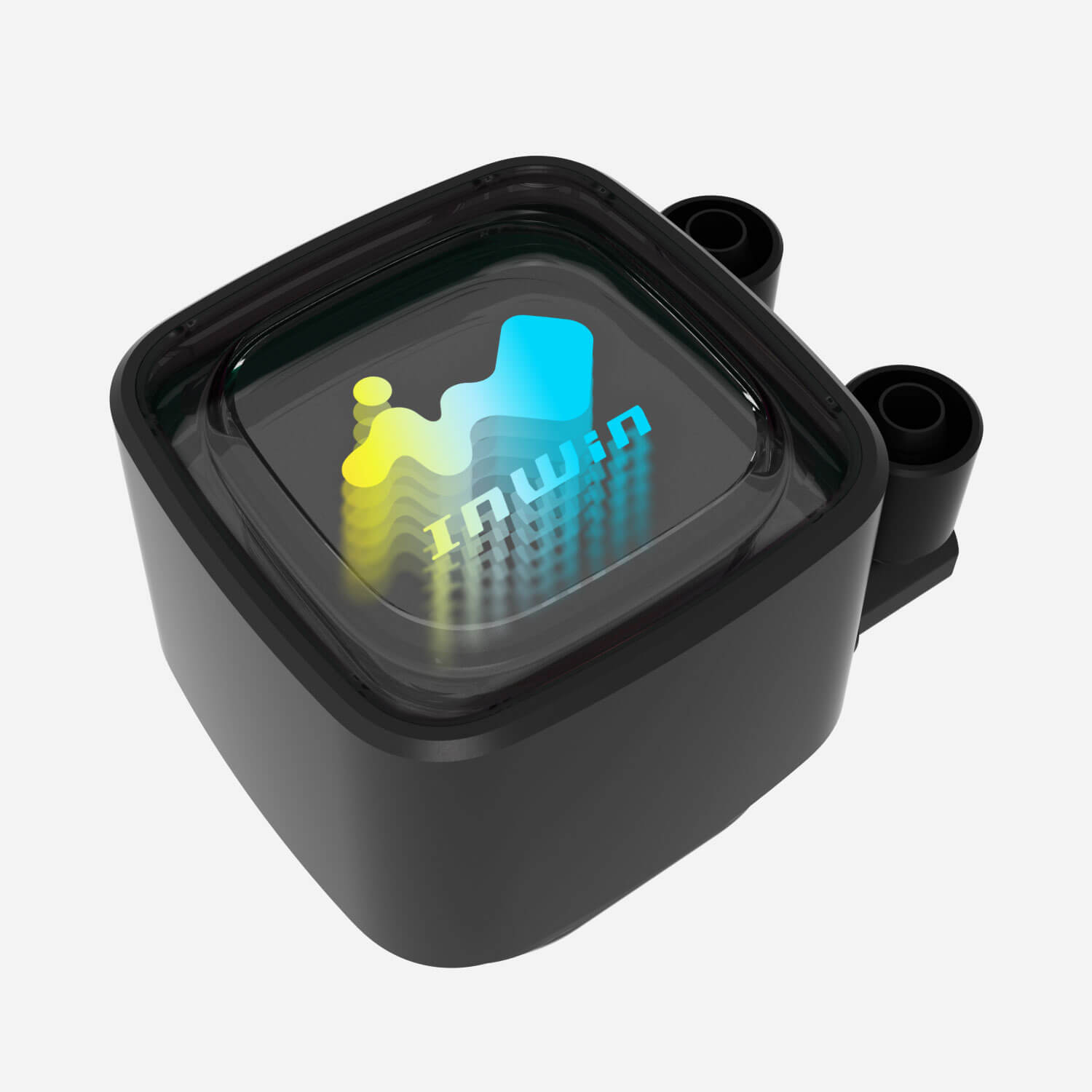

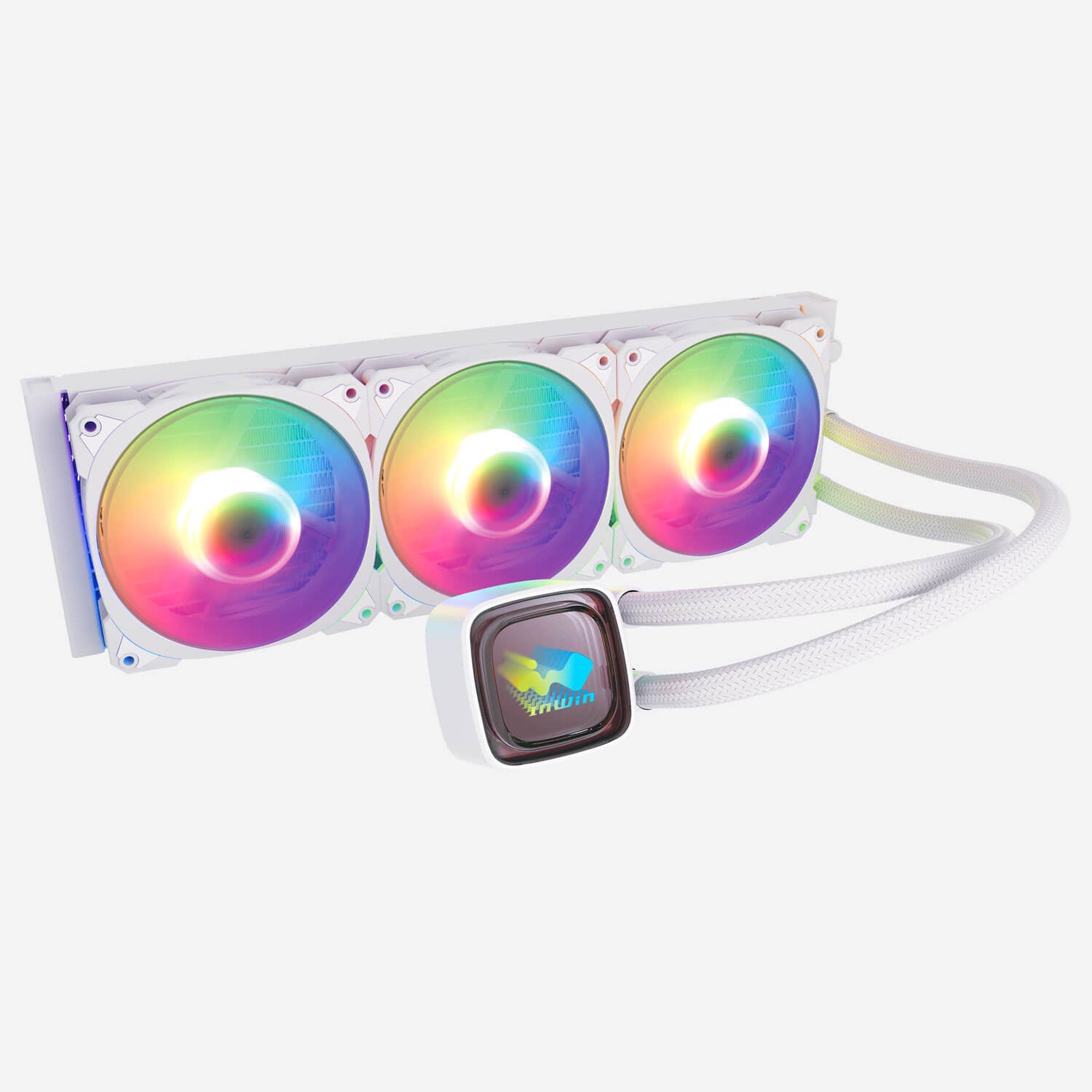

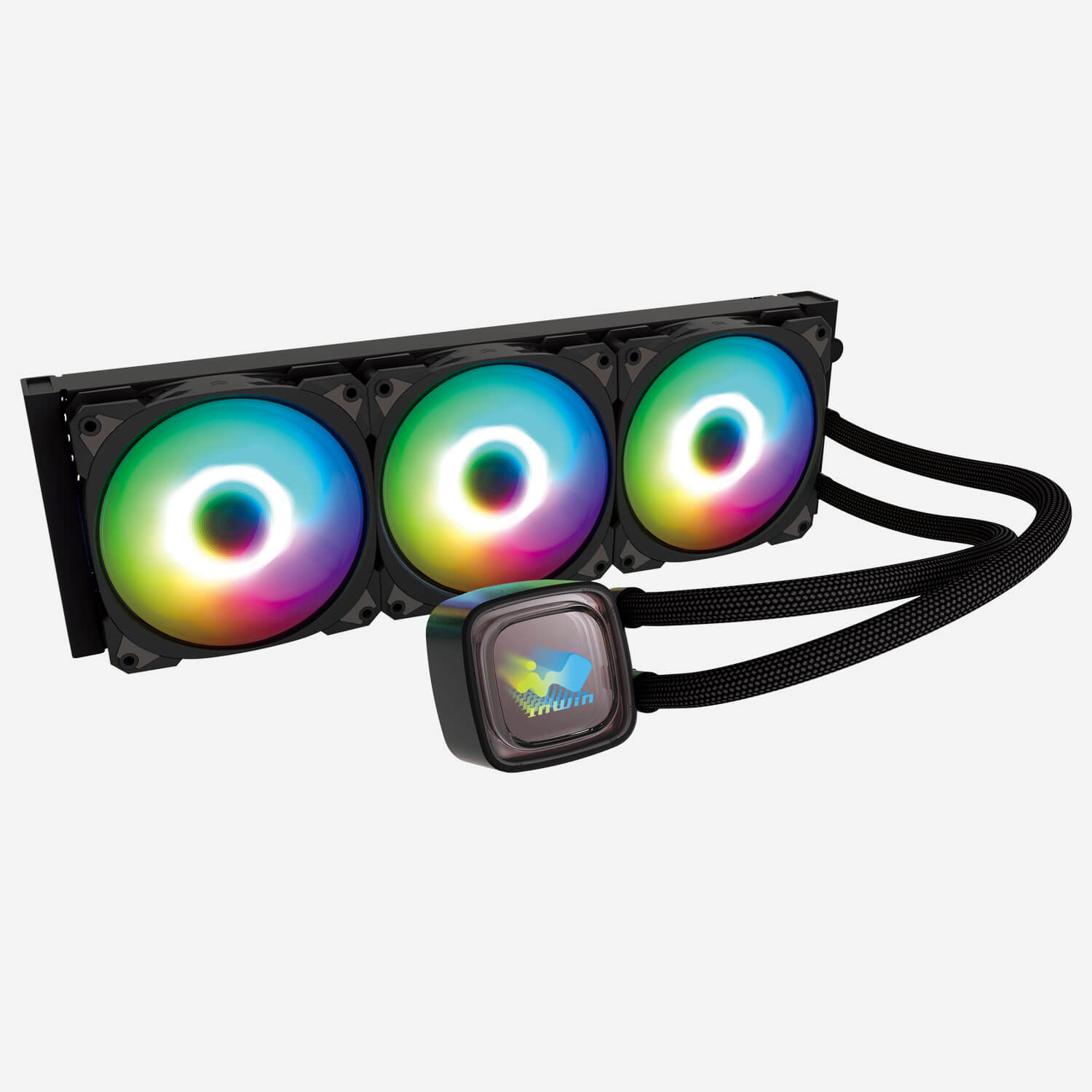

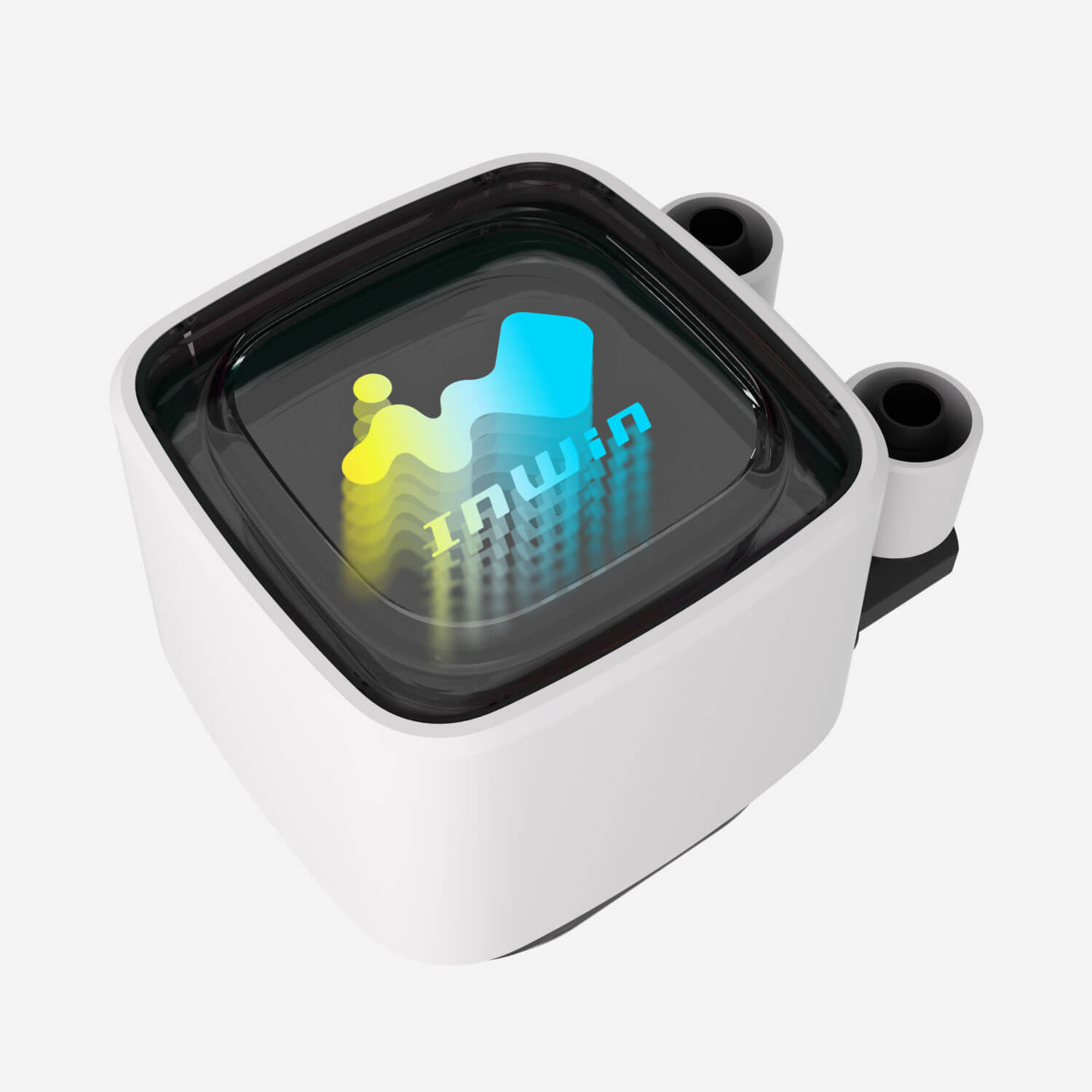

Infinity Water Block

The ARGB water block display draws inspiration from light and reflections, producing a vibrant, colorful glow from every angle.

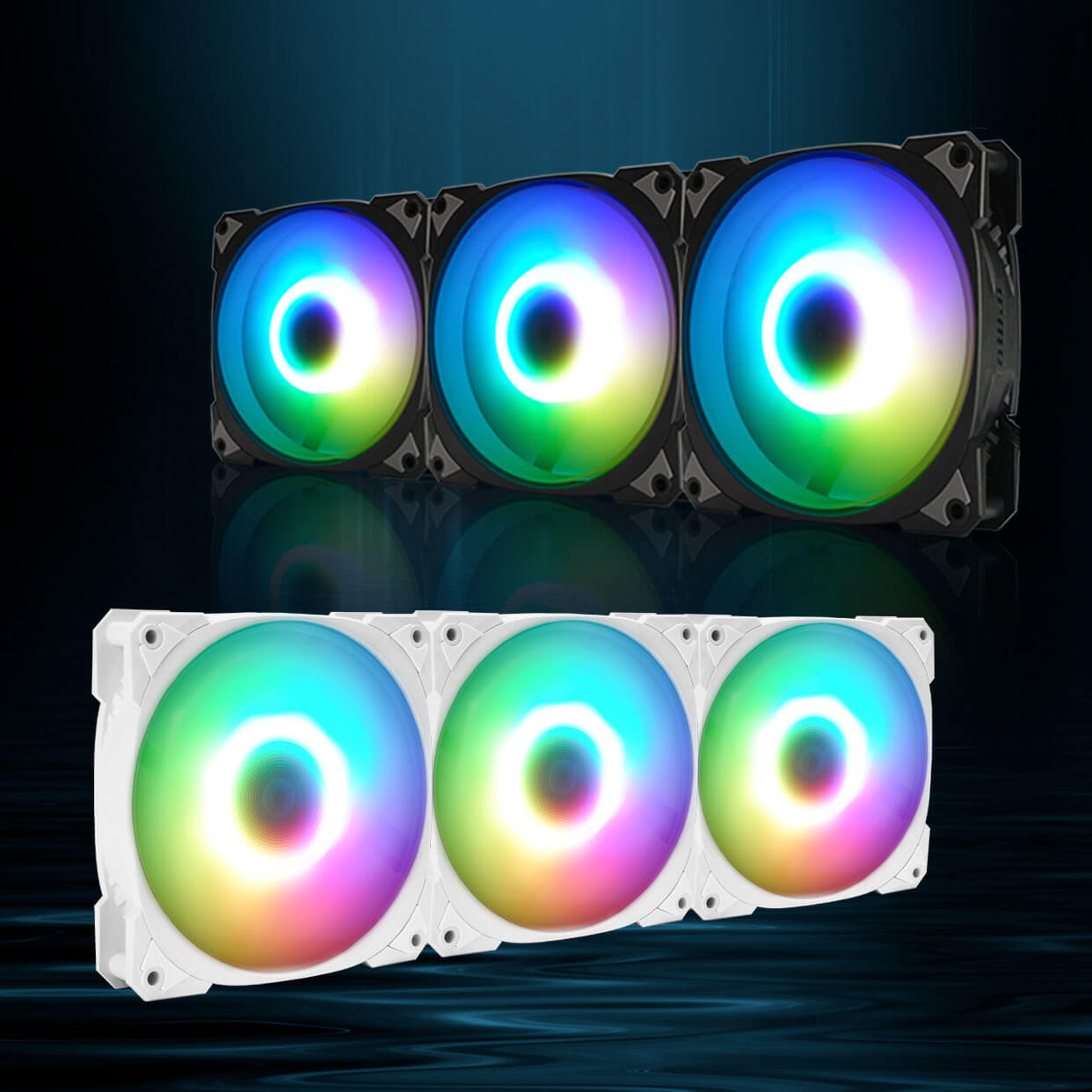

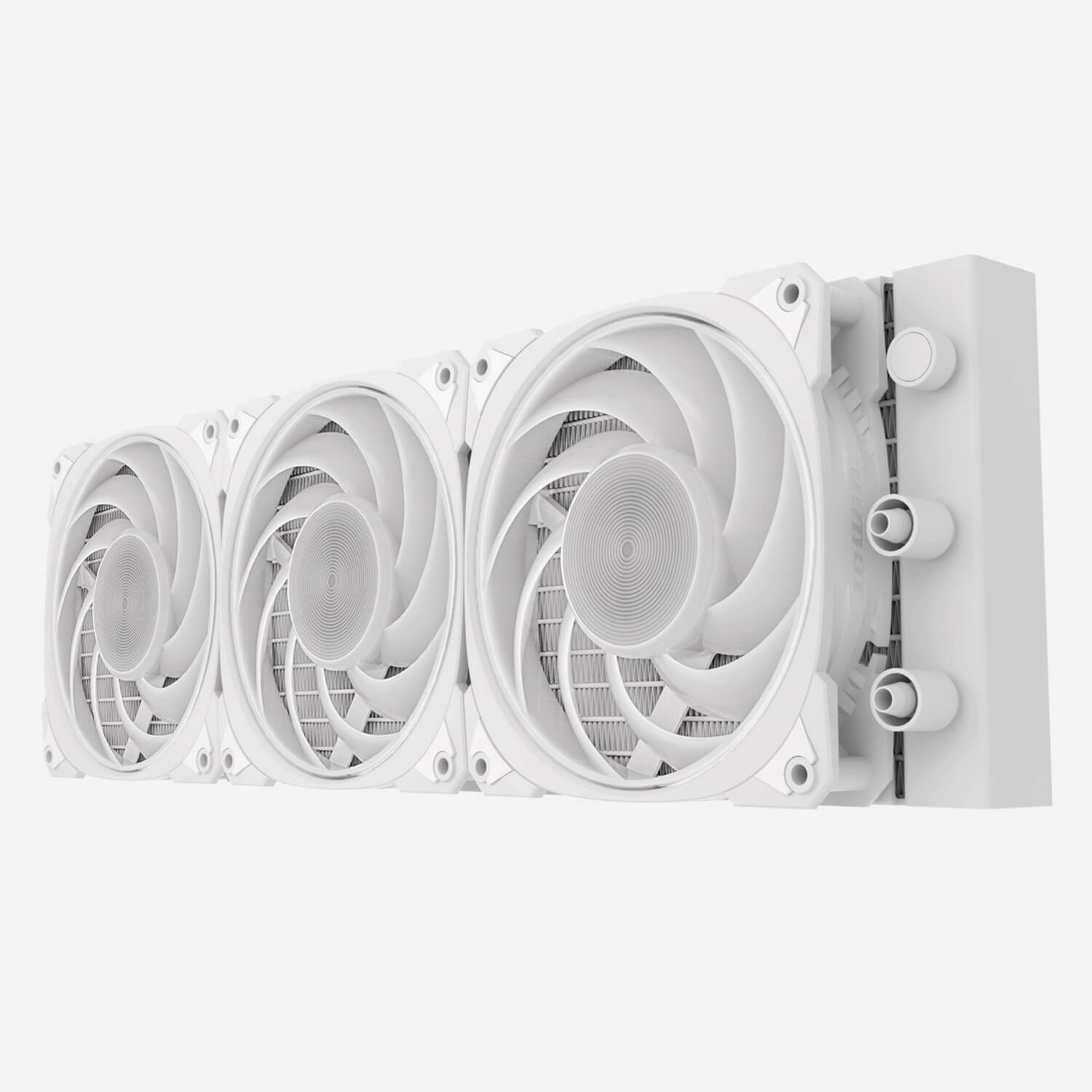

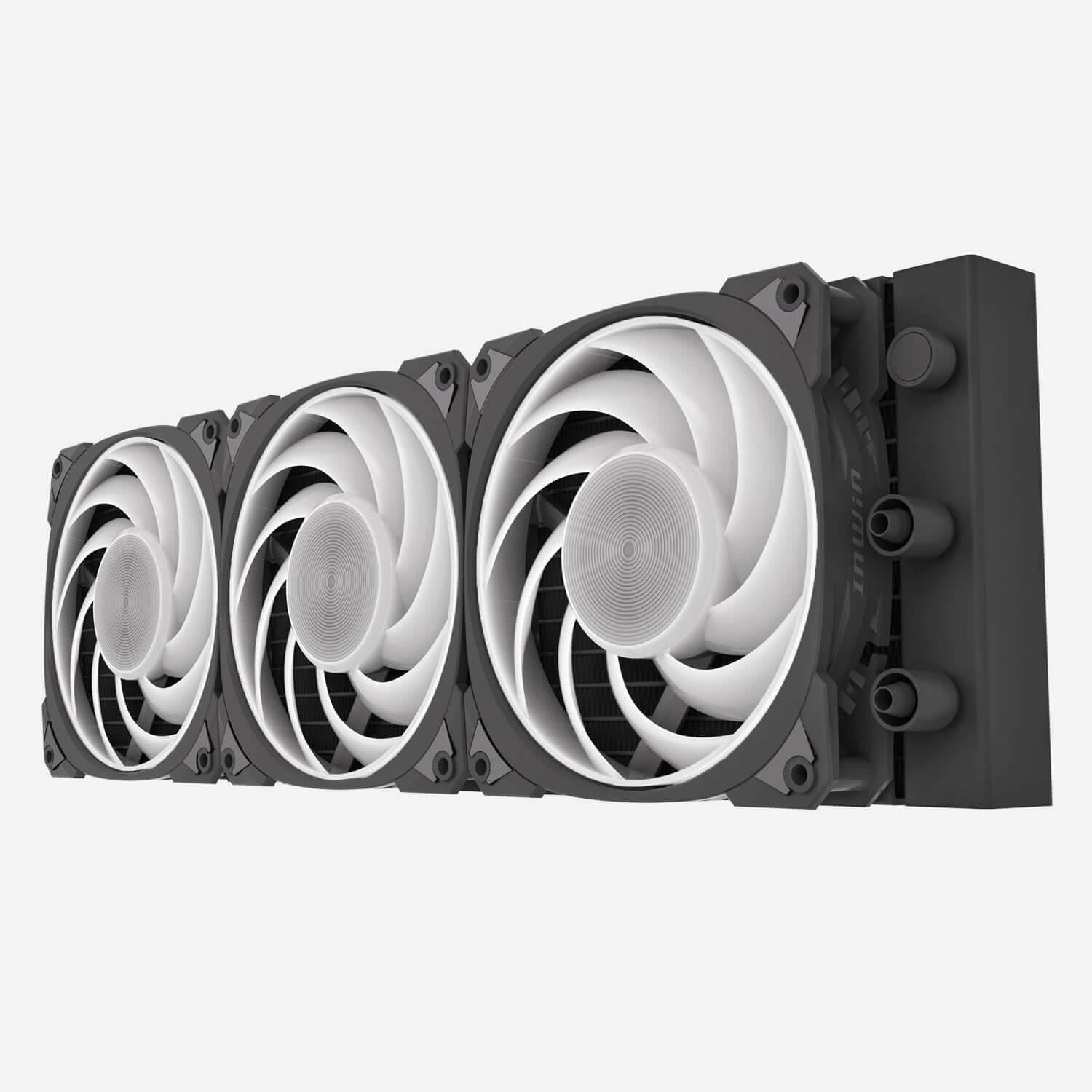

Neptune AN120/AN120P: Silent Static Pressure Fans

The AR AIO is paired with the Neptune AN120/AN120P silent static pressure fans, which are tailor-made for liquid-cooling!

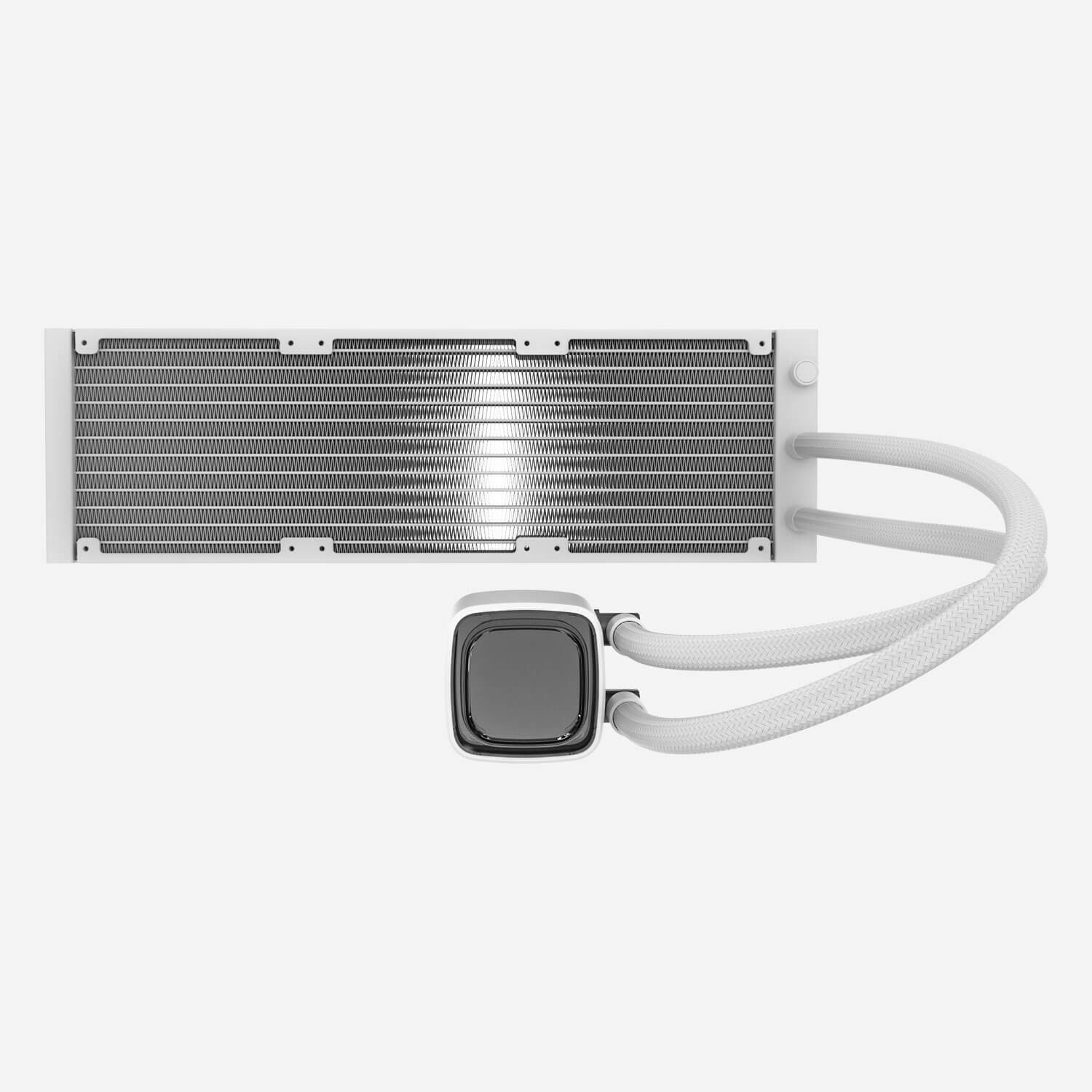

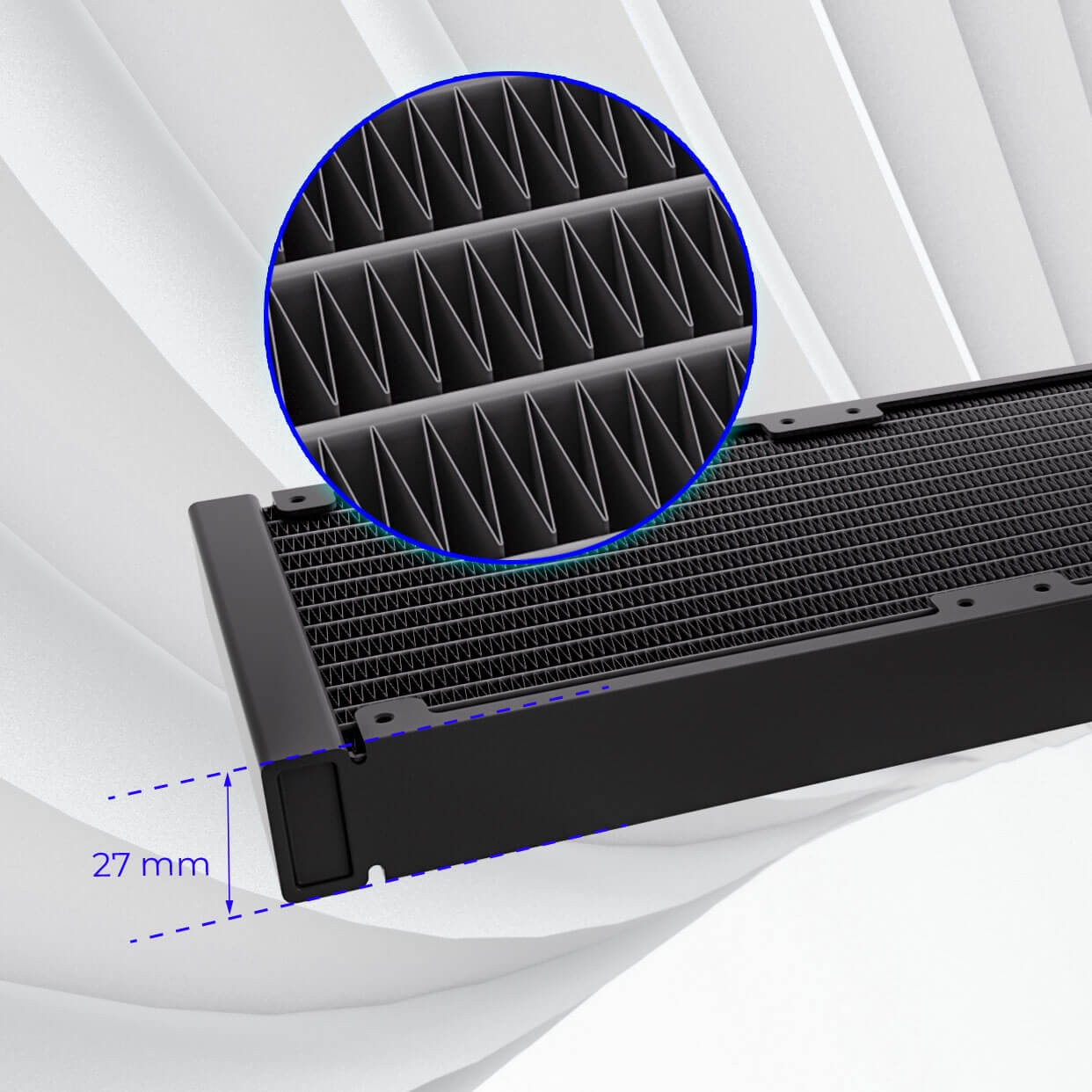

FIN-Tastic Heat Dissipation

The 27 mm-thick radiator features a large heat dissipation area, armed at 20 fins per inch (FPI), enhancing thermal conductivity.

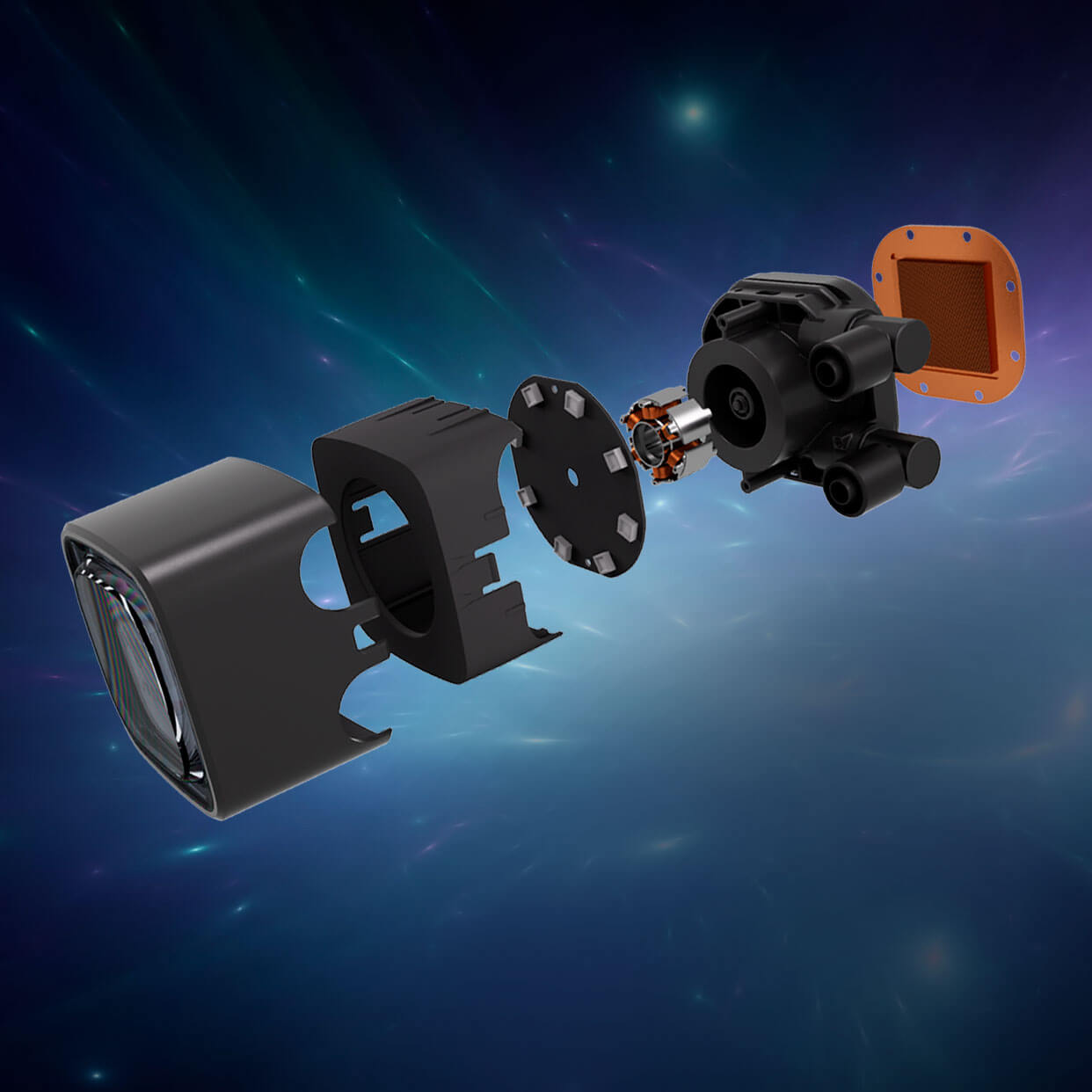

Internal Cooling Efficiency

The pump utilizes a three-phase, six-pole motor, ensuring high performance and reduced noise during operation.

AMD AM5 & Intel LGA 1851 Compatibility

The AR Series supports the latest CPU socket without compatibility concerns.

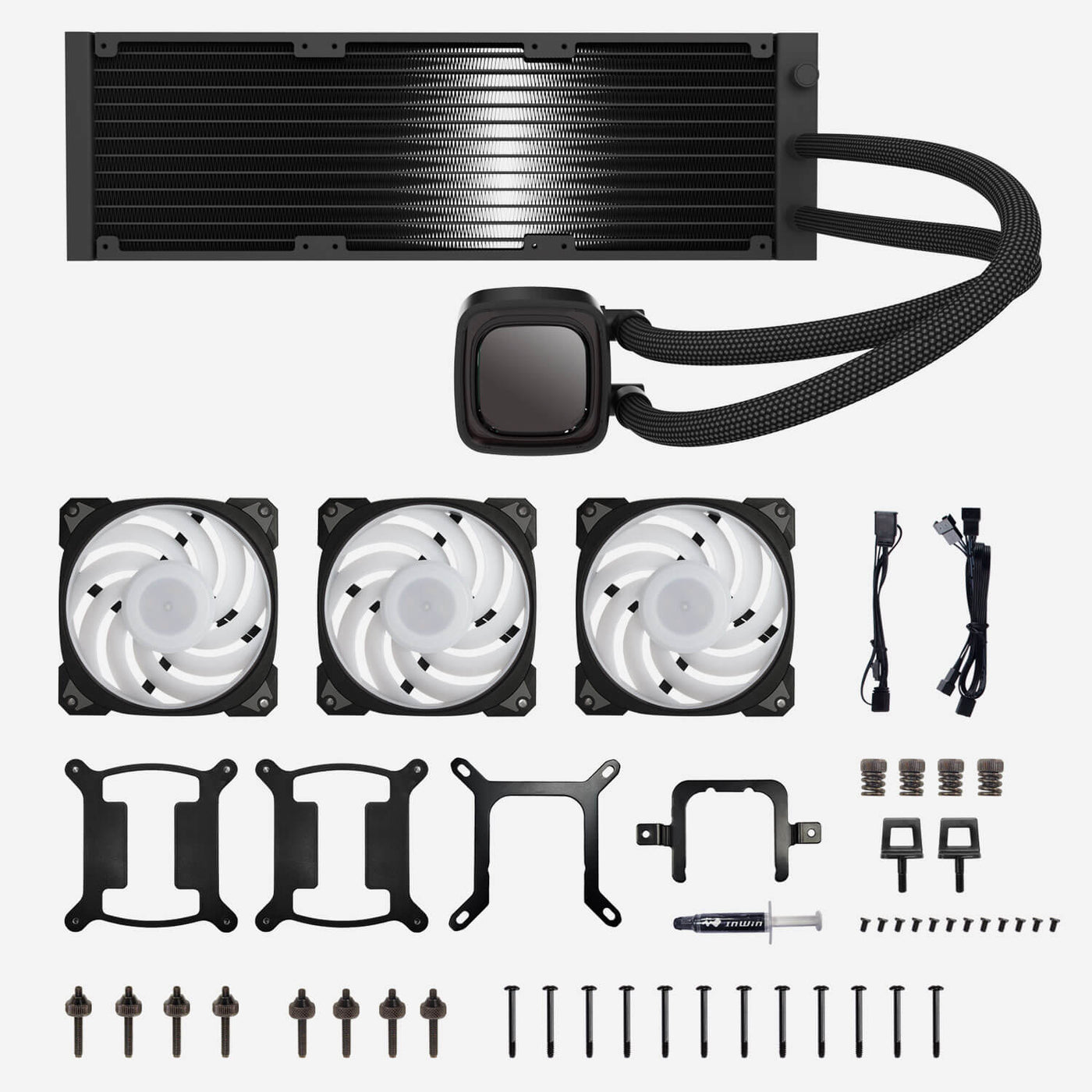

Components

AR36 CPU Liquid Cooler x 1
Neptune AN120/AN120P Fans x 3
Accessories Bag x 1

Become a Fan of InWin’s Case Fans!

InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs

Non-Modular Cable
4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)

Sirius Loop

Jupiter Series

Sirius Pure

Luna AL120

Mercury AM120S

Sirius Extreme

Sirius Extreme Pure

Neptune AN Series

Neptune DN Series

Neptune DN PRO Series

Modular ARGB Type 1
6-Pin Modular (PWM + ARGB)

Aurora

EGO

Modular ARGB Type 2
6-Pin Modular (PWM + ARGB)

Crown Series

Saturn Series

Type-C Modular Cable
(PWM + ARGB)

Lynx Series

Modular RGB
8-Pin Modular (PWM + RGB)

Polaris RGB Series

Polaris AluminumRGB Series

InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
