AIRFORCE
Extended ATX
-
19-Piece Module Set
-
Two Different Color Schemes
-

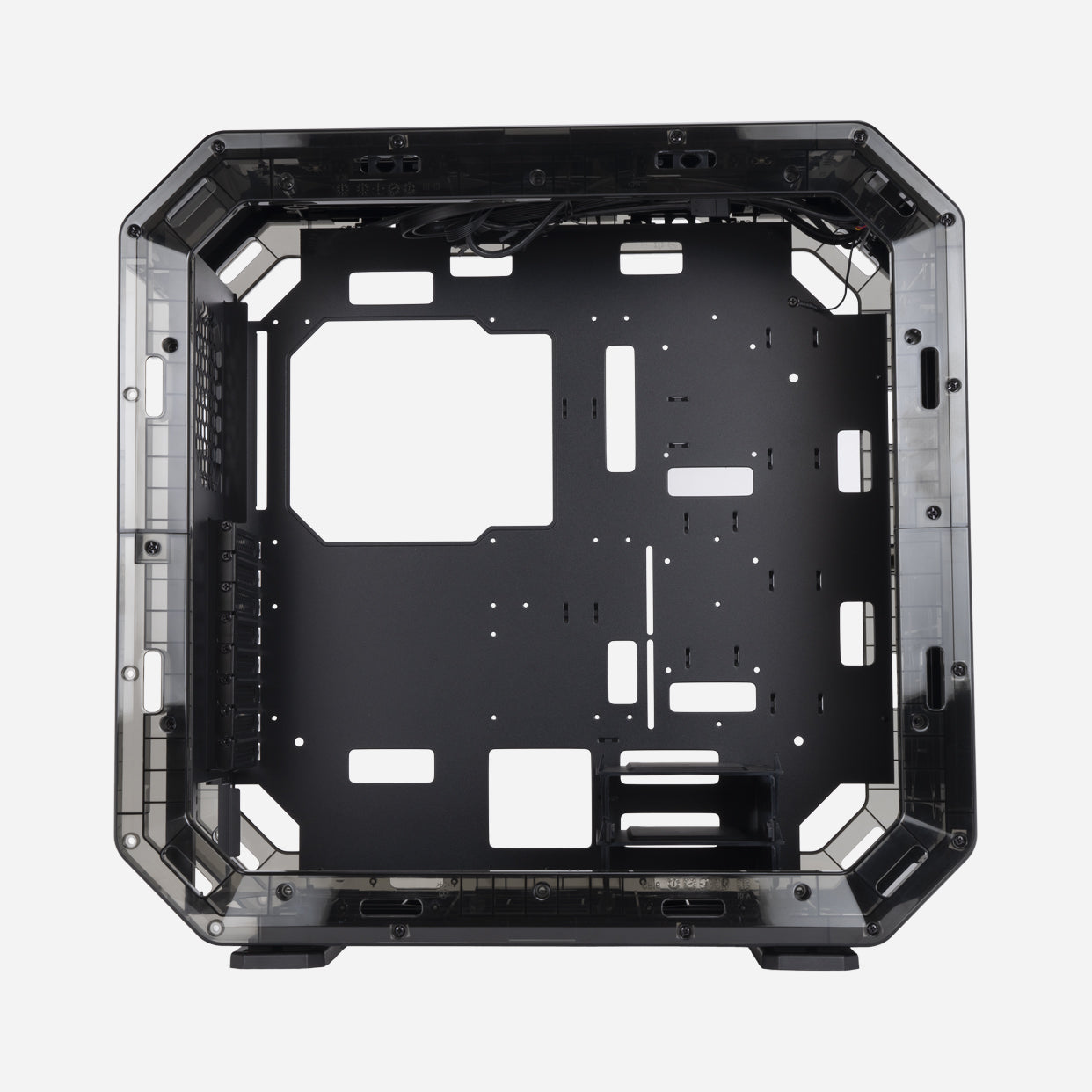

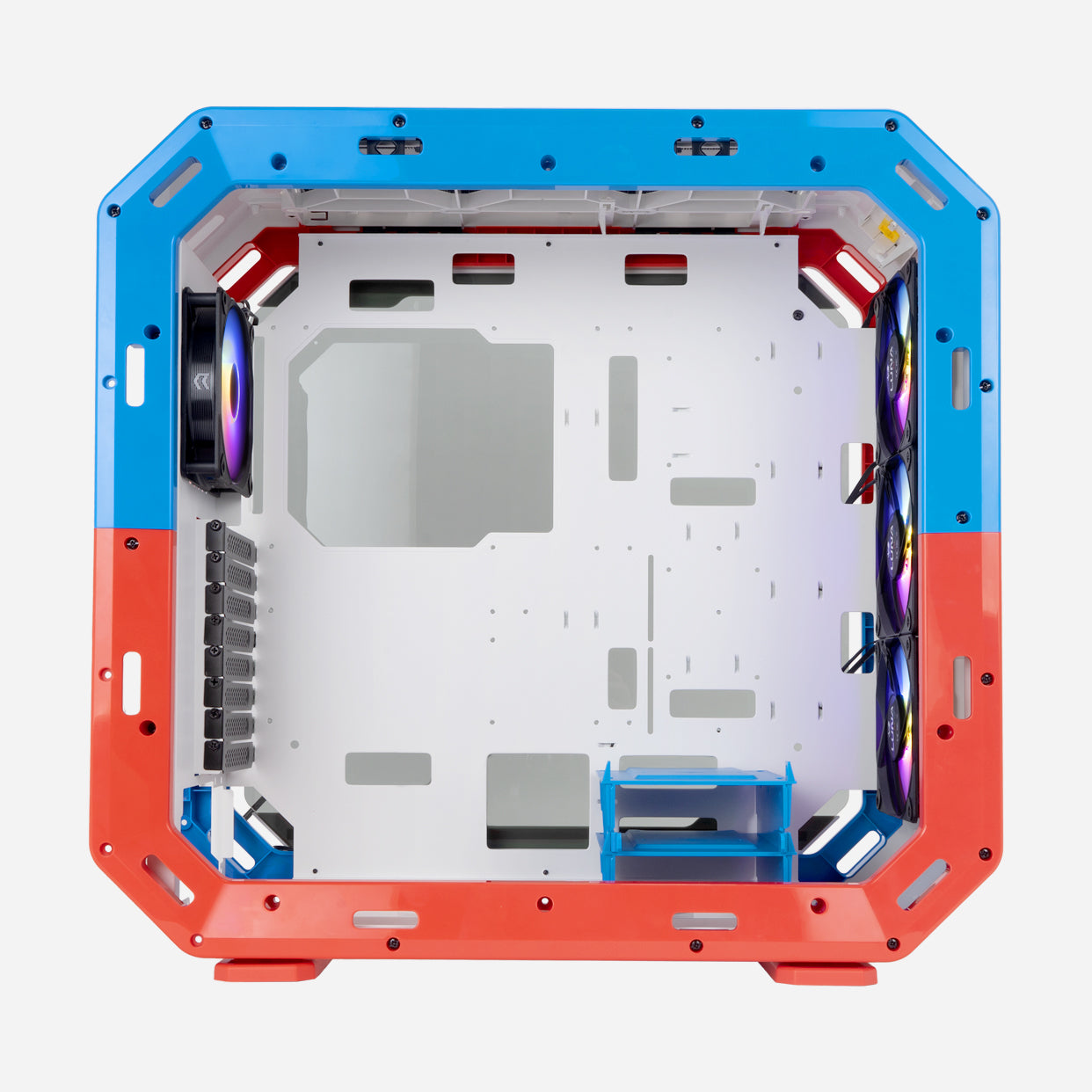

Spacious Interior for Maximum Expandability
-
User Friendly, Hassle Free Design
Specs
| Model | AIRFORCE |
|---|---|
| Model Number | IW-CS-AIRFORCE-WHI, IW-CS-AIRFORCE-BLA |
| Color | Justice White, Phantom Black |
| Case Type | Mid Tower |
| Materials | Tempered Glass, SECC, ABS |
| M/B Compatibility | 12” x 13” (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 8 x PCI-E |
| Maximum Compatibility | VGA Card Length: 390 mm CPU Heatsink Height: 170 mm |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.0 HD Audio |
| Internal Drive Bays | 4 x 2.5" 2 x 3.5" |
| Thermal Solution Compatibility | Air Cooling Fans: Front: 3 x 120 mm Top: 3 x 120 mm Rear: 1 x 120 mm (4 InWin AL120 Fans Included) Water Cooling Radiator: Front: 1 x 360 mm Top: 1 x 360 mm |
| Power Supply Compatibility | PSII : ATX12V - Length up to 180mm |
| Product Dimension (L x W x H) |
537 x 270 x 528 mm 21.1 x 10.6 x 20.7” |
| Package Dimension (L x W x H) |
590 x 550 x 240 mm 23.2 x 21.6 x 9.4” |
| Net Weight | 6.9 kg / 15.2 lbs |
| Gross Weight | 11.2 kg / 24.7 lbs |
| * Number of fans pre-installed may vary based on different regions. * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
| Product Name | Luna AL120 | |
|---|---|---|
| Quantity Included | Single Pack Triple Pack |
|
| Part Number |
IW-FN-AL120-1PK IW-FN-AL120-3PK |
|
| Color | Black | |
| Fan Size | 120 x 120 x 25mm | |
| Material | PC, PBT | |
| Rated Voltage | DC 12V | |
| Rated Power | 3.96W | |
| Rated Current | 0.33A | |
| ADD RGB Rated Voltage | DC 5V | |
| ADD RGB Rated Power | 1.5W | |
| ADD RGB Rated Current | 0.3A | |
| Speed Mode | PWM 600-1800 +/-10% RPM | |
| Air Flow | 82.96 CFM | |
| Air Pressure | 2.31 mm / H2O | |
| LED | Addressable RGB | |
| Connector (Fan to Fan) | Non-Modular Cables | |
| Connector to M/B | 4-Pin (PWM, 12V), 3-Pin (ARGB, 5V) | |
| Noise Level | 25 dB(A) (Normal) | |
| Bearing Type | Long Lifespan Sleeve Bearing | |
| Gross Weight | 169 g 484 g |
|
| Package Dimension (H x L x W) |
125 x 185 x 30mm 125 x 185 x 82mm |
|
| Warranty | 2 years | |
| * Specifications may vary based on different regions. * InWin's products comply with RoHS regulations. |
||
Build Excellence

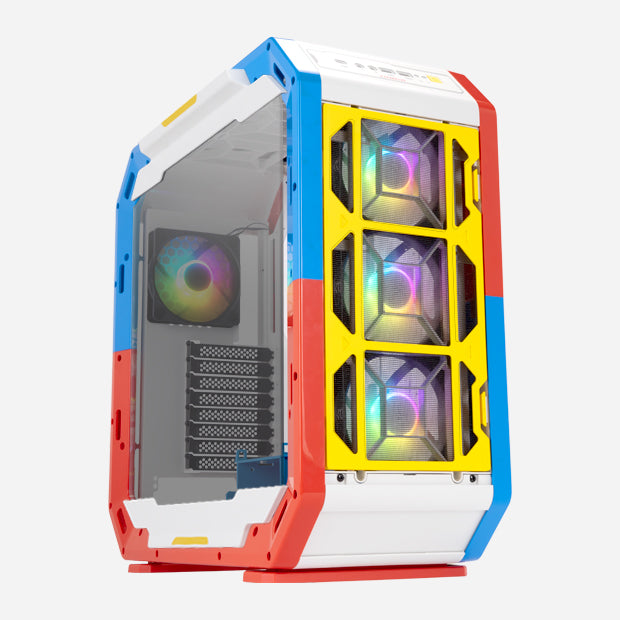

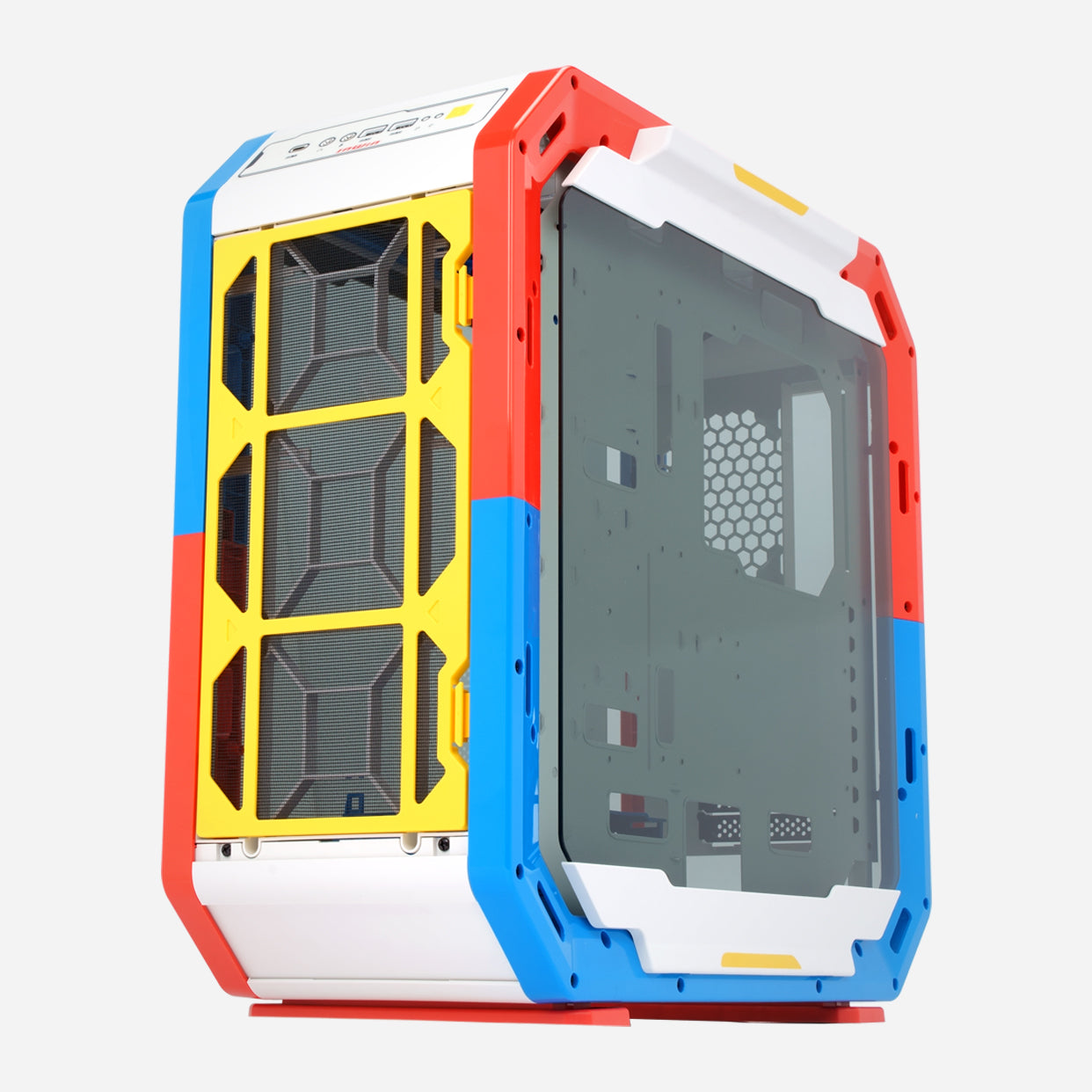

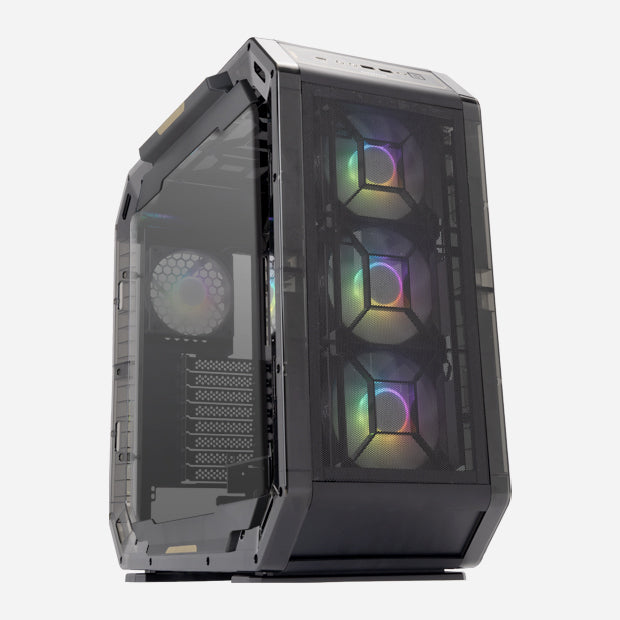

Justice vs. Phantom
Setup and Performance is a Breeze!

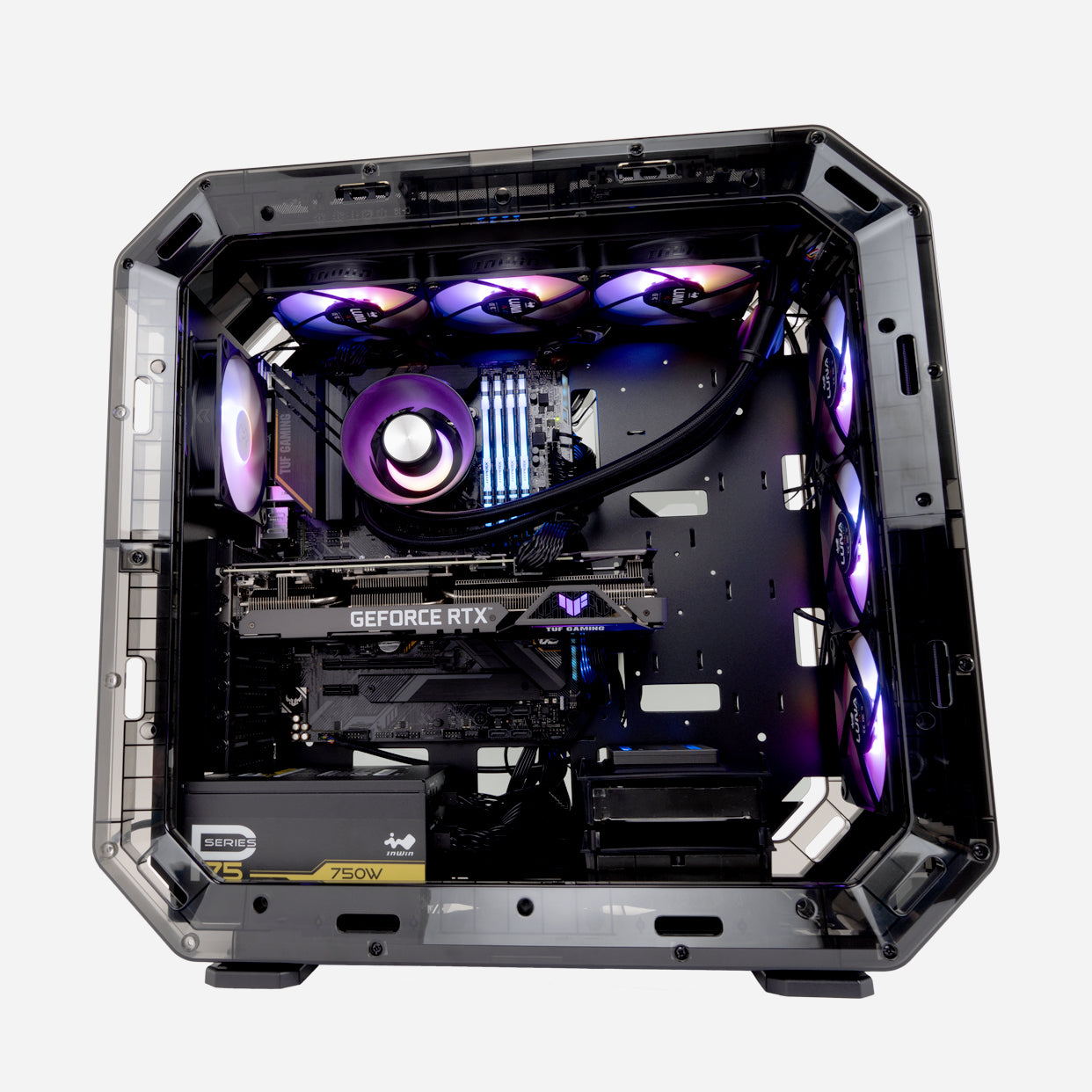

Spacious Interior with Optimal Cooling Solutions
High Performance Luna Fans Included

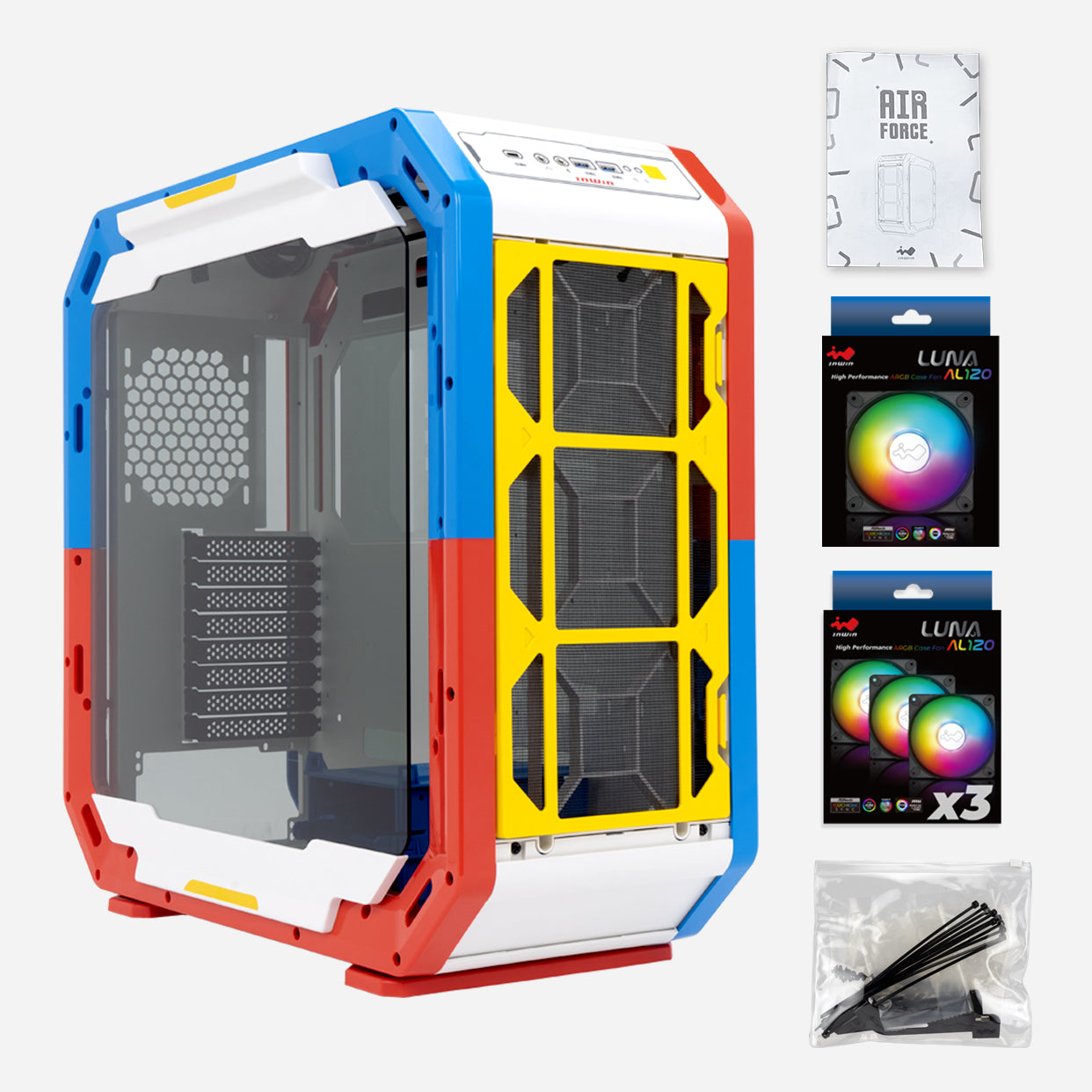

Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
|
Non-Modular Cable
|
Sirius Loop
|
Jupiter Series
|
Sirius Pure
|
Luna AL120
|
Mercury AM120S
|
|---|---|---|---|---|---|
|
Sirius Extreme
|
Sirius Extreme Pure
|
Neptune AN Series
|
Neptune DN Series
|
Neptune DN PRO Series
|
|
|
Modular ARGB Type 1
|
Aurora
|
EGO
|
|||
|
Modular ARGB Type 2
|
Crown Series
|
Saturn Series
|
|||
|
Type-C Modular Cable
|
Lynx Series
|
||||
|
Modular RGB
|
Polaris RGB Series
|
Polaris AluminumRGB Series
|
InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
