DUBILI
Extended ATX

-
BYOC: Build Your Own Chassis
-

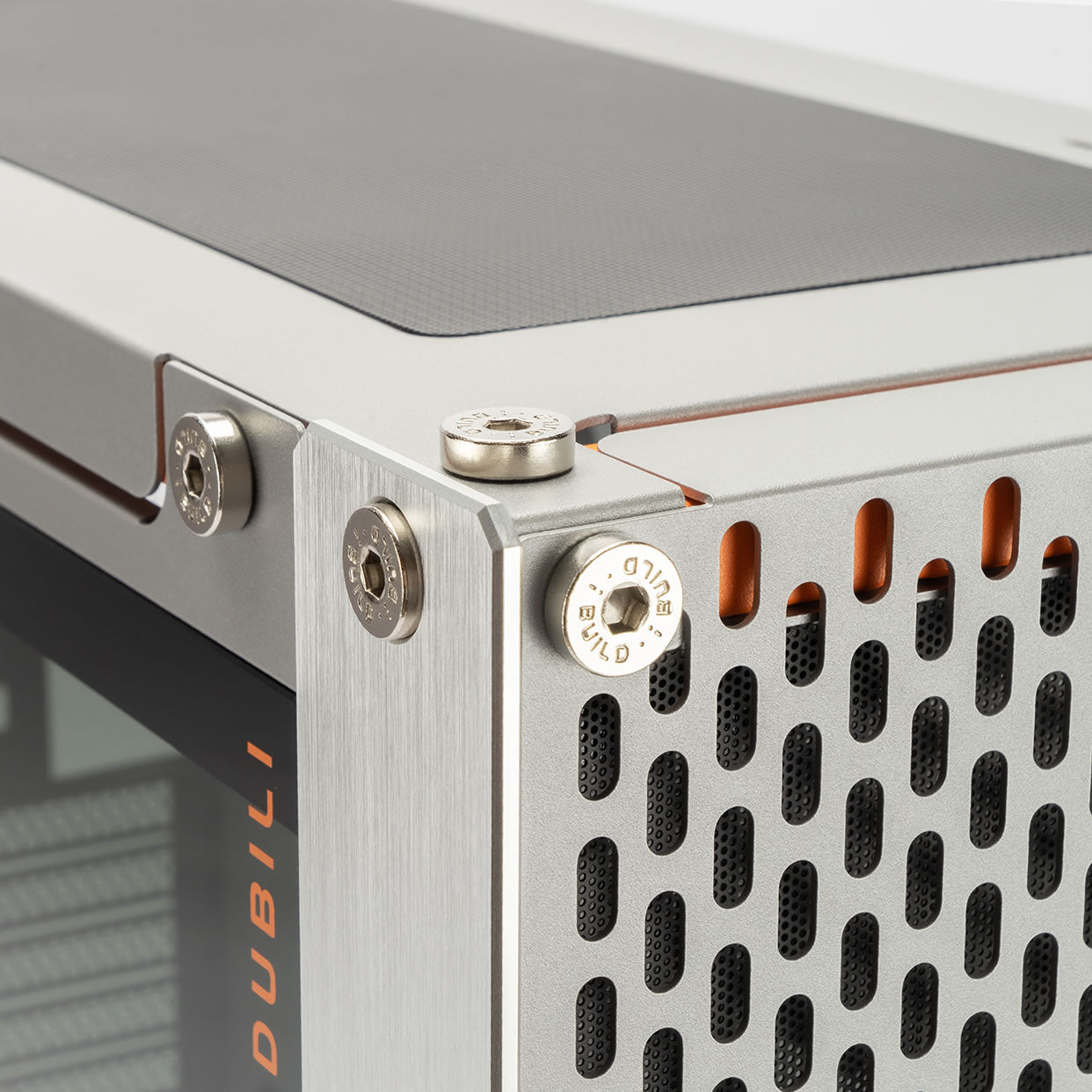

Aesthetic of InWin’s Craftsmanship
-
Build Easy with DUBILI’s Interactive Assembly Guide
-
Spacious Interior Engineered to House High-End Hardware
Specs
Model | DUBILI |
---|---|
Model Version | Modular Parts Ver. |
Model Number | IW-CS-DUBILIMOD-GRY, IW-CS-DUBILIMOD-GLD |

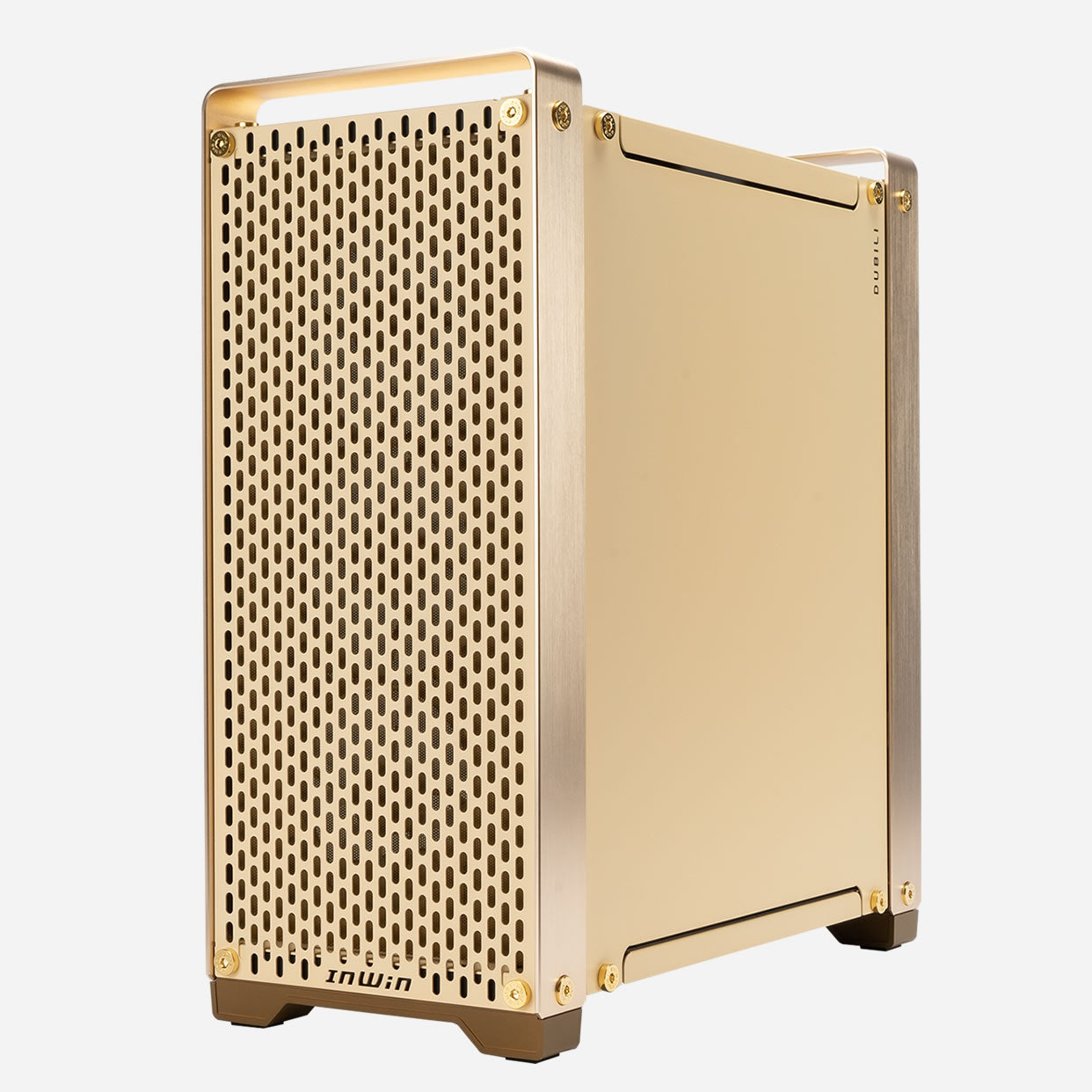

Colors | Titanium Grey, Champagne Gold |
Case Type | Full Tower |
Materials | Aluminium, Tempered Glass, SECC |
M/B Compatibility | 12" x 13" (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX |
Expansion Slots | 8 x PCI-E |
Maximum Compatibility | GPU Length: 430 mm CPU Heatsink Height: 160 mm |
I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Combo (CTIA – SPK/Mic) |
Internal Drive Bays | 4 x 2.5" 2 x 3.5" / 2.5" |

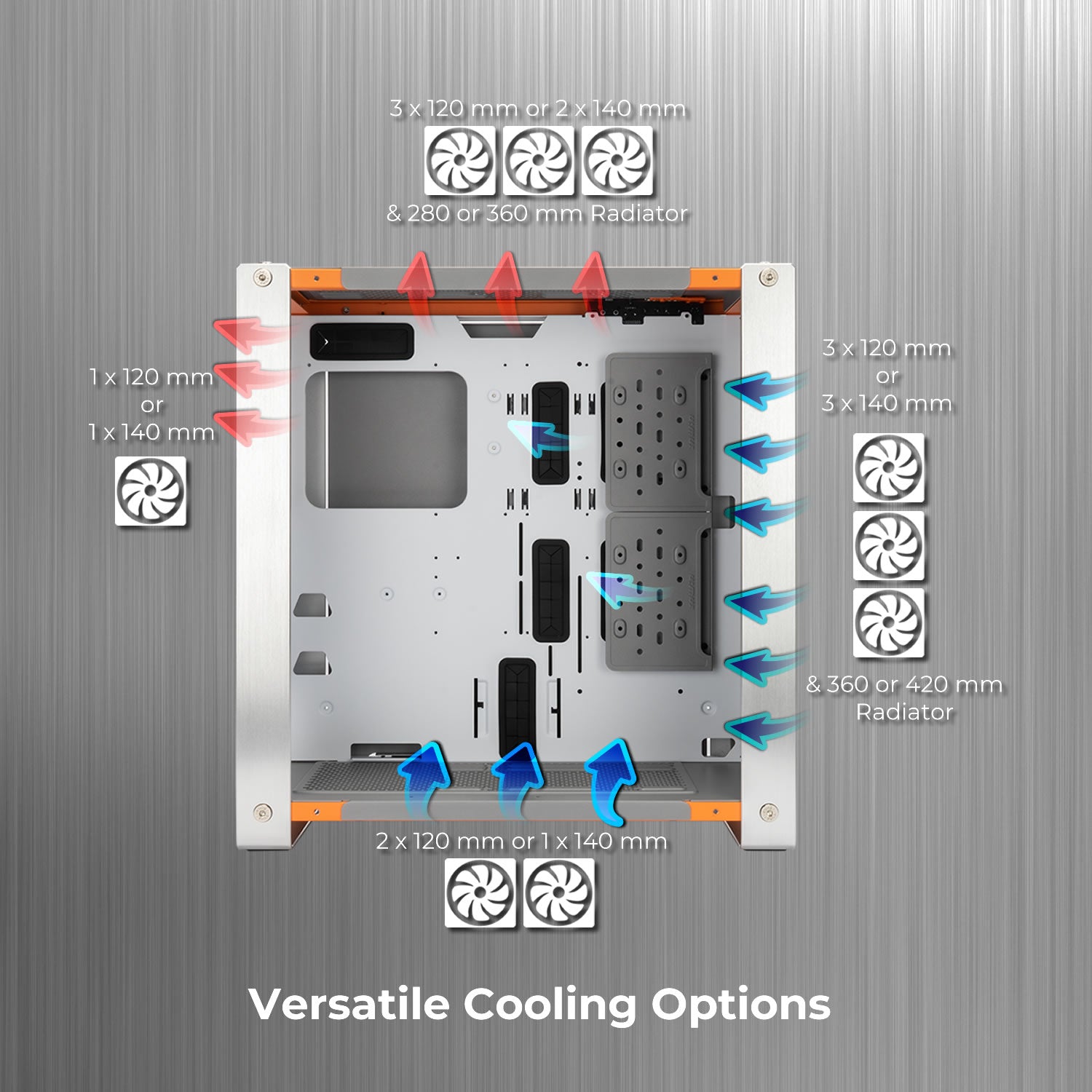

Thermal Solution Compatibility | Air Cooling Fans: Front: 3 x 120 / 140 mm Top: 3 x 120 / 2 x 140 mm Rear: 1 x 120 / 140 mm Bottom: 2 x 120 / 1 x 140 mm Water Cooling Radiator: Front: 1 x 360 / 420 mm Top: 1 x 280 / 360 mm |
Power Supply Compatibility | PSII : ATX12V - Length up to 180mm |
Product Dimensions ( L x W x H ) in Feet Mode |
523 x 244 x 543 mm 20.6 x 9.6 x 21.4" |
Product Dimensions ( L x W x H ) in Handles Mode |
523 x 244 x 567 mm 20.6 x 9.6 x 22.3" |
Package Dimensions (L x W x H) |
620 x 200 x 595 mm 24.4 x 7.9 x 23.4" |
Net Weight | 15.5 kg / 32.19 lbs |
Gross Weight | 18.97 kg / 41.82 lbs |
* InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |

BYOC: Build Your Own Chassis

Aesthetic of InWin’s Craftsmanship

Interactive Assemble Guide

Versatile Cable Shield

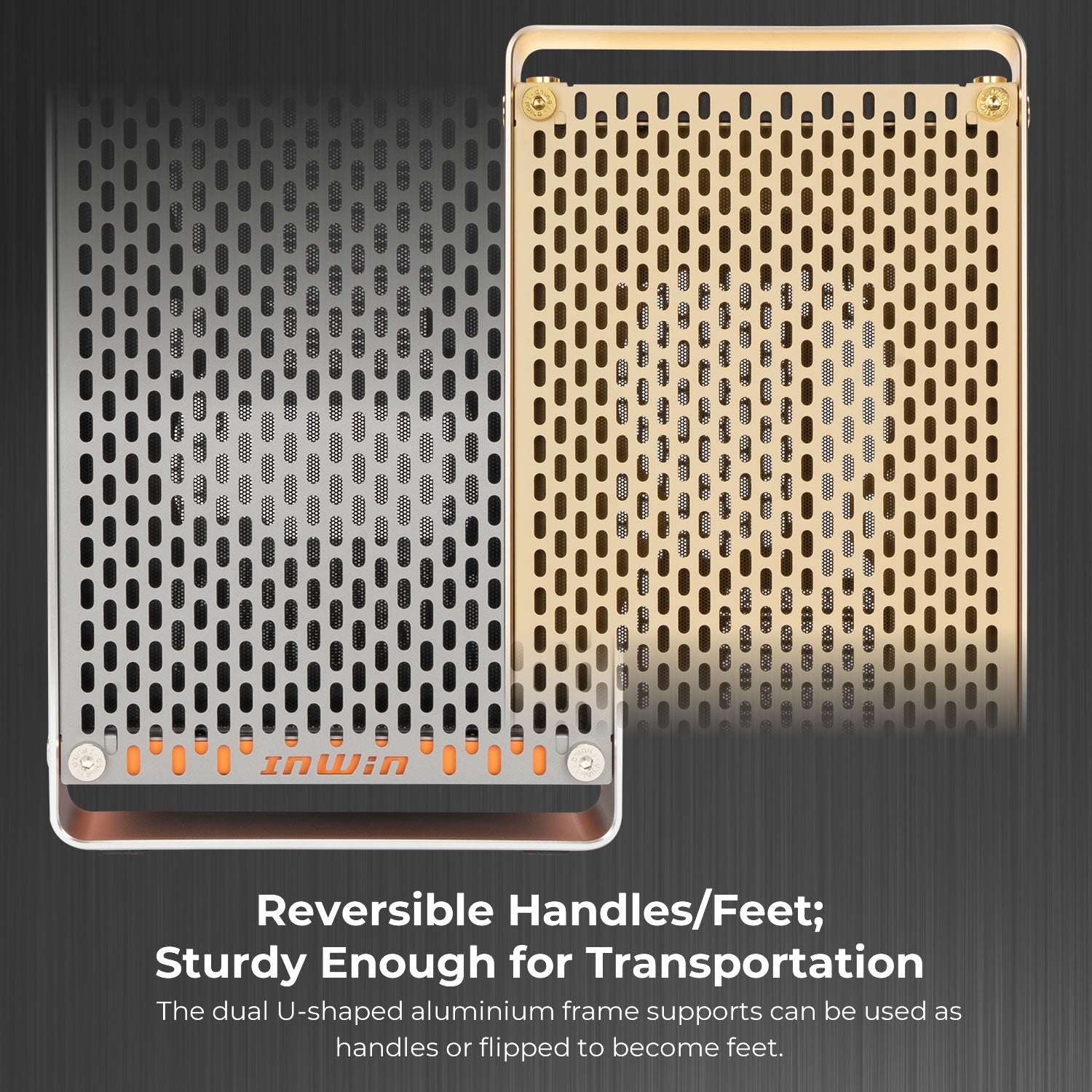

Handles or Feet

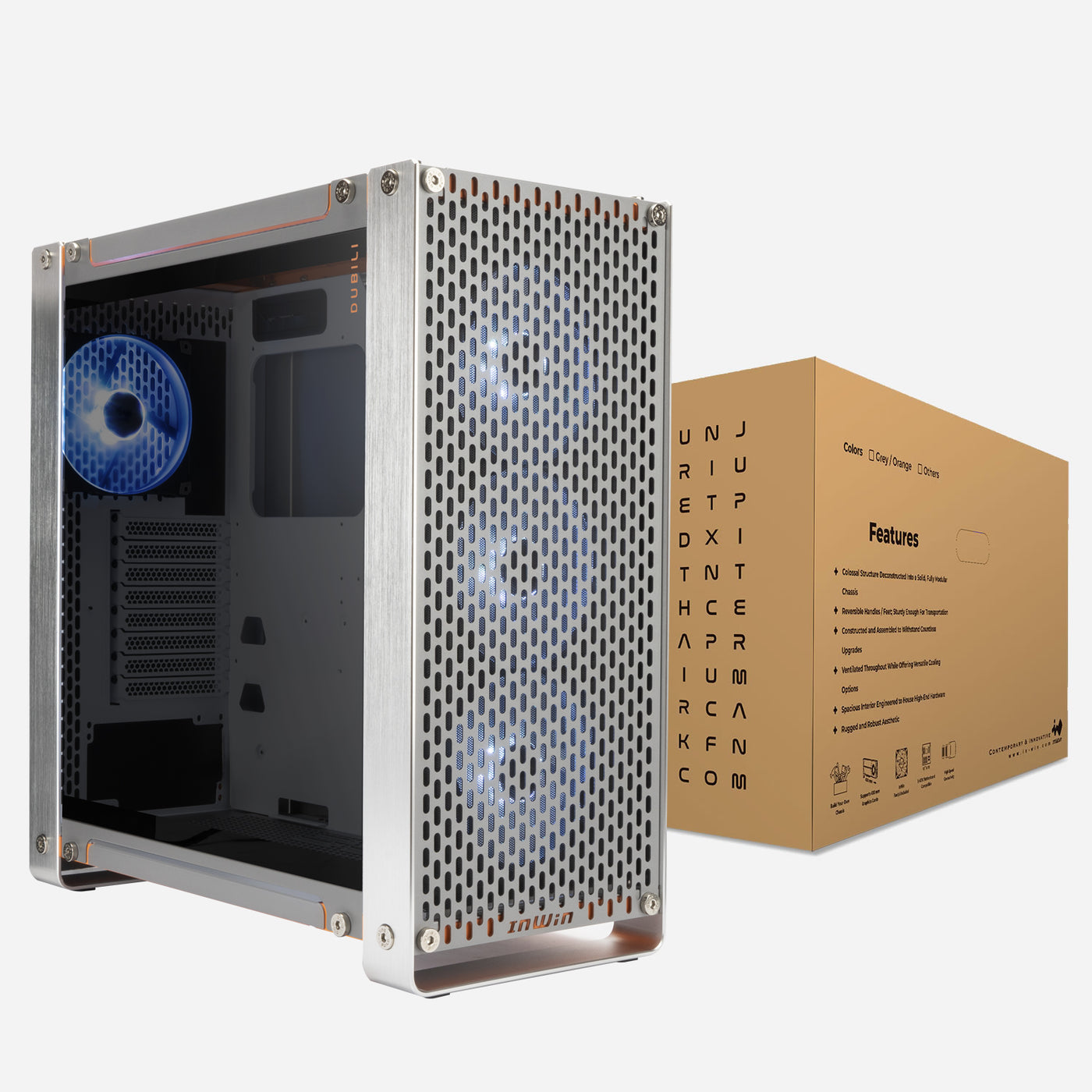

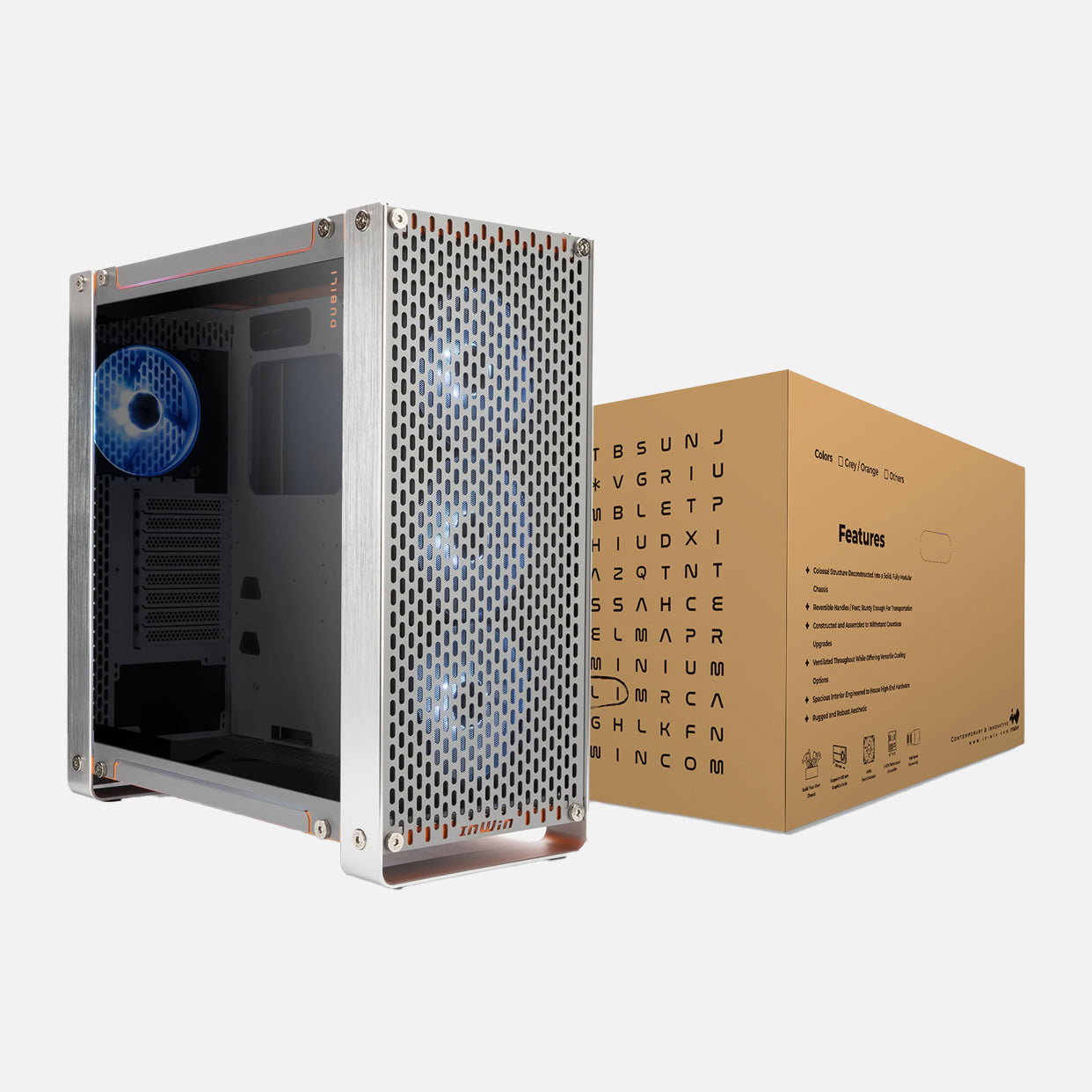

Components
Download
Become a Fan of InWin’s Case Fans!
InWin's case fans are both aesthetically pleasing and practical. There are different series of case fans that meet different user requirements. Some of InWin’s fans are daisy-chainable and some are not. So, take a look and check out which InWin fans match your needs
Non-Modular Cable ![]() |
Sirius Loop ![]() |
Jupiter Series ![]() |
Sirius Pure ![]() |
Luna AL120 ![]() |
Mercury AM120S ![]() |
---|---|---|---|---|---|
Sirius Extreme ![]() |
Sirius Extreme Pure ![]() |
Neptune AN Series ![]() |
Neptune DN Series ![]() |
Neptune DN PRO Series ![]() |
|
Modular ARGB Type 1 ![]() |
Aurora ![]() |
EGO ![]() |
|||
Modular ARGB Type 2 ![]() |
Crown Series ![]() |
Saturn Series ![]() |
|||
Modular RGB ![]() |
Polaris RGB Series ![]() |
Polaris AluminumRGB Series ![]() |
InWin’s Fans Compatibility Note:
1. Do not chain up your fans with other fans in with different cables types.
2. ARGB fans and RGB fans are not compatible with each other.
